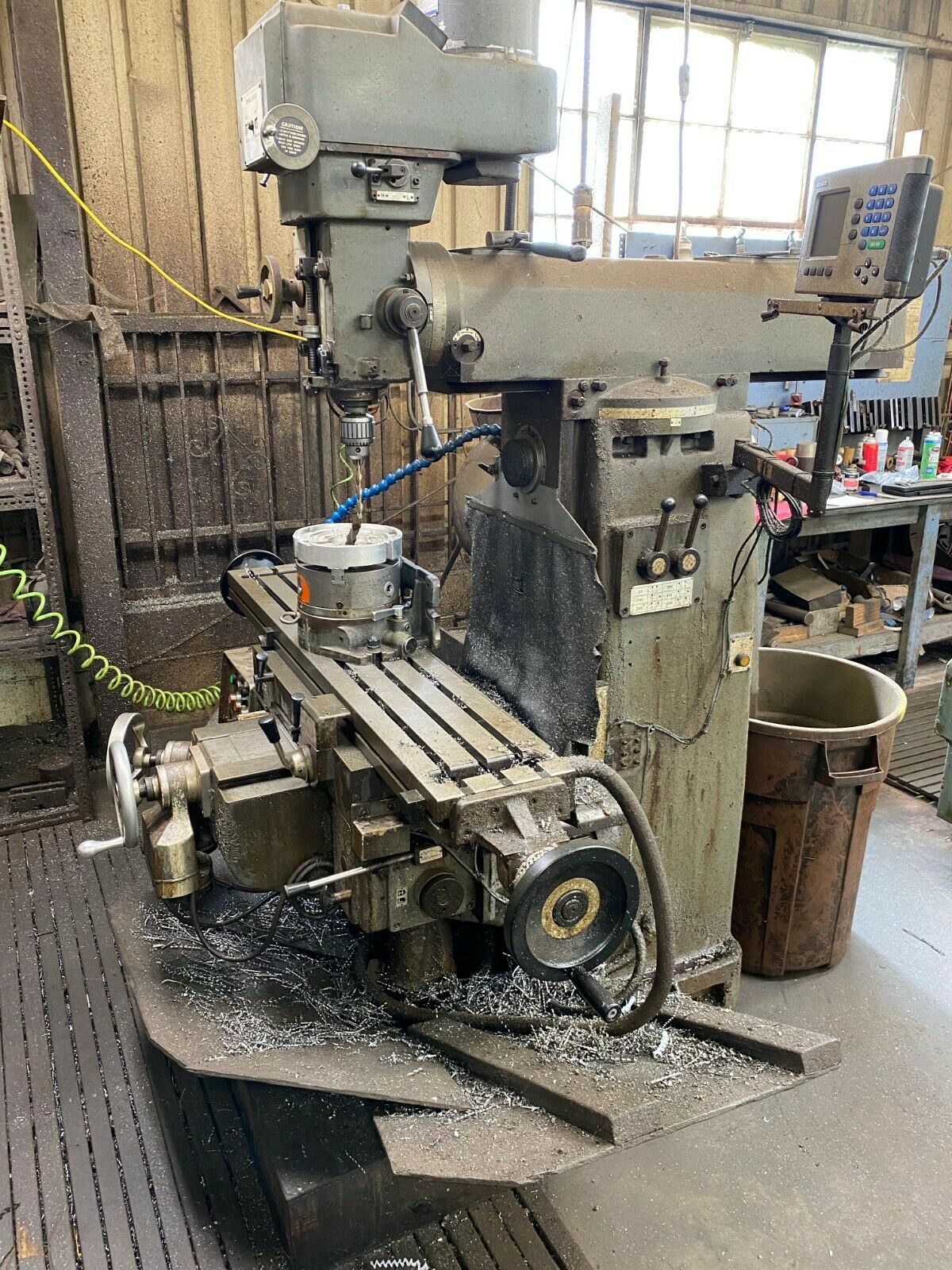

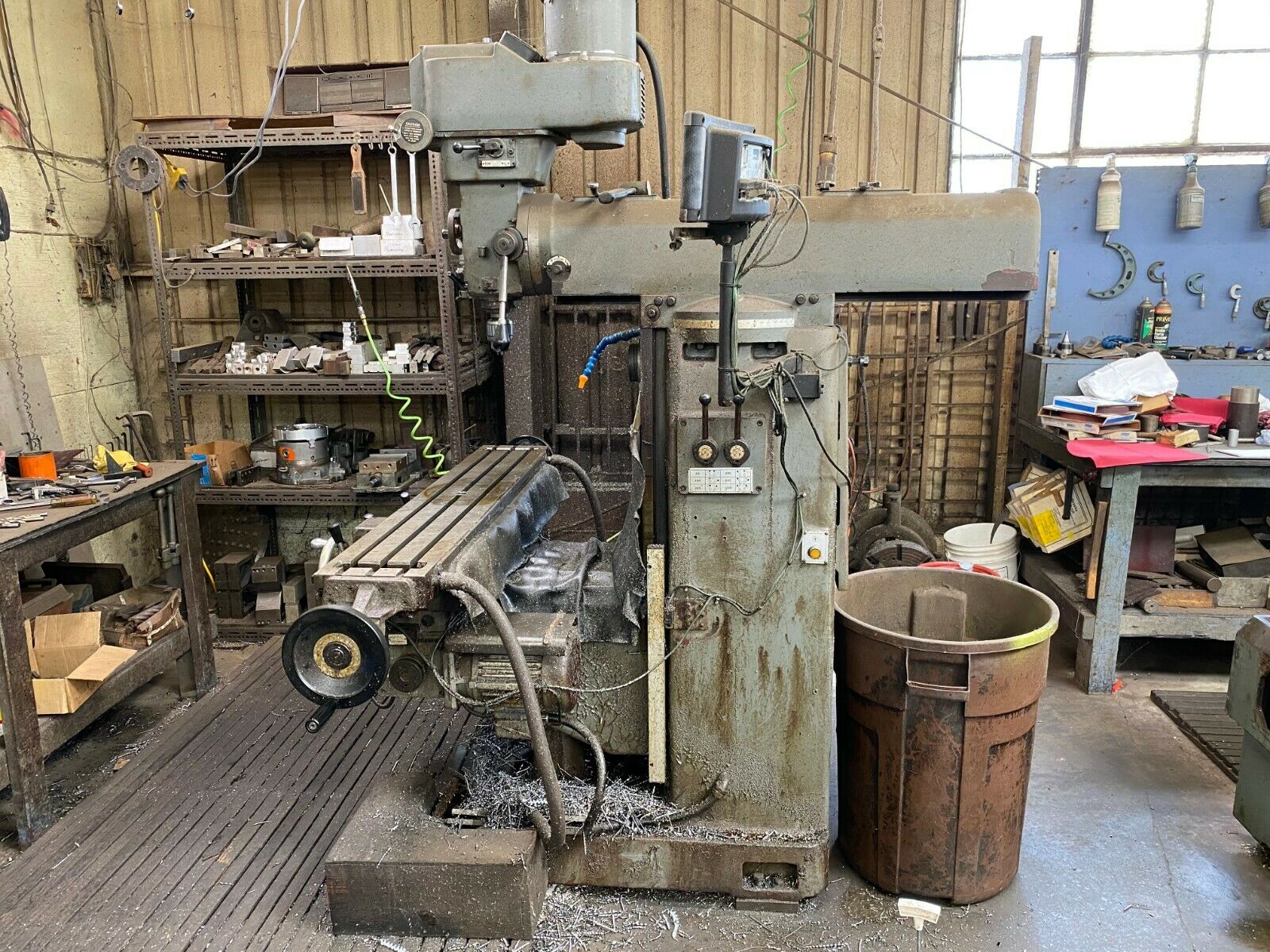

SHARP VH2 VERTICAL & HORIZONTAL KNEE MILL TRAVEL; X=30” Y=16-1/2” Z=17”

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VH2
Milling Machines
Vertical Knee Mills
used
3250 (LB)
0
$5,900.00

Description

EZ Systems Stock#: ez47328

Machine Location: Signal Hill, CA

Key Points:
Table work area 9 in x 54 in
Travel; X=30 in Y=16-1/2 in Z=17 in
Anilam DRO XYZ

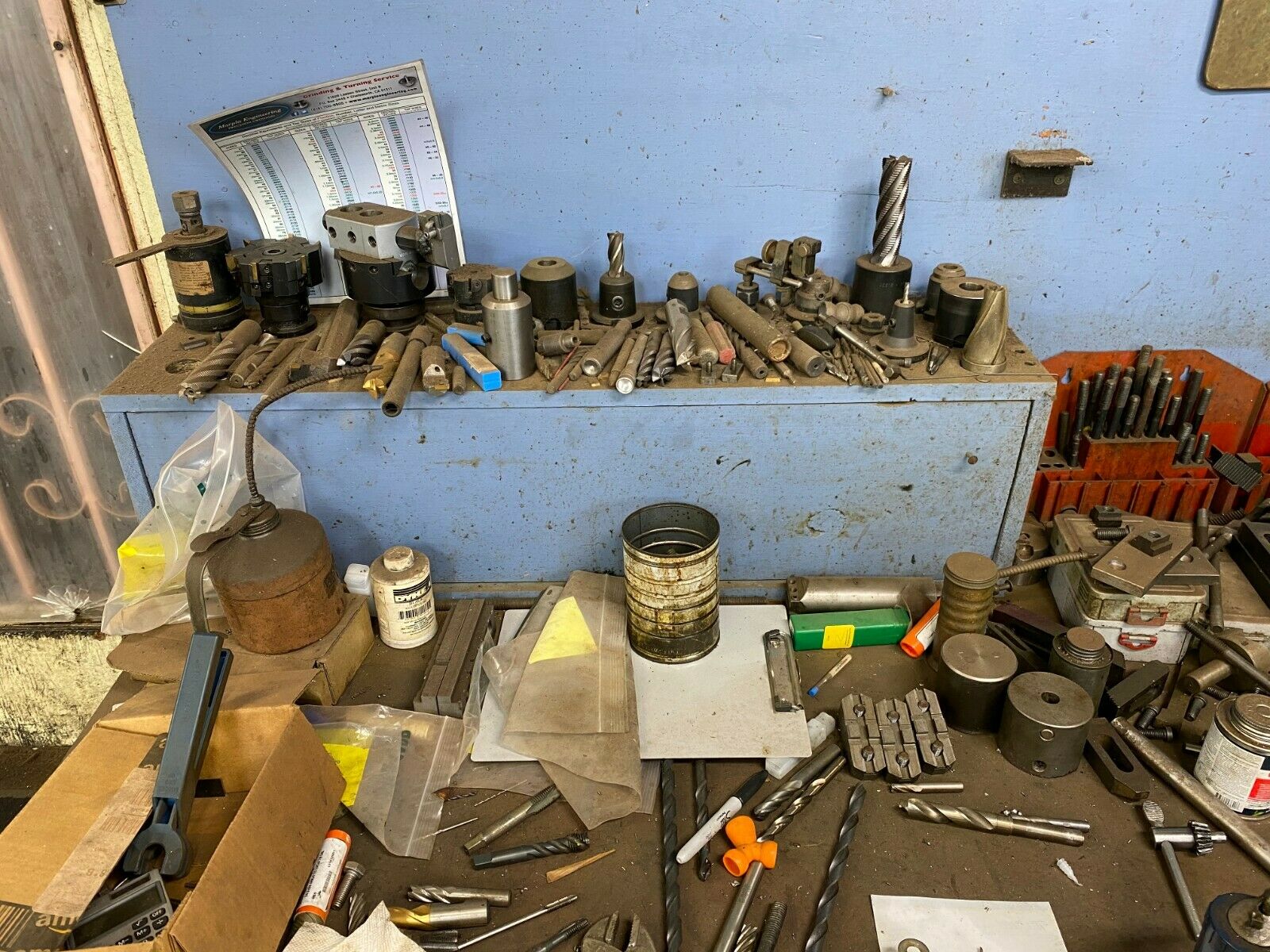

8 endmill holders (3/8 in to 1 in)
One 4 in fly cutter one 2-1/2 in fly cutter
Jacobs drill chuck
SPI boring head
Tapmatic tapping head

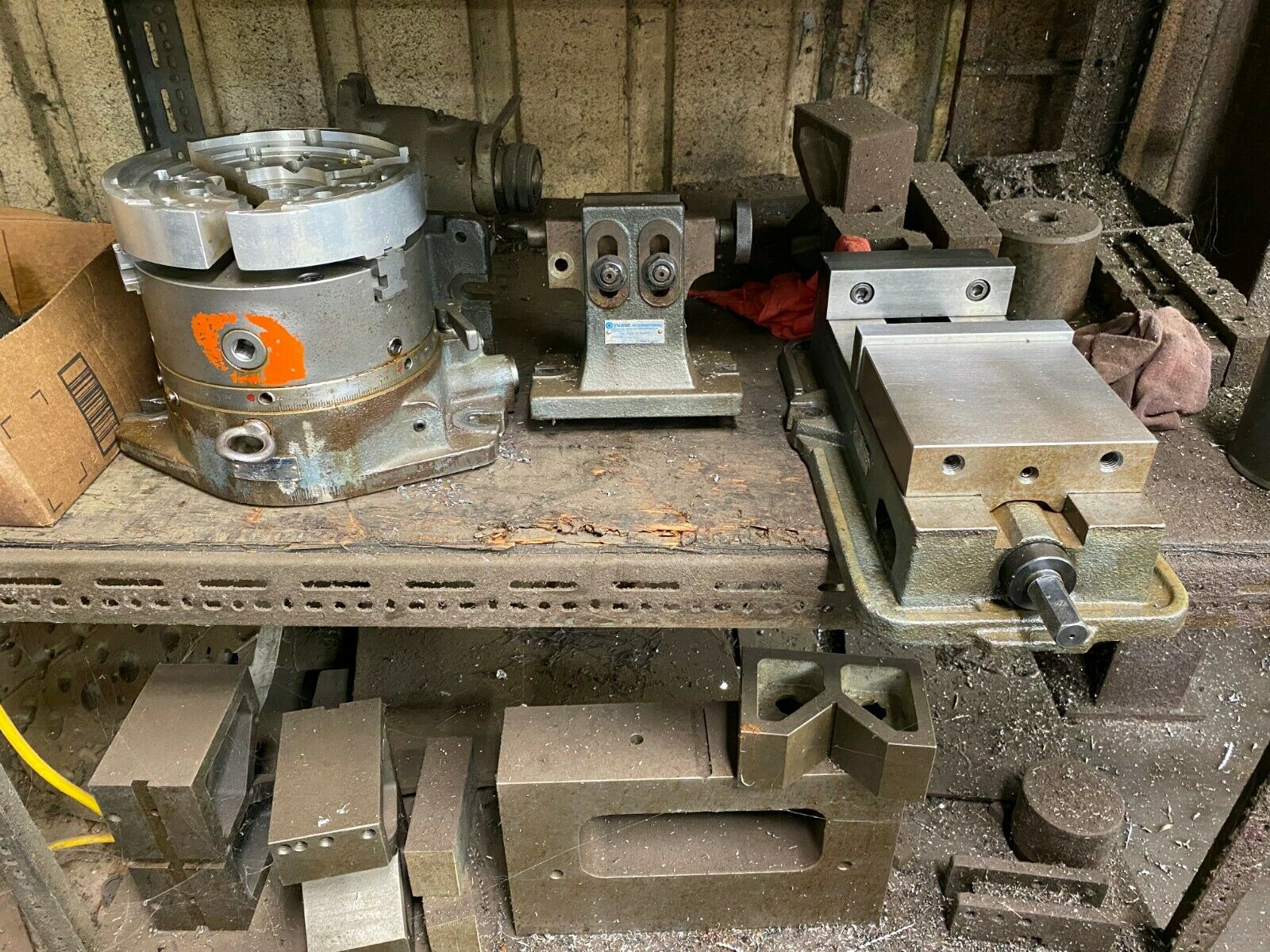

8 in YUASA ACCUDEX/TAILSTOCK
6 in YUASA vice

WORKING SURFACE: 9 in X 54 in

LONGITUDINAL TRAVEL: 30 in

CROSS TRAVEL: 16.5 in

VERTICAL TRAVEL: 17 in

LONGITUDINAL FEEDS: 7/8 to 27 in

LONGITUDINAL RAPID TRAVERSE: 82.5 in


MOTORS

VERTICAL SPINDLE: 3 HP

HORIZONTAL SPINDLE: 2 HP

TABLE LONGITUDINAL FEED: 4 HP

COOLANT PUMP: 1/8 HP


VERTICAL SPINDLE

SPINDLE NOSE: 40 NST

SPINDLE SPEEDS: 60 to 4,500 RPM

QUILL TRAVEL: 5 in

VERTICAL FEEDS: .04, .08, .16, .0018, .003, .006 IPR

HEAD SWIVEL: 90 DEGREES

OVERARM TRAVEL: 18.5 in

OVERARM SWIVEL: 360 DEGREES

SPINDLE NOSE TO TABLE: 5-7/16 to 23 to

SPINDLE NOSE TO TABLE: 8 to 27 in



HORIZONTAL SPINDLE

SPINDLE NOSE: 40 NST

SPINDLE SPEEDS (12 STEPS): 80,120, 230, 380, 700, 1,350 RPM

SPINDLE CENTERLINE TO TABLE SURFACE: 0 to 17.5 in

SPINDLE CENTERLINE TO OVERARM: 5.5 in

SPINDLE NOSE TO COLUMN SURFACE: 15/16 in


DIMENSIONS: 4 ft LR X 4 in FB X 8 ft H

WEIGHT: 3,250 LBS
