SPECIFICATIONS:

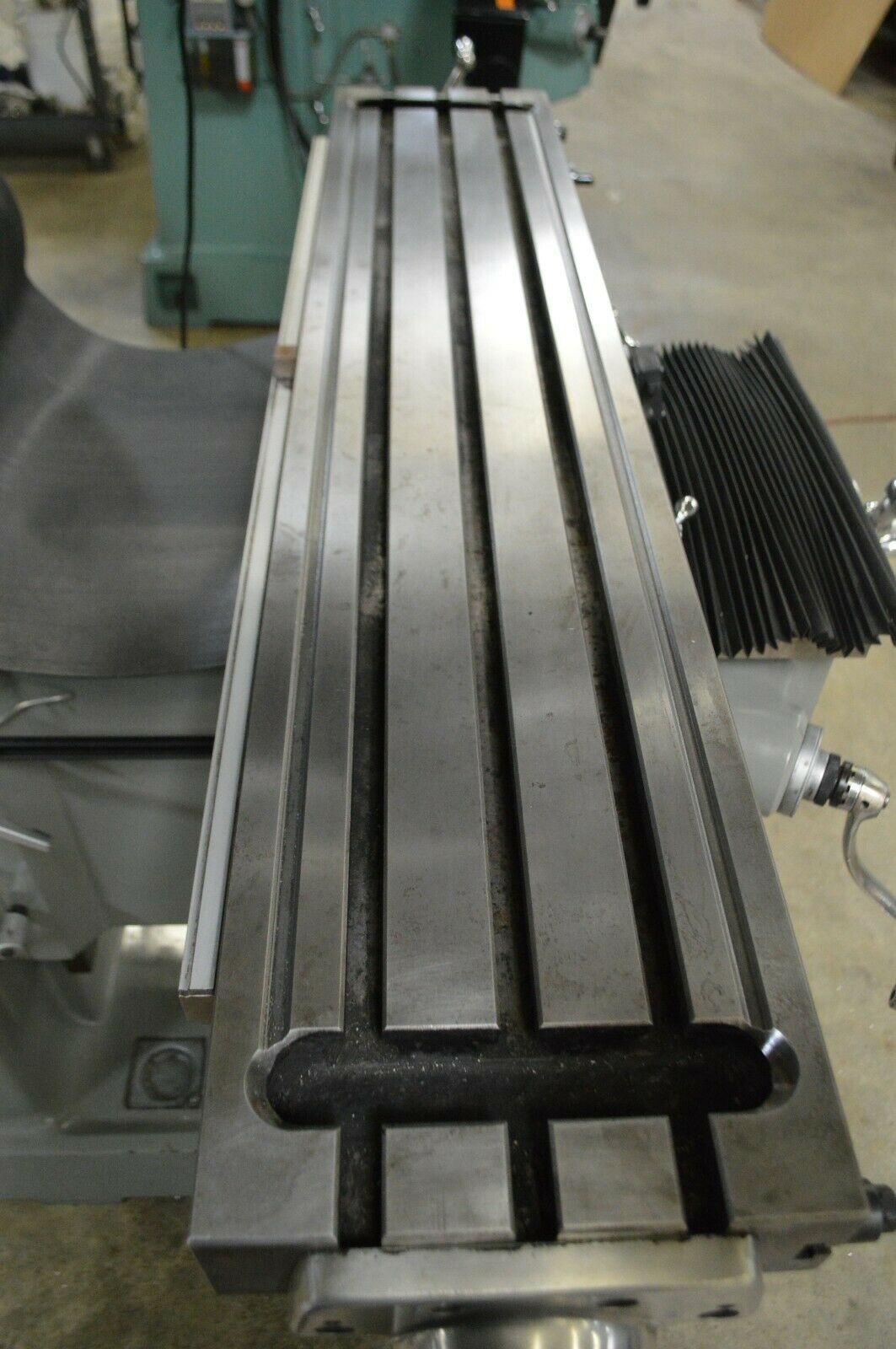

Working surface10 inx 50"T-
slot number, size 3, 5/8"
CAPACITY
Table travel (X-axis)35"
Saddle travel (Y-axis)16.3"
Ram travel18.5"
Quill travel (Z-axis)5"
Knee travel15.3"
Throat distance (min-max)9.8 in - 28.3"
Spindle gage line to table top1.6 in- 16.9"
SPINDLE Motor3 HP
Wiring voltage220V / 440V, 3 Ph, 60 Hz
Taper R-8
Speed (vari-speed)60-4,500 RPM
Quill feed (IPR)0.0015, 0.003, and 0.005
Spindle Accuracy 0.0002" TIR
Head tilt; right to left (each way)90 deg
Head tilt; up-and-down (each way)45 deg
DIMENSIONS AND WEIGHT
Floor area (w x d)70" x 75"Height88"
Net weight (lbs; approximately) 3,000
Equipped With:

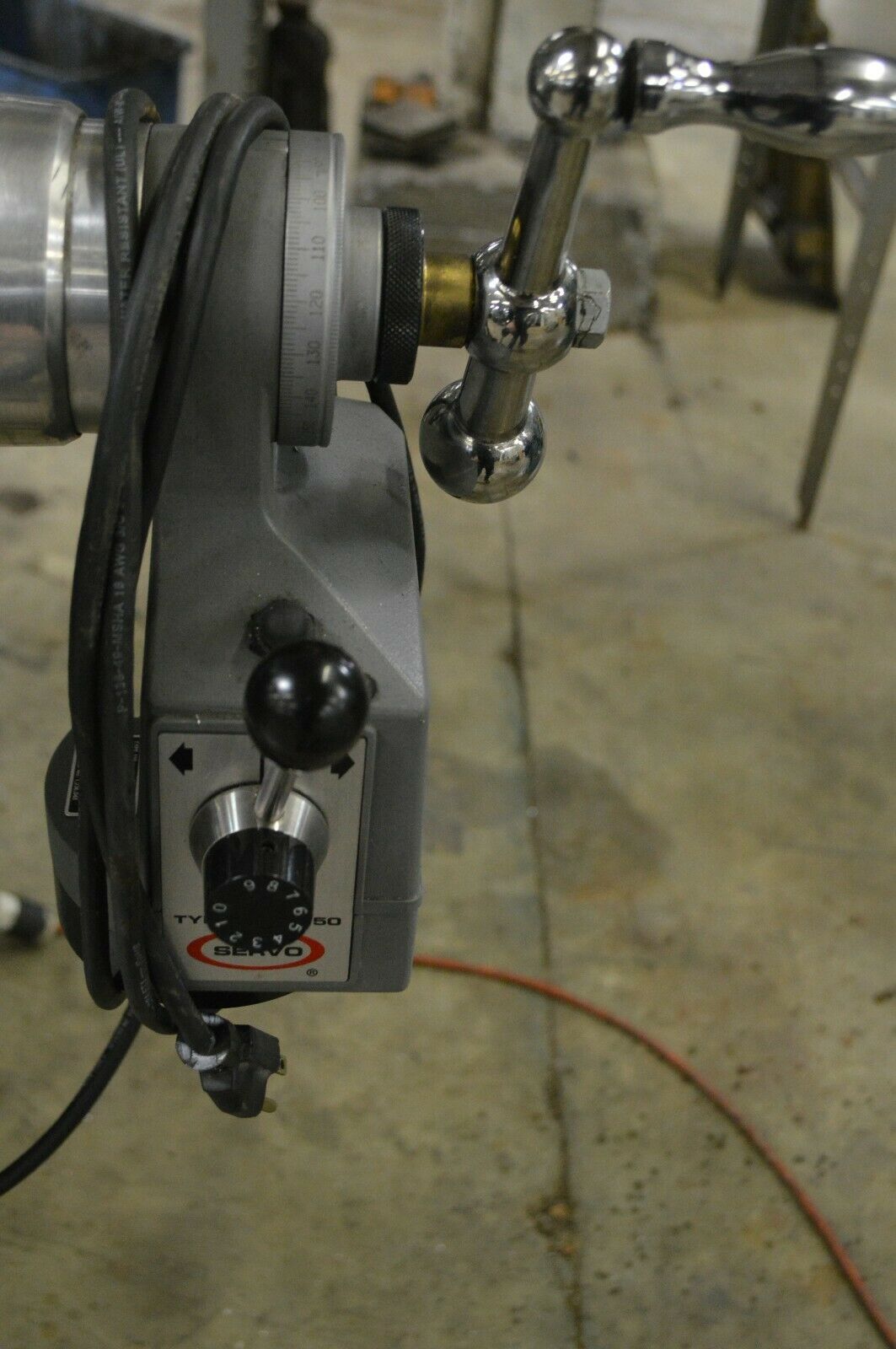

Servo 150 Power Feed for X-Axis

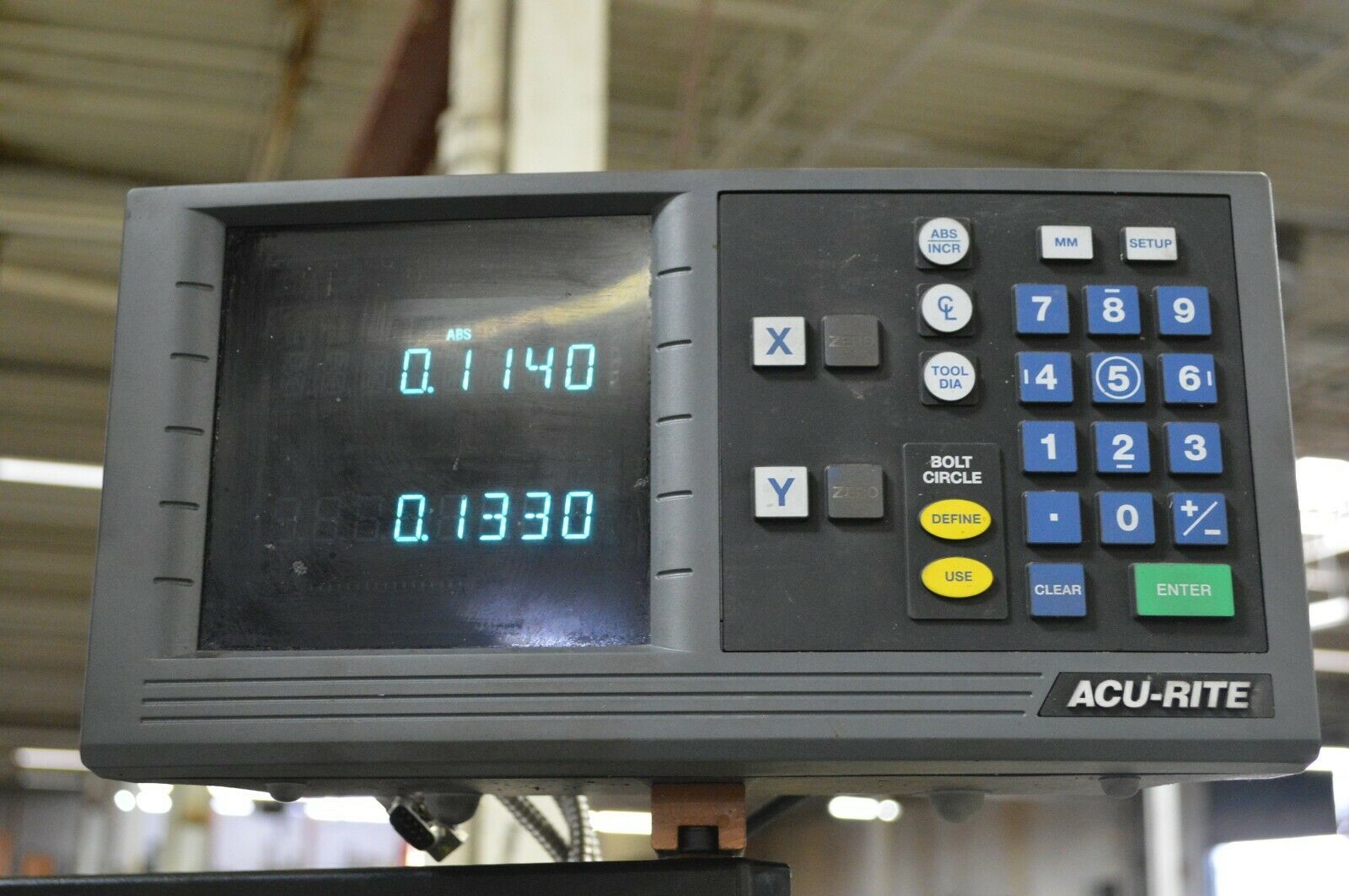

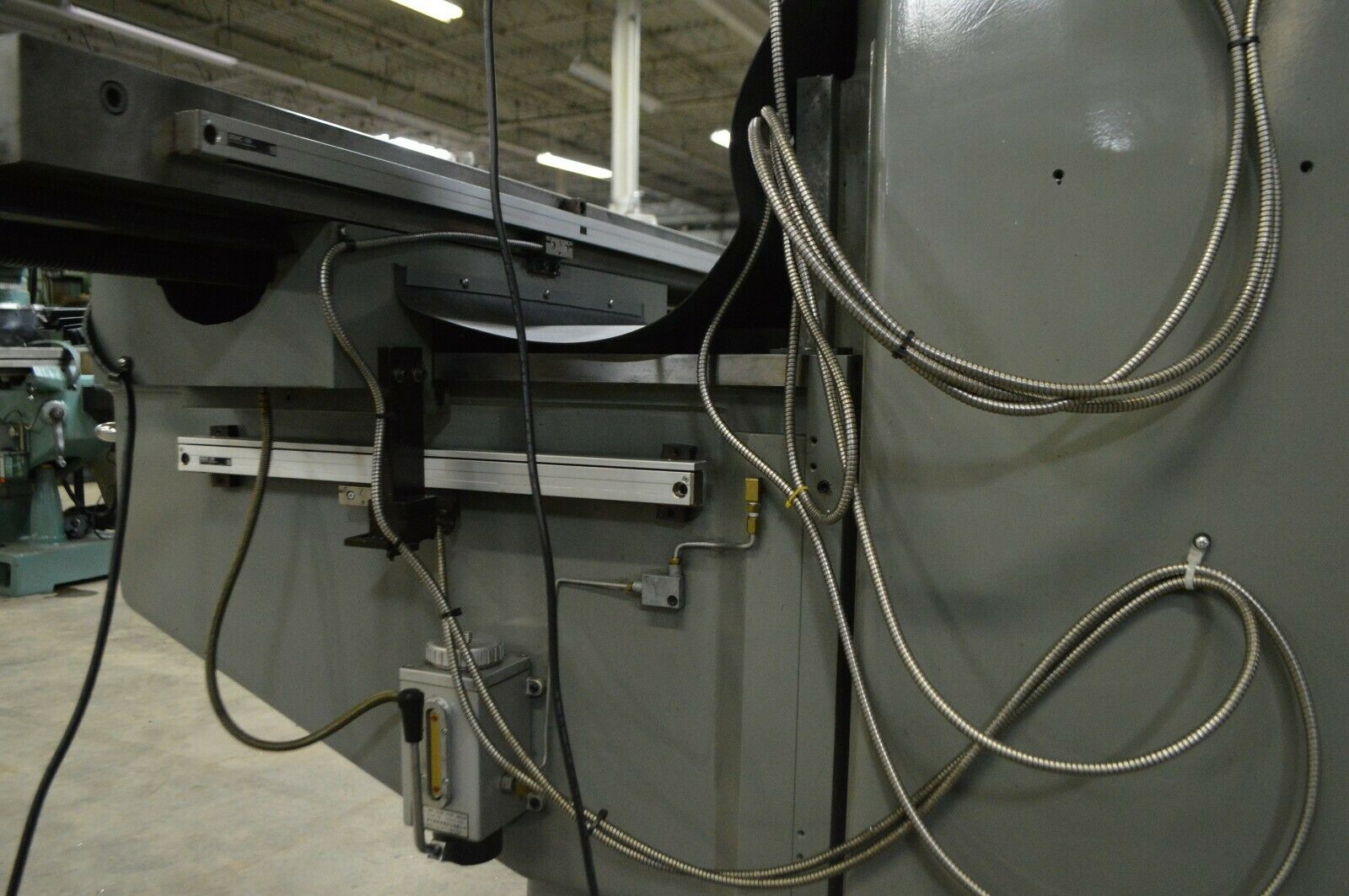

Acu-Rite 2 Axis Dro For X &Y Axis & Acu-Rite Glass Scales For X,Y, and Quill (Would Need 3 Axis Dro Installed To Use Quill Scale)
