Description

Stock# 072108

SHARP (NEW) MODEL 1440V-K PRECISION LATHE

CAPACITY
- 14" SWING OVER BED
- 8-5/8" SWING OVER CROSS SLIDE
- 20 " SWING OVER GAP
- 8-1/2" BED WIDTH
- 9-1/4" GAP
- 1.5" CENTER HEIGHT FROM TOP OF COMPOUND
- 40" BETWEEN CENTERS

HEADSTOCK
- D1-4 CAMLOCK SPINDLE NOSE
- 1-1/2" SPINDLE BORE
- 30 - 2,200 RPM SPINDLE SPEEDS

THREADS AND FEEDS
- (40) 0.0012 - 0.0294 IN/REV LONGITUDINAL FEEDS
- (40) 0.003-0.01 IN/REV CROSS FEEDS
- (40) 4-112 TPI INCH THREADS
- (22) 0.45 - 7.5 MM METRIC THREADS
- 8 TPI LEADSCREW PITCH, 7/8" DIAMETER

CARRIAGE
- 13-1/4" SADDLE WIDTH
- 11" APRON WIDTH
- 6-3/4" CROSS SLIDE WITH
- 7" CROSS SLIDE TRAVEL
- 4" COMPOUND REST TRAVEL
- 3-1/2" X 8 1/2" COMPOUND WIDTH X LENGTH

BED
- 66" LENGTH
- 8-1/8" WIDTH

TAILSTOCK
- 4 -1/2" QUILL TRAVEL (GRADUATED)
- 1-3/4" QUILL DIAMETER
- MT3 QUILL TAPER

FEATURES
- HARDENED AND GROUND BED WAYS

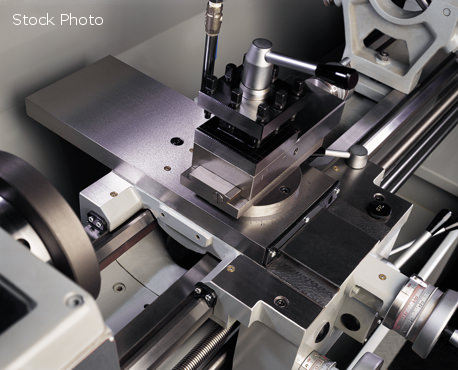

- LARGE COMPOUND, TAILSTOCK AND APRON
- DIGITAL VARIABLE SPEED CONTROL
- QUICK-CHANGE GEARBOX WITH WIDE RANGE OF THREADS

STANDARD EQUIPMENT
- NEWALL NMS 300 2-AXES DRO
- 8" 3-JAW CHUCK
- STEADY REST (1/4" - 3" CAPACITY)
- FOLLOW REST
- COOLANT SYSTEM
- INFINITELY VARIABLE SPEED
- SPLASH GUARD
- 4-WAY TOOL POST (REMOVABLE GAP)
- 6" DIAMETER BACK PLATE
- THREADING DIAL
- CENTER SLEEVE (MT5 X 3)
- DEAD CENTERS (MT3)
- WORK LIGHT
- CHUCK GUARD WITH LIMIT SWITCH
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- 4 - JAW CHUCK (8" OR 10")
- 3 - JAW CHUCK (8")
- ROLLER JAWS FOR STEADY REST (3 PIECES)
- QUICK CHANGE TOOL HOLDER (7 PIECES)
- CENTER - ROYAL (DUAL BEARING) MT3
- LIVE CENTER MT3
- LIVE CENTER WITH 7 INTERCHANGEABLE POINTS
- DRILL CHUCK & ARBOR
- 12" FACE PLATE (D1-4)
- 5C COLLECT SET (16 PIECES)
- 5C LEVER COLLET CLOSER SET
- 440 VOLT TRANSFORMER                                                               Power: 220
