SPECIFICATIONS:
Reference

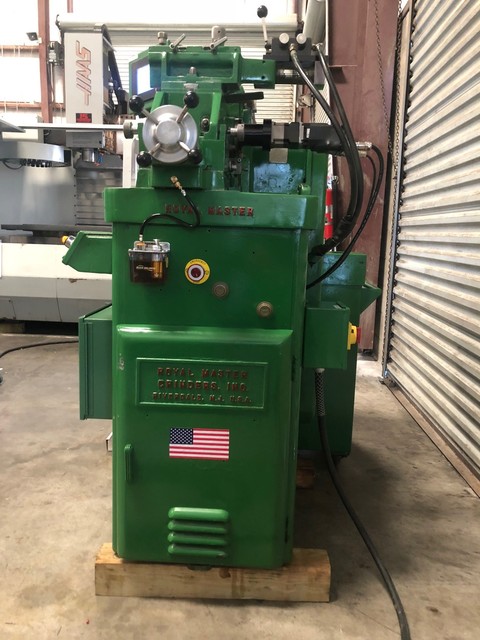

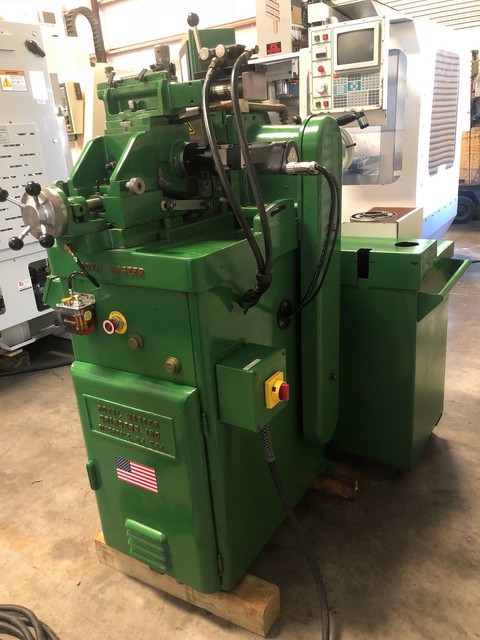

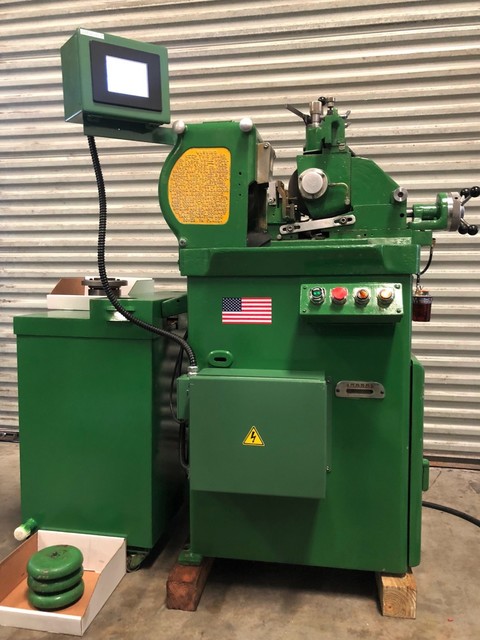

# GMT-1791 Model # TG-12x4
Serial
# 1915
Year
of manufacture 1990 / Retrofitted 2016
Capacity:
Infeed .004 in to 1-1/2 in diameter x 4 in
Long
Thrufeed .004 in to 1-1/2 in diameter Length 12 on 1/2 in
diameter
Wheels:

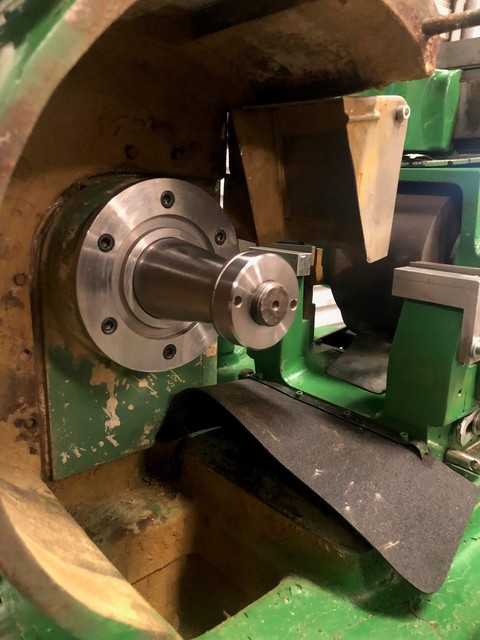

Grinding
wheel (maximum) 12 in diameter x 4 in wide (minimum) 10in diameter x

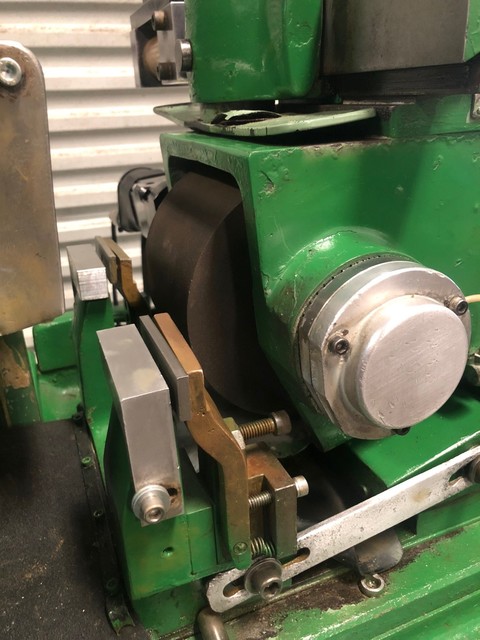

1/4in wide Regulating wheel (maximum) 6 in diameter x 4 in wide
(minimum) 1/4 in wide with spool
Regulating
wheel head:
Maximum
Angle of tilt for Thrufeed Grinding 6 degrees to left, 6 degrees to
right
Maximum
Swivel for Taper Grinding 5 degrees to left, 5 degrees to the right
Spindle
Speeds: Grinding wheel constant speed - 2,040 R.P.M.
Regulating
wheel- infinitely variable 20 to 500 R.P.M.
EQUIPPED

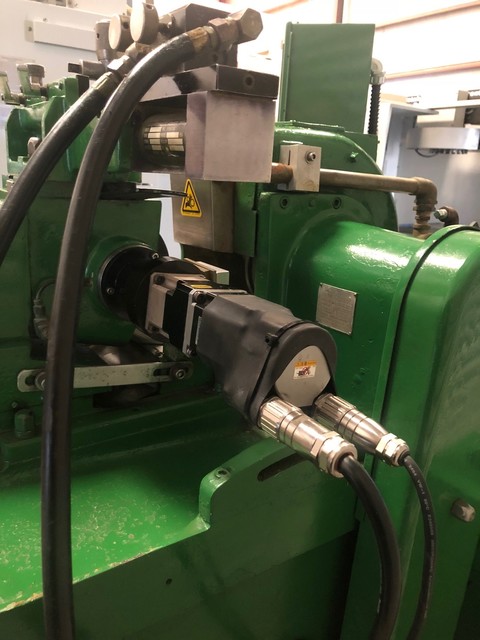

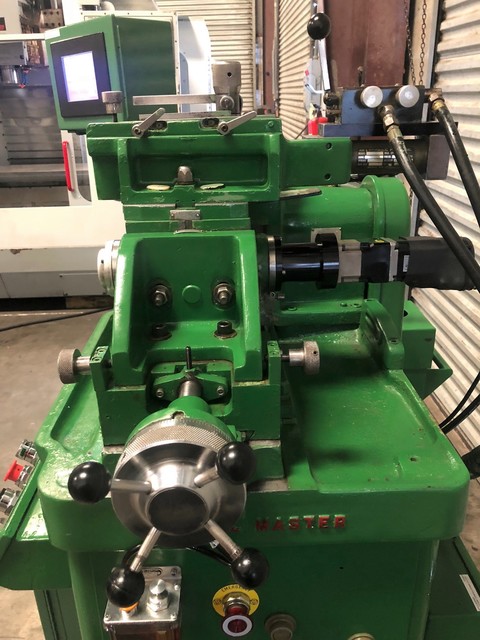

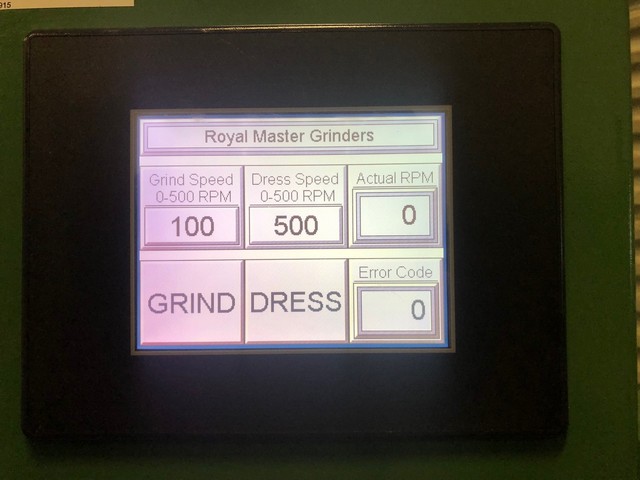

WITH: CNC Touch Screen control for control of Regulator Wheel
Speeds Retrofitted in 2016 by ROYAL MASTER (SUPER PRECISION
REGULATOR WHEEL HOUSING OPTION)
Thrufeed

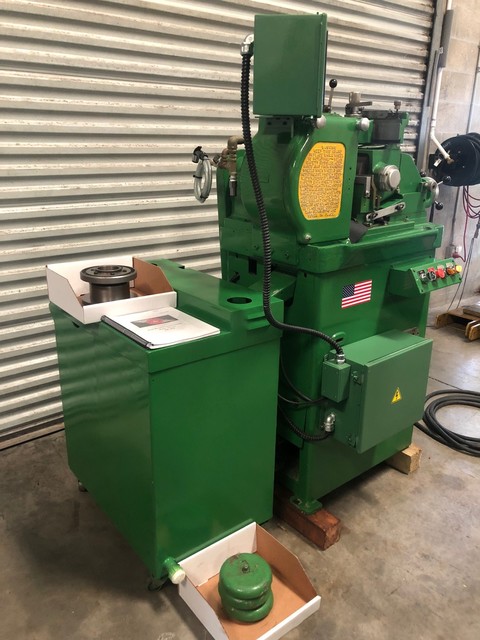

option Hydraulically actuated regulating wheel dresser Machine manual 0.25 H.P. Hydraulic pump (4 Gallon Reservoir) 1/6 H.P. External coolant
pump and tank (3 Stage / 40 Gallons)
7-1/2

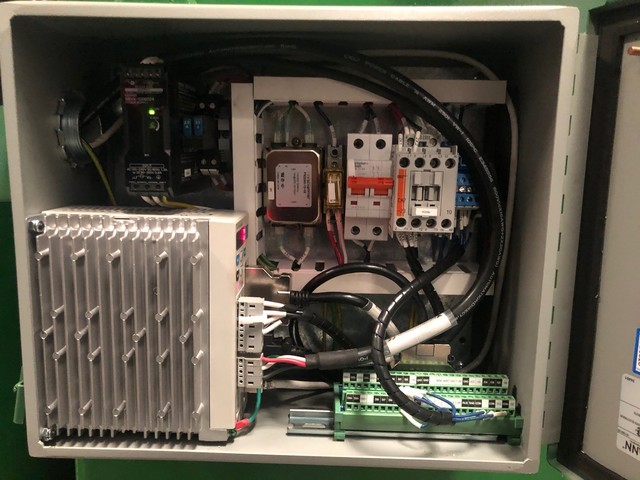

H.P. 3/60/230-460 volt main drive motor and electrical controls
Machine is wired for 230 Volt / 3 Phase / 60 H.Z.
APPROXIMATE
WEIGHT (MACHINE ONLY): 2500 Lbs.
APPROXIMATE
DIMENSIONS: 62 in L x 34 in W x 62 in H
LOCATION:
F.O.B. Bradenton, Florida
REFERENCE
#: Grinders -GMT-792 PRICE #: $29,500.00
