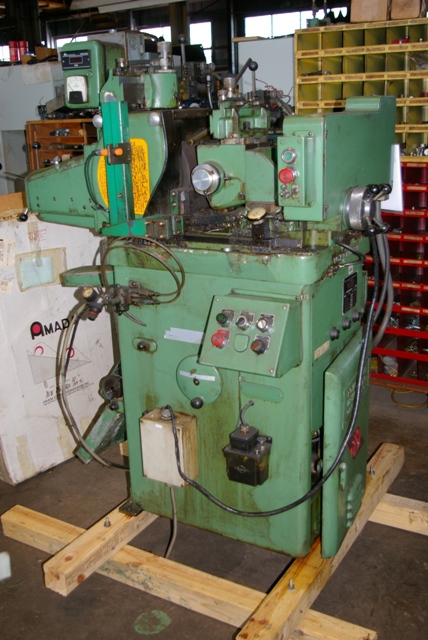

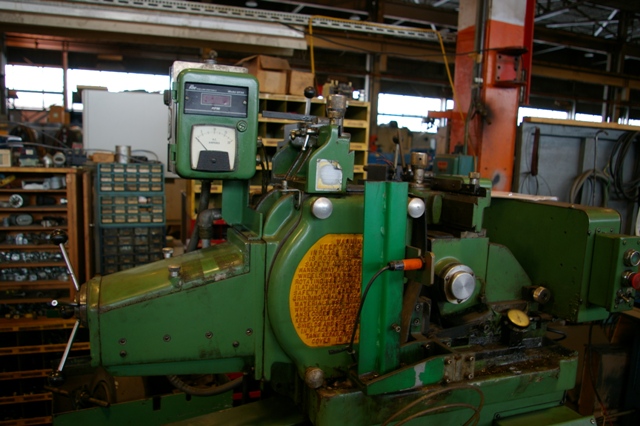

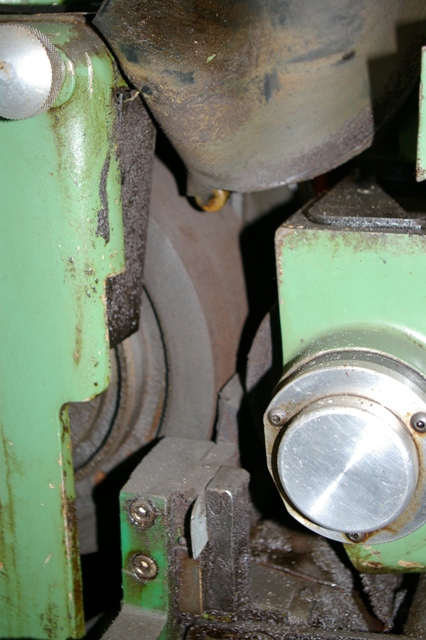

ROYAL MASTER CG12X4 CENTERLESS GRINDER
CAPACITY:
INFEED AND THRU FEED -------------------- 0.004" TO 1.5" DIA.
THRU FEED ------------------------------- 0.004" TO 1.5" DIA.
LENGTH ---------------------------------- 12 ON 0.5" DIA.
CRUSH GRIND ----------------------------- 1.5" DIA. X 3" WIDE MAXIMUM
WHEELS:
MAXIMUM GRINDING WHEEL ------------------ 12" DIA. X 4" WIDE
MINIMUM GRINDING WHEEL ------------------ 10" DIA. X 1/4" WIDE
MAXIMUM REGULATING WHEEL ---------------- 6" DIA. X 4" WIDE
MINIMUM REGULATING WHEEL ---------------- 4" X 1/4" WIDE
SPINDLE SPEEDS:
GRINDING WHEEL -------------------------- CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ------------------------ INF. VARIABLE 25 TO 480 RPM
MAIN DRIVE MOTOR -------------------------- 7.5 HP 230/3/60
TOTALLY ENCLOSED, FAN COOLED
REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR THRUFEED GRINDING 6 DEG.
MAX. SWIVEL FOR TAPER GRINDING ---------- 5 DEG.
EQUIPPED WITH ---
THRU FEED ATTACHMENT
HYDRAULIC WORK WHEEL AND REGULATING WHEEL DRESSERS
COOLANT SYSTEM
PARTS FOR CRUSH GRINDING (NOT COMPLETE)
TO VIEW VIDEO, CLICK LINK www.racomachinery.com/vlink/17437.mp4
STOCK# 17437
