ROLLOMATIC GRINDSMART 6000XL FULLY HYDROSTATIC TOOL GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Grindsmart 6000XL
Grinders
Tool & Cutter Grinder CNC
used
20000 (LB)
2005
$0.00

Description

(1) Pre-owned: Rollomatic CNC Tool Grinder

Model: Grindsmart 6000XL Fully Hydrostatic (9-axis, 6 machine & 3 loader)

Year of Manufacture: 2005

Location: Western USA

Condition: Excellent

SPECIFICATIONS
440/3/60

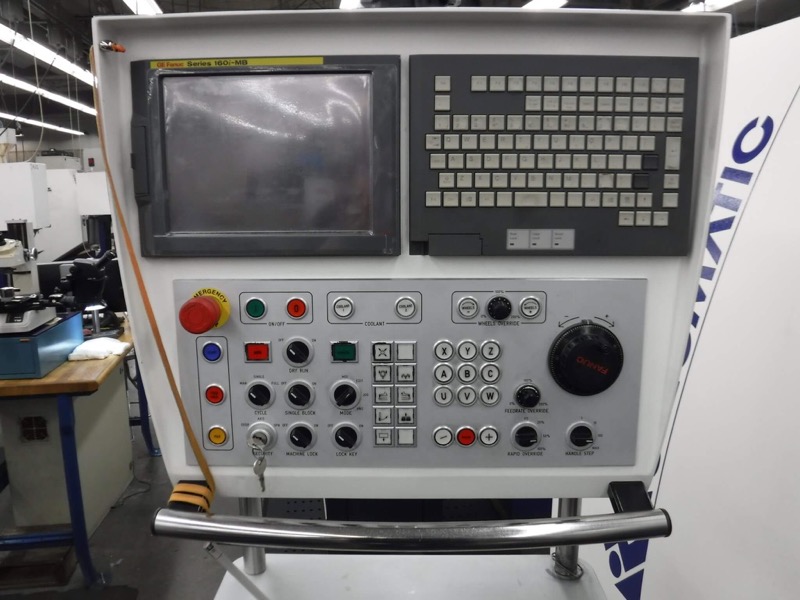

GE Fanuc 160i-MB Interface Fanuc/Windows 7 Pro, VG Pro
Max grinding length: 7.874 in
OD grinding diameter: 0.118 in to 1.260 in
Travels: X-11 in, Y-9.5 in, Z-14 in
A-axis (grinding head rotation) 240 degrees
B-axis (workhead rotation) 180 degrees
C-axis (tool rotation) 0.0001 degrees 550 RPM
Grinding Head: 28 HP, 8000 RPM
Double ended spindle
Max wheel diameter: 8 in
Max number of wheels: 8
Includes: Spindle Chiller
Automatic Loader: Shank diameters .04 in to .750 in. Includes Auto pallet changer with up to 4 cassettes.
Note: This machine has six axis with hydrostatic ways on all axis both linear and rotary. Resolution on linear axis are at .000004 and on rotary 0.0001 degrees. Machine also features a Schunk collet system for work holding and a FANUC 160iMB 9-axis interface. Rollomatic software includes the following software packages: End mills, ball nose, radius end mills, drill/step drills, step tools, burrs, (teach) in wheel shapes and machine calibrations, graphic wheel display with zero offsets and various control diagnostics. Other options include a flow meter to monitor the coolant flow, pressure meter to monitor the coolant pressure, hydrostatic oil chiller to regulate and control the temperature of the hydrostatic oil. One ELBARON oil mist exhaust system with duplex electro-static air filtration, capacity 700cfm. The machine is under power and ready to run tools.
This offer includes a large amount of new and almost new tooling with a new value of $94,000.00.
We also have several cassettes for an additional cost.

Weight: 20,000 Lbs.
Price: POR

To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any further questions please call me at (207) 784-1999.

Sincerely,
Greg Poliquin
