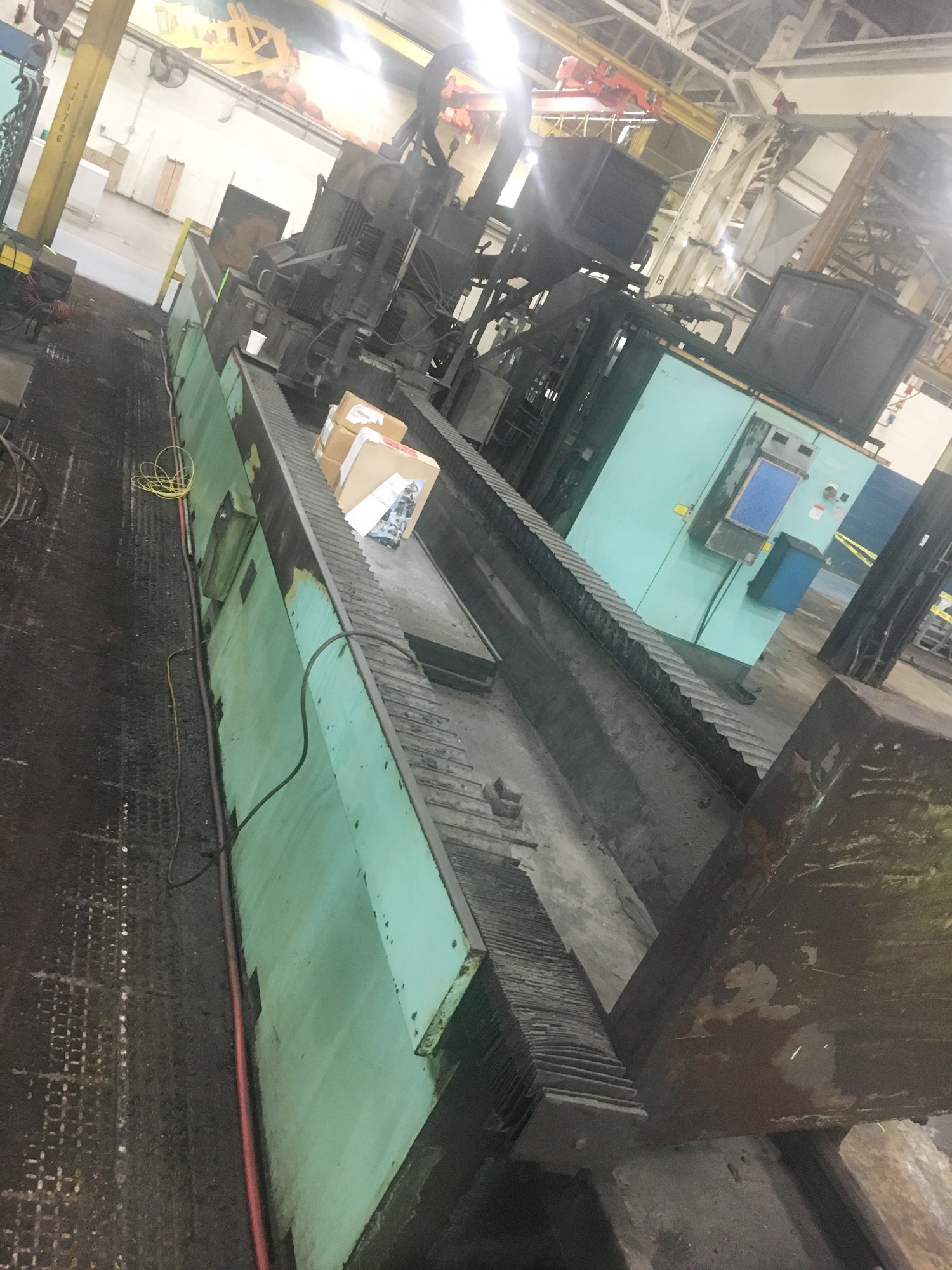

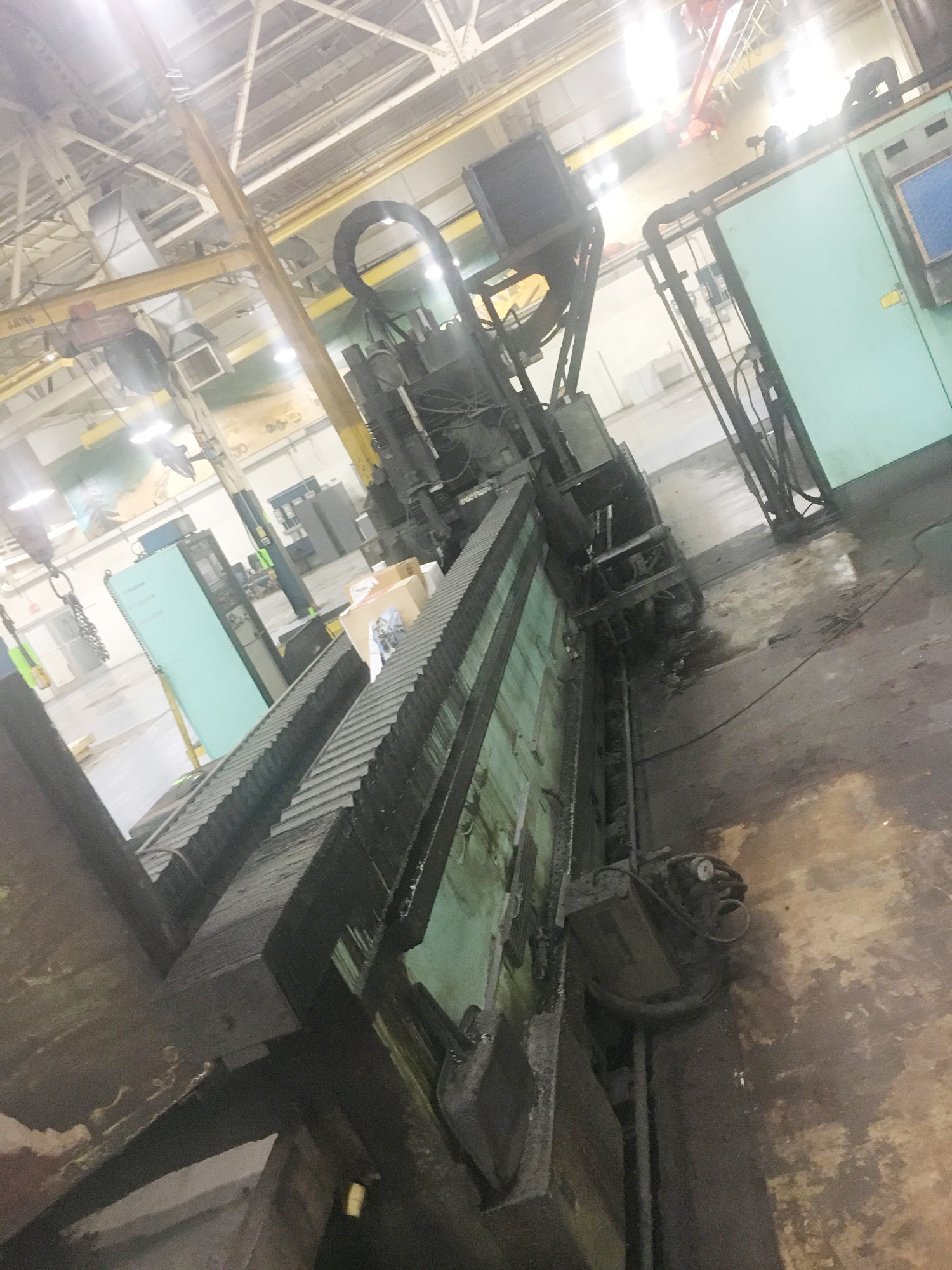

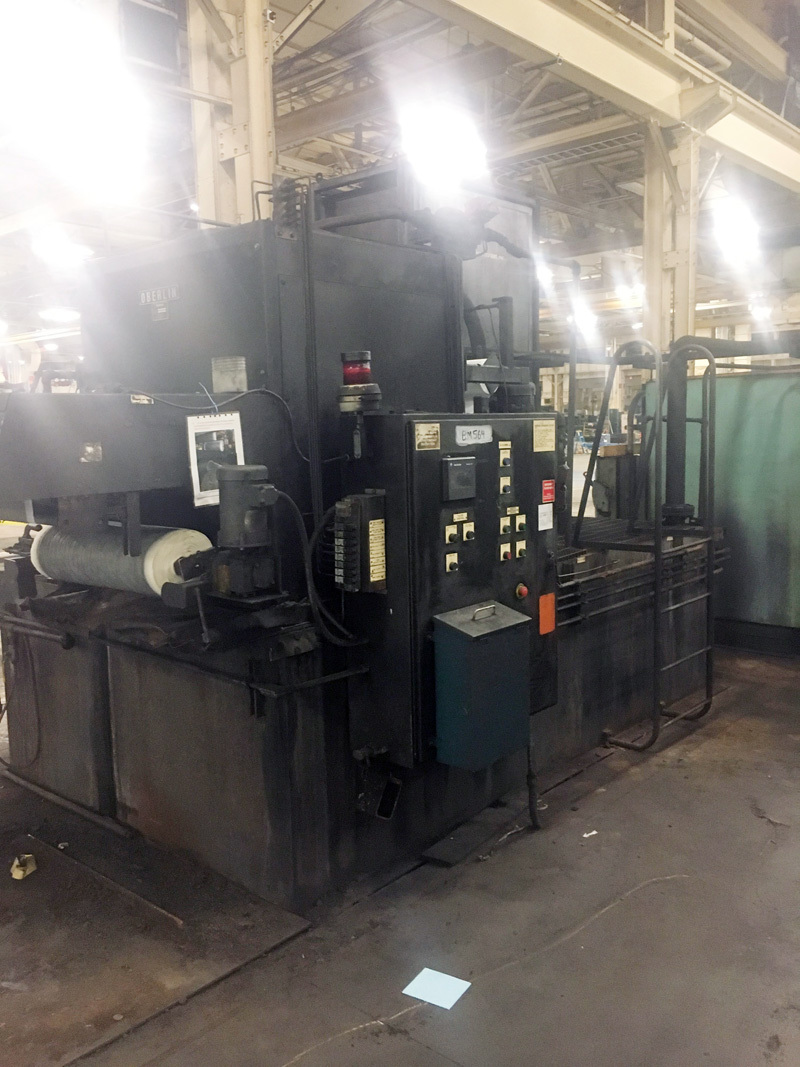

REFORM TWIN TABLE CNC KNIFE GRINDER 15" X 98" EACH TABLE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images

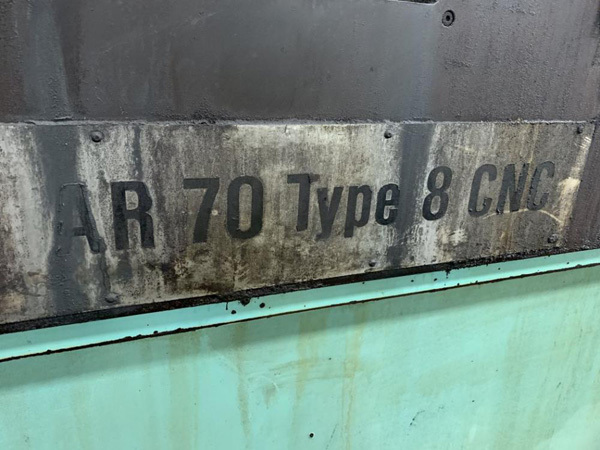

AR70 Type 8CNC
7077
used
(KG)
$0.00

Description

'

Basic Information

Model: AR70 Type 8CNC

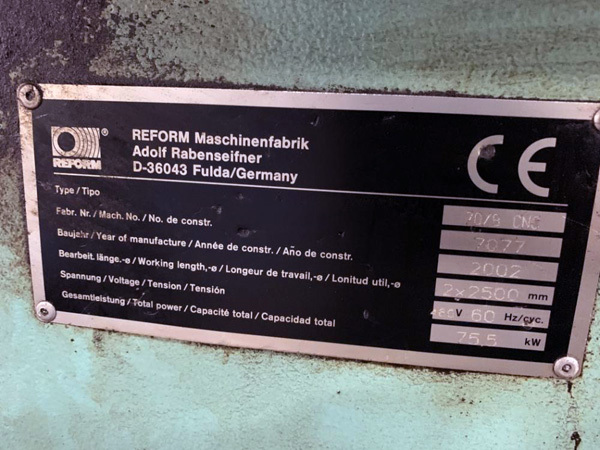

Manufacturer: Reform
Serial #: 7077
Location: Painesville, OH
Year Built: 2002

Specifications

Grinding Capacity (Each Table): 15" x 98"

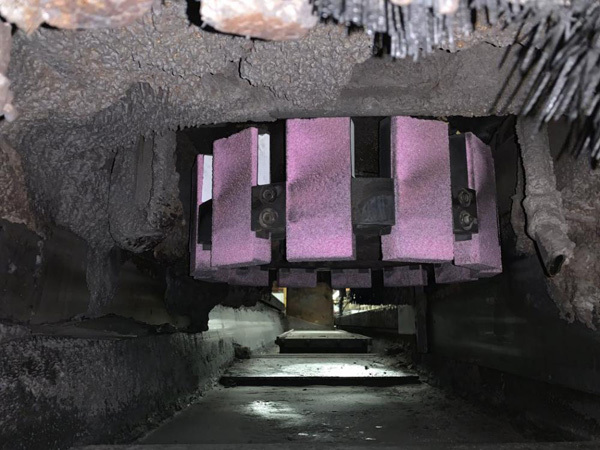

Wheel Size (Segmented): 24"
Grinding Head Feed Rate: 6- 96 FPM
Pass Width: 18.91"
Pass Height: 9.85"
Table Swivel (Front Or rear): 0- 100 Degrees
Vertical Fine Feed Wheelhead: 0.005- 0.200 MM Steplessly
Coolant Tank Capacity: 2,500 Liter
Dimensions (L x W x H) (Machine Only): 486" x 101" x 107"
Weight (Machine Only): 77,500 Lbs.

Equipped with

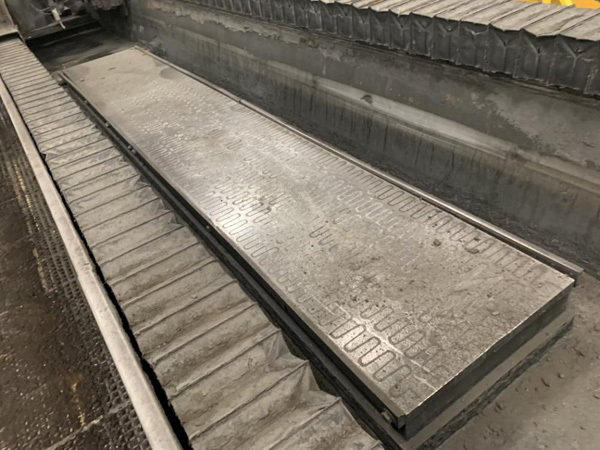

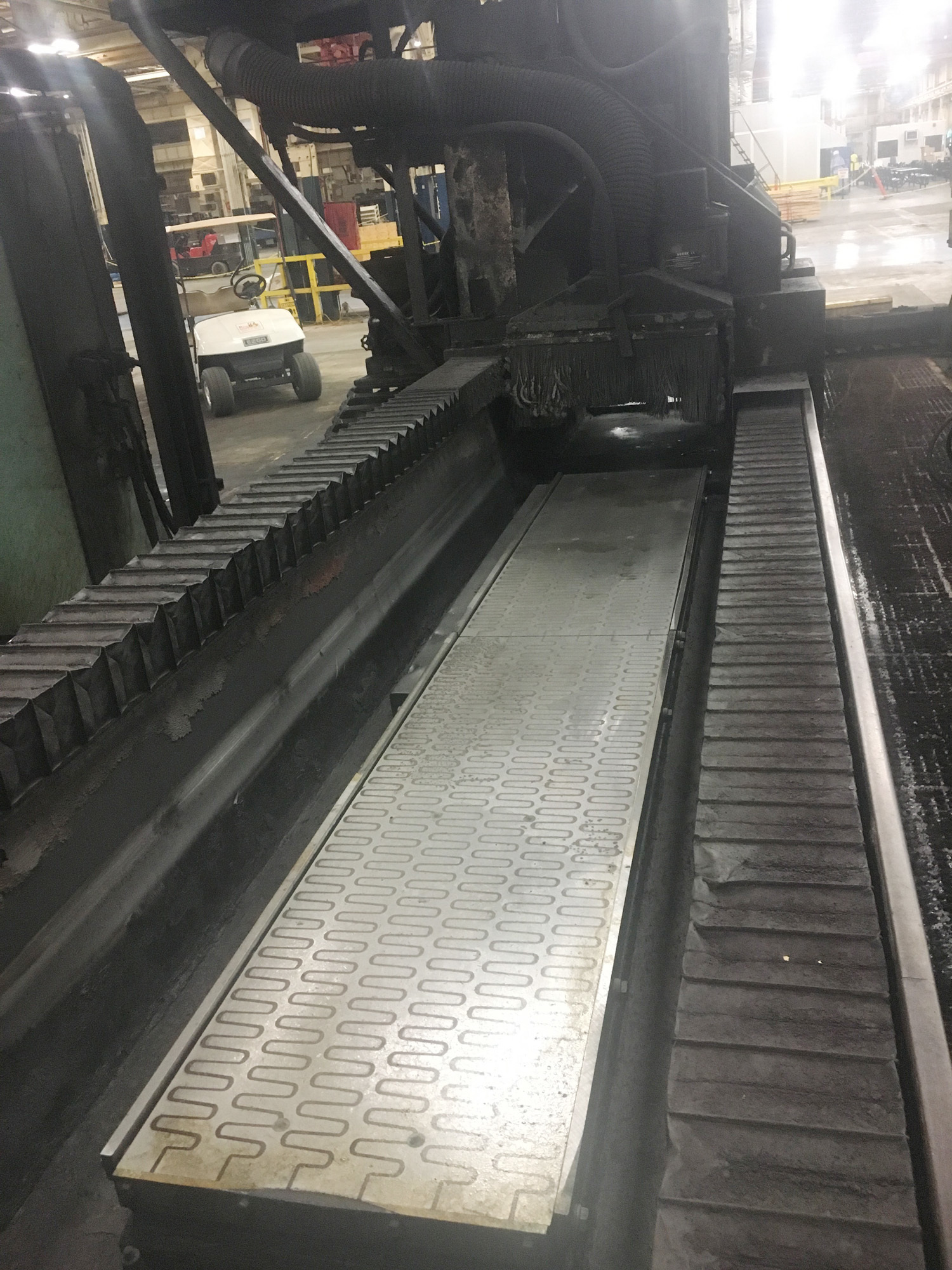

  • (2)15\" x 98\" Electro Magnetic Chucks & Controls

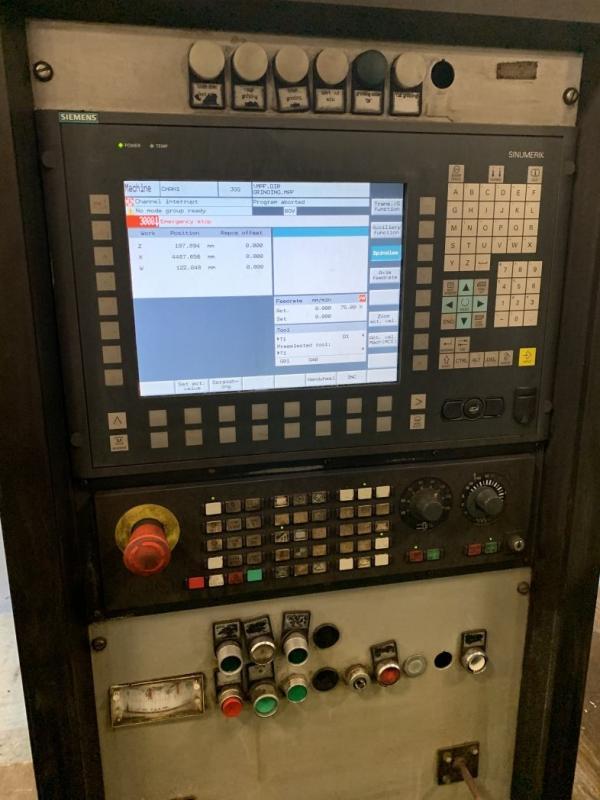

  • Siemens Sinumerik CNC Control

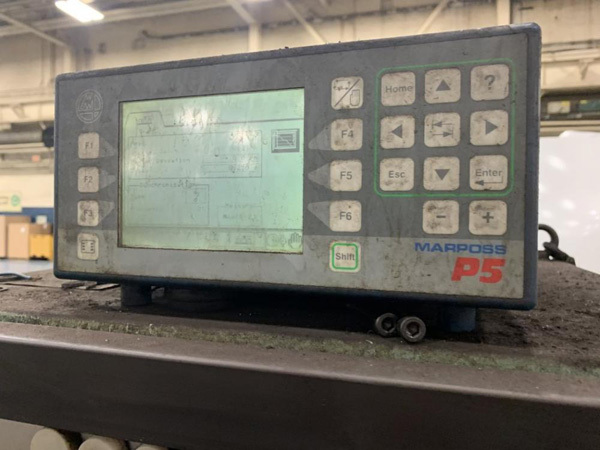

  • Marposs P5 Gauging System
  • Vertical Wheelhead Ball Screw Adjustment
  • Rack & Pinion Grinding Carriage Drive

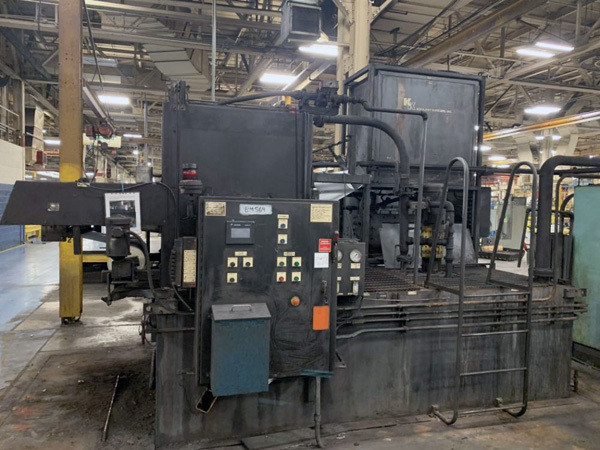

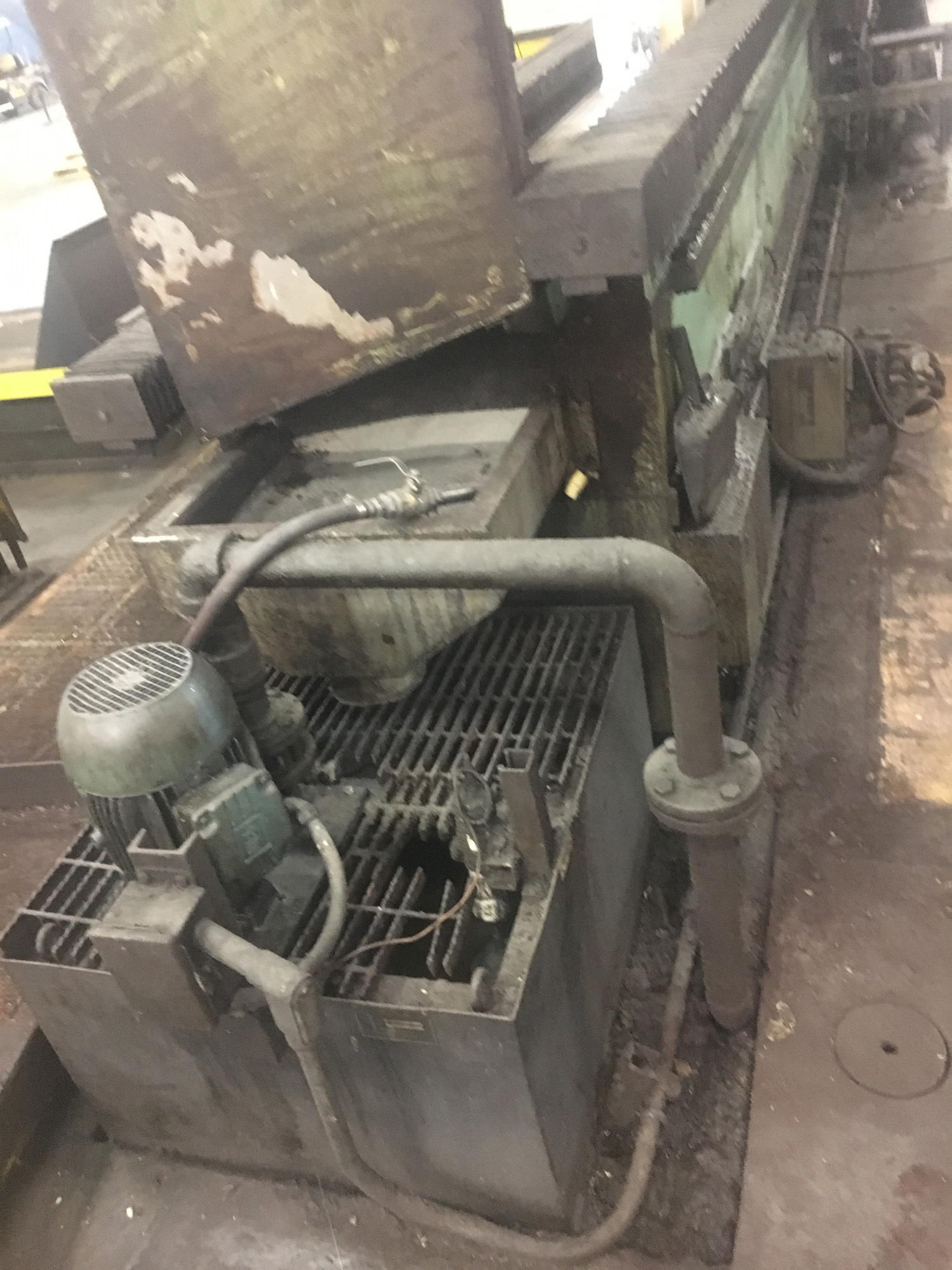

  • High Pressure Coolant & Filter System
  • Koolant Koolers Chiller
  • Auto Lube System

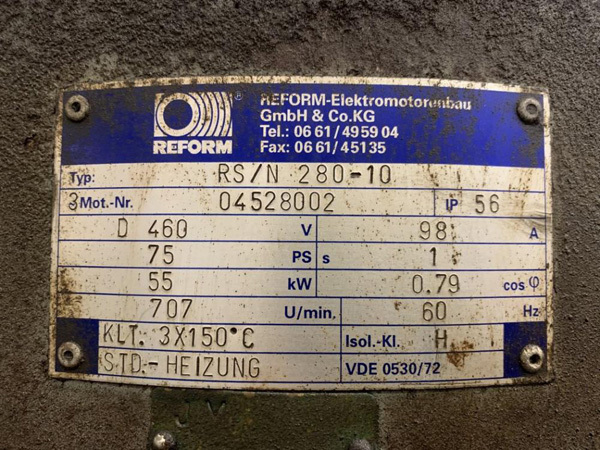

  • Horsepower: 55 KW
'
