POWERFOLD CNC SERVO HYDRAULIC FOLDING MACHINE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


(HERA) MO#1011L, SERVO HYDR.,
S/N L105/97
Folding Machine
Hydraulic Folding Machine
used
9500 (LB)
1997
$0.00

Description

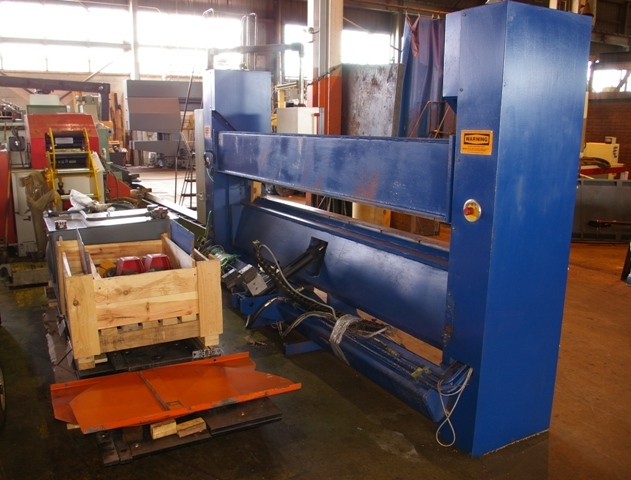

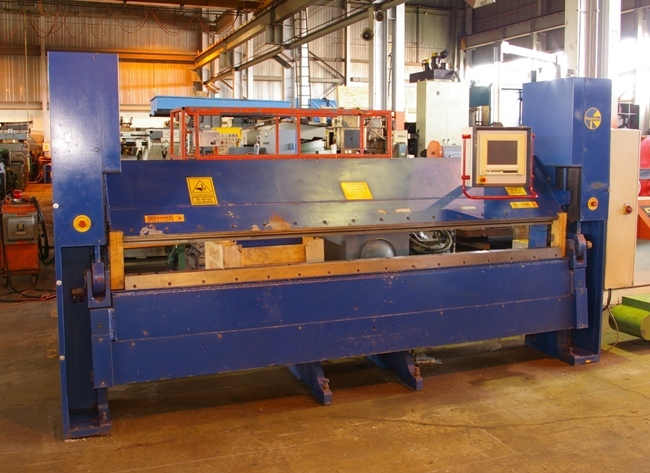

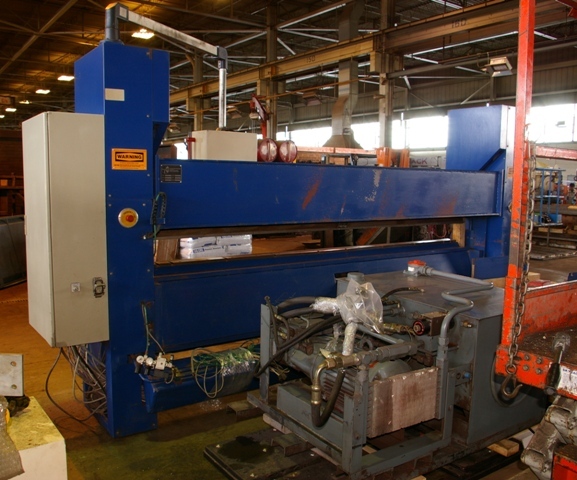

POWERFOLD ( HERA ) CNC SERVO HYDRAULIC FOLDING MACHINE

MODEL 1011L

MAXIMUM FOLDING LENGTH -------------------- 122"

MAXIMUM CAPACITY, FULL LENGTH ------------- 11 GA. MILD STEEL

MAXIMUM CAPACITY, FULL LENGTH ------------- 14 GA. STAINLESS STEEL
MAXIMUM FOLDING SPEED --------------------- 65 DEG./SEC.
FOLDING BEAM REPEATABILITY ---------------- +/- 0.1 DEG.
MAXIMUM FOLDING ANGLE --------------------- 135 DEG.
VERTICAL FOLDING BEAM ADJUSTMENT ---------- 2"
MINIMUM INSIDE BEND RADIUS ---------------- 1.25 X MATERIAL THICKNESS
MINIMUM FLANGE HEIGHT --------------------- 6 X MATERIAL THICKNESS
MAXIMUM CLAMPING BEAM OPEN HEIGHT --------- 14"
MAXIMUM CLAMPING PRESSURE ----------------- 24 TONS
MAXIMUM HEM CAPACITY, FULL LENGTH --------- 18 GA.
CLAMPING BEAM SPEED UP -------------------- 4"/SEC.
CLAMPING BEAM SPEED DOWN ------------------ 3"/SEC.
BACK GAUGE RANGE, RIGHT SIDE -------------- 60" DEPTH
BACK GAUGE RANGE, LEFT SIDE --------------- 120" DEPTH
MAIN DRIVE MOTOR -------------------------- 10 HP A.C.
EQUIPPED WITH ---

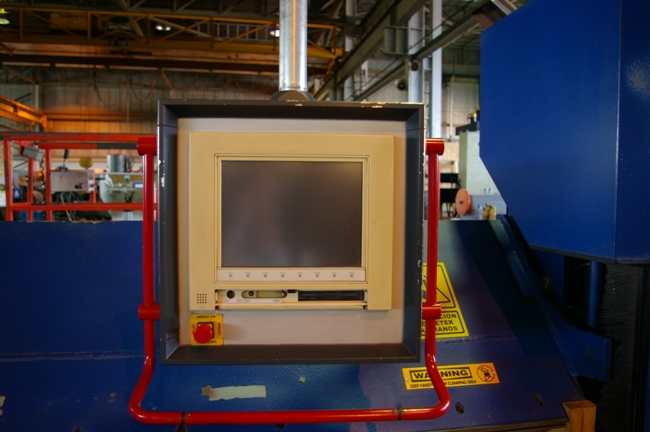

PC BASED TOUCH SCREEN GRAPHIC CONTROL
L-SHAPED ELECTRIC BACK GAUGE AND SHEET SUPPORT
SINGLE SELECTABLE BACK GAUGE FINGERS
BALL CASTERS FOR BACK GAUGE
HOLDING RAIL WITH PNEUMATIC POWER CLAMPING FOR SEGMENTED BEAM TOOLING
FULL SET OF 6" HIGH SEGMENT TOOLING
COLOR LCD DISPLAY SCREEN
AUTOMATIC FOLDING BEAM ADJUSTMENT FEATURE

STOCK# 16251
