PRICE: Loaded on Truck, Our Warehouse, York, PA $7,950.00
HMC Stock # 20036-P
Machine Serial No.: P3-3840
Machine Model No.: P3
New Date: Unknown
Punch Capacity: 50 Ton
Punch Hole Size: 13/16 in 3/4 in Material Maximum
Punch Hole Size: 5 in 1/8 in Material Maximum
Plate Shear Length of Blade: 15-1/2 in
Angle Shear Capacity: 4 in x 4 in x 1/2 in & 5 in x 5 in x 3/8 in
Bar Shear Rounds: 1/4 in to 1-1/2 in
Bar Shear Squares: 1/2 in to 1 in
Coper-Notcher Capacity: 50 Tons
Coper-Notcher Maximum Cut: 2-3/4 in x 4 in x 1/4 in
Punch End Strokes Per Minute: 60 @ 1/2 in
Throat Depth: 8 in
Open Height: 13-1/2 in
Stroke: 4-1/4 in
Table Platen Size: 10 in x 17 in

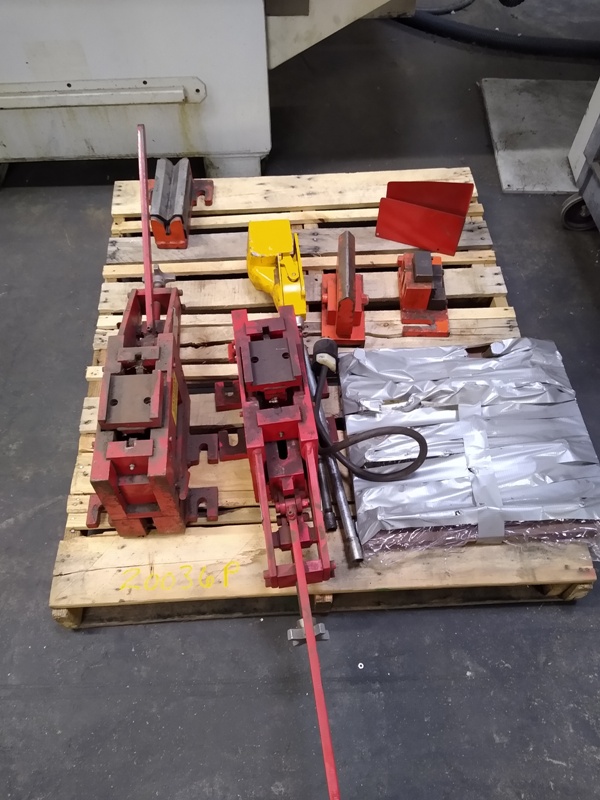

EQUIPPED WITH:
(1) Punch Holder
(1) Punch Material Stripper
(1) 11 in Long Shear Knife
(1) Round Shear Knife
(1) Angle Shear Knife
(2) Table Mounted Adjustable Work Guides

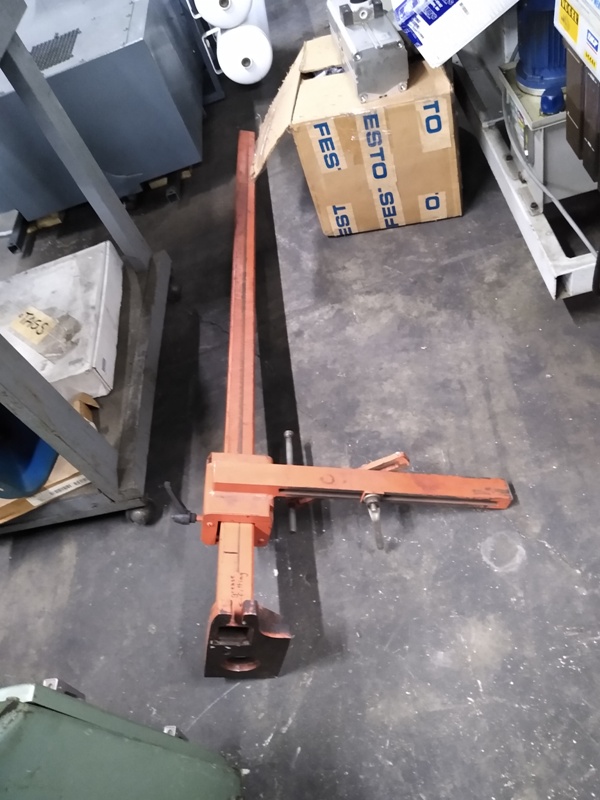

(1) 73 in Long Adjustable Work Piece Length Stop Bar
(1) Electric Foot Pedal Trip
(1) 8 in Long x 1-1/2 in Wide V Brake Punch Die
(1) 8 in Long 4 Way Brake Bottom Die
(1) Pipe Notching Die
(2) Channel Shearing Dies (2 in x 6 in)
(1) Lot of Assorted Punches and Dies
Operational Controls on Each End
Slug Catch Pan on Each End
10 HP Hydraulic System Motor
Wired for 3 Phase, 60 Hz, 208/230/460 Volts
Overall Machine: 66 in LR x 28 in FB (stop bar removed) x 61 in High x ? Lbs.
Stop Bar Unit: 12 in x 12 in x 75 in Lot
Skid of Accessories & Tooling: 40 in x 47 in x 15 in High x ? Lbs.

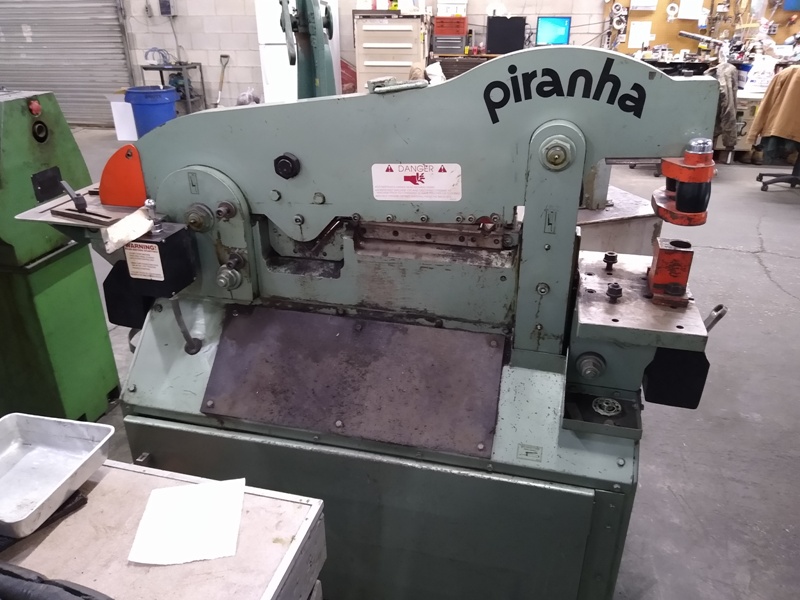

To view more information on the PIRANHA HYDRAULIC IRONWORKER.., including reviews, brand information, photos, videos, and more,
