PINNACLE 2019 CNC LATHE PK-L210C PINNACLE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


PK-L210C
Lathes and Turning Centers CNC
Slant Bed Turning center
new
9250 (LB)
2019
$0.00

Description

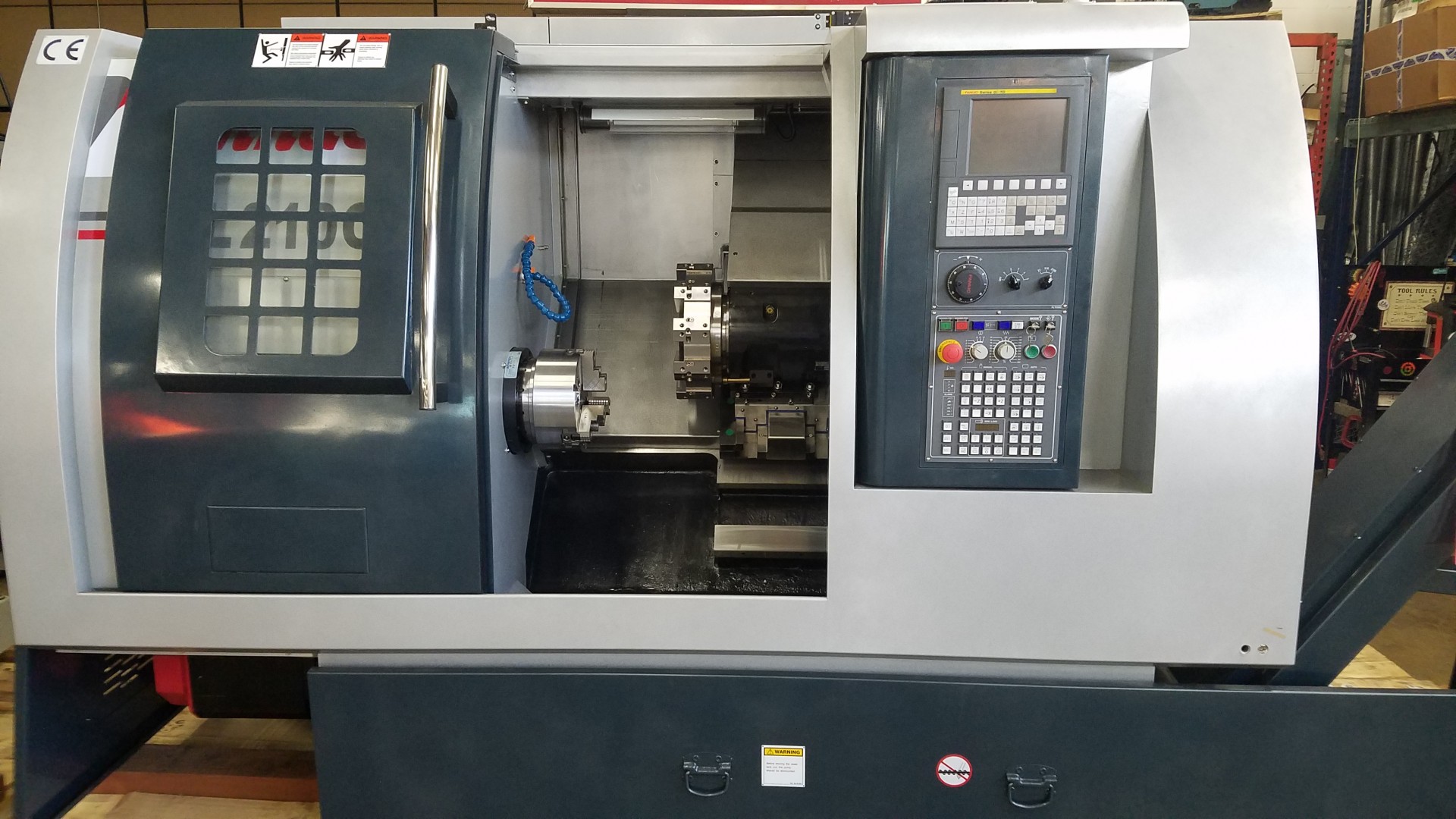

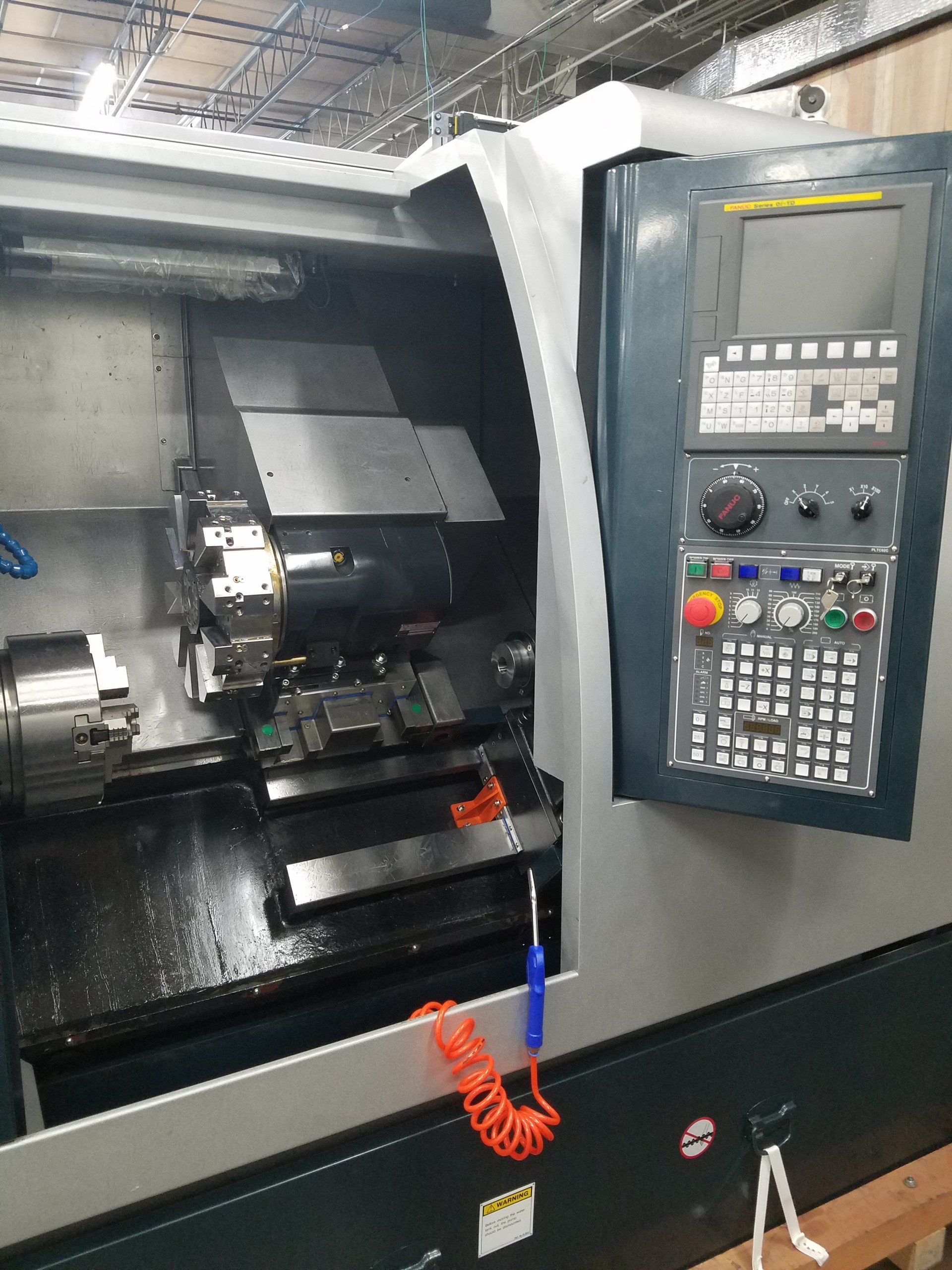

Pinnacle PK-L210C CNC Lathe. Equipped with: Fanuc control, 25 HP Spindle motor, Box Ways, Hand Scraped, Quality Meehanite castings tempered and relieved, High frequency heat treated ways, Hydraulic 10" 3-jaw chuck, Servo turret, Box Ways, Programmable Tailstock, Electrical cabinet heat exchanger, Tool holders, tool box 3,500 RPM Spindle, A2-8 spindle nose, 3.03" Bar capacity, Chip conveyor and 2 Year Warranty.

PK Series
Stock Number:
2966
Model:
PK-L210C
Machine Age:
2019
Condition:
New
New-Used:
Used


Specifications:
Control:

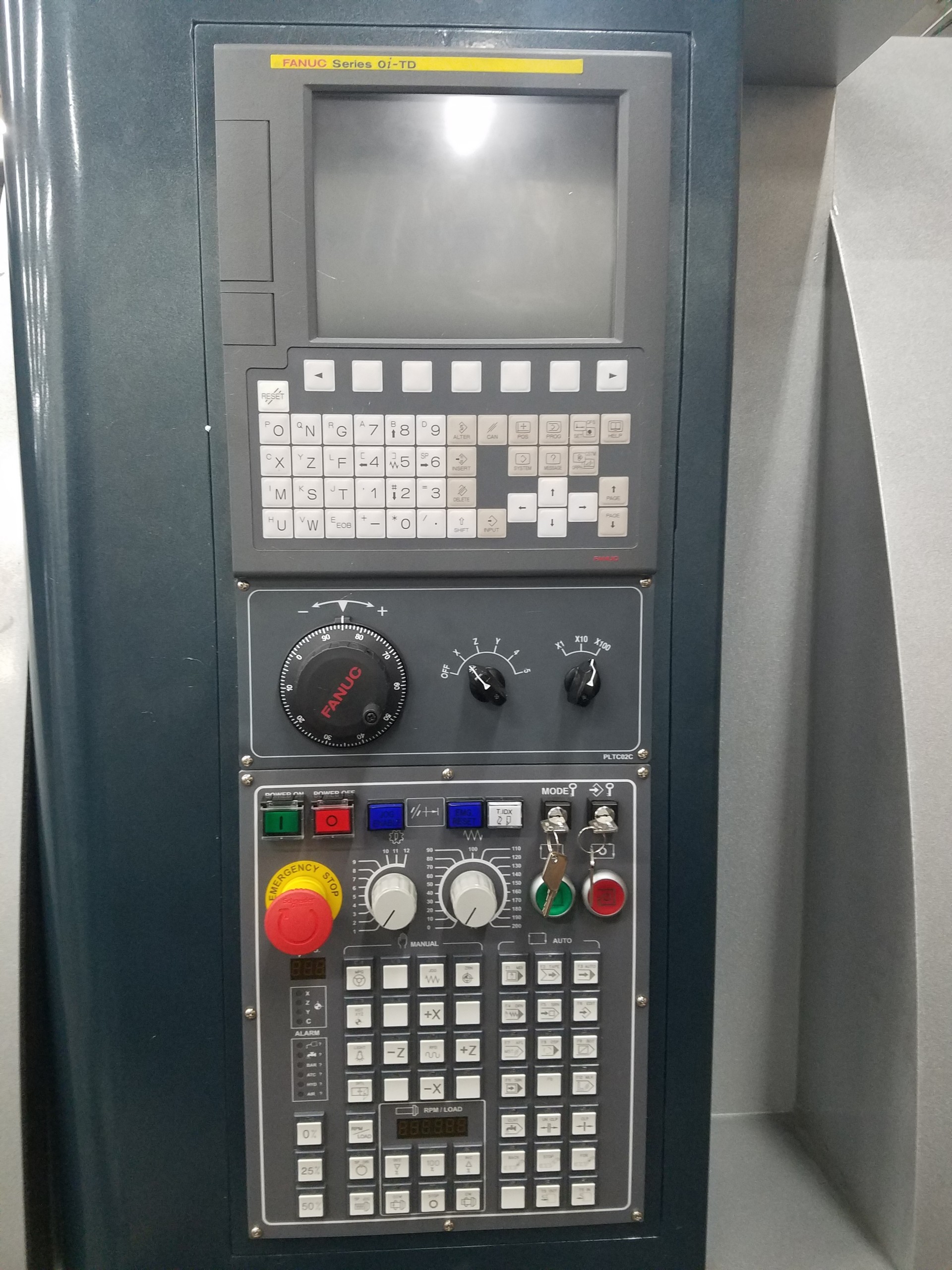

Fanuc Oi-TD 8.2" LCD
Chuck size:
10"
Max Cutting Dia.:
17.3"
Max Cutting Length:
24"
Num. of Tools on Turret:
10
Tool Size:
1"
Turret Type:
Block
Spindle Nose:
A2-8
Spindle Bore:
3.46"
Bar Cap.:
3.03"
Spindle Power:
25 HP
Spindle RPM:
35-3,500
Travel "X":
8.2
Travel "Z":
24"
Rapid feed rate:
936/780 IPM
Way type:
H&G box
Power req.:
30KVA
Air requirements:
85 PSI
Floor space:
106" x 64" x 72"
Machine dry weight:
9250 lbs.
