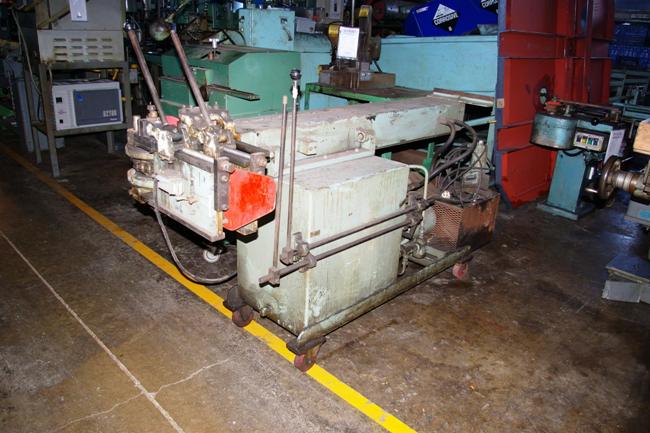

PINES MODEL 1400 ROTARY TUBE BENDER
AGE?
MAXIMUM BENDING CAPACITY:
I.P.S. EXTRA HEAVY PIPE ----------------- 1/2"
NON-FERROUS TUBING Y.P. TO 12,000 PSI --- 1-1/4" OD X .083" WALL
NON-FERROUS TUBING Y.P. TO 25,000 PSI --- 1-1/4" OD X .065" WALL
STEEL TUBING Y.P. TO 40,000 PSI --------- 1-1/8" OD X .065" WALL
STAINLESS STEEL TUBING Y.P. TO 60,000 PSI 7/8" OD X .065" WALL
STEEL BAR - ROUND Y.P. TO 40,000 PSI ---- 5/8" DIA.
STEEL BAR - SQUARE Y.P. TO 40,000 PSI --- 9/16" SQ.
ANGLE IRON Y.P. TO 40,000 PSI ----------- 1" X 1" X 1/8"
MAXIMUM RADIUS ---------------------------- 8-1/2"
MAXIMUM TUBE LENGTH ----------------------- 5
BENDING ARM SPEED, MAXIMUM ---------------- 24 RPM
DRIVE MOTOR ------------------------------- 3 HP A.C.
EQUIPPED WITH ---
COUNTERCLOCKWISE ROTATION
MANDREL EXTRACTOR
DEGREE OF BEND SELECTOR
AUTOMATIC LUBRICATION
TEMPORARY SPECIFICATIONS
STOCK# 15307
