PHI 4 Post Hydraulic Heated Platen Press 75 Ton x 24" x 18"

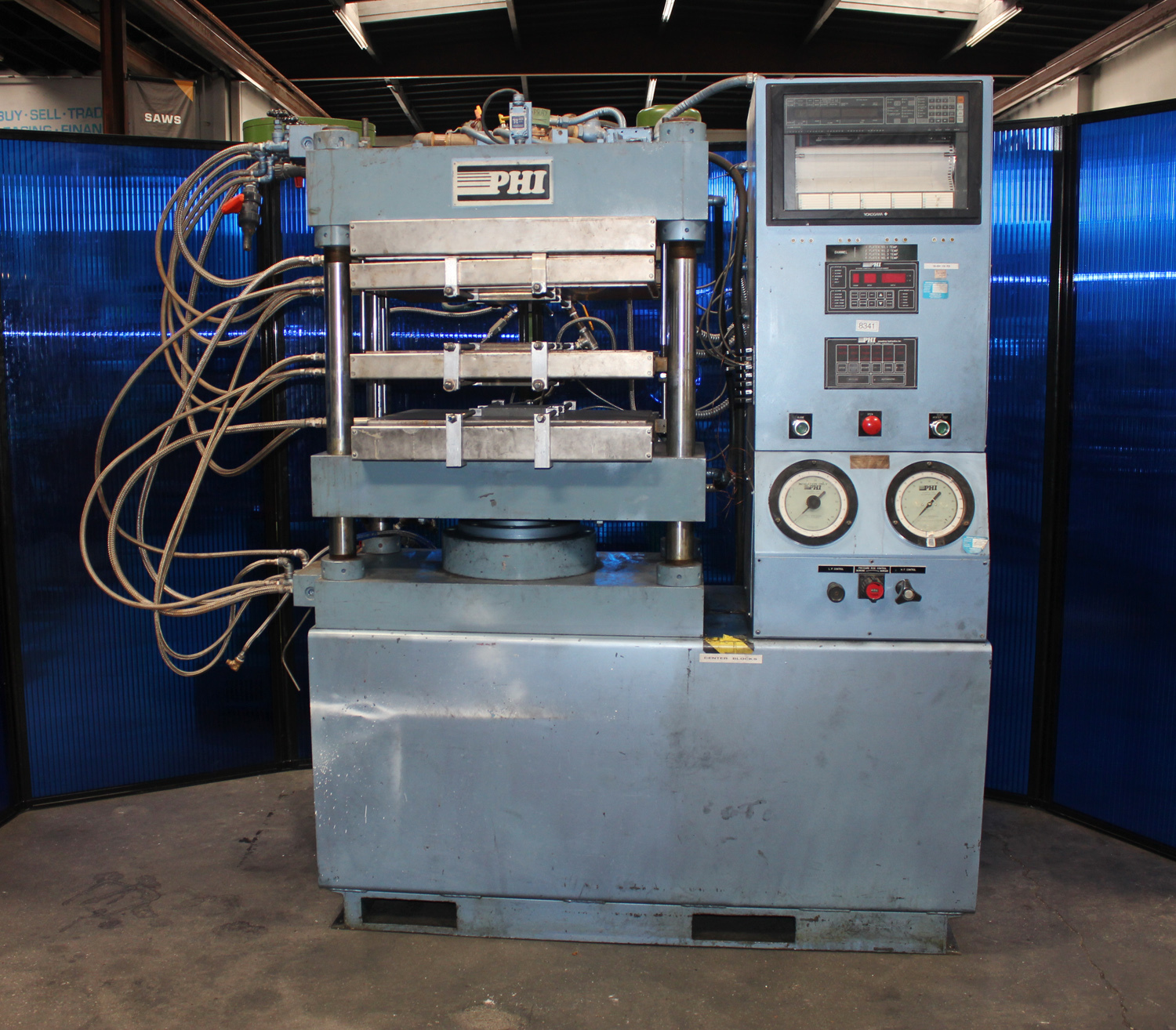

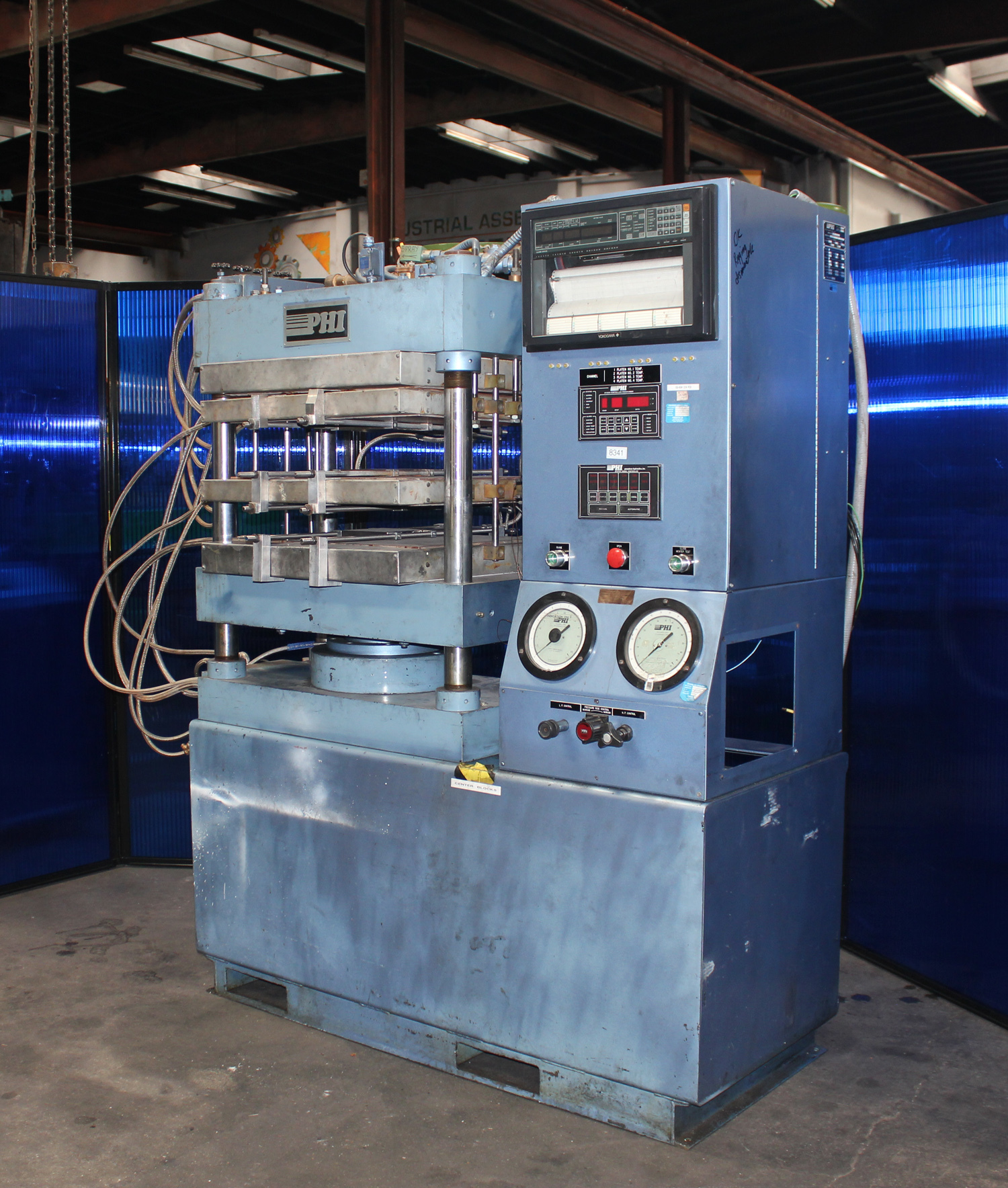

PHI 4 POST HYDRAULIC HEATED PLATEN PRESS 75 TON X 24" X 18"

Add to Your File

Brand: PHI 4 POST HYDRAULIC HEATED PLATEN PRESS 75 TON X 24" X 18"

Model: 75R2418 S-4HOS-P-YS8R

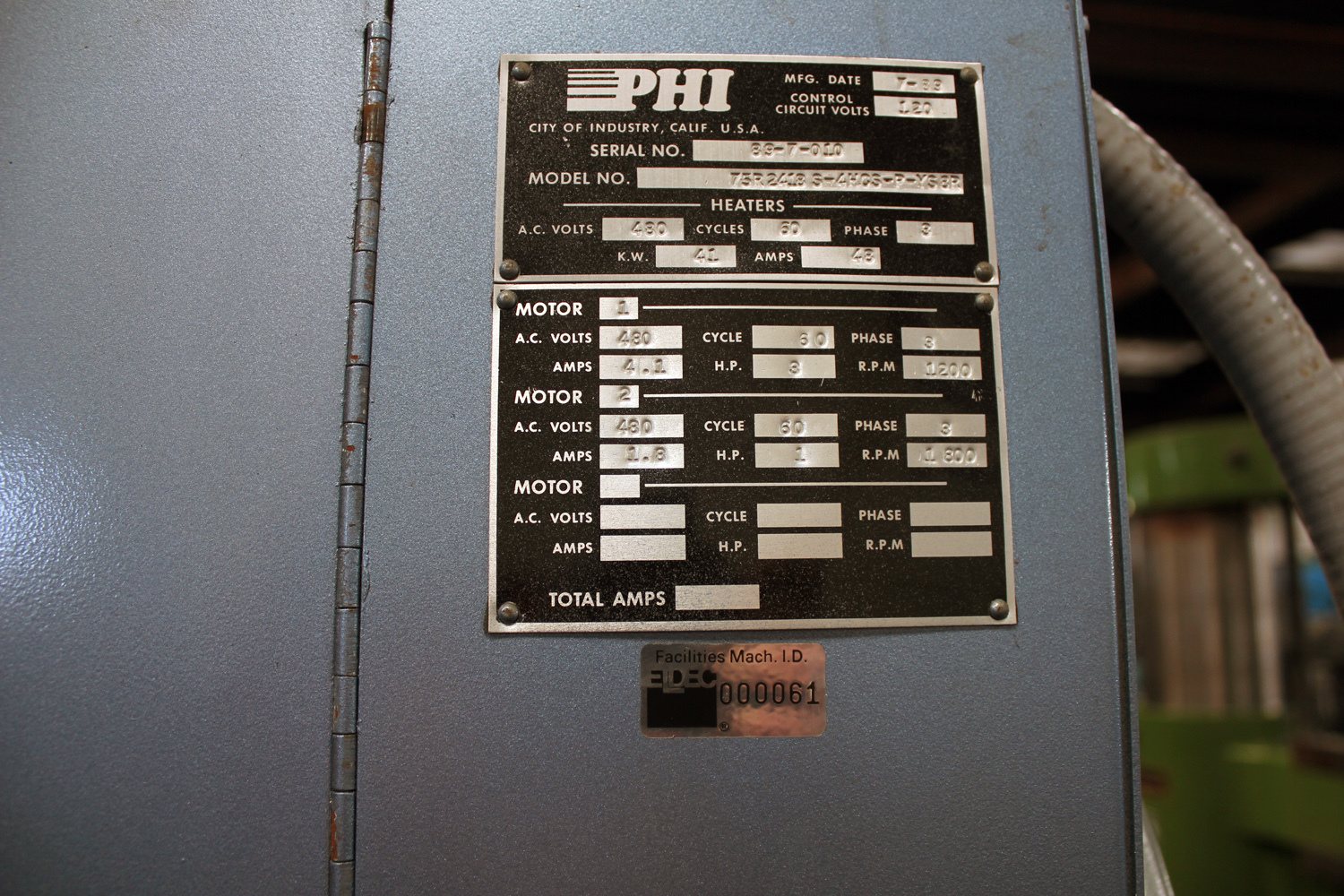

Serial No. : 89-7-010

Category:

Sub Category:

Condition: used

Weight: (4)

Year Built:

Status:

Price: $0.00

Description

Basic Information

Model: 75R2418 S-4HOS-P-YS8R
Manufacturer: PHI
Serial #: 89-7-010
Location: Huntington Park, CA
Year Built: 1989

Specifications

Tonnage: 75
Ram Stroke: 0"- 8"
Daylight Opening: 8"- 12"
Heated Platen Size (L-R, F-B) (4): 24" x 18 1/2"
Distance Between Posts (L-R, F-B): 28" x 12 1/4"
Electrically Heated Platens: 600 Degrees F
Main Ram Diameter: 8"
Ram Speeds (Approx.):
Closing: 56 IPM
Pressing: 2.9 IPM
Return: Gravity
Dimensions (L x W x H): 84" x 35" x 80"
Weight: 4,000 Lbs.

Equipped with

4 Post Up- Acting Type

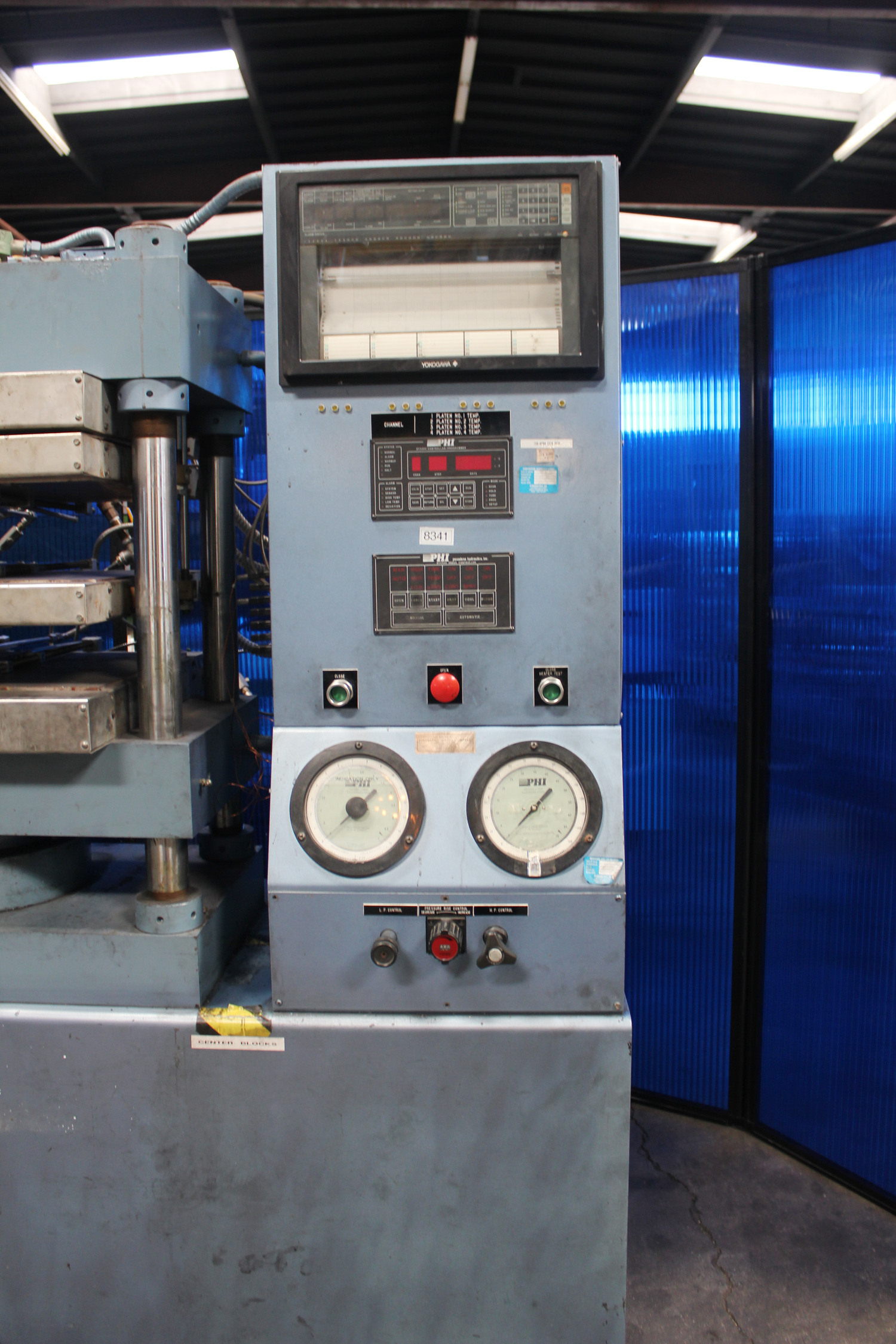

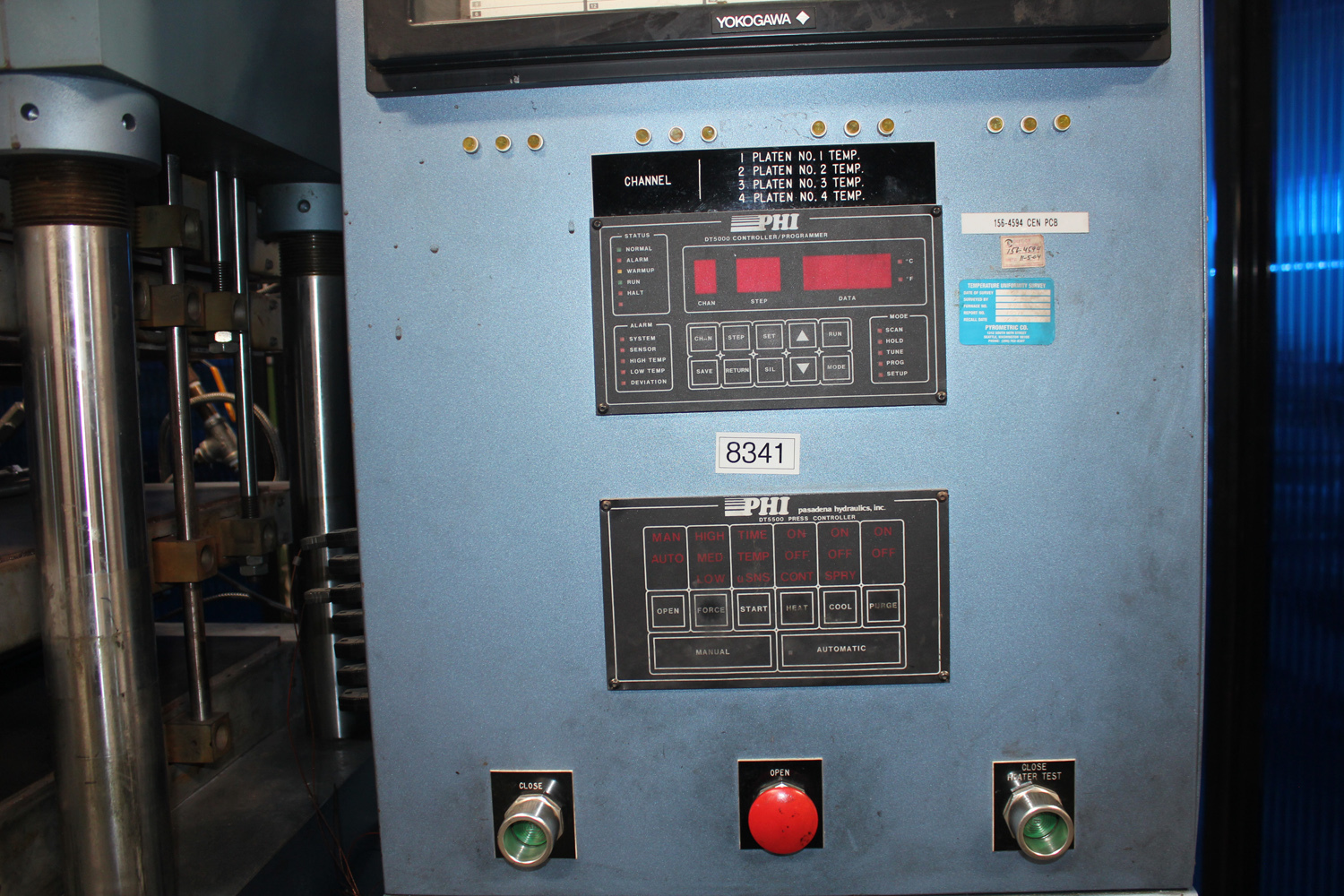

PHI DT 5500 Digital Programmable Control

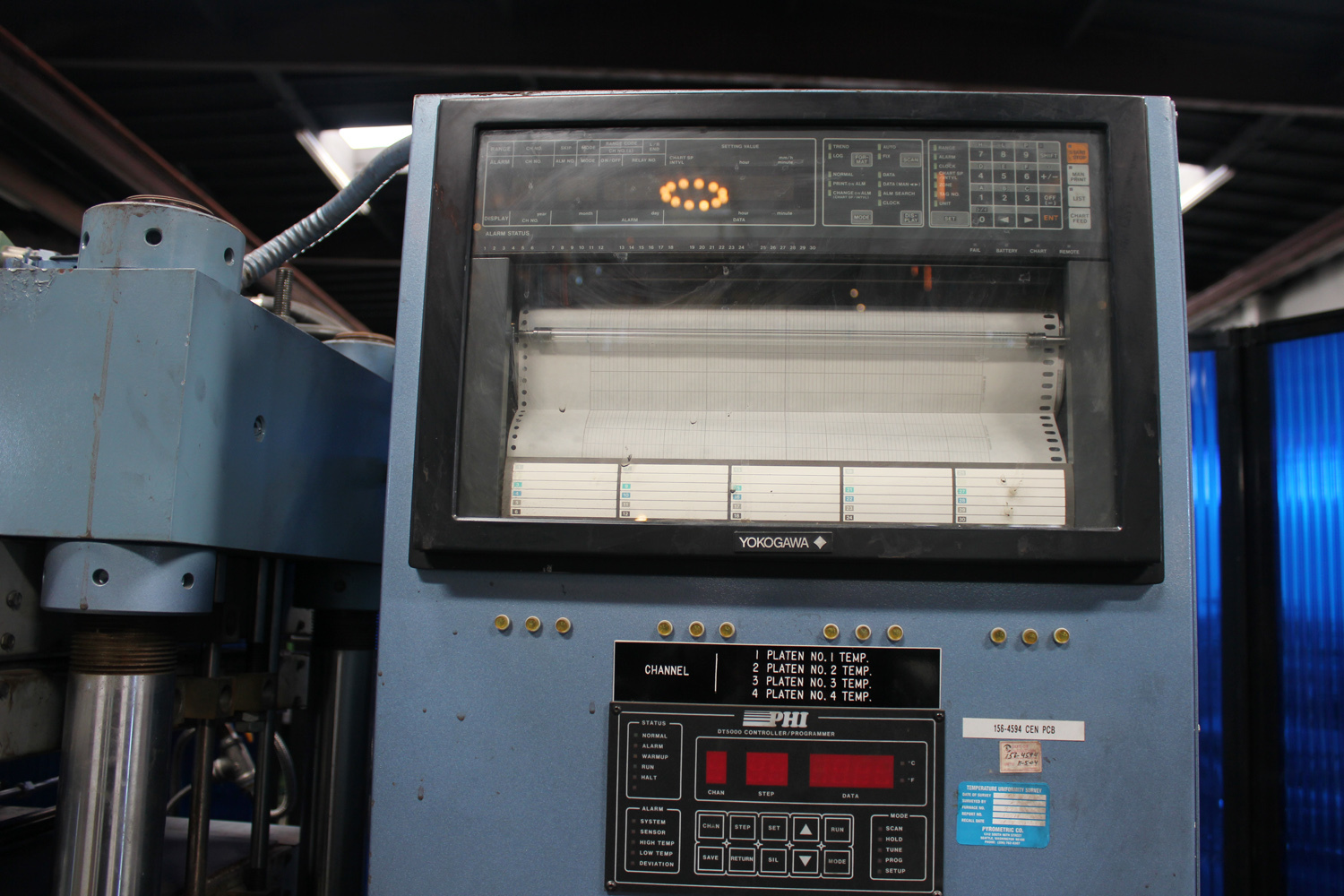

Yokogawa Chart Recorder

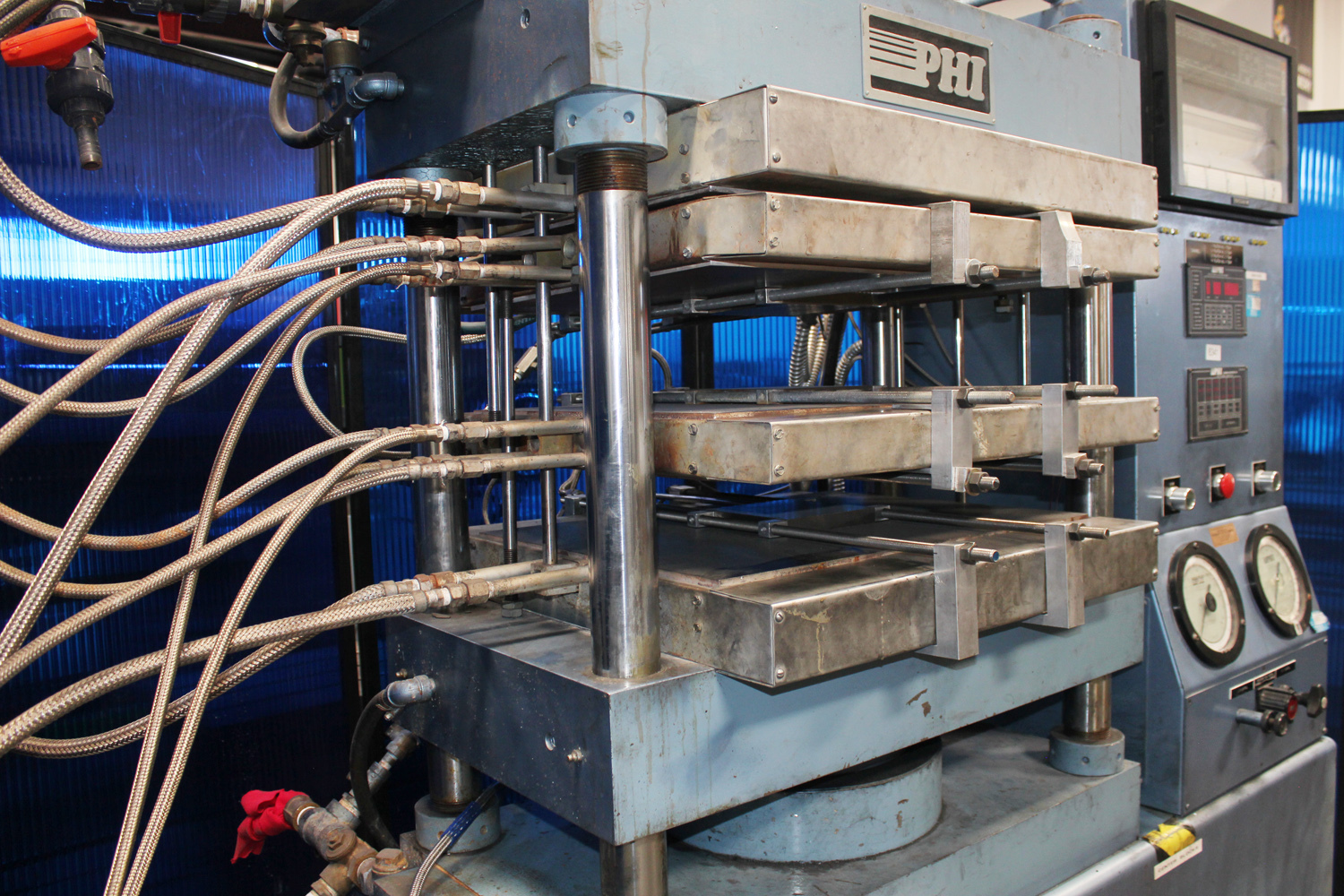

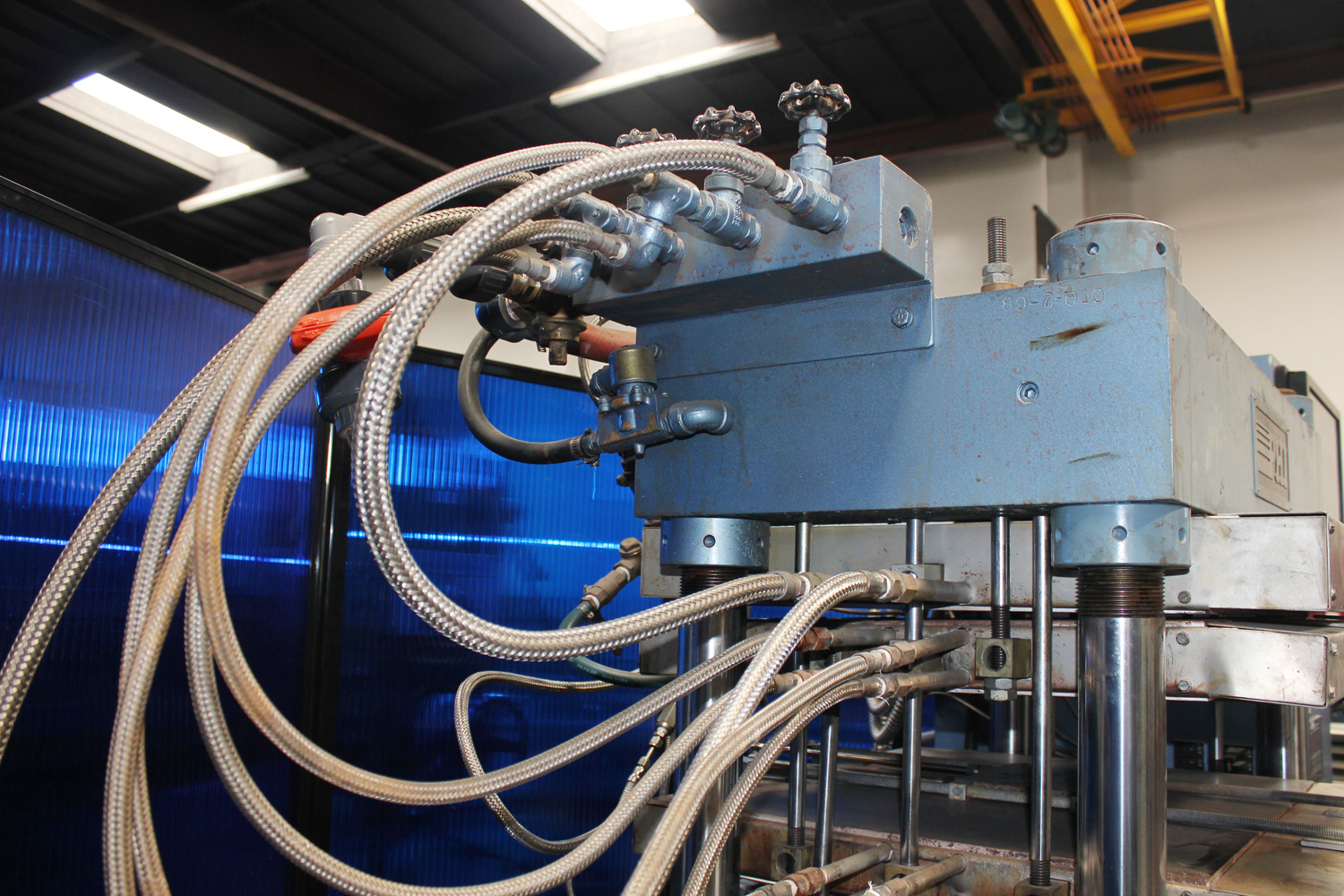

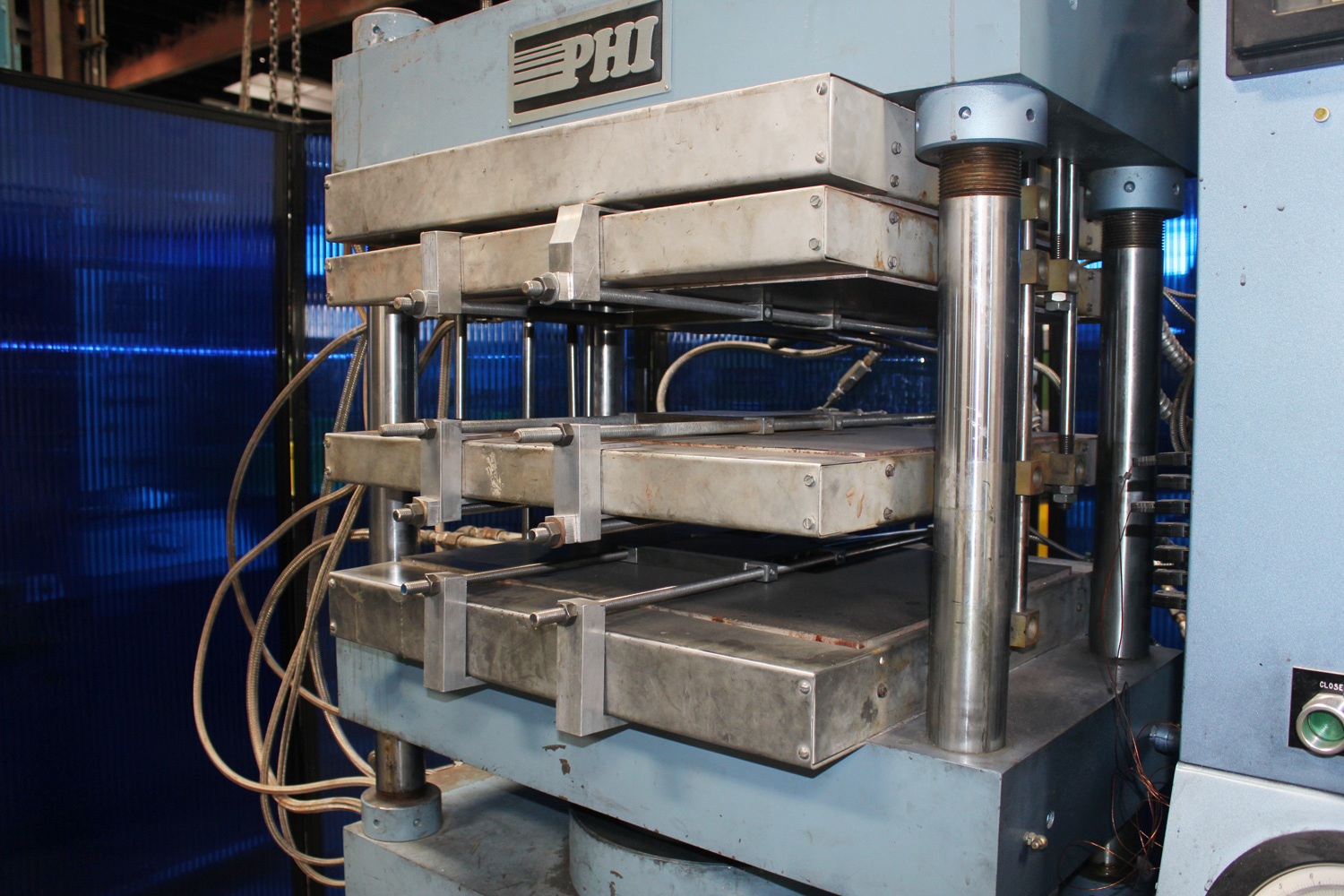

4 Heated Platens With Water Cool Down
3 Openings In Platens
Digital Temperature Controllers
Digital Cycle Timer
Push Button Operation With Stroke & Pressure Control

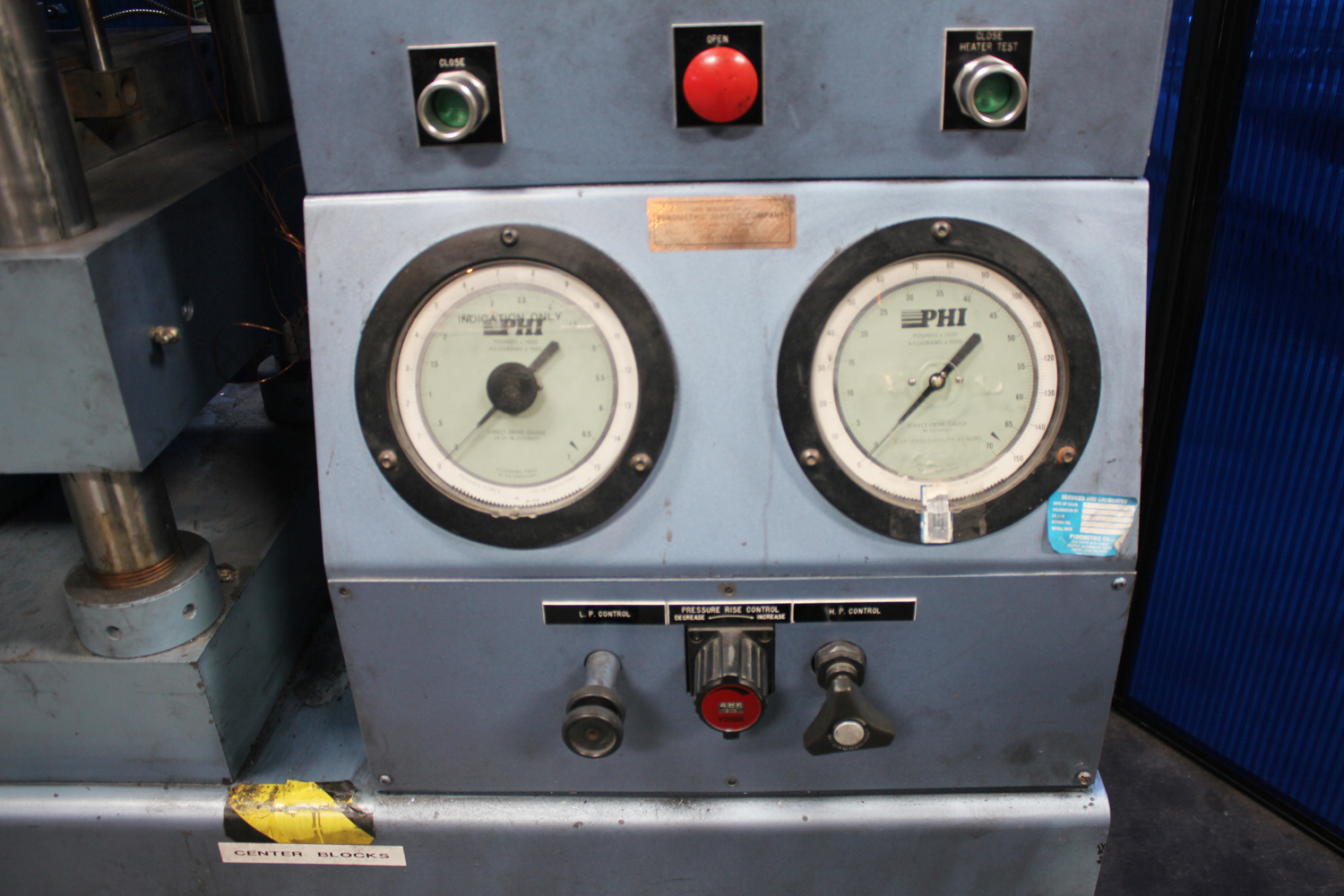

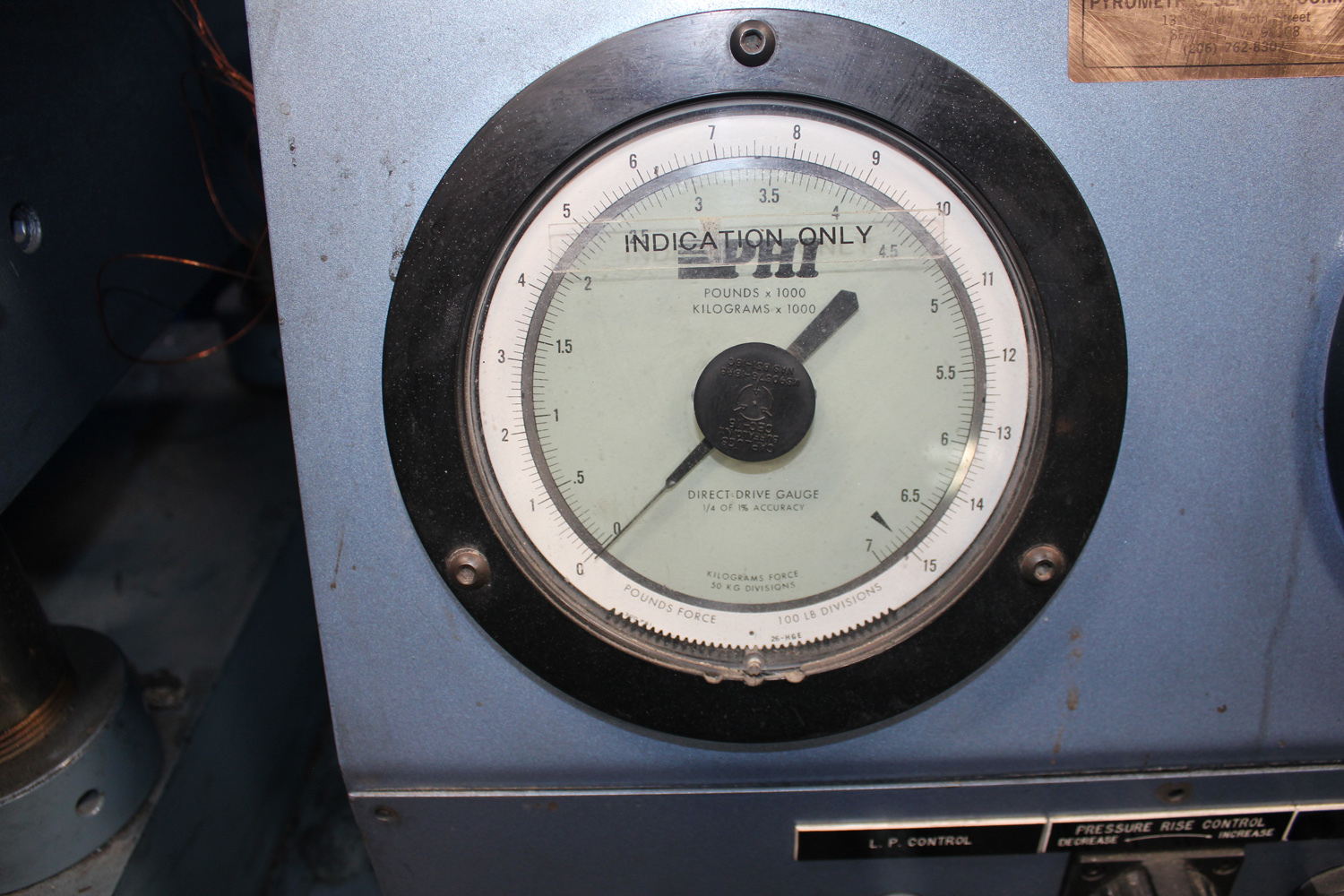

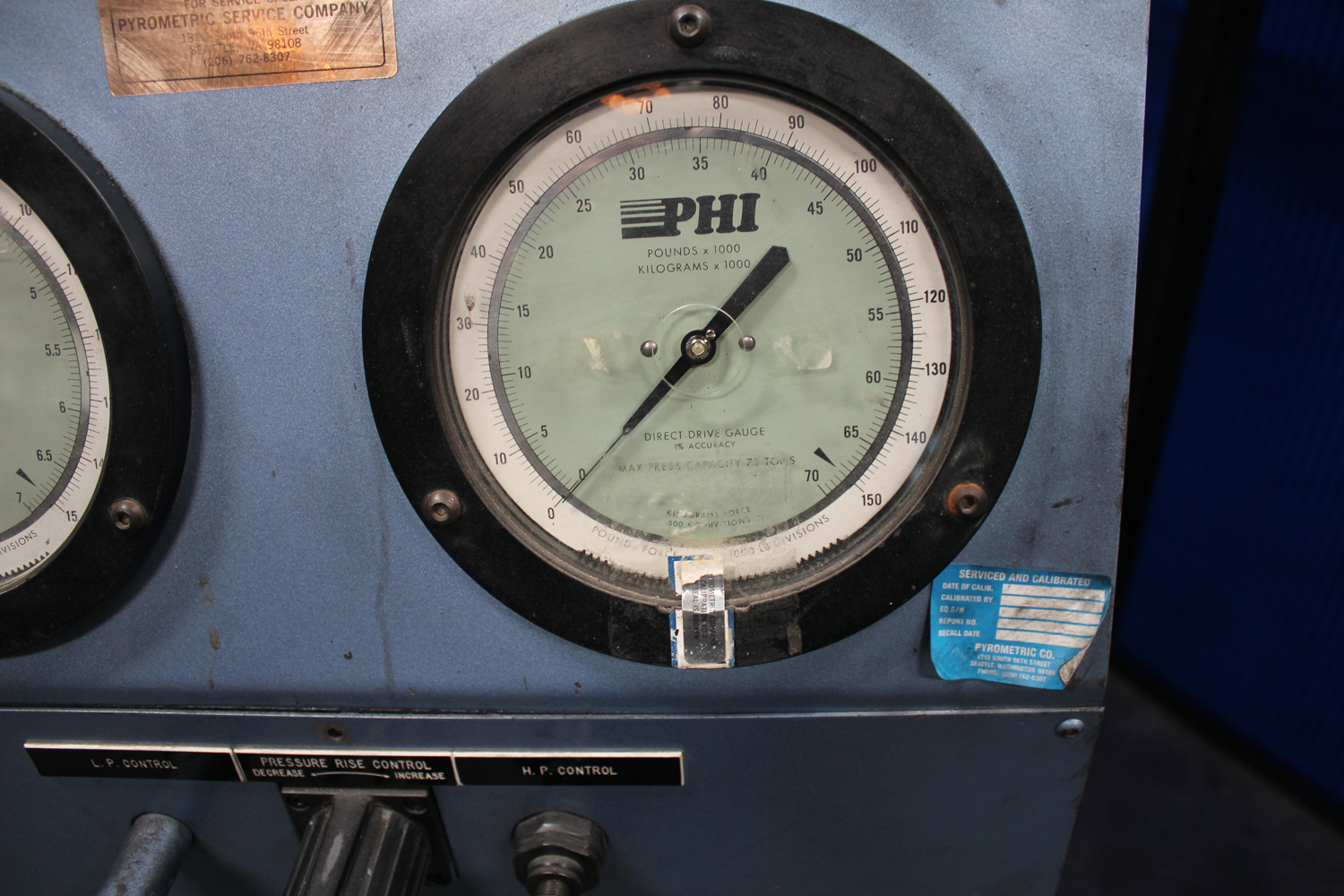

Low & High Pressure Gauges

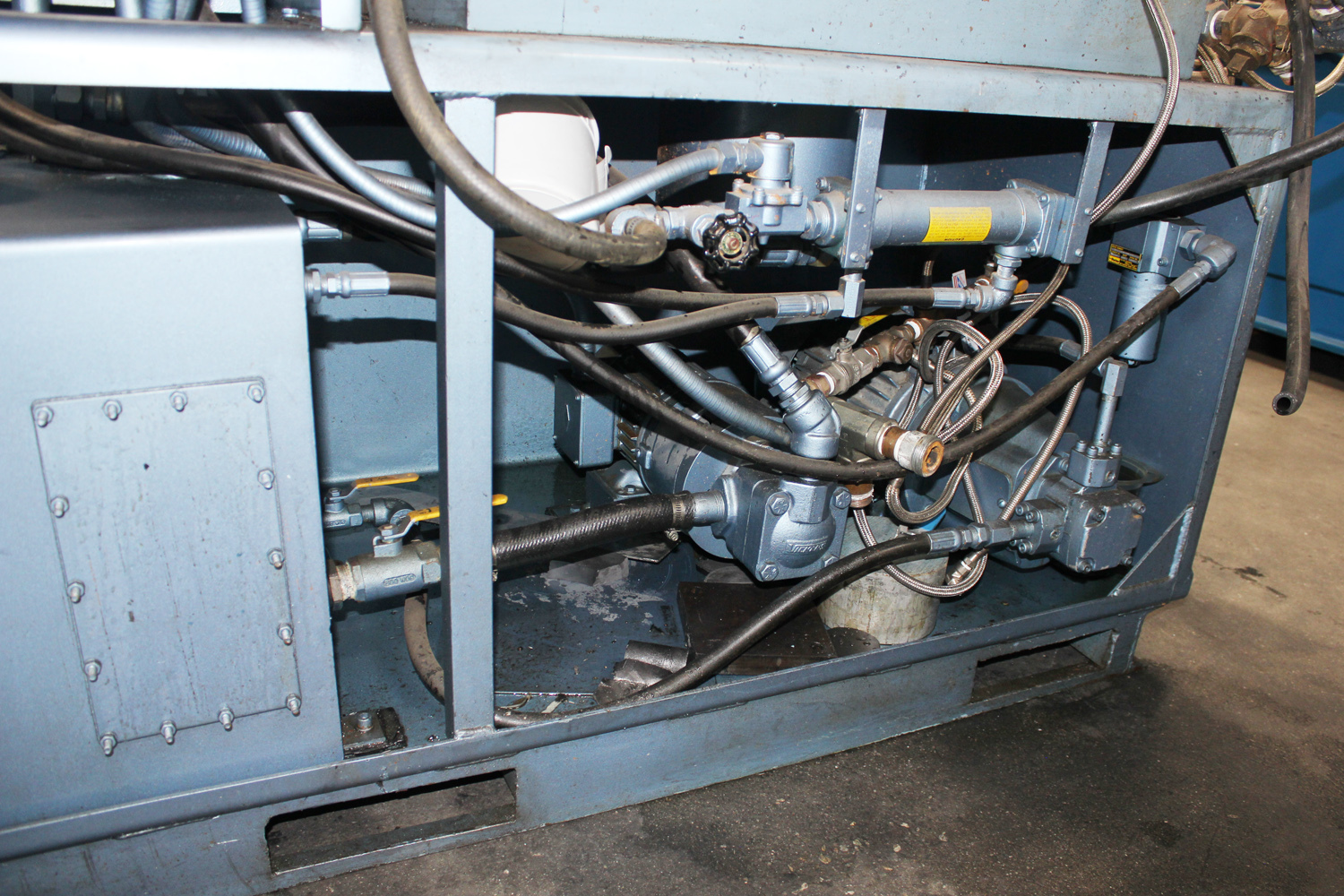

Horsepower: 10
