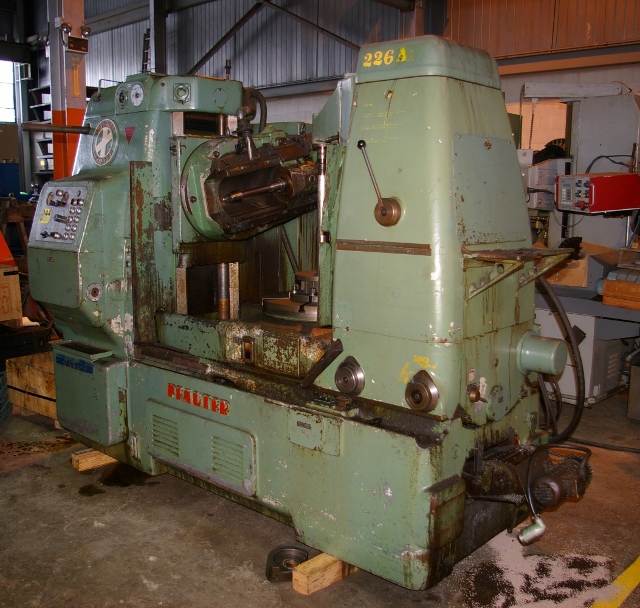

PFAUTER UNIVERSAL VERTICAL GEAR HOBBING MACHINE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


#P630 UNIV. VERT., 10 HP,
S/N 20710
Gear Hobbers
GEAR HOBBERS, VERTICAL
used
18000 (LB)
1963
$0.00

Feature Video

Description

#P630 PFAUTER UNIVERSAL VERTICAL GEAR HOBBING MACHINE

MODEL P630

MAXIMUM WORK PIECE DIAMETER --------------- 24"

MAXIMUM MODULE PITCH @ 57% MACHINABILITY -- 2.5 DP

MAXIMUM AXIAL TRAVEL ---------------------- 17"

MAXIMUM NUMBER OF TEETH:
STANDARD SINGLE START INDEX DRIVE ------- 8 TEETH
CENTER DISTANCE WORKPIECE/HOB, MAXIMUM ---- 16.73"
CENTER DISTANCE WORKPIECE/HOB, MINIMUM ---- 1.97"
TABLE DIAMETER ---------------------------- 21.65"
TABLE BORE DIAMETER ----------------------- 4.92"
WORK ARBOR DIAMETER ----------------------- 1.41"
ADAPTOR TAPER OF HOB ARBORS --------------- #5 M.T.
MAXIMUM DIMENSION OF HOB, STANDARD HEAD --- 7" DIA. X 8.5"L
MAXIMUM HOB SHIFT TRAVEL ------------------ 8"
HOB SPEEDS, VARIABLE ---------------------- 62 TO 390 RPM
RADIAL FEED ------------------------------- .004 TO .070 IPR
TANGENTIAL FEED --------------------------- .006 TO .090 IPR
MAIN DRIVE MOTOR -------------------------- 10 HP
EQUIPPED WITH ---

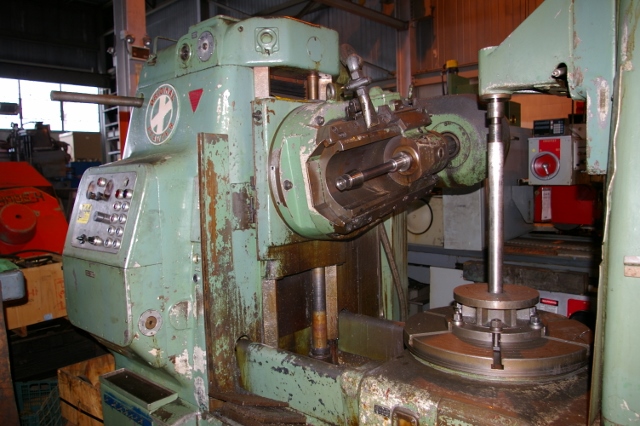

UNIVERSAL HOB HEAD

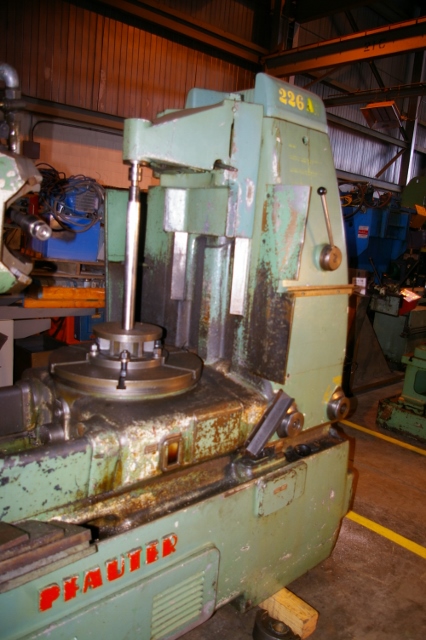

TAILSTOCK WITH CENTER SUPPORT
DIFFERENTIAL
AUTOMATIC TWO CUT WORK CYCLES
CHIP CONVEYOR
COOLANT SYSTEM
TO VIEW VIDEO, CLICK LINK www.racomachinery.com/vlink/60437.mp4

STOCK# 60437
