Description

* Part Program Capacity - 80G Hard Drive * Programmable Rapid Feed Rate - 60 ipm * Conversational Canned Cycles - Drill - Set Height - Retract Automatic Tool Change * Spindle Control - Varialbe Speed - Forward/Reverse - 200 rpm * Soft Start * Program and Data Input - Conversational, G Code, Ethernet, Floppy Drive, DXF * Material Selection - Tungsten, Alloy, Copper, Aluminum, Steel * Cutting Technology Selection - Automatic - 1.0mm through 3.0mm

Specification                                                    Description

X-Axis Travel                                                       39.37"

Y-Axis Travel                                                       19.68"

Z-Axis Travel (Electrode Travel)                               14.17"

W-Axis (Guide Travel)                                        22.44"

Work Tank                                                             47.24" x 21.65"

Max. Workpiece Weight                                      1,000 lbs

Machining Amps                                                      42 Peak

Auto Electrode Changer                                       22 Positions

Electrode Diameter Range                                 .012" - .120"

Reservoir                                                              15 Gallon

Electrical Requirement                                 208VAC, 3 Phase, 60Hz

Machine Dimensions                                           86.5" x 43" x 76"

Machine Weight                                                      2,640 lbs

Equipped With:

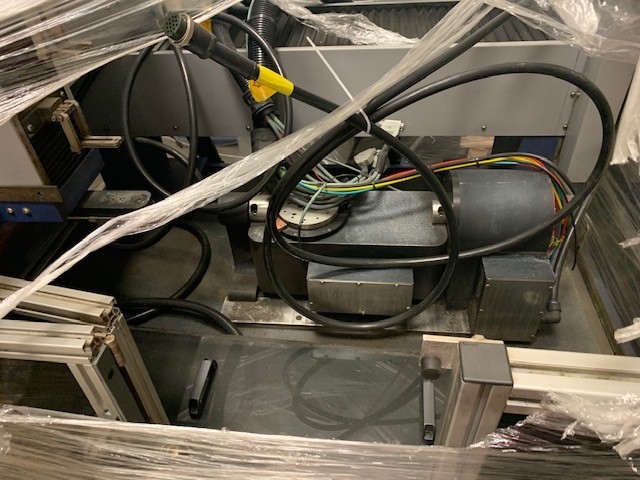

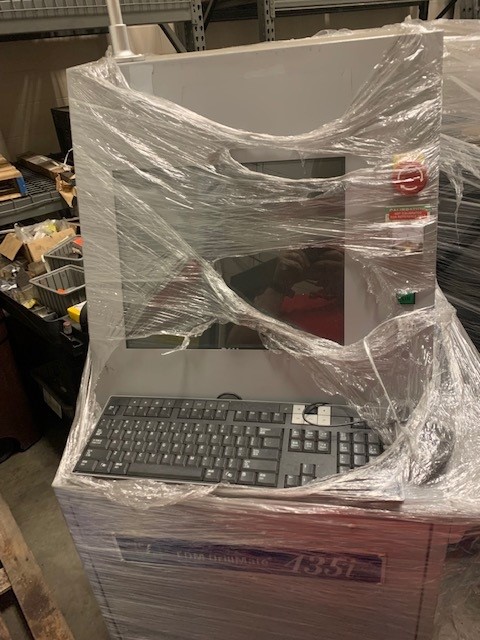

* EDM Drillmate CNC Controller * 4th & 5th Axis Rotary Indexer * 22 Position Automatic Electrode Changer * Submersible Worktank * Granite Worktable * EDM Tooling Rail / Accommodates Most EDM Tooling * Three Stainless Steel Chucks * Automatic Tool Magazine Alignment * Variable Speed Spindle / 200 RPM * Deionized Water Filtration System * Three (3) Adjustable Workpiece Flush Nozzles * Easy Adjustable Die Guide Verticality * Automatic Verticality Check * Ethernet Remote Monitoring (Multiple Machine Capability) * Fluid - Water/EDM Oil * Main Pressure Pump - Electric Piston Pump * All Available Manuals and Accessories

Stock Number: 1458

Condition: As Is, Where Is
