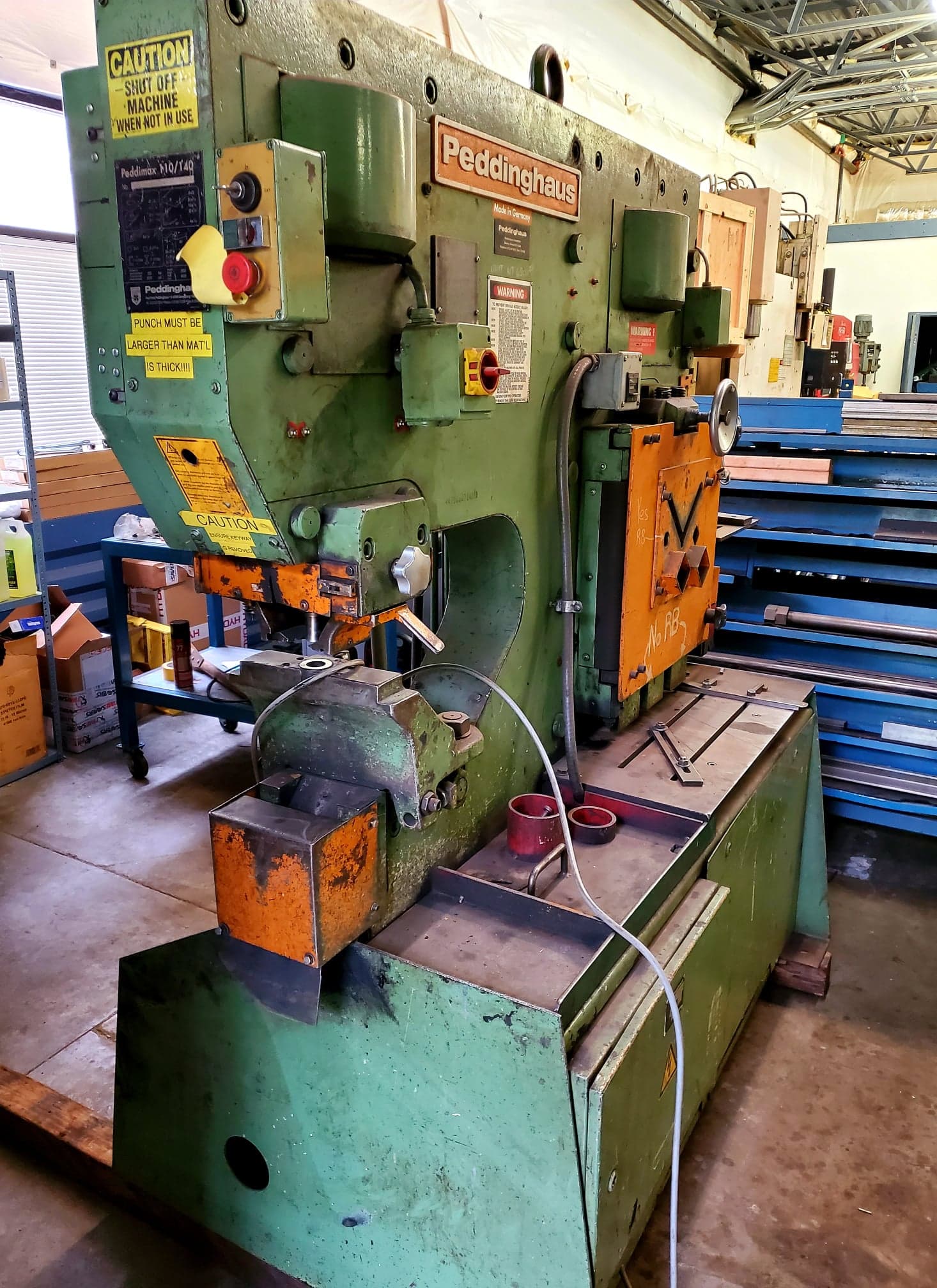

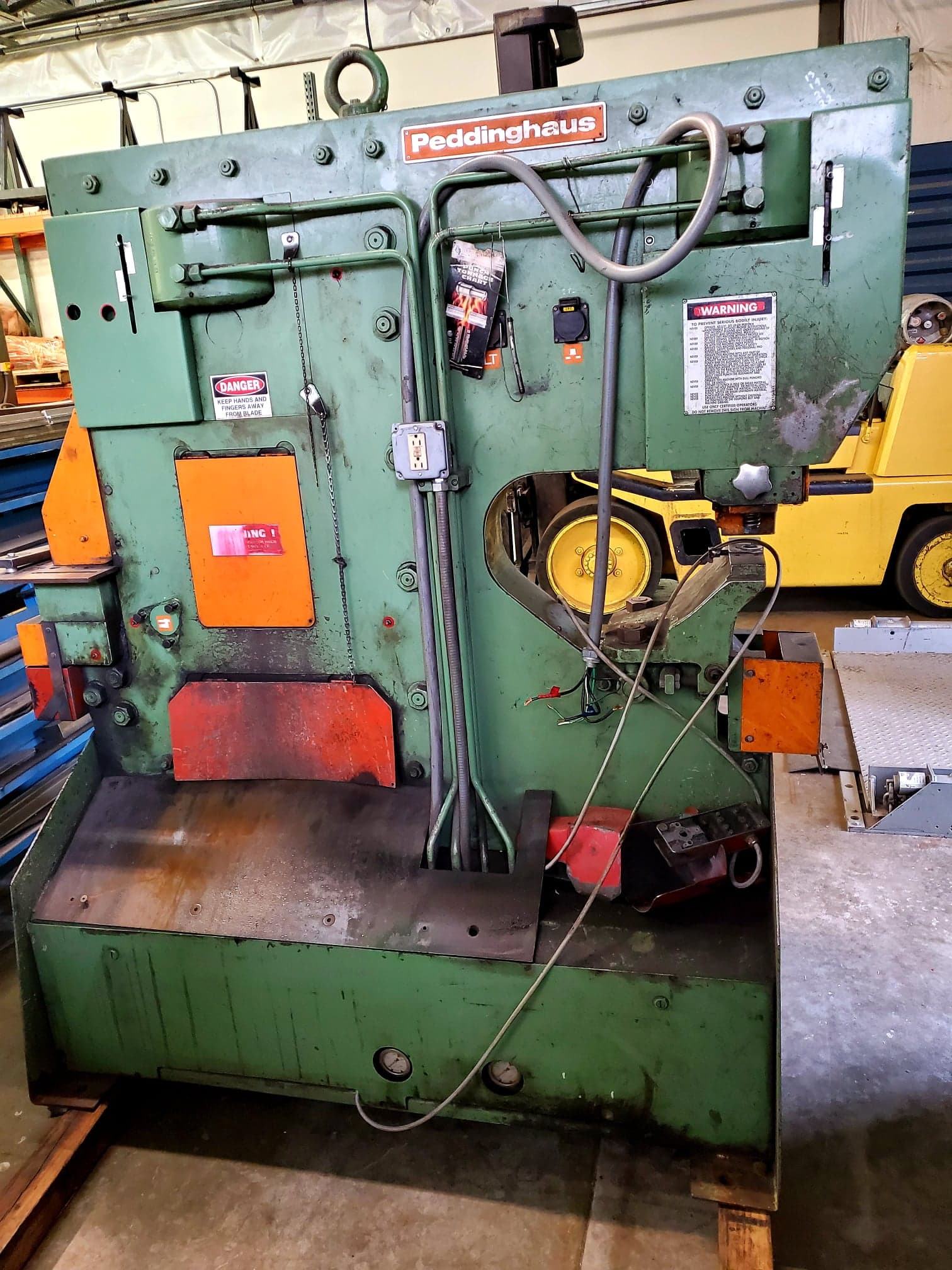

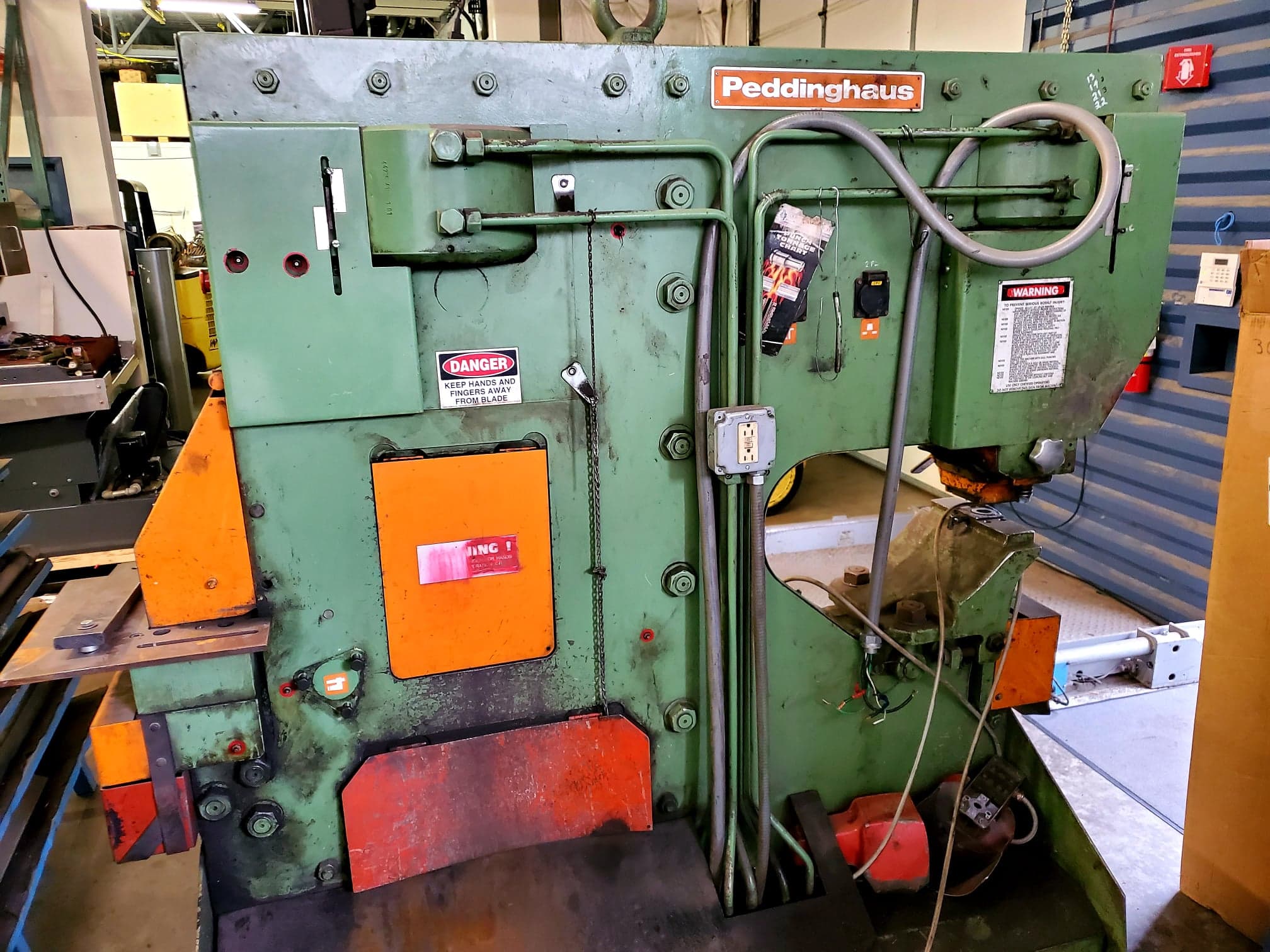

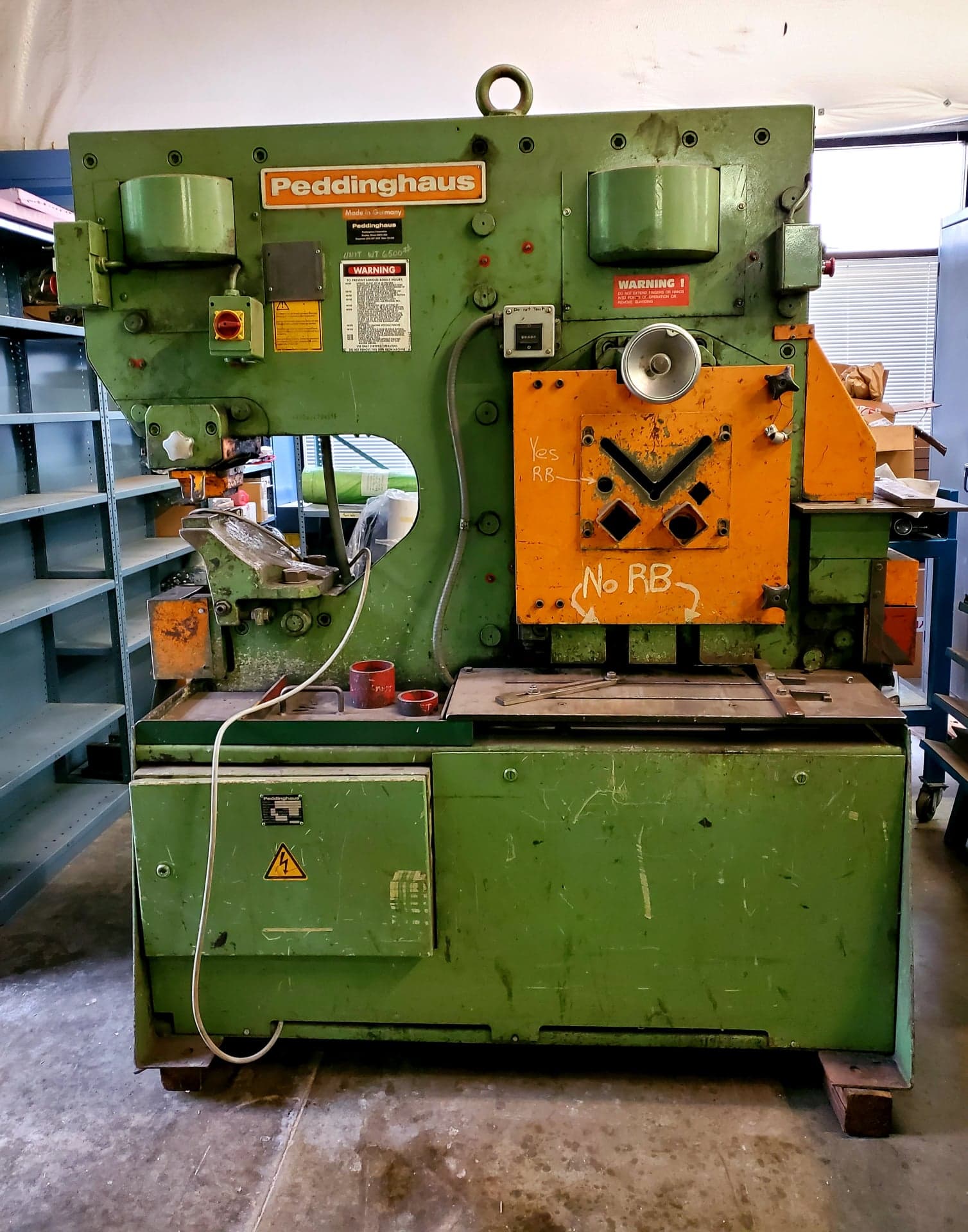

PEDDINGHAUS PEDDIMAX 140 TON IRONWORKER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


PeddiMax 140
Iron Worker
Hydraulic Iron Worker
used
6500 (LB)
0
$0.00

Description

SPECIFICATIONS

Punch Tonnage: 110 Ton
Punch Stroke: 3/8 in to 2 in
Punch Capacity: 1.25 in x 1 in
Punch Throat Depth: 20 in
Punch Strokes Per Minute: 22

Shear Tonnage: 140 Ton
Flat Bar Shear Capacity: 20 in x 5/8 in; 16 in x 3/4 in; 12 in x 1 in
Flat bar shear length: 20-1/4 in
Flat bar shear working height: 28-3/8 in

Angle shear capacity- 90 degree: 6 in x 6 in x 1/2 in
Angle shear capacity- 45 degree: 4 in x 4 in x 1/2 in
Round bar capacity: 2 in and 1 in
Square bar capacity: 2 in and 1-3/16 in

Notcher capacity, plate: 1/2 in square, 1/2 in triangular
Notcher capacity, angle: 3 in x 3/8 in square, 3 in x 3/8 in triangular
Notch width: 2-9/16 in square
Notch depth: 3-5/16 in square, 2-9/16 in triangular
Notch station working height: 45-1/2 in to center of blades
I-beams: 6 in H x 12.5 lbs
Flanges: 7 in H x 14.75 lbs

Oil capacity: 28 gallon
Motor: 10 HP
Volts: 230 / 460
Max Amperage: 30.8 / 15.4

Approx Machine Dimensions (l x w x h): 78 in x 41 in x 82 in
Approx Machine Weight: 6,500 LB

Tooling/ Punches Included with Machine
