DRILL
SPINDLE SPECIFICATIONS
NUMBER
OF DRILL SPINDLES - 1
DRILL
SPINDLES PER AXIS - 1
POWER
PER SPINDLE - HP (KW) 25 (18.7)
DRILL
SPINDLE RAPID ADVANCE SPEED - FEET/MIN (M/MIN) 60 (18)
VARIALBE
FEEDS (SPINDLE CONTROLLED BY CNC)- INCHES/MIN (MM/MIN)
0-60
(O-1800)
MOTOR

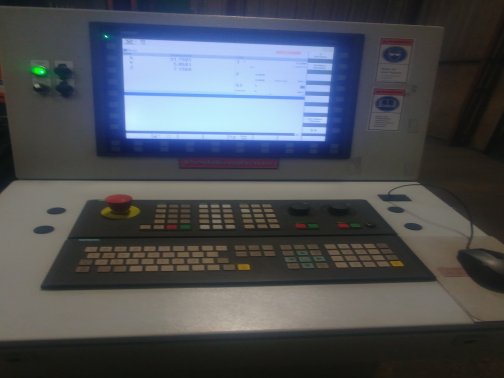

SPEEDS CONTROLLED BY CNC - 0-3375
MINIMUM
DRILL DIAMETER - INCHES (MM) - 3/8 HSS, 3/8 CARBIDE (8
HSS,
8 CARBIDE)
MAXIMUM
DRILL DIAMTER - INCHES (MM) - 19/16 HSS, 1 1/4 CARBIDE
(40
HSS, 32 CARBIDE)
MAXIMUM
DRILL GAUGE LENGHT FOR AUTOMATIC TOOL CHANGE (SPINDLE
FACE
TO DRILL POINTS) - INCHES (MM) - 14.56 (370.0)
MAXIMUM
DRILL GAUGE LEGTH FOR MANUAL TOOL CHANGE (SPINDLE FACE TO
DRILL
POINT) - INCHES (MM) - 16.25 (412.7)
MINIMUM
DRILL GAUGE LENGTH (SPINDLE FACE TO DRILL POINT) -
INCHES
(MM)
STANDARD
HYDRAULIC OIL SPECIFICATIONS
MINIMUM
TEMPERATURE - F (C) - 54 (12)
STANDARD
OPERATING TEMPERATURE - F (C) - 100-120 (38 - 49)
MAXIMUM
TEMPERATURE - F (C) - 130 (55)
STANDARD
OPERATING VISCOSITY RANGE - SSU (CST) - 80-1000 (17-180)
VISCOSITY
RANGE 100 DEGREE F (38C) - SSU (CST) - 150-250 (30-50)
MAXIMUM
START-UP VISCOSITY - SSU (CST) - 4000 (1000)
EQUIPMENT
AND MODULE WEIGHTS
MDL
1250/1C MAIN MACHINE LBS (KG) - 7,250 (3290)
MACHINE
DIMENSIONS
(HEIGHT
X WIDTH X LENGHT) - INCHES (MM) - 103.6 X 67 X 100 (2631
X
17202 X 2540)
UNIT
OF MEASUREMENT
MAXIMUM
MACHINING WIDTH - INCHES (MM) - 49.2 (1250)
MAXIMUM
MACHINGING HEIGHT - INCHES (MM) - 49.2 (1250)
MAXIMUM
BAR STOCK THICKNESS - INCHES (MM) - 6 (150)
MINIMUM
BAR STOCK THICKNESS - INCHES (MM) - 1/4 (6)
MAXIMUM
LENGHT PIECE PART - INCHES (MM) 720 (18288)
MAXIMUM
WORK PIECE WEIGHT - POUNDS (KG) - 18,000 OR 300 LBS/FT
(8165
OR 447 KG/METER)
AXIS
SPEED SPECIFICATIONS
MAXIMUM
HORIZONTAL TRAVEL (X-AXIS) - 150 (46)
MAXIMUM
VERTICAL TRAVEL (Y-AXIS) - FT/MIN (M/MIN) - 60 (18)
OPERATING
POWER REQUIREMENTS
STANDARD
VOLTAGE/PHASE/HERTZ - 480/3/60 (380/3/50)
POWER
CONSUMPTION - KVA - 44
HYDRAULIC
POWER UNIT SPECIFICATIONS
MOTOR
POWER - hp (kw) - 7 (5.2)
HYDRAULIC
PRESSURE - PSI(BAR) - 1750 (121)

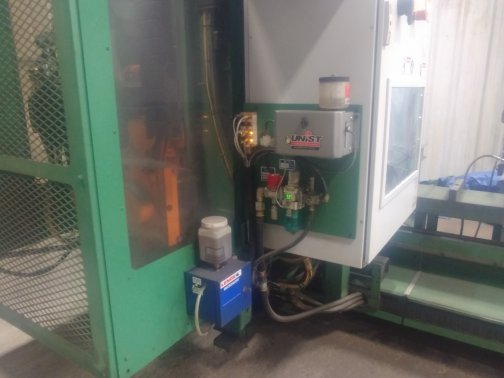

AIR
USAGE SPECIFICATIONS
AIR
CONSUMPTION - CU. FT/MIN (CU. M/HR) - 20 (34)
AIR
PRESSURE - PSI (BAR) - 90 (6)
MAX
AIR PRESSURE - PSI (BAR) - 125 (8.6)
MAINTENANCE
UNIT/CONNECTION SIZE - 1/2in

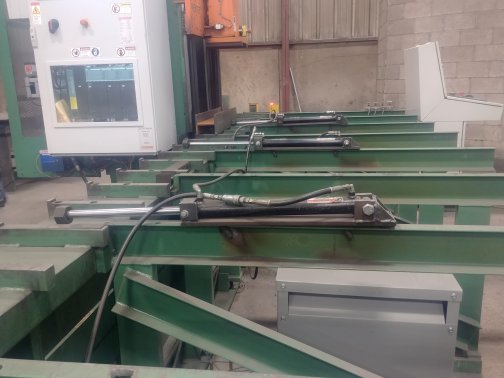

METAL
CLAMPING PRESSURE
MAXIMUM
VERTICAL CLAMPING PRESSURE - PSI (BAR) - 1750 (120.7)
AVAILABLE
VERTICAL CLAMPING FORCE - MIN-MA LBS (MIN-MAX KG) -
2050-10300
(9120 - 45800)
MAXIMUM
TOOL WEIGHT - LBS (KG) - 8 (3.6)

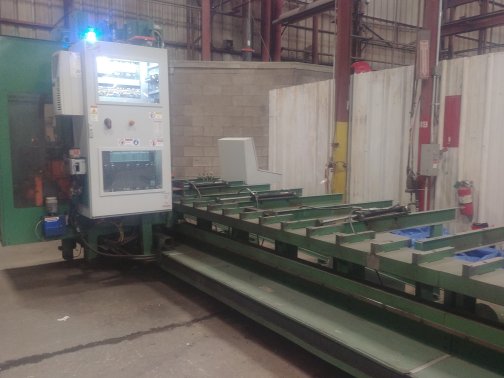

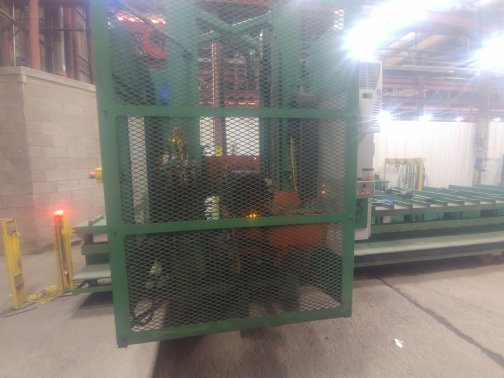

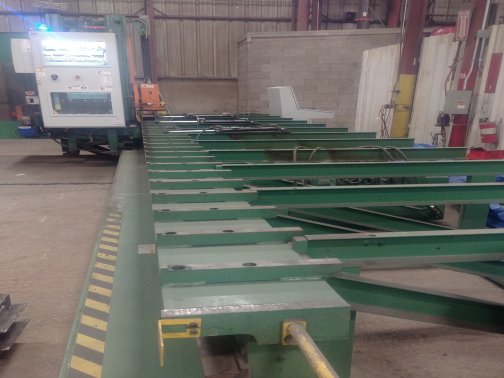

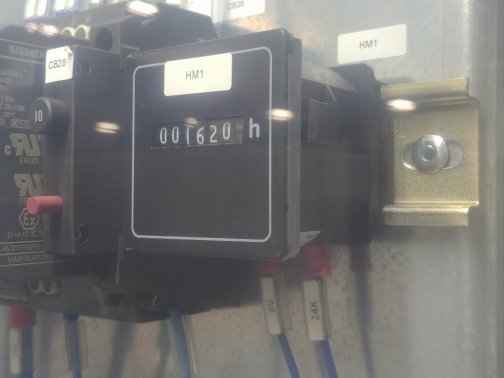

To view more information on the PEDDINGHAUS OCEAN AVENGER PLUS 1250/1C SINGLE SPINDLE DRILL LINE,MFG:2016 OUR STOCK NUMBER: 11372, including reviews, brand information, photos, videos, and more,
