Flat Shear:
Length Of Blade 11"
Length of Rake 10.5"
W/2 Degree Rake 6 x 5/8, 8 x 1/2
W/5 Degree Rake 6 x 3/4, 10 x 1/2
Bar Stock Shear:
W/Standard Knives (Round) 1-7/8"
W/Standard Knives (Square) 1.75"
W/Special Knives Channel 6 - 10.5 lbs
W/Special Knives Beams 5 - 11 lbs
W/Special Knives Angles 4 x 1/2"
W/Special Knives Tees 4 x 3/8"
W/Special Knives Flats 5 x 3/4"

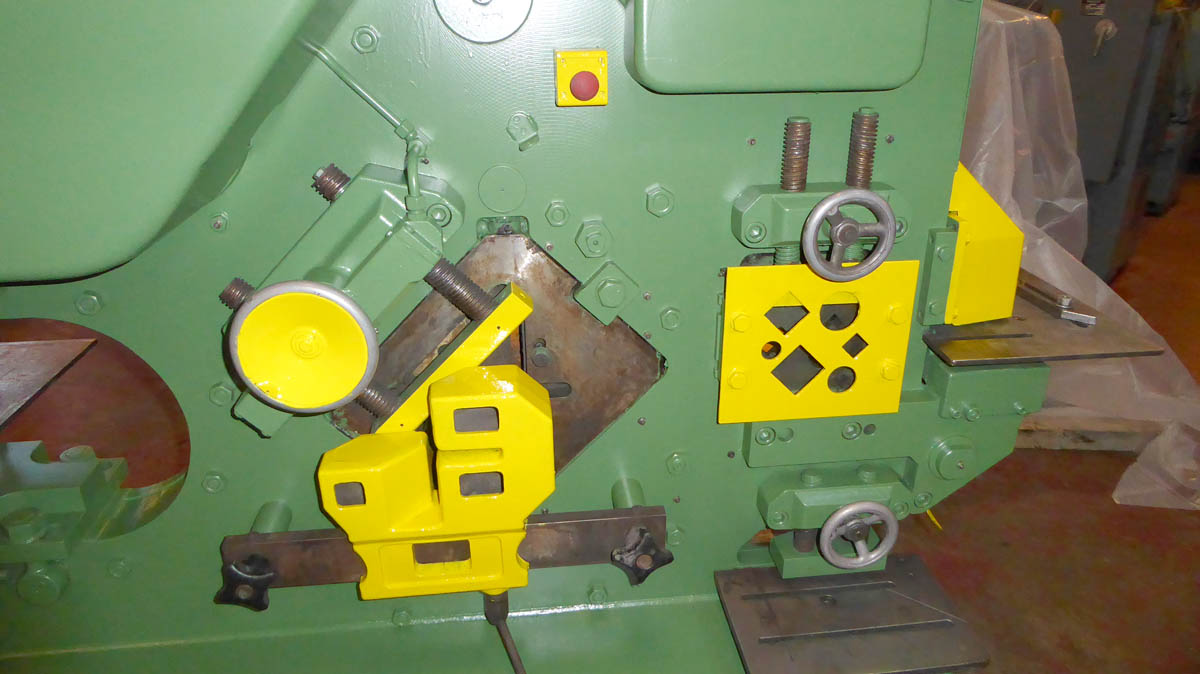

Notching:
Notching W/Sq. Notcher (Plates) 5/8"
Notching W/Sq. Notcher (Angles & Tees) 3.5 x 1/2"
Notching W/Sq. Notcher (Flange Of Channels) 8"
Notching W/Sq. Nothcer (Flange Of Beams) 8"
Notching W/Sq. Notcher (Depth Of Cut) 3-5/16"
Notching W/Sq. Notcher (Width Of Cut) 2"
Angles (90 Deg.) 6" x 1/2"
Angles (45 Deg.) 4" x 7/16"
Tees (90 Deg.) 5" x 1/2"
Flange of Channels 6"
Flange of Beams 5"
Punch Unit Capacity 88 Tons
Punch Unit Length of Stroke 1-1/16"

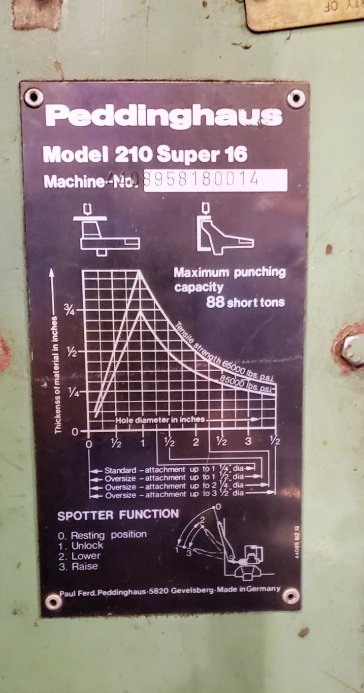

Punch Unit Hole Capacity (Mild Steel) 1" x 1", 2" x 1/2", 3" x 1/4"
Strokes per Minute (Shear) 32
Strokes per Minute (Punch) 40
Motor 5 HP
Throat Depth 14"
Approximate Weight 8,000 lbs
Equipped With:

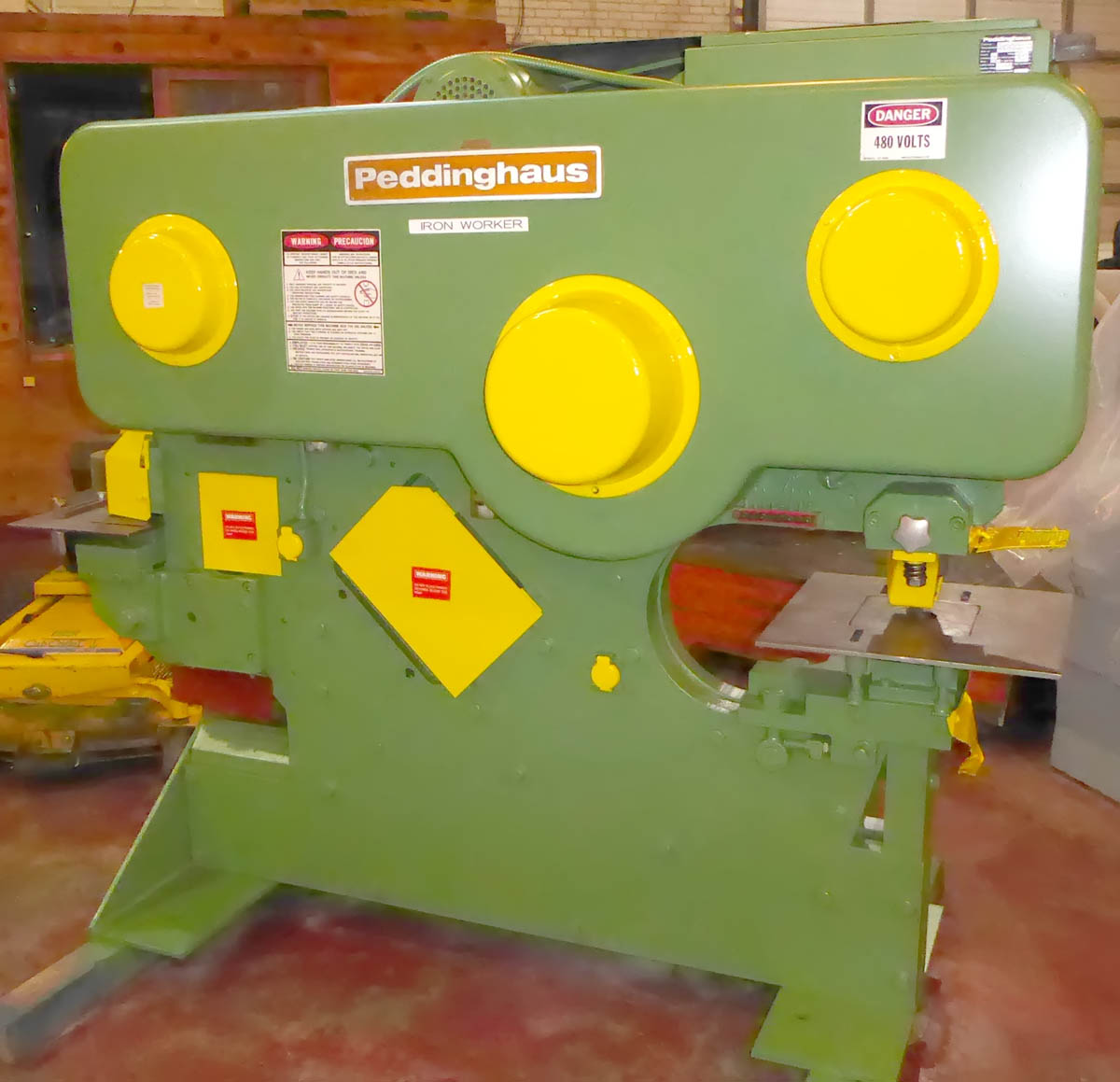

Wired for 480 Volt
Foot Pedal
Assortment of punches and dies
Manuals
Cleaned and Cycled

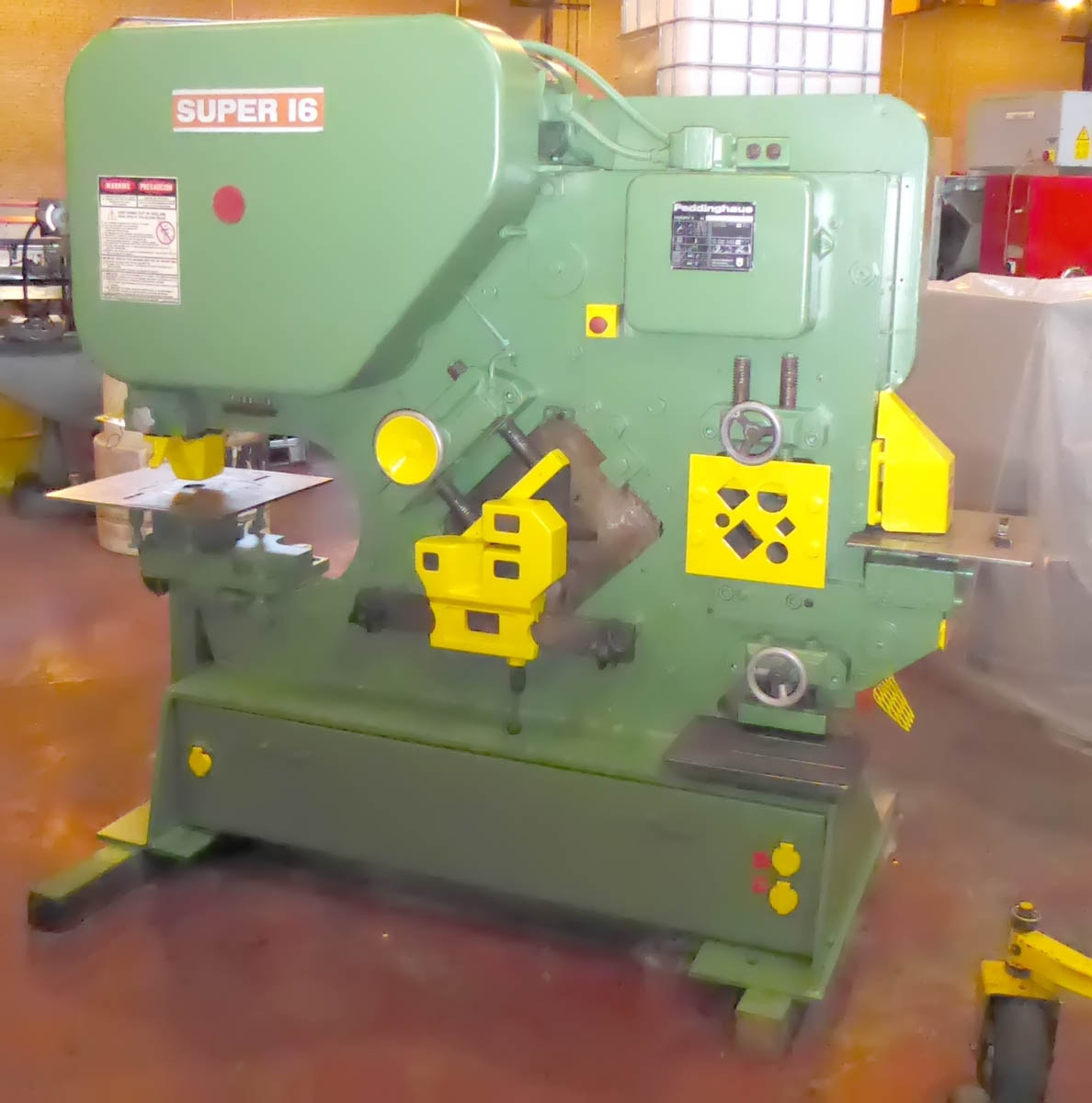

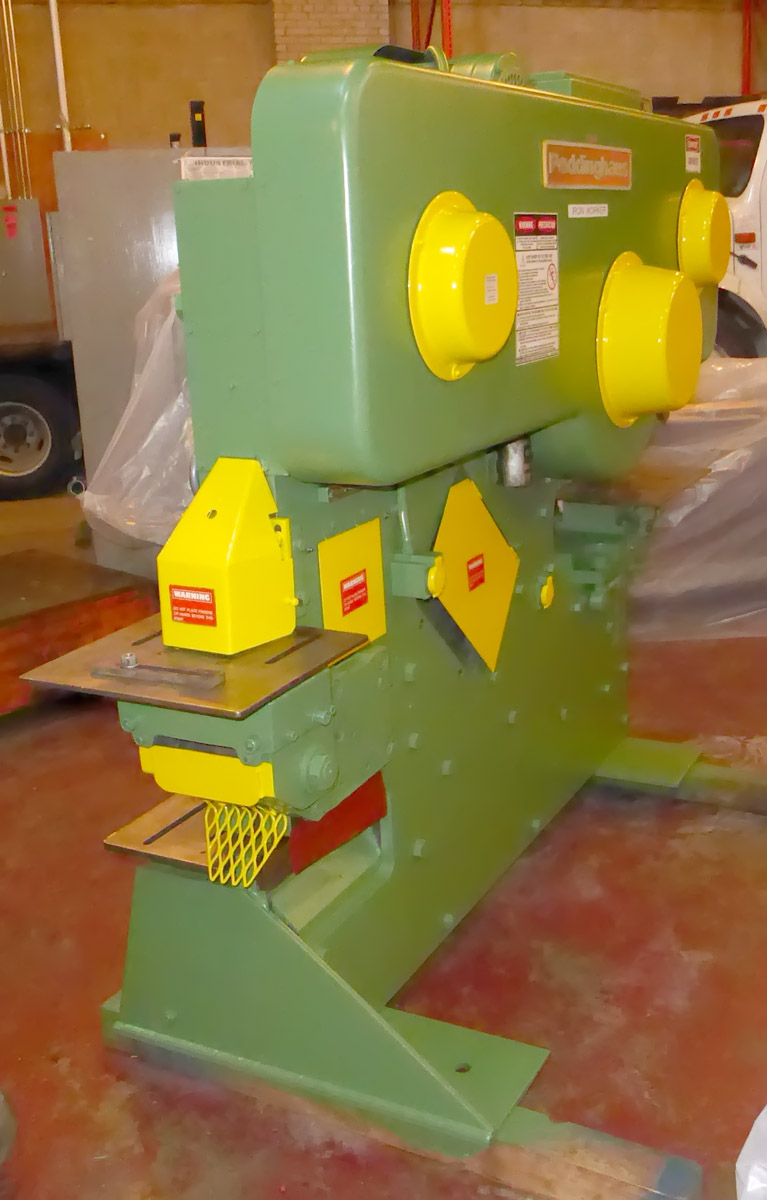

To view more information on the PEDDINGHAUS 210 SUPER 16, 88 TON MECHANICAL IRON WORKER, including reviews, brand information, photos, videos, and more,
