PARPAS OMV 5-AXIS CNC HORIZONTAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


HSC-ONE HSC 1100
211/40
Machining Centers Vertical Horizontal CNC
Horizontal Type NC, CNC
used
35700 (LB)
2003
$89,500.00

Description

Description & Specifications

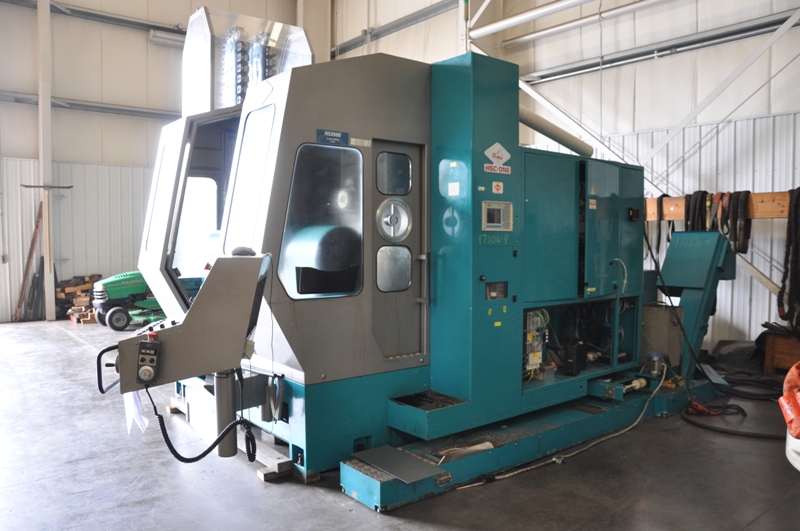

PARPAS/OMV 5-AXIS CNC HORIZONTAL MACHINING CENTER

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $89,500.00

HMC Stock No. 17106-P

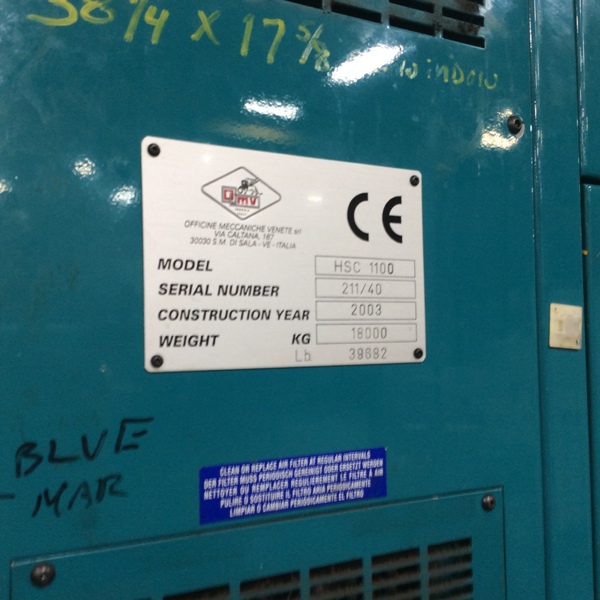

Machine Serial No. 211/40
Machine Model No. HSC-ONE / HSC 1100
New Date: 2003

MACHINE SPECIFICATIONS:

Axis Travel: Working Capacity
Longitudinal Travel (X axis): (880 mm) 34.64"
Vertical Travel (Y Axis): (510 mm) 20.07"
Cross Travel (Z Axis): (650 mm) 25.59"

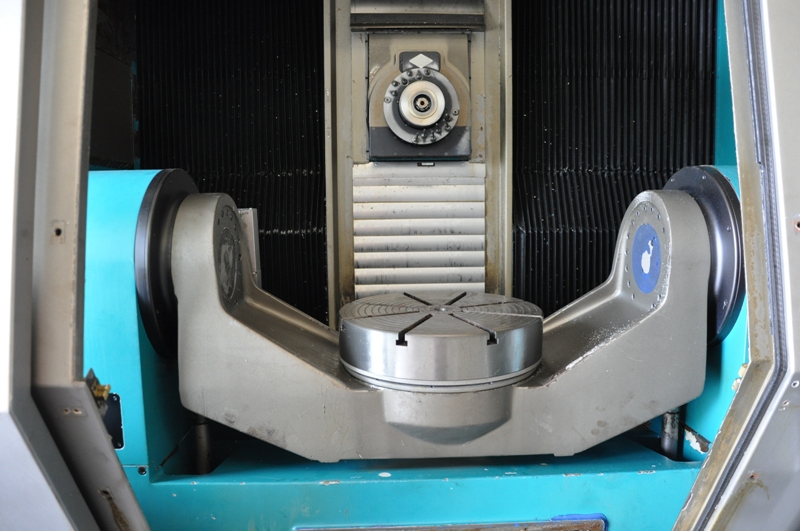

Table:
Rotary Table (A Axis): 360 Degrees Continuous
Rotary Table Diameter: (480 mm) 18.8"
Rotary Table Speed: Up to 120 RPM
Rotary Table Capacity: (350 kg) 771.61 Lbs.
Number of T Slots: 8
Max. Diameter of Work Piece on Table: (775 mm) 30.5"
Trunnion Tilt (B Axis): ?
Distance Table To Spindle Nose: (0 – 510 mm) 0 – 20.07"

Feed Rate:
Feed Rate: (0 - 12000 mm) 0 - 472.44 IPM
Rapid Feed: (0 - 28000 mm) 0 – 1102.36 IPM
Servomotor Type: Brushless AC

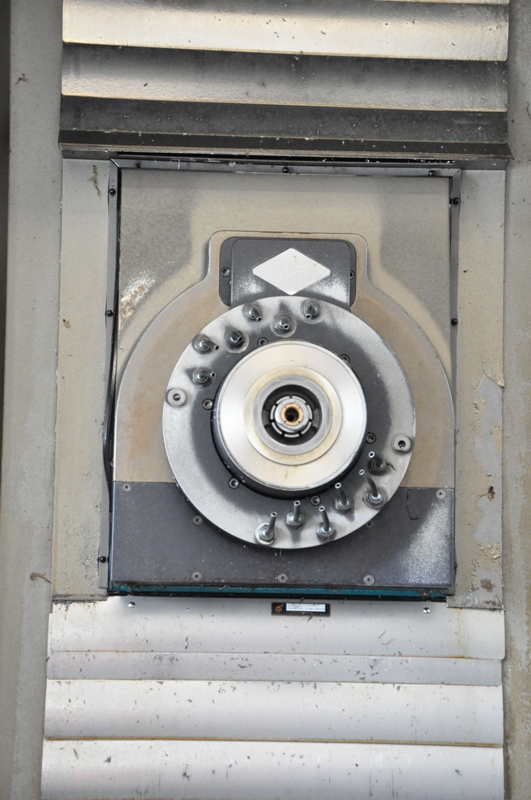

Spindle:
Taper: HSK 80
Spindle Speed Range: 70 to 16,000 RPM
Maximum Power: 40 HP
Speed at Power Rate: 4200 RPM
Motor (Continuous): (28 Kw) 35 HP
Drive Type: Brushless AC Motor

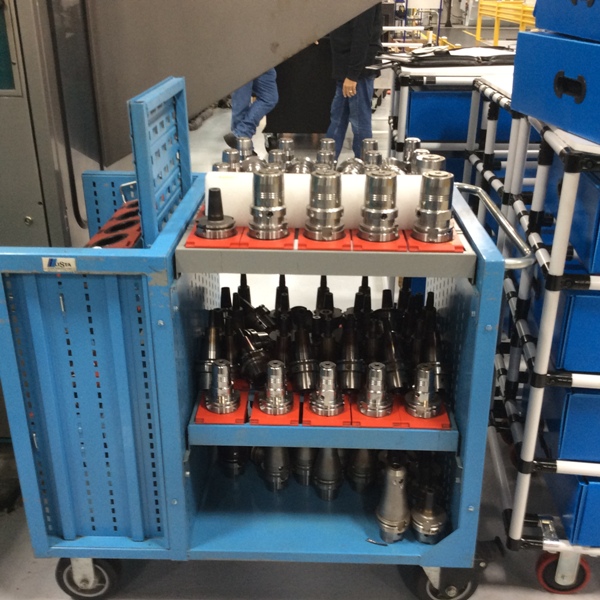

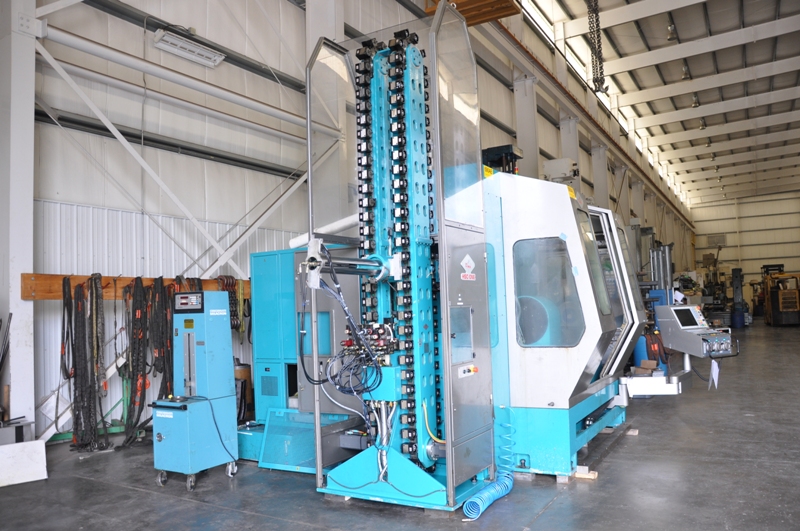

Automatic Tool Changer:
Number of Tool Racks: 2
Positions Each Rack: 64 positions
The 2 Tool Changer Racks are Independent.
Tools can be Loaded or Unloaded in 1 Rack While the Other Rack is Executing a Tool Change.
Total Number of Tools: 128 (On 2 Racks)
Maximum Tool Diameter: 4.3" (Adjacent Pockets Empty)
Maximum Tool Diameter: 3.5" (Adjacent Pockets Occupied)
Maximum Tool Length: 10.4"
Maximum Tool Weight: 18 Lbs.

Working Assembled Overall Dimensions:
6000 mm Wide x 5210 mm Depth x 2670 mm High x 39,680 Lbs. Total Weight
236.22" 201.57" 105.11"
