Description:
This machine is 380Volt, 3 Phase,60HZ.
Paramount Flatbed CNC Hollow Spindle Lathe
Model TLA 33x120, B4
Serial No. TLA202904022
Year 2001-09

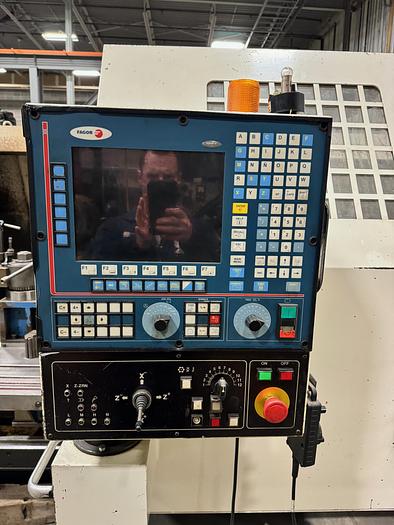

Control: Fagor 8055 /ACPU, Full Conversational Control
Condition: Very good
Specifications:
Swing over bed: 33 in
Maximum distance between centers: 120 in
Spindle bore: 4 in
Swing over cross slide: 22 in
Bed width: 20 in
Carriage width: 30 in
Cross slide width: 13 in
X-axis travel: 20 in
Z-axis travel: 120 in
Spindle nose: A2-11
Spindle speeds: Gear 1: 0-45 RPM
Gear 2: 46-243 RPM
Gear 3: 244-1380 RPM
(infinitely variable auto 3 range)
Spindle motor power: 30/38 HP (22/28 kW)

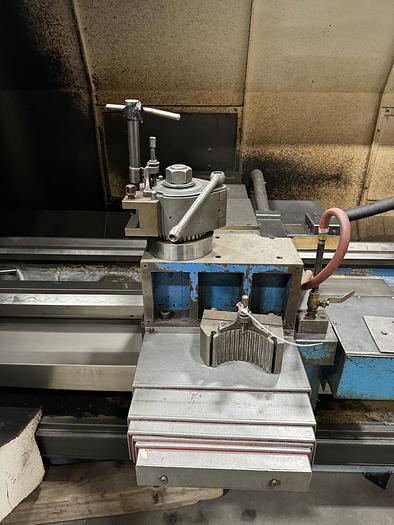

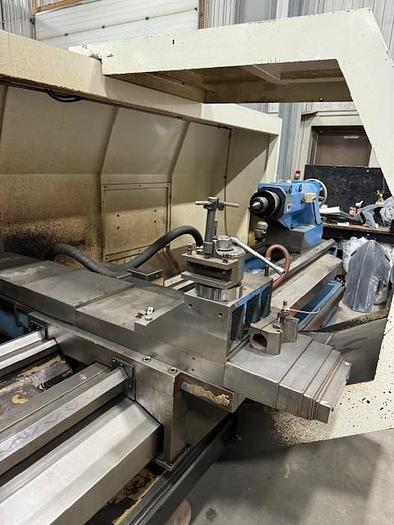

Tool turret: Manual 40 Position Tool Post, C-Style
Tool size: 1 in shank
Tailstock quill diameter: 6.5 in
Tailstock quill stroke: 12 in Manual
Tailstock center: MT#6
Tailstock body positioning: Pushbutton - motorized pinion/rack
X-Z axis feed: 118/100 Max Feed in/min
X-Z axis rapid traverse rate: 314/214 in/min
X-Z axis ball screws: 40mm dia x P5; 63mm dia x P10
X-Z axis servo motor power: 4.2/6HP, 3.1 kW; 4.4 kW
Hydraulic Pump 2hp
Machine dimensions L x W x H: 248 in x 126 in x 88 in H
Weight, approximately: 30,000 lbs.
Electrical Data 380 Volts, 60 HZ, 3 Phase, 100FLA
Machine is equipped with:
Electronic handwheel MPG
Oil skimmer

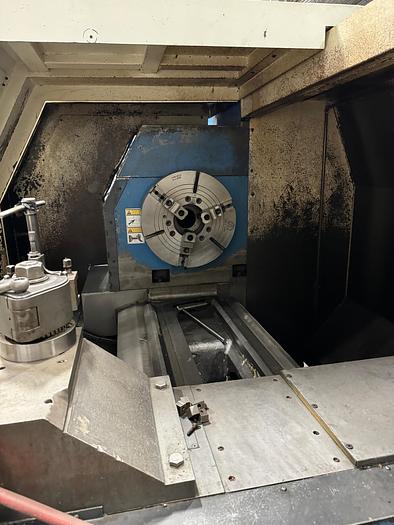

20 in 3-jaw chuck with 6 in throat, 2-Pc Jaws

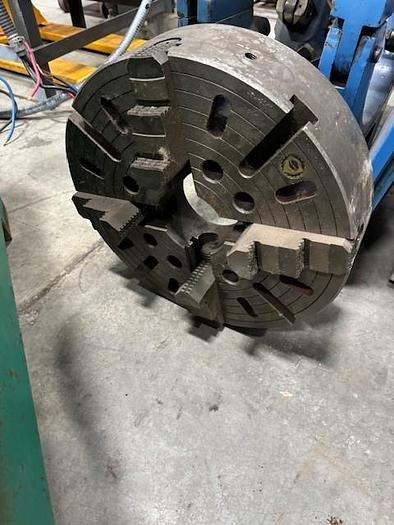

20 in 4-jaw chuck, Single-pc jaws

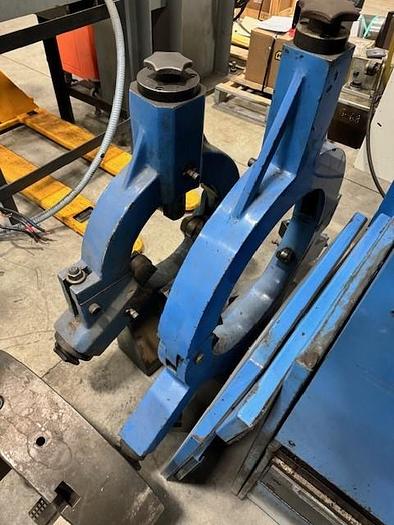

Steady rest with 1.55 in rollers, capacity up to 17.5 in diameter
Steady rest with 2.36 in rollers, capacity up to 10 in diameter
Full rear splashguard; 2 sliding front doors
Coolant equipment
Automatic lubrication
Halogen work light
Complete with Parts, Electrical and Fagor Control Manuals
Specifications
Manufacturer L & L Machinery
Model TLA33x3000
Condition Used
Serial Number TLA202904022
Stock Number TLA202904022
