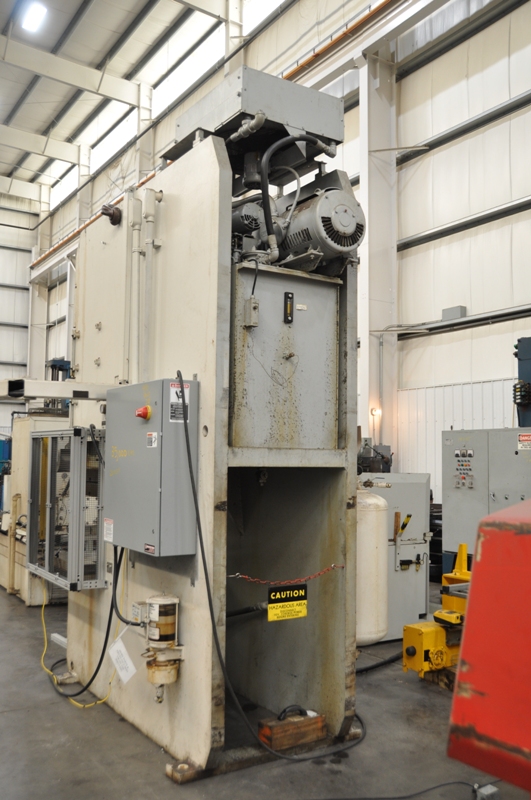

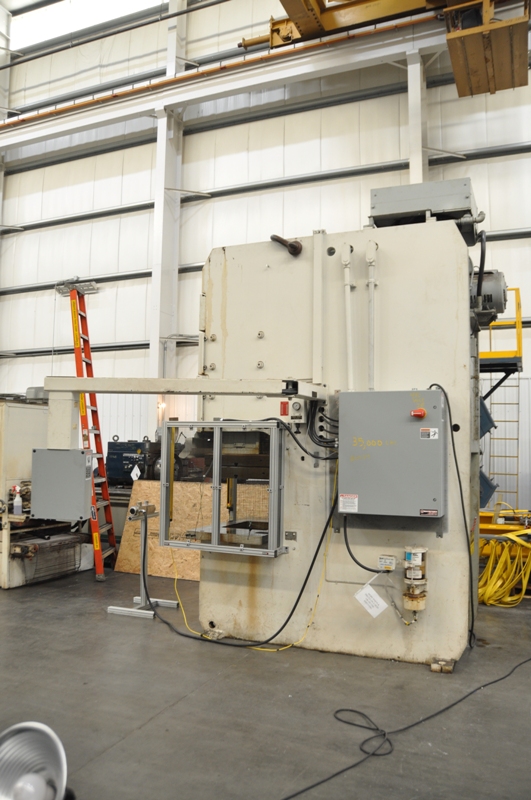

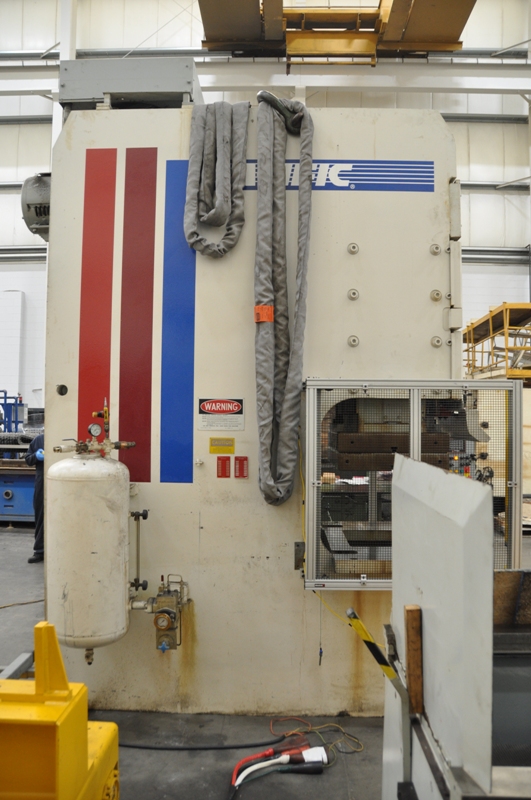

PACIFIC 150 TON HYDRAULIC PRESS

PRICE: Loaded on Truck, Our Warehouse, York, PA      $59,500.00

HMC Stock # 20034

Machine Serial No.: A941

Machine Model No.: 1500OBS

New Date: 1991

April 2022, the main hydraulic cylinder was re-cromed, reground and new seals installed. Then fully reassembled and test run.

Rated Capacity: UP to 150 Tons

Bed Size: 49-1/2" LR x 27-5/8" FB

Ram Size: 37-1/4" LR x 24" FB

Ram Bolster Size: 34" LR x 24" FB x 4-1/4" Thick with 5 T Slots and 3" Dia. Hole

Bed Bolster Size: 50" LR x 30" FB x 4-1/2" Thick with Assorted T Slots

Opening in Bed For Lower Ram: 22" LR x 17" FB

Surface Face of Lower Ram: 20" LR x 15" FB

Distance Thru Vertical Frames at Bed Height: 31"

Distance Floor To Bed: 31"

Ram Stroke: 12"

Daylight: 20"

EQUIPPED WITH:

Hydraulic Cushion Under the Bed

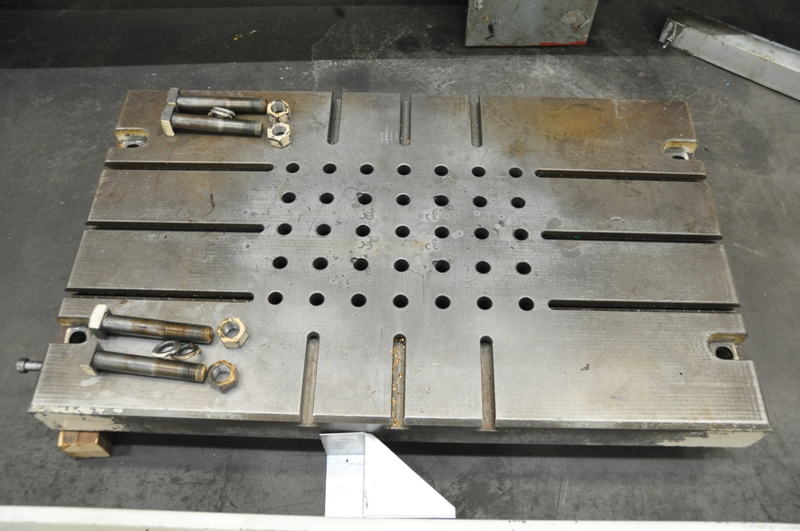

(2) Ram Bolster Plates and (1) Bed Bolster Plate

Ram and Bd Bolster Plates are Bolted in Place and are Removeable

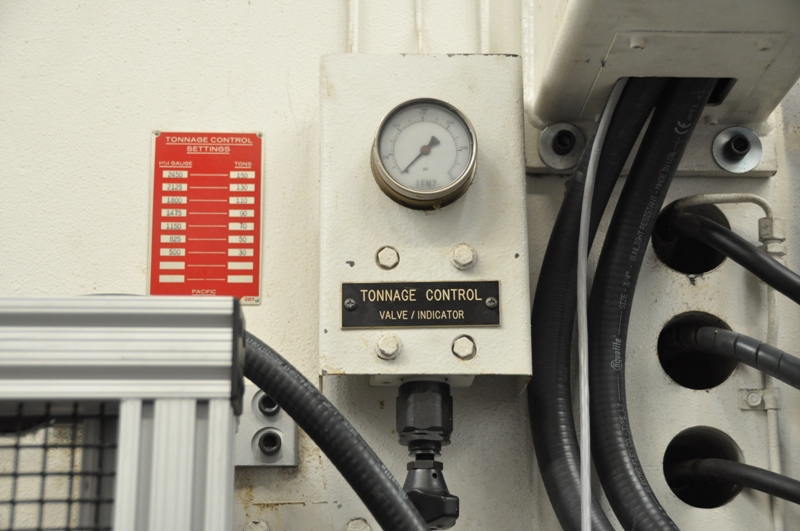

Tonnage Control Settings with Control Valve Indicator

Flush Floor Design

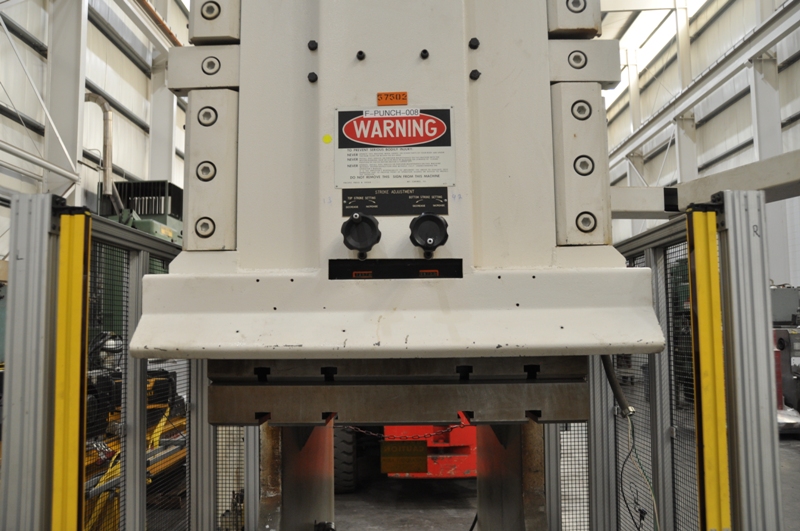

Ram Stroke Adjustment Knobs with Position Indicators For Each Ram

Self Contained Hydraulic System with Radiator Type Oil Cooler Unit

Dual Operation Palm Buttons on Moveable Stand

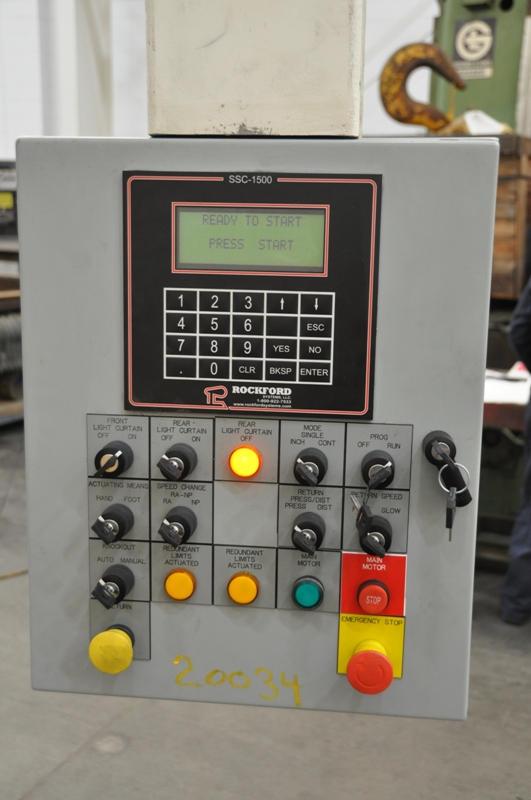

Rockford Safety Digital Controls #SSC-150, sn. 1822-030, model ENG000185

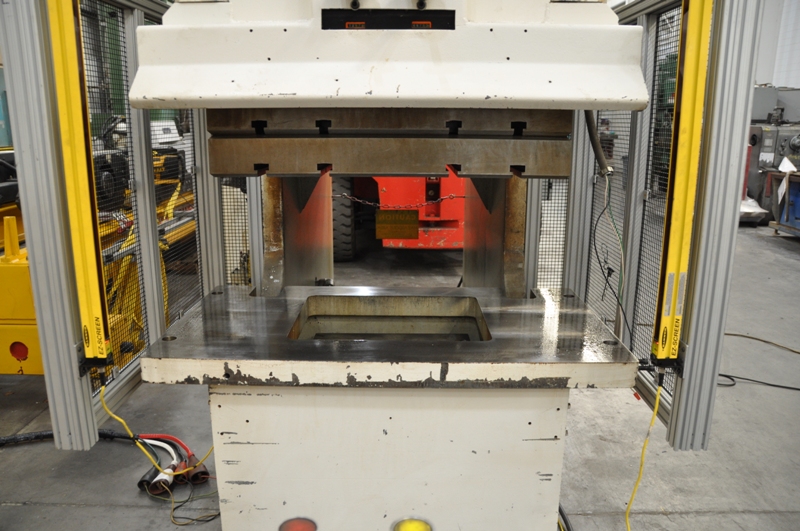

Light Safety Curtains with Custom Work Area Guarding

Trabon Force Central Lubrication System with Auto Timer

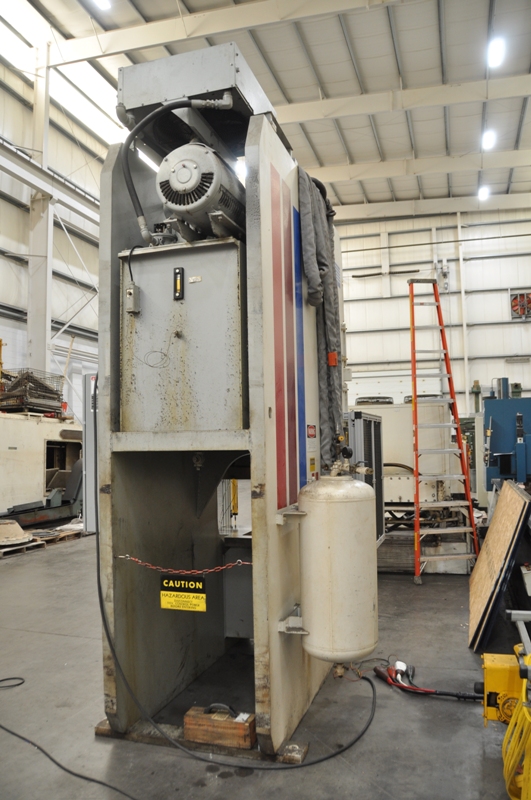

Compressed Air Surge Tank

Independent Adjustable Tonnage Controls for Each Ram

Operational Control Features:

Front Light Curtain: On - Off

Rear Light Curtain: On - Off

Modes: Inch  Single  Continuous

Actuating Means: Hand or Foot Pedal (no foot pedal suppled)

Knockout: Auto or Manual

Speed Change: RA - NP

Return Press/Dist: Press  Dist

Return Speed: Fast or Slow

Program: On - Off

Light Curtain and Stroke Limits Warning Lights

Digital Keypad and Screen

1/2 HP Oil Pump Motor for Oil Cooler

1/2 HP Fan Motor on Oil Cooler

30 HP Main Hydrauli Motor

Wired For 3 Phase 60 Hz 230 / 460 Volts

Presently Wire for 440 Volt Operation

Overall Size: 67" LR x 99" FB x 148" Tall Fully Assembled x 35,000 Lbs.

Height of machine with oil cooler unit removed 133"

SEE YOUTUBE VIDEO: https://youtu.be/LNk4QpJuiVI

SEE OEM Outline Drawing at : http://www.hildebrandmachinery.com/20034-150TonPacific.pdf

Note: control arm should be removed for shipping

The main hydraulic tank between the machine frames is not secured to the machine. Pacific strongly recommends the machine not be laid over for shipping unless something is done to properly secure the tank before laying over.
