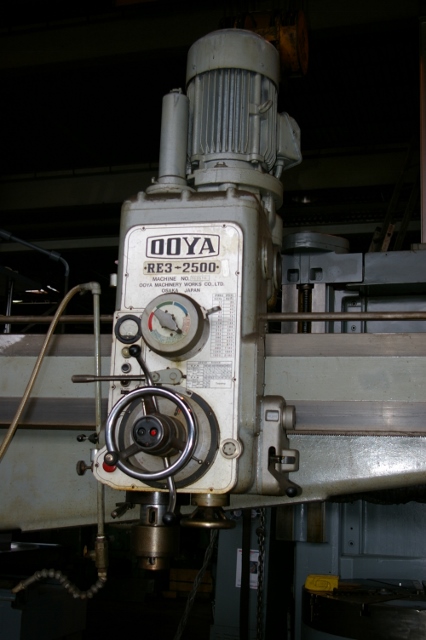

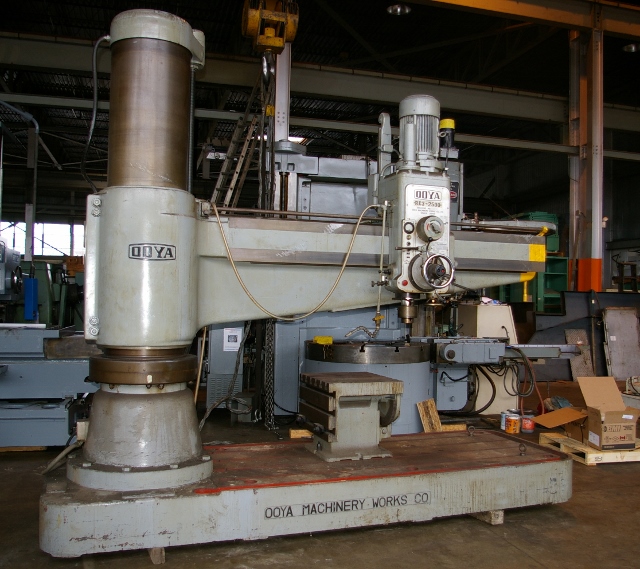

8 X 19" OOYA RADIAL DRILLING MACHINE
MODEL RE3-2500
MAXIMUM DISTANCE SPINDLE TO COLUMN -------- 8
COLUMN DIAMETER --------------------------- 19"
DRILLING CAPACITY ------ ( STEEL ) -------- 3"
DRILLING CAPACITY ------ ( CAST IRON ) ---- 3-5/8"
SPINDLE SIZE ------------------------------ #5 M.T.
MAXIMUM DISTANCE COLUMN TO SPINDLE CENTER - 99-1/4"
MINIMUM DISTANCE COLUMN TO SPINDLE CENTER - 16-1/2"
MAXIMUM DISTANCE BASE TO SPINDLE ---------- 70-7/8"
MINIMUM DISTANCE BASE TO SPINDLE ---------- 22-1/4"
COLUMN SIZE ------------------------------- 19"
SPEEDS ------------------ ( 16 ) ---------- 20 TO 2180 RPM
FEEDS ------------------- ( 18 ) ---------- .0015 TO .125
MAIN DRIVE MOTOR -------------------------- 15 HP 220/440/3/60
EQUIPPED WITH ---
DRILL/TAP
ELECTRIC CLAMPING TO HEAD/COLUMN AND ARM

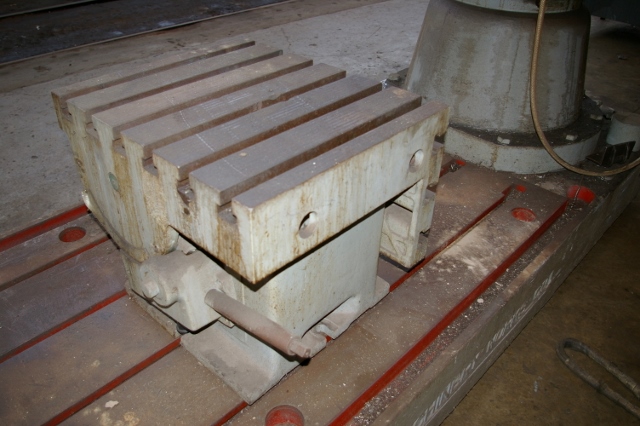

TILTING BOX TABLE
COOLANT SYSTEM
AUTO LUBRICATION

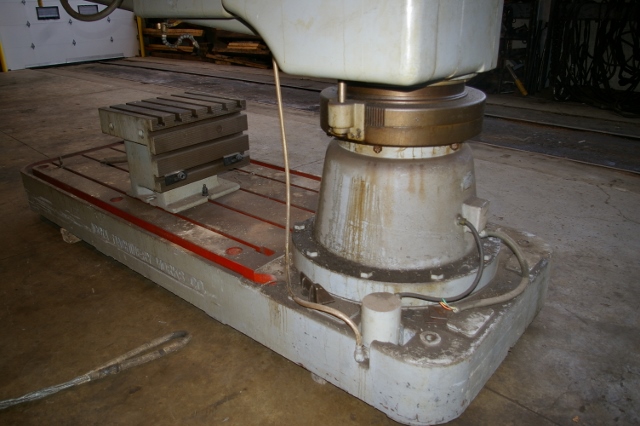

T-SLOTTED BASE
STOCK# 17903
