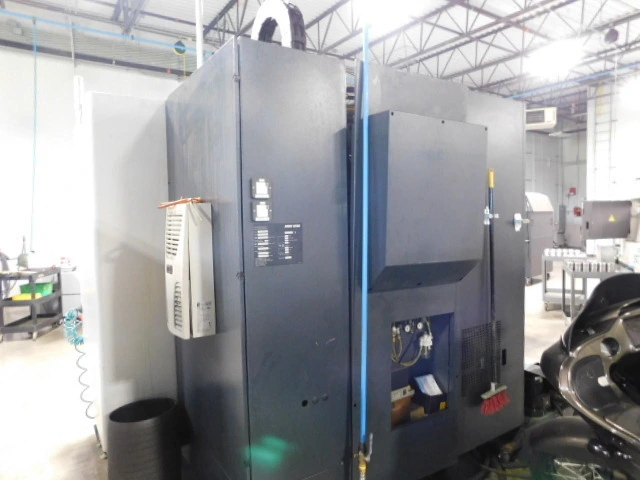

Mori Seiki Dura Vertical 1035 ECO MSX-853 IV controls with MAPPS
4th axis drive (rotary table not included), Coolant thru spindle, Full guarding, Direct scale feedback on X, Y, and Z, Temperature compensation, LNS chip conveyor, Manuals. Hours: ON: 49,438, Operating: 12,786, Cutting: 9,092.
Overview:
Type: Vertical Machining Centers with Pallets
Manufacturer: MORI SEIKI
Model: DURAVERTICAL 1035ECO
Year: 2011
Stock #: 8356
Status: For Sale
Serial #: 6103000024E
Equipped With:
MSX-853 IV controls with MAPPS
4th axis drive (rotary table not included)
Coolant thru spindle
Full guarding
Direct scale feedback on X, Y, and Z
Temperature compensation
LNS chip conveyor
Manuals
Hours:
ON: 49,438
Operating: 12,786
Cutting: 9,092
Note: Machine does not come with indexer or Chick plate.
Used to machine mostly brass.
Specifications
X 40.7"
Y 22"
Z 20.1"
Power 15 hp
RPM 12,000 RPM
# ATC 30
Taper CAT-40
Table-W 47.2"
Table-L 22"
Dimensions:
99 in x 97 in x 106 in high
Weight 9,500 lbs.
Table size: 47.2 in x 22 in
Travels: 40.7 in x 22 in x 20.1 in
Spindle speeds: 12,000 rpm
Spindle taper: Cat 40
Spindle HP: 15.30
Spindle nose to table: Min-Max.: 4.7 in to 24.8 in
ATC: 30 place
Tool change time: 1.60 sec.
Chip to chip: 5 sec.
Max. Feed speeds: 984 ipm
Rapid feed rates: 1,200 ipm
Max. tool length: 11.810 in
Max. tool diameter: 3.1 in, 4.921 in with empty adjacent pockets
Max. tool weight: 13.20 lbs.
Dimensions: 99 in x 97 in x 106 in high x 9,500 lbs.
