Specifications:
Keyway Cutting Capacity (Steel): 1/16 in to 1 1/2 in
Throat Depth:
From Face of 1 in Wide Cutter to Armpost: 19 in Max.
Height of Work from Table to Surface: 12 in Max.
Length of Cut:
16 in Long Cutter: 4 in to 20 in Long
Cutter: 8 in to 24 in Long
Cutter: 12 in to 30 in
Long Cutter: 18 in

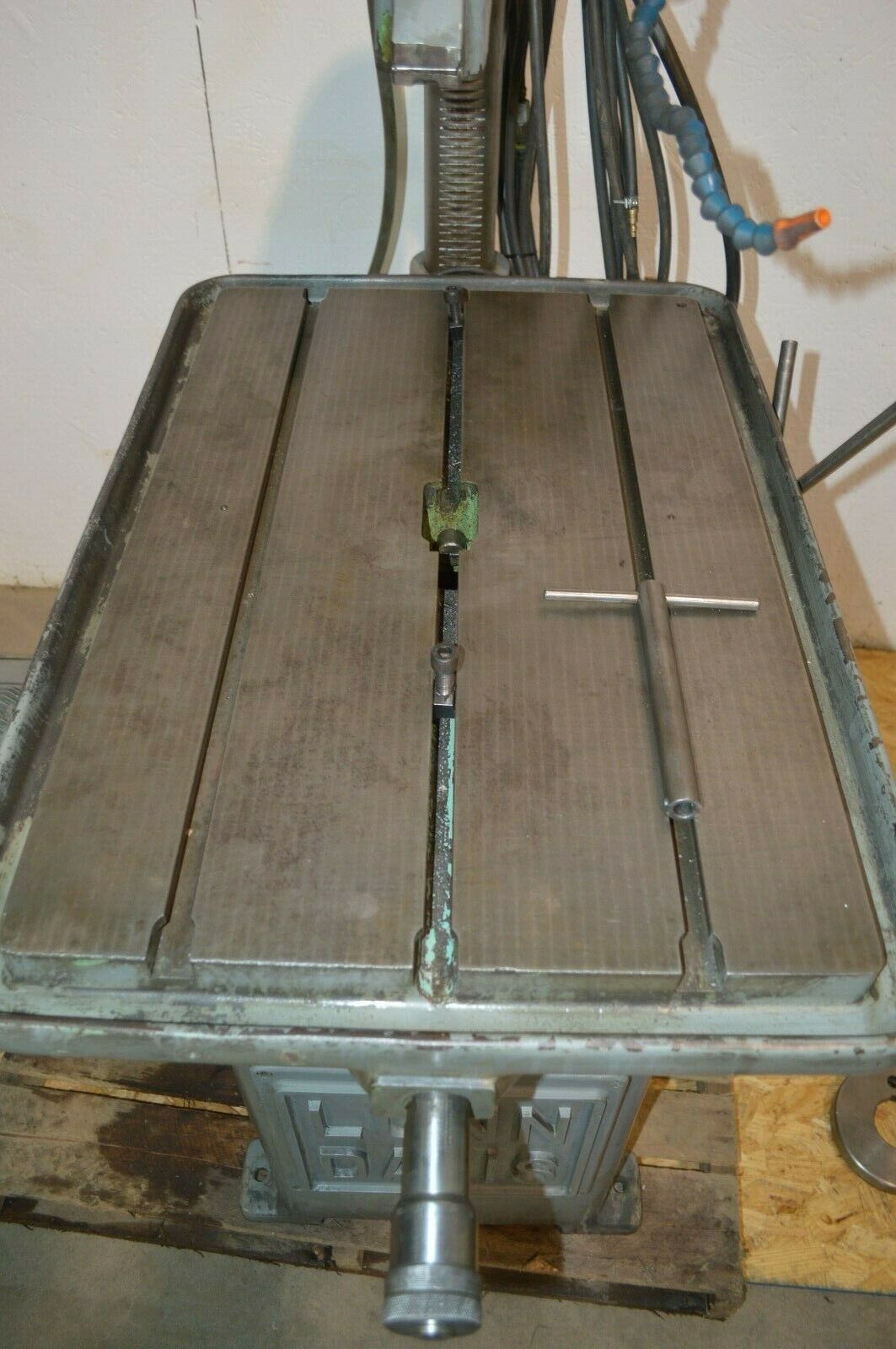

Table Size: 20 in x 31 in (3 T-Slots)
Table Movement: 1.5 in Stroke: 4.5 in Strokes per Minute:
1,420 RPM
Motor: 45 SPM
with Variable Speed Drive: 16 to 60 SPM
Air Pressure Required for Automatic Feed: Min. 80 psi
Air Consumption: 3 SCFM
Motor: 2 HP
Equipment Included:
Coolant System
Manual/Automatic
Feed
Automatic Stop

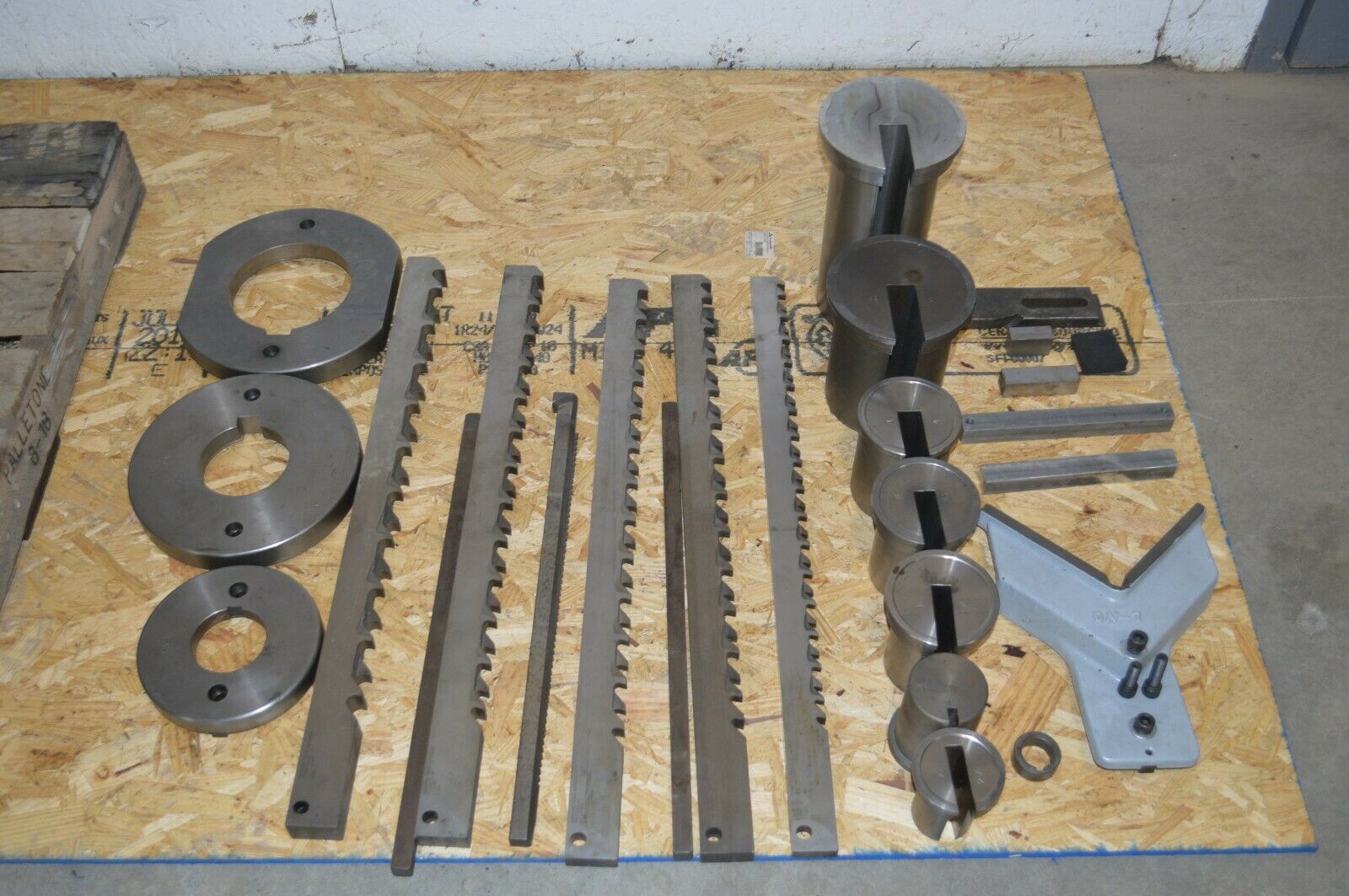

Bushing sizes (2.375 in x 0.625 in) (3.75 in x 0.75 in) (4 x 1) (5.375 in x 1.25 in) (5.5 in x 1.25 in)
Bushing Holders DA-2 DA-3 DA-16
Cutters D-3811 (0.625 in x 30 AFS) D-3831 (0.875 in x 30 AFS) D-3821 (0.75 x 30 AFS) D-3841 (1 x
30 AFS) D-3861 ( 1.25 x 30 AFS)
DA-7 V Block
Mechanical Specifications:
Dimensions: 46 in x 20 in x 53 in H
Weight: approx. 1,250 lbs.
Price: $11750.00

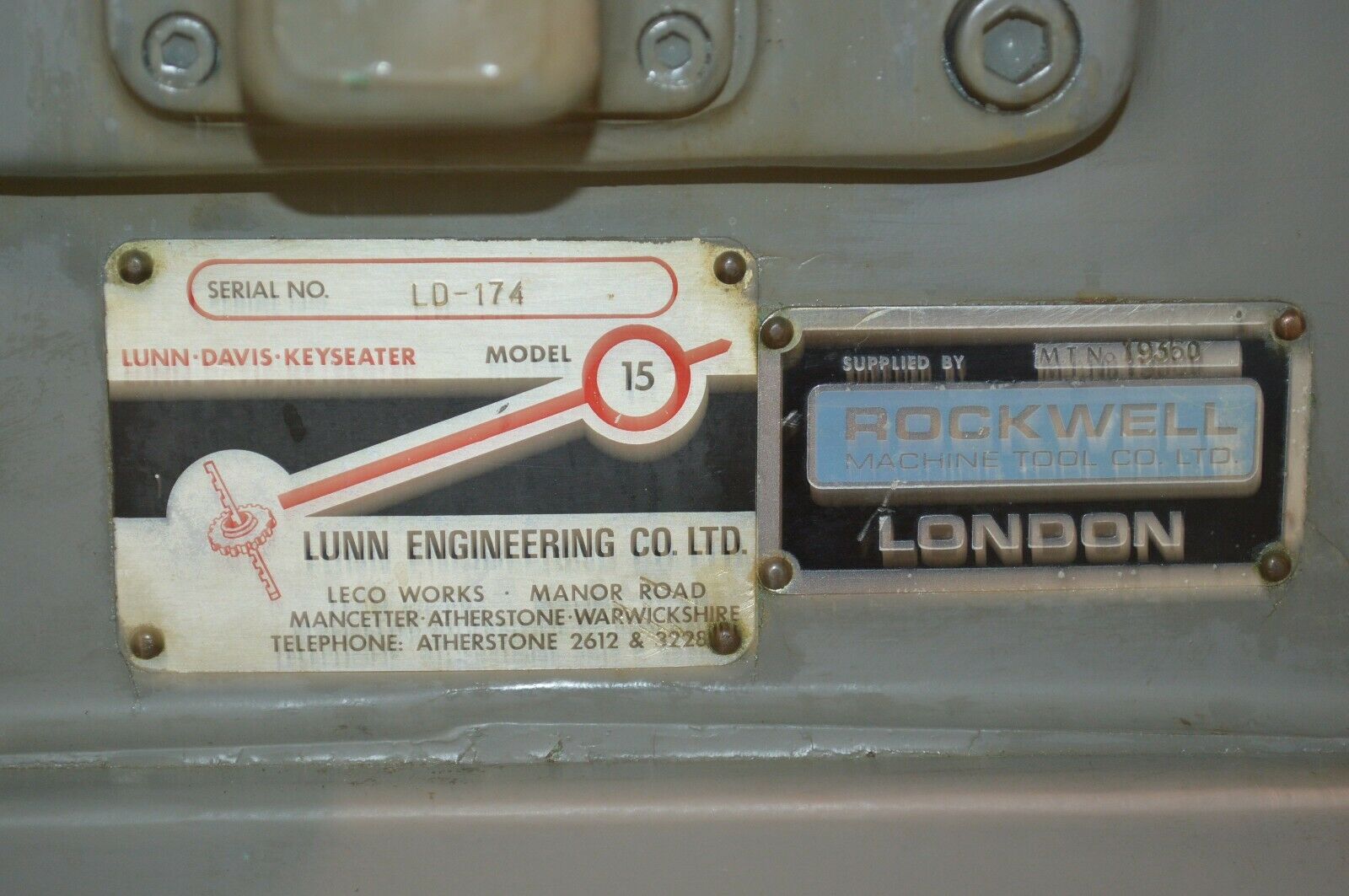

To view more information on the ONE USED LUNN-DAVIS MODEL 15 AUTOMATIC KEYSEATER., including reviews, brand information, photos, videos, and more,
