Under Power and Ready for Inspection
EZ Systems Stock # ez50413
Machine Location: Phoenix AZ 85041

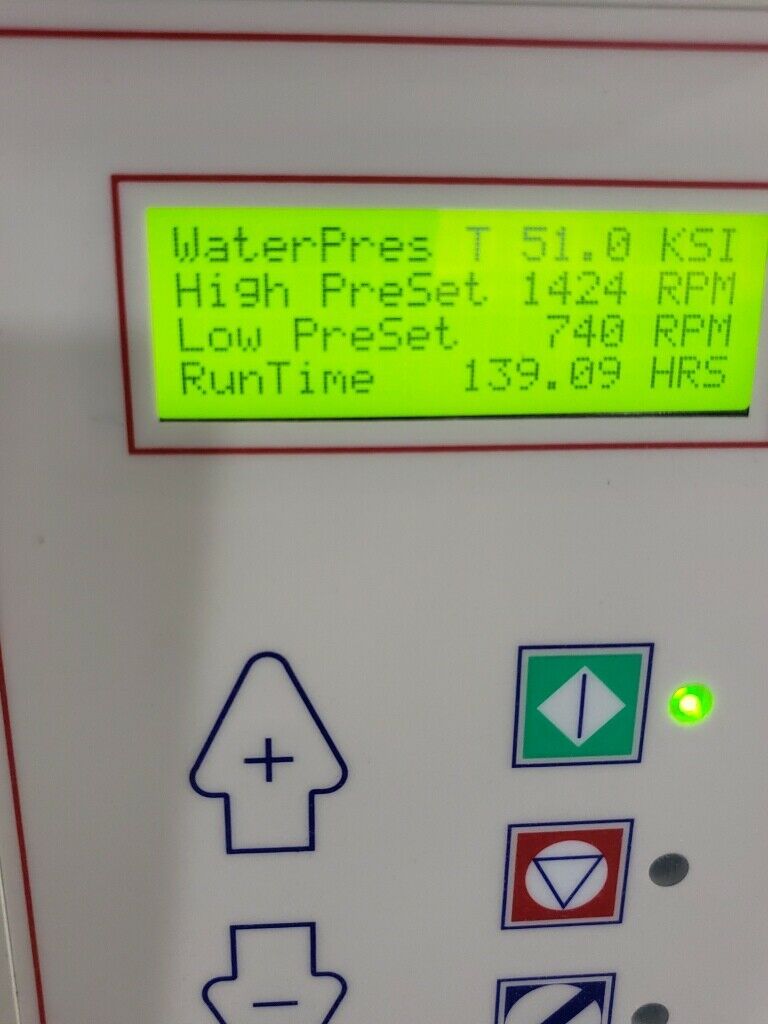

Only 140 Hours
This machine new was $307,000 3 months ago.
Includes:

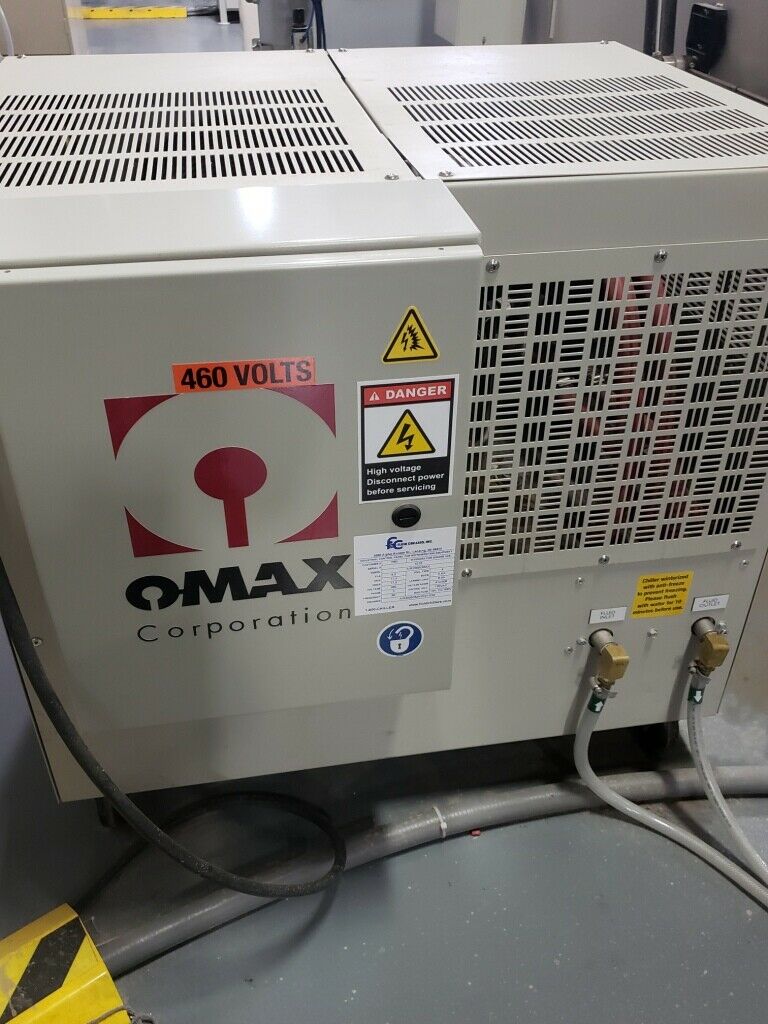

50HP Enduromax Model 5060V Pump
TAJ aka Tilt-A-Jet cutting head can achieve virtually zero taper when cutting most materials on an OMAX abrasive waterjet.

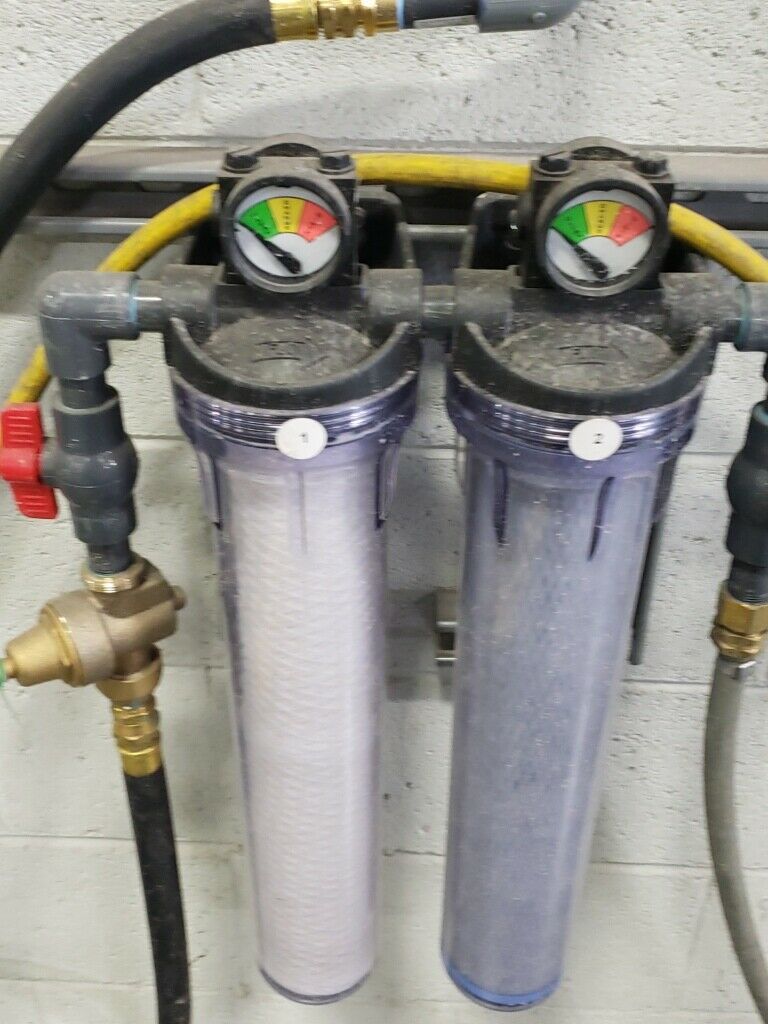

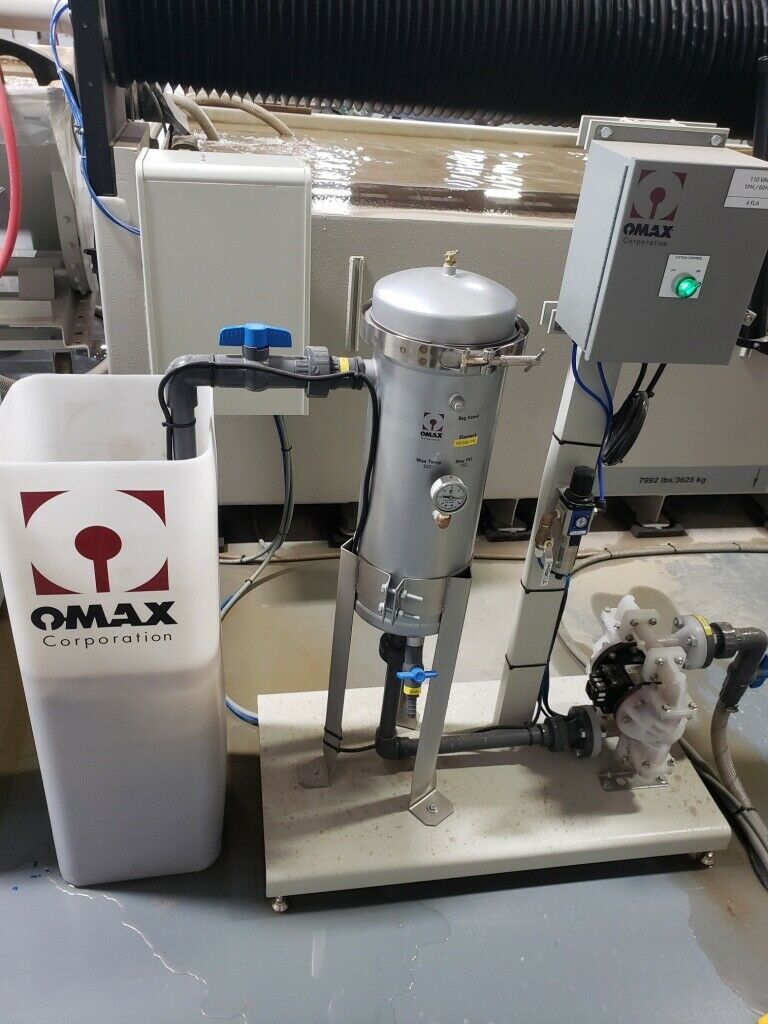

Pump back Filtration system

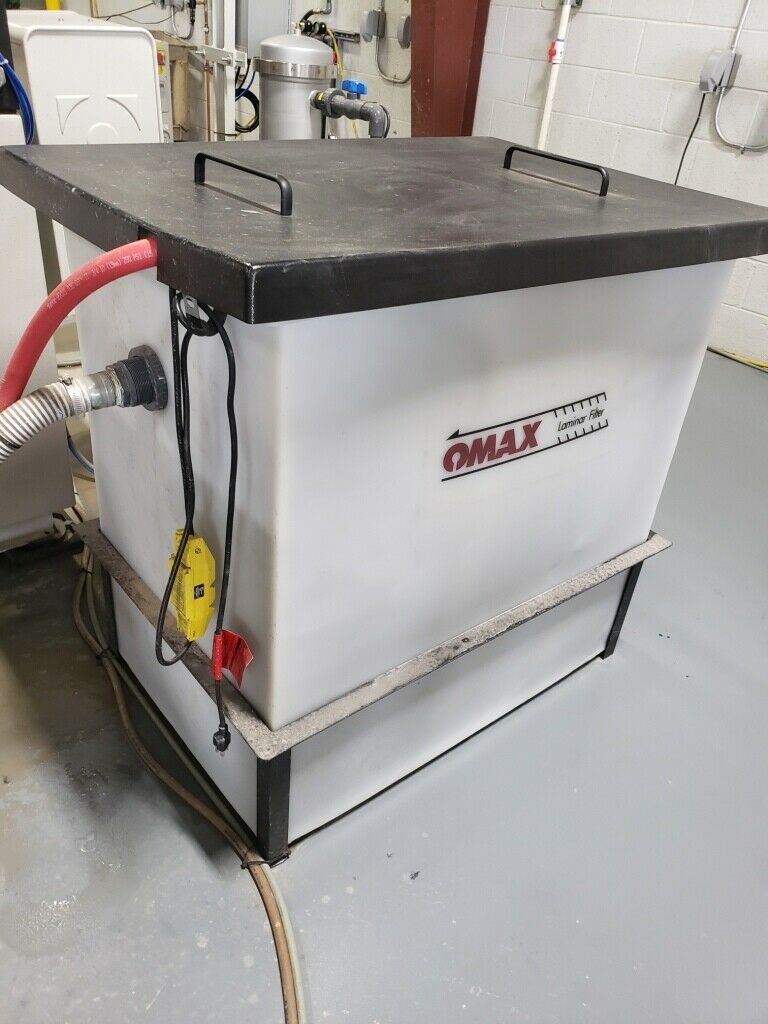

Laminer filter

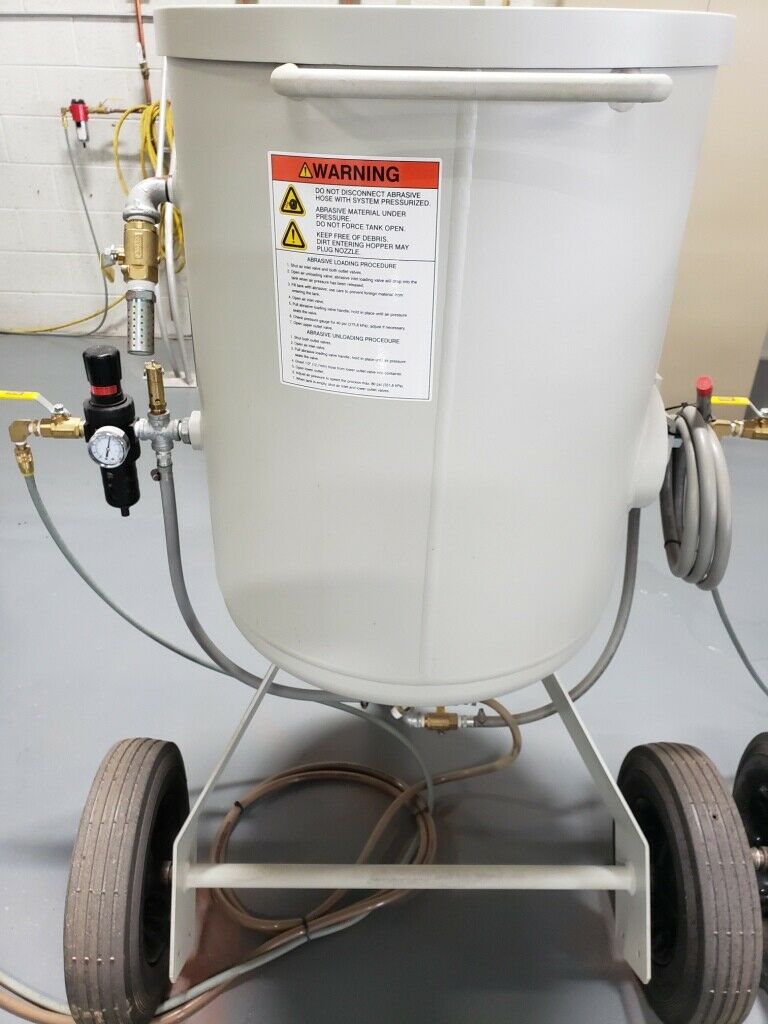

600 lb. hopper

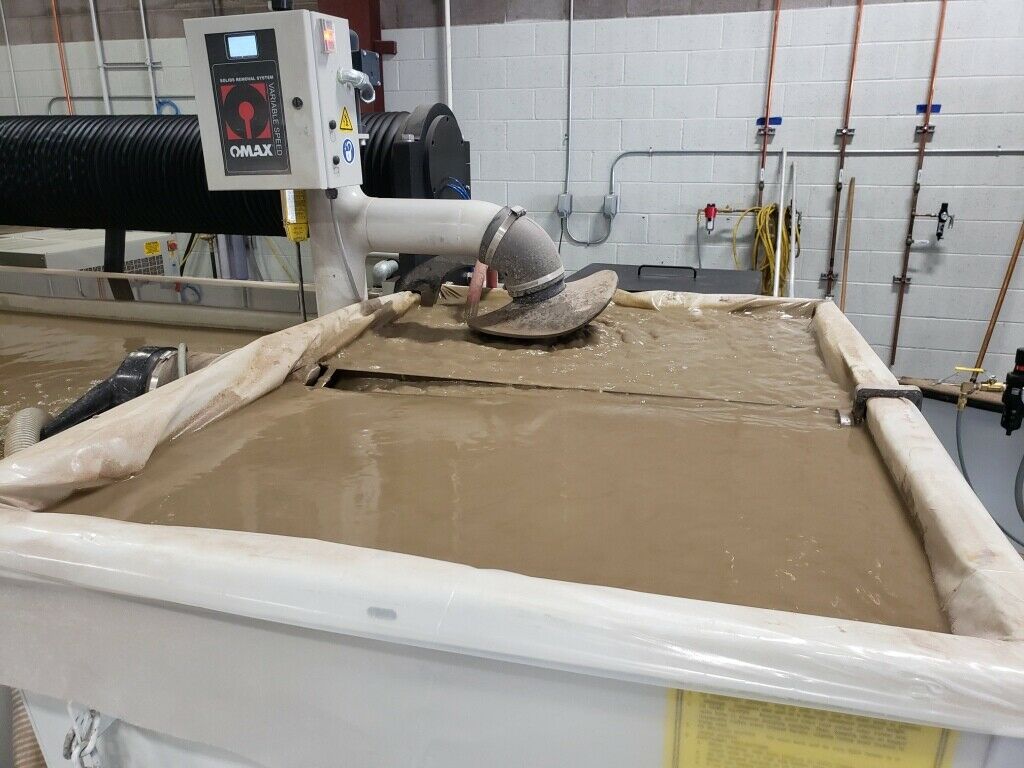

Variable solids removal > (VS-SRS)

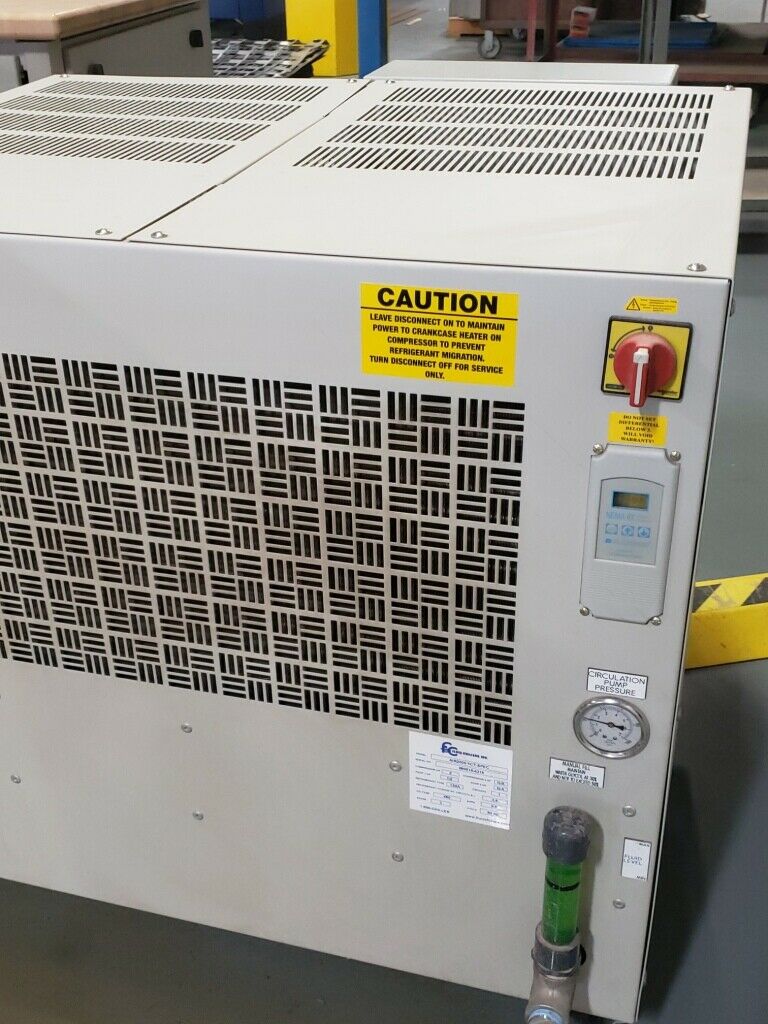

2 ton chiller
MACHINE DIMENSIONS
Footprint (with controller) 12 ft 11 in x 7 ft 10 in
(3,937 mm x 2,388 mm)
Weight (tank empty) 8,000lb (3,629 kg)
Height (with scissor plumbing) 9 ft 10 in (2,997 mm)
Operating Weight 22,000 lb (9,979 kg)
STANDARD MODEL SPECIFICATIONS
Material Support Slats 4" x 1/8 in Galvanized Steel
Maximum Supported
Material Load
400 lbs/sq ft (1,950 kg/sq meter)
Electrical Requirements 3-Phase, 380-480 VAC plus/minus 10%, 50-60 Hz
Noise Level Below 80 dBA at one meter for submerged cutting
Speed 180 in/min (4,572 mm/min)
Linear Positional Accuracy* plus/min 0.001 in (plus/min 0.025 mm)
Repeatability* plus/min 0.001 in (plus/min 0.025 mm)
Ballbar Circularity* plus/min 0.0025 in (plus/min 0.064 mm)
WORK ENVELOPE
X-Y Cutting Travel 8 ft 4 in x 4 ft 7 in
(2,540 mm x 1,397 mm)
Z-Axis Travel* 8 in (203 mm)
Table Size 10 ft 6 in x 5 ft 5 in
(3,200 mm x 1,651 mm)
DRIVE DESCRIPTION
Closed loop, digital drives
Brushless servo motors
Pre-loaded ball screws, recirculating ball bearings
Linear bearings with hardened,precision ground ways
Cantilever Y-Axis on bridge X-Axis

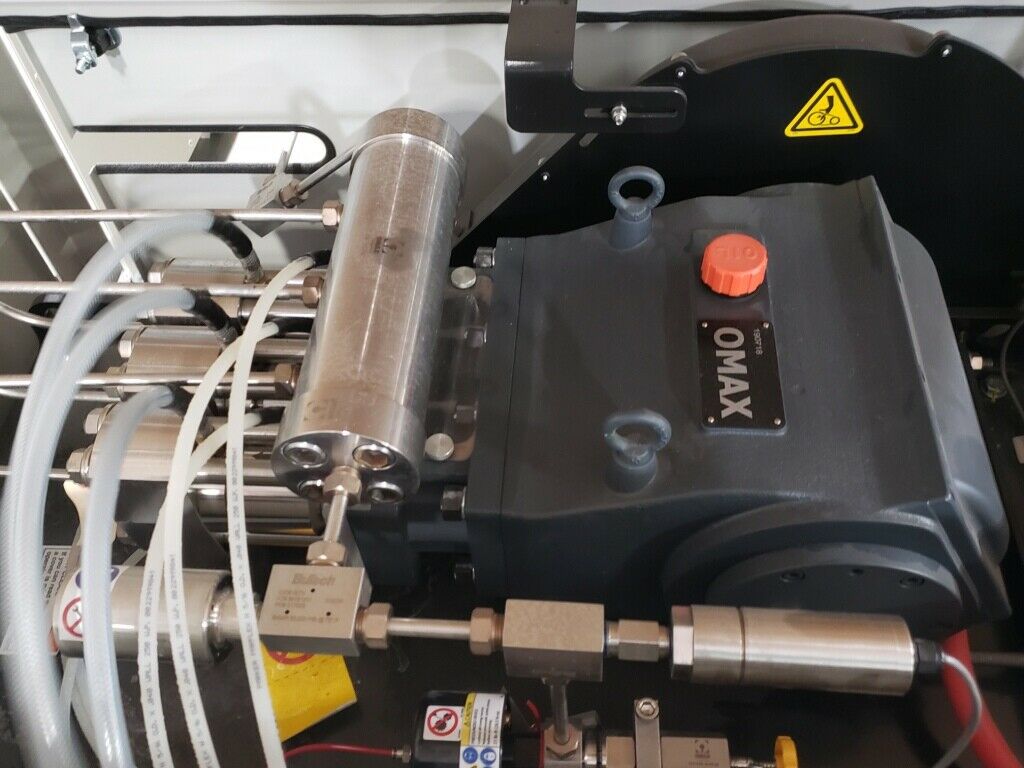

OMAX EnduroMAX Pump Model 5060V 50HP
MOTOR POWER l MAXIMUM JET POWER l OUTPUT PRESSURE
50 HP (31.5 kW) 42.5 HP (37 kW) 60,000 psi (4,100 bar)
ORIFICE AND FLOW RATE
0.016 in / 1.20 gpm
(0.41mm / 4.54 lpm)
DIMENSIONS
66 in x 36 in x 38.5 in
(1,676mm x 914mm x 978mm)
