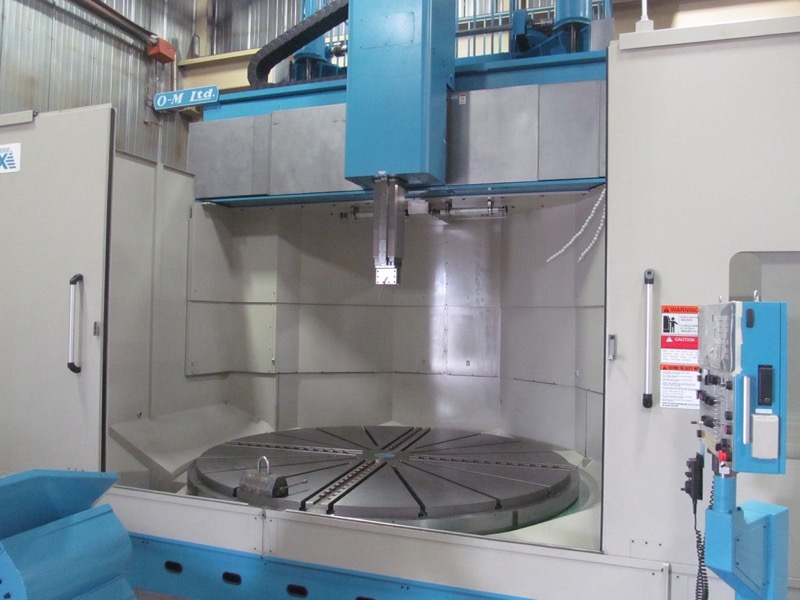

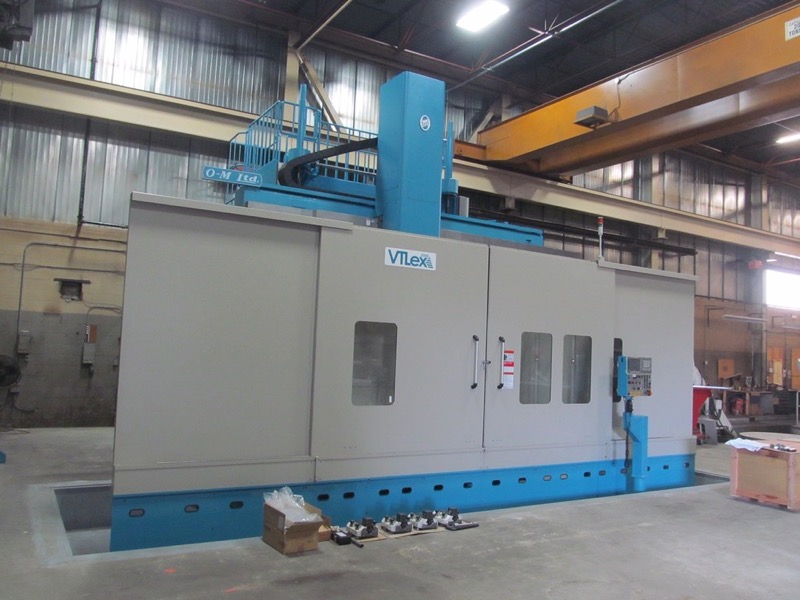

(1) Pre-owned OM Vertical Boring Mill
Model: VTLex3000
Year of Manufacture: 2017
Location: Canada
Condition: Like New! Under 400 Hours! See Under Power
SPECIFICATIONS

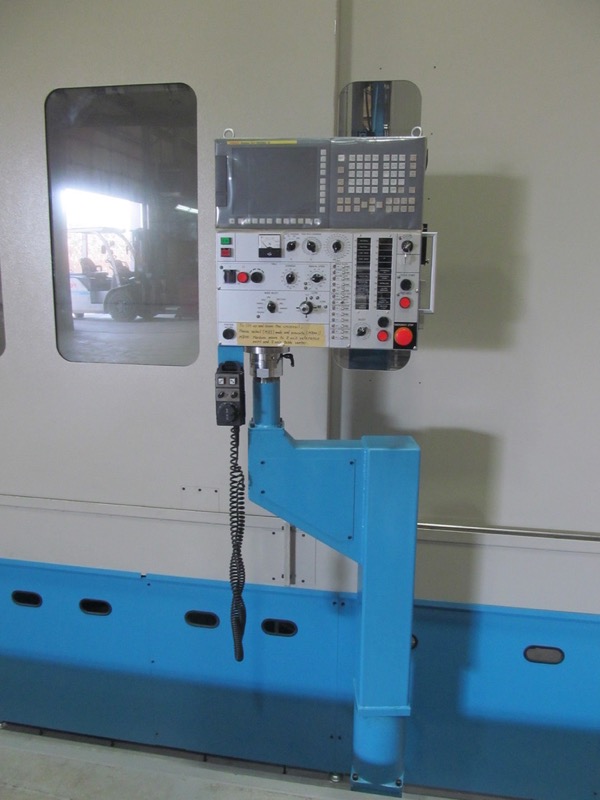

Control: Fanuc 31iB
Table Diameter: 118 in 4-Jaw Faceplate
Max. Swing: 130 in
Max. Turning Height: 95 in
Max. Weight Workpiece: 44,100 Lbs
Tool Head ,Crossrail & Column:
Vertical Travel Of Tool Head: 49.2 in
Horizontal Travel Of Tool Head:
To right from table center: 100 in
To left from table center: 3.937 in
Vertical Travel Of Cross Rail: 55 in (in 8 steps of 7.87 in)
Ram Size (Square): 8.27 in
Minimum Hole Diameter allowing passage od Ram: 13 in
Range Of Table Speed (2X Stepless): 1.0 to 38.5 Rpm 4.2 to 160 RPM
Main Motor: 73 Hp 55 Kw
Equipped With:
118 in 4 Jaw Faceplate
12 Station Tool Changer
Automatic Tool-Tip Measuring Offset System
Scale Feed Back On X & Z Axis
Full Enclosure
Chip Conveyor
Machine Weight: 81,400 Lbs.
Price: $950,000.00
To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any questions please call (207) 784-1999.
