OLYMPIA V60L, CNC VTL, FANUC 180I-T, 30 ATC, MOVABLE COLUMN, 66" TABLE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


V60L
Vertical Turret Lathes VTL
CNC Vertical Turret Lathes
used
(LB)
0
$0.00

Feature Video

Description

Overview:

Type: Chucking CNC Lathes
Category: CNC Lathes & Turning Centers
Manufacturer: OLYMPIA
Model: V60L
Condition: Used - Good
Year: 1999
Stock #: 4078
Status:
For Sale
Serial #:
OE99-339

Description

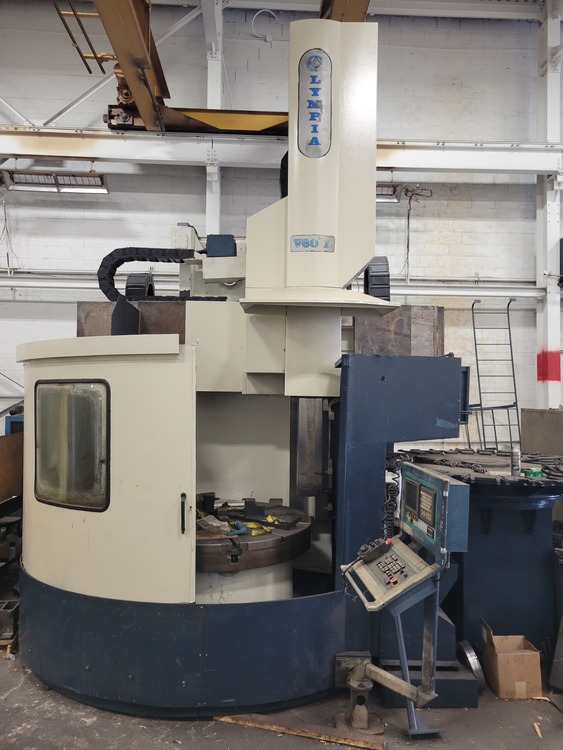

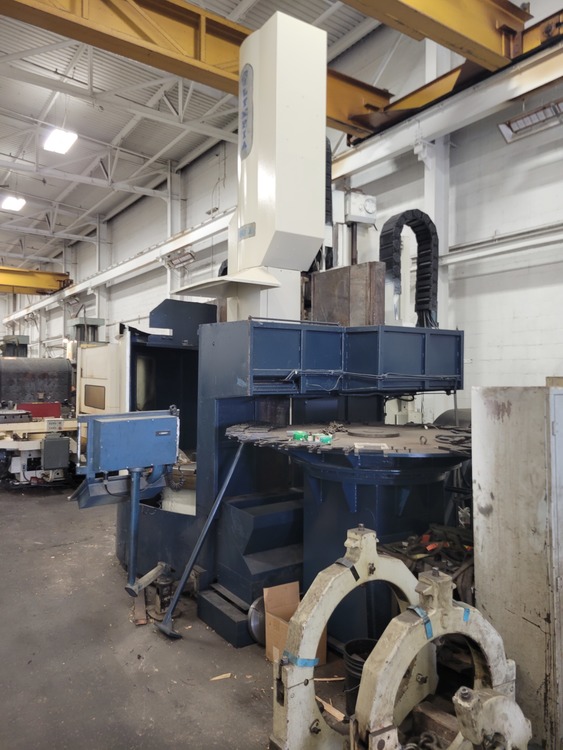

Olympia V60L CNC VTL

CNC Vertical Turning Center, VTL, VTC, Live tooled VTL, C axis, Vertical turning center, Fanuc control, ATC

Equipped With:

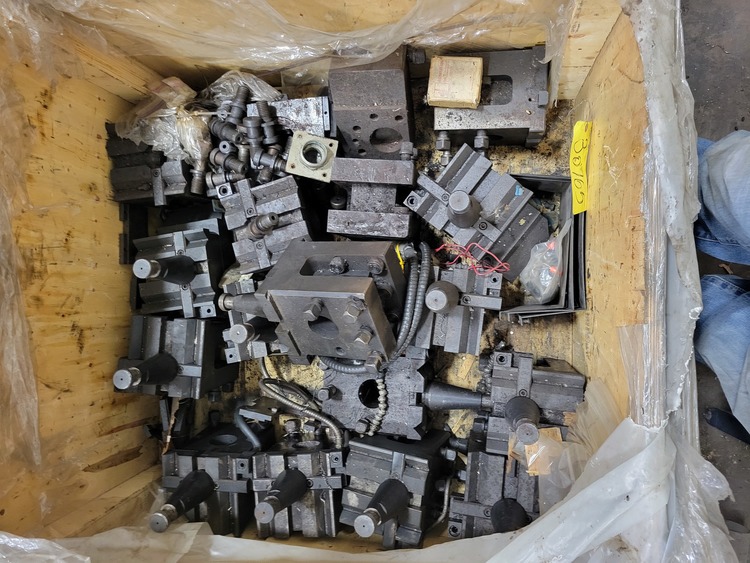

66" Table , 32 ATC, Live milling spindle, Fanuc 180I-T control, coolant through Block/Tool, Touch Tool Measuring, 16 tool blocks included

Specifications:
Swing 70"
Machining Length 65"
# Axis 3
Chuck Size 66"
Power 50 hp
Max RPM 350 RPM
Turning Dia 68"
Tailstock No
Live Tooling Yes

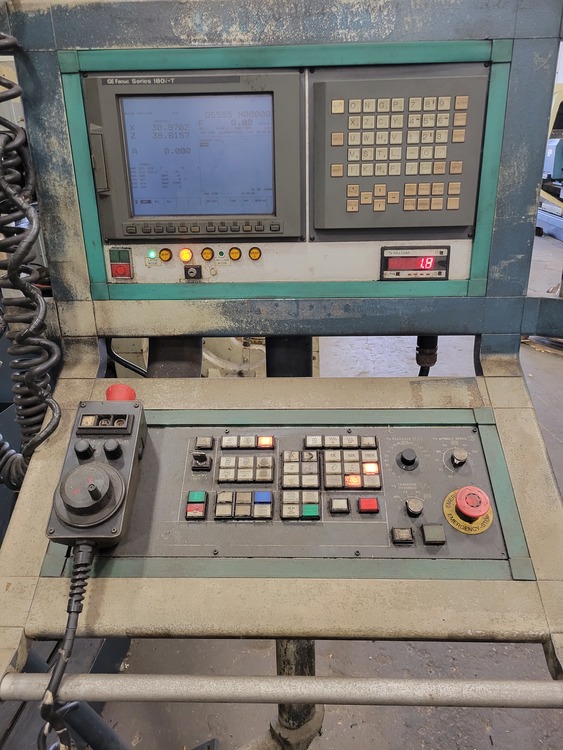

Control CNC (Fanuc 180i-T)
Dimensions 200" x 180" x 140" high
Weight 58,000 lbs
Table diameter 66"
Maximum Swing 70"
Standard Turning Diameter 68"
Chuck Diameter 66"
Maximum under rail 70"
Table drive power 5
"X" axis travel 60
No. Of Tools 32
Control mfg. Fanuc

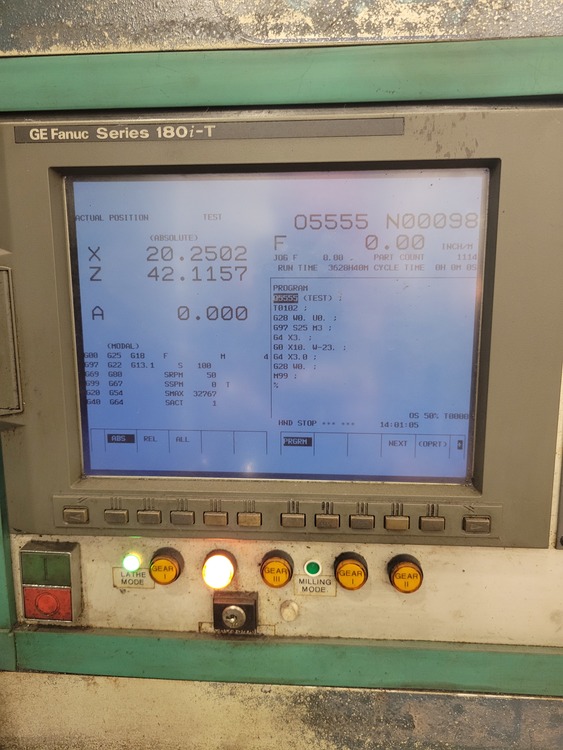

Control model 180i-T
Max. Table speed 350 RPM
Weight 58,000 lbs.
Live milling RPM 2,500
Live spindle taper Cat 50
Cross rail travel 40"
Vertical Ram Travel 40"
Machine, column and rail 180" x 114" x 140 high, 42,000

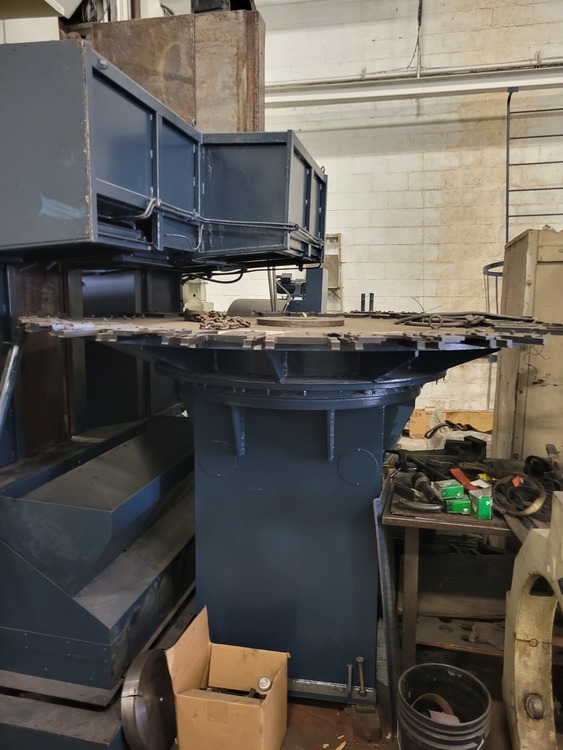

Elevating mechanism and ATC 105" x 101" x 108" High, 6,000
Control panel, transformer & tooling 6,000 #

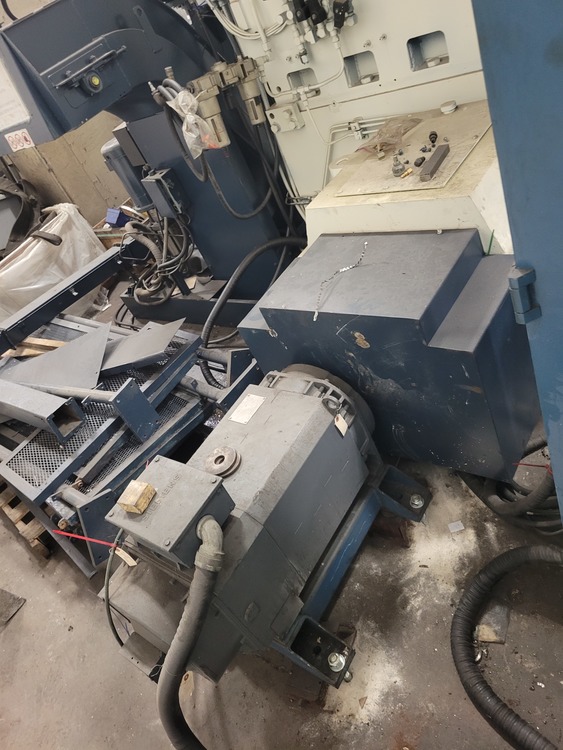

Main drive motor 41"x 18"x 28" 1,100#
Hydraulic unit 40"x 40"x 40" 600#
Chip conveyor w/ coolant tank 149"x 52"x 80" 1,560#
leveling pads pallet 24"x 24"x 12" 800#
electrical cabinet 71"x 21"x 79"H 1,200#
Table drive power 50 HP
More VIDEOs Please copy and paste in your browser

Table 100 RPM and axis moving

Tool change sequence 7-26-2022
