SPECIIFICATIONS:
Model LU45
CNC control OSP-E100L
Serial number/YOM 102386 /12 of 2002
Swing over bed 33 in
Max. turning diameter
XA/XB 23 in/18 in
Center distance 121 in
Travels, Z axis 120 in
X-axis 26 in

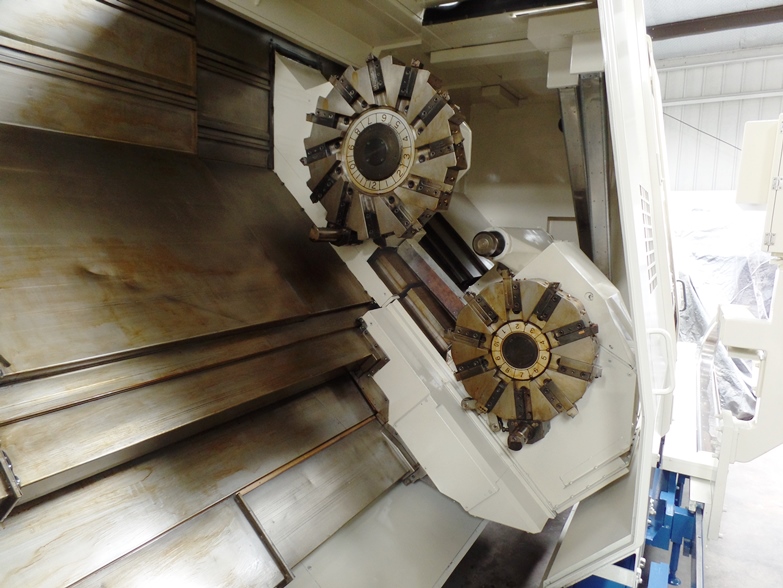

Turret stations 12 upper/8 lower
Follow rest Yes, on lower turret
Spindle bore 10.23 in
Spindle nose A-2-20

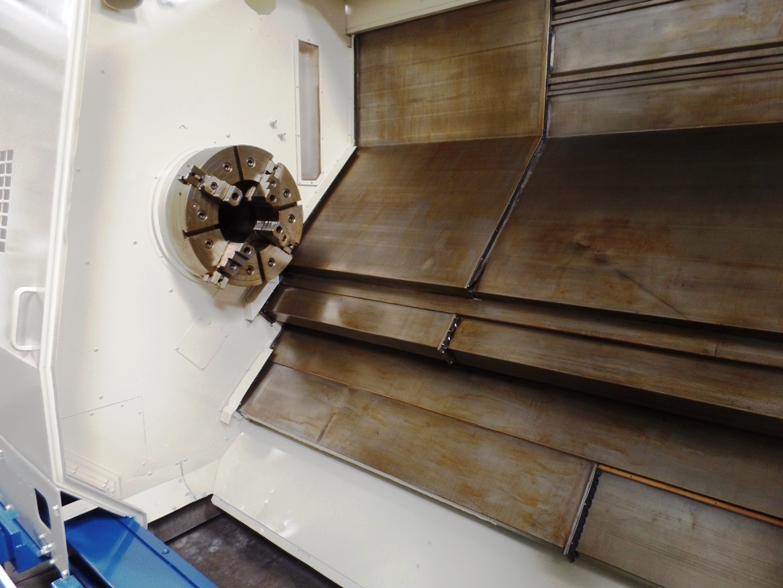

Chucks (2) 24 in Noble 4-jaw F& R with 12.5 in bore
Spindle speed 31-900 rpm.
Spindle nose A2-20
Quill diameter 5.12 in, MT No. 5
Main motor (Cont./30 Min) 50 HP / 60 HP
Electrics 220/480/3/60
Machine weight 56,217 lbs.
Price: $ 197,500. Subject to Prior Sale.
Programming:
Conventional two-axis programming steps and language.
OSP makes the conversions for the lower turret .
Machining is executed in the order of P-codes (P1 Pn ) as assigned
by the programmer.
