Description

SPECIIFICATIONS:

Model                                      LU45

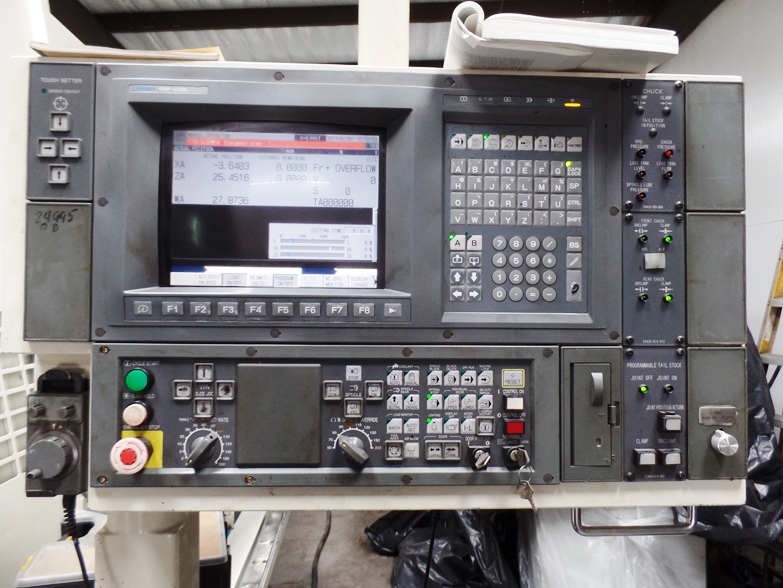

CNC control                           OSP-U100L

Serial number/YOM               104942/06 of 2003

Swing over bed                      33 in

Max. turning diameter

   XA/XB                                   23"/18 in

Center distance                     121 in

Travels, Z axis                       120"

X-axis                                     26"

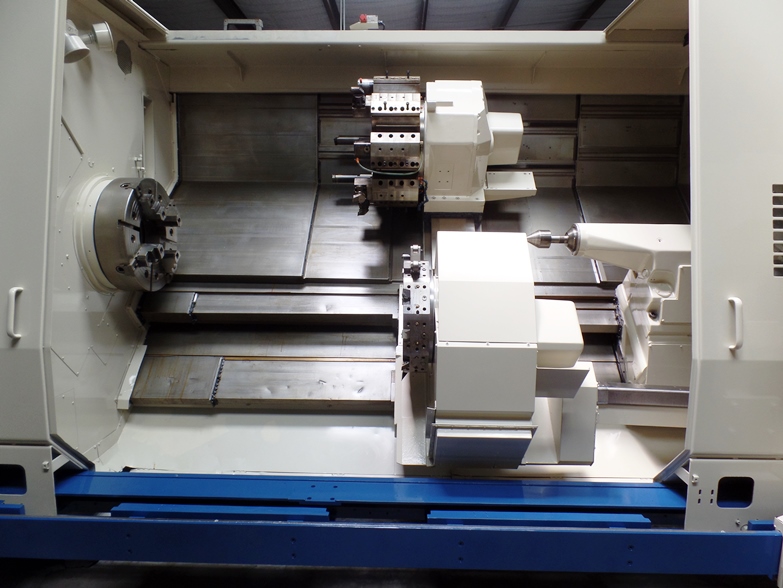

Turret stations                       10 upper/8 lower

Follow rest                             Yes, on lower turret

Spindle bore                          10.23 in

Spindle nose                          A-2-20

Chucks                                  (2) 24 in Bison 4-jaw F& R with 12.5 in bore

Spindle speed                        31 to 900 rpm.

Rapids,  Z/X                           393/196 IPM

Feed rates                             0.00001 to 39.37 IPM

Spindle nose                          A2-20

Quill diameter                         5.12", MT No. 5

Main motor (Cont./30 Min)     50 HP / 60 HP

Electrics                                 220/480/3/60

Dimensions, floor space        294" x 89" X 82 in H

Machine weight                      56,217 lbs.

Price:  $ 197,500.  FOB  Houston, TX.  Subject to Prior Sale.

Programming:

- Conventional two-axis programming steps and language.

- OSP makes the conversions for the lower turret .

- Machining is executed in the order of (P-codes) (P1--Pn ) as assigned by the programmer.
