Stock No. EZ7641
>Model LC-40 2SC
Brand Okuma
Type CNC
Lathes Swing 23.62"
Weight 21,000 Lbs.
Power 40 HP
MaxRPM 2500 RPM
Tailstock No.6 MT
Control LC 40 1SC
ChuckSize 18"
LiveTooling A2-8
Turning Dia 21.65"

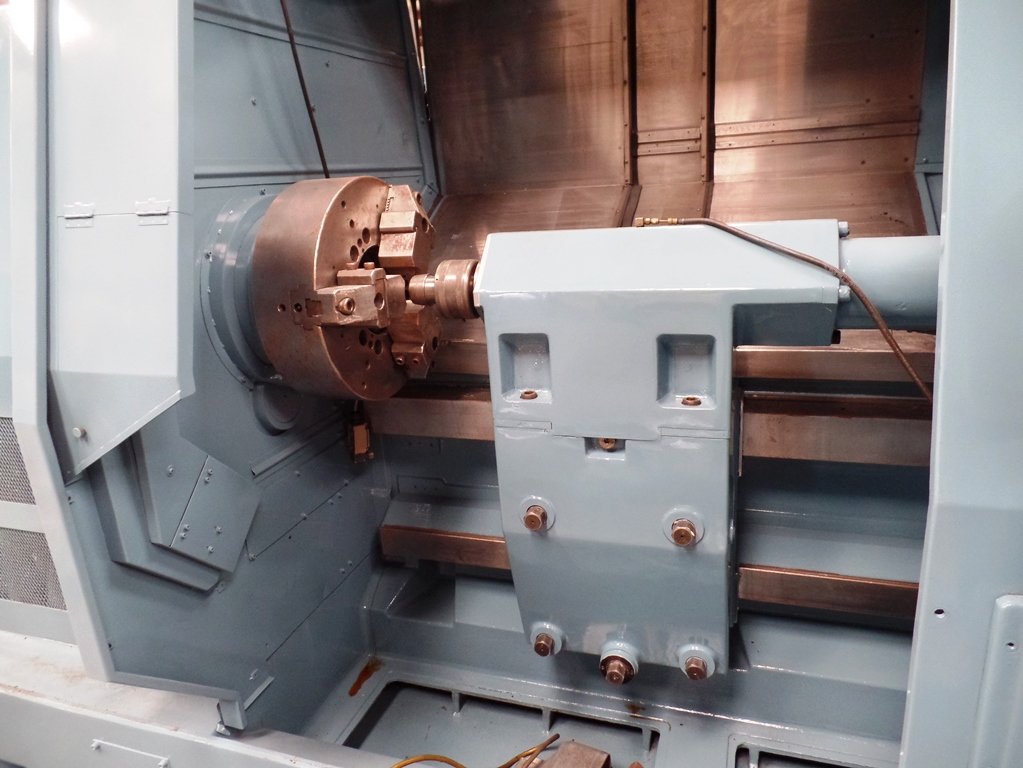

OKUMA LC 40 1SC CNC LATHE
Specifications:

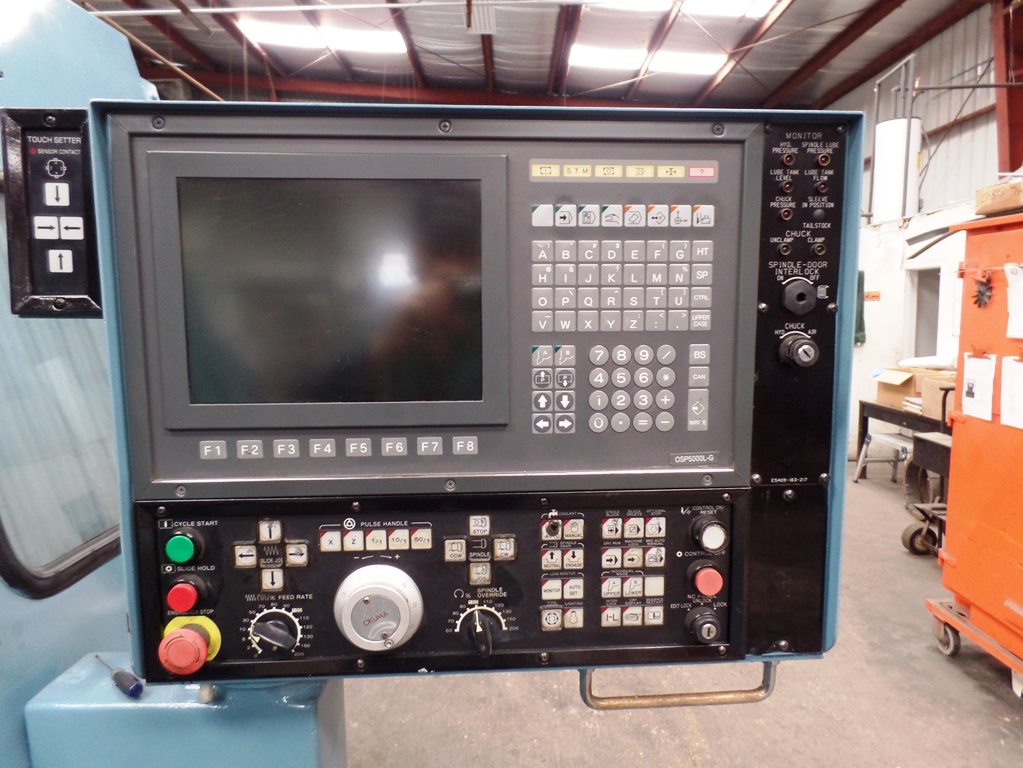

CNC control OSP 5000G with graphics
Model LC 40 1SC
Serial Number 0102-1734*
Number of Controlled Axis 2
Maximum Swing Over Bed 23.62 "
Chuck 18 " 3-jaw hydraulic
Maximum Turning Diameter 21.65 "
Distance Between Centers 40 "
Spindle Nose A2-8
Spindle Hole 3.54 "
Spindle Speeds 10 To 2,500 RPM
Turret Stations 12
Tailstock Spindle Diameter 4.72 "
Tailstock Spindle Travel 5.91 "
Tailstock Spindle Taper No.6 MT
Main Drive Motor 40 HP
Approximate Weight 21,000 Lbs.
Equipped With: Chip conveyor, Splash/Chip Covers, Coolant System, VDI Turret
To view more information on the OKUMA LC40 1SC COMPLETE REBUILT CNC LATHE 2003 WITH VDI TURRET, including reviews, brand information, photos, videos, and more,
