Description

SPECIFICATIONS:

Reference #

GMT-1955

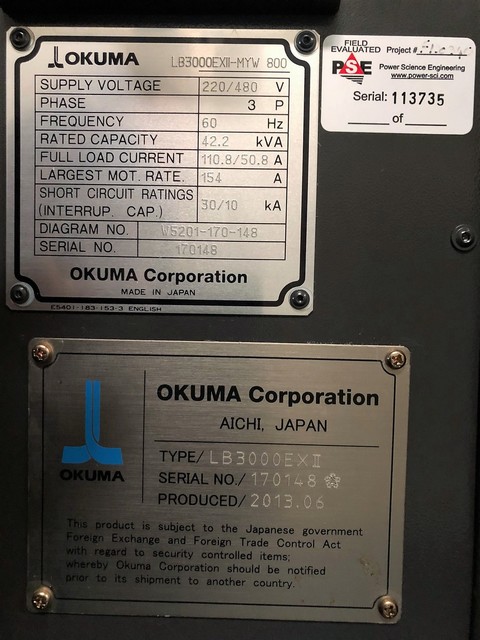

Model #

LB3000EXII-MYW-800

Serial #

170148

Year of manufacture

6/2013

Swing over bed

22.83 in

Swing over carriage

18.50 in

Maximum turning diameter

13.39 in

Distance between centers

42.72 in

Main spindle

Spindle diameter

A2-6

Spindle nose

4.72 in

Through spindle hole

A2-6

3.14 in

Spindle speeds

45   5,000 R.P.M.

Sub spindle

Spindle diameter

3.94 in

Spindle nose type

5.51 in flat

Through spindle hole

2.44 in

Spindle speeds

45  6,000 R.P.M.

Z axis travel

39.76 in

Feedrate

0.00004 to 39.37008 I.P.M.

Rapid feedrate

1,181.10 I.P.M.

X axis travel

10.24 in

Feedrate

0.00004 to 39.37008 I.P.M.

Rapid feedrate

984.25 I.P.M.

Y axis travel

4.53 in

Feedrate

0.00004 to 39.37008 I.P.M.

Rapid feedrate

492.13 I.P.M.

W axis travel

35.24 in

Feedrate

0.00004 to 39.37008 I.P.M.

Rapid feedrate

1,181.10 I.P.M.

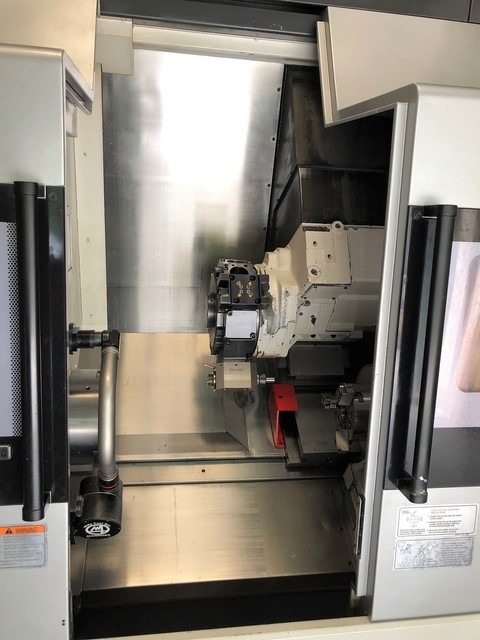

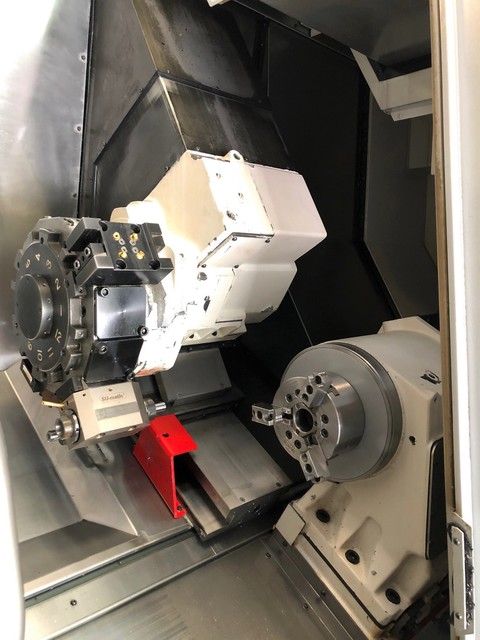

Turret type

V12

Number of turret stations

12

Live tooling / milling spindle speeds

45 to 6,000 R.P.M.

C axis control angle

360 deg / 0.001 deg increment

Rapid traverse

200

EQUIPPED WITH:

• ***Machine was blocked with factory brackets and Disconnected by Gosiger***

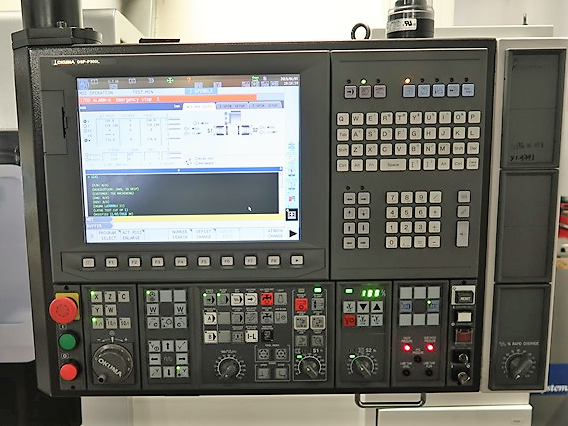

• OSP 300 Touchscreen control
• MP Systems High pressure coolant System 1000 P.S.I. & surface skimmer (7.5 HP)
• MAYFRAN Chip conveyor & coolant tank with (2) Coolant pumps

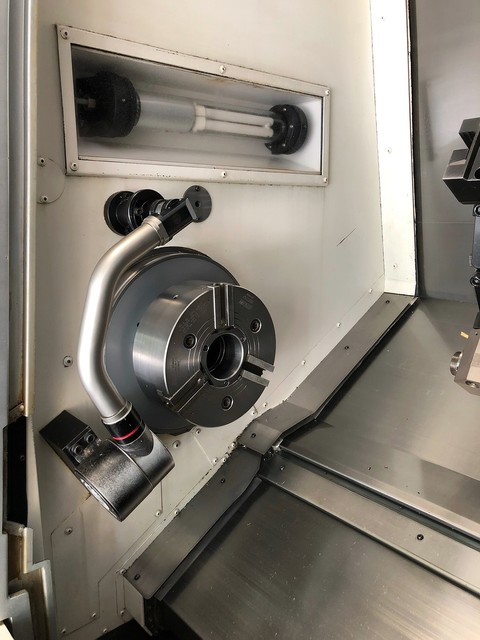

• 10 in 3 jaw KITAGAWA #BB210 chuck on main spindle
• 6.5 in 3 jaw KITAGAWA chuck on sub spindle
• (2) Live tool holders
• (2) Standard tool holders
• (7) Spindle liners
• MARPOSS tool setter
• Dual foot pedals
• Work light
• Control options-3D animation, animation, Pitch error compensation, 96 tool offsets, tool wear compensation, NC work counter, MAC man, Plane conversation, Profile generator, Synchro tapping, Helical cutting, Spindle orientation, M axis orientation
• Machine cutting hours- 3,048

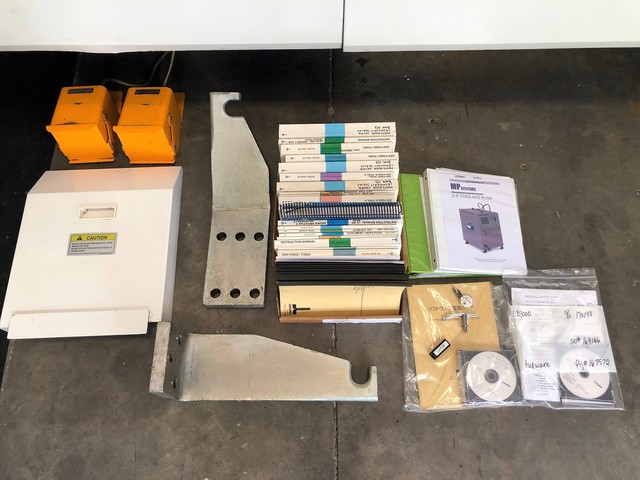

• Machine manuals, Schematics, back up disks
• Factory shipping & lifting brackets
• Main spindle motor 40/30 H.P.
• Z axis motor 6.13 H.P.
• X axis motor 4.67 H.P.
• Y axis motor 4.67 H.P.
• Sub spindle motor 3.73 H.P.
• Hydraulic pump motor 3 H.P.
• Guideway lubrication pump motor .024 H.P.

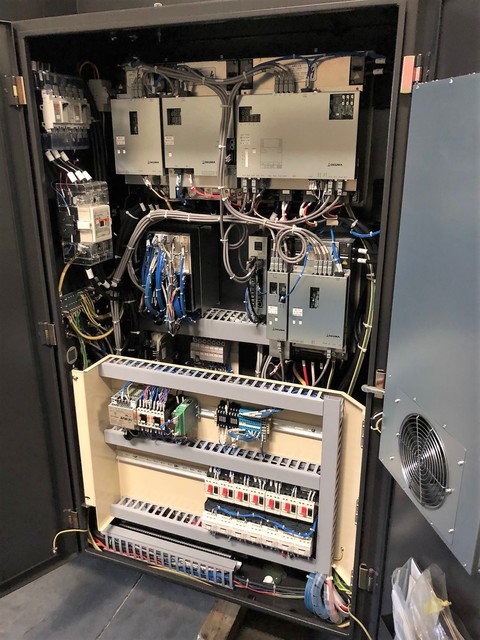

• Machine is currently wired for 480 Volt / 3 Phase / 60 HZ

APPROXIMATE WEIGHT (MACHINE ONLY):

19500 Lbs.

APPROXIMATE DIMENSIONS:

170 in L x 96 in L x 98 in H

LOCATION:

F.O.B. Bradenton, Florida

REFERENCE #:

CNC Lathe-GMT-963

PRICE #:

$149,500.00
