OKUMA LB15II-M CNC TURNING CENTER #5659

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


LB15II-M
Lathes and Turning Centers CNC
Slant Bed Turning center
used
(KG)
0
$0.00

Description

CHUCK SIZE 8"

SWING OVER BED 20"

MAXIMUM WORK LENGTH 19.69"

MAXIMUM TURNING DIAMETER 9.84"

BAR CAPACITY 2.12"

SPINDLE NOSE A2-6

SPINDLE SPEEDS 3,800 RPM

X TRAVEL 5.91"

Z TRAVEL 20.47"

RAPID TRAVERSE RATE 787 IPM

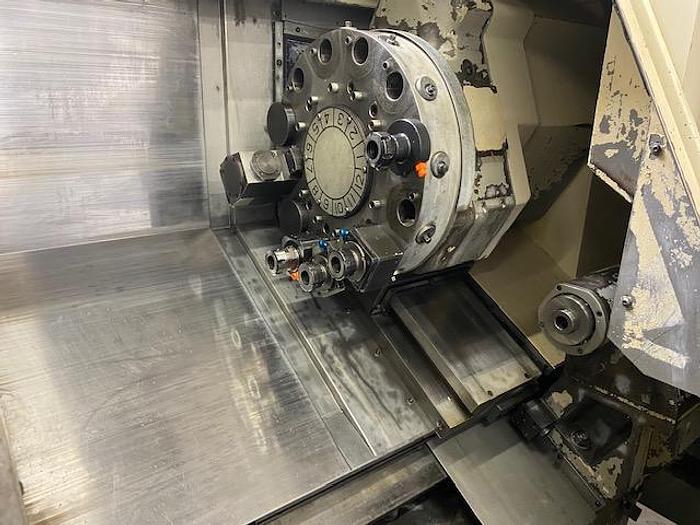

TURRET TOOL STATIONS 12

TAILSTOCK TAPER MT-5

TAILSTOCK QUILL STROKE4.72"

TAILSTOCK QUILL DIAMETER 3.54"

MAIN MOTOR 15 HP / CONTINUOUS 30 HP PEAK

APPROX. WEIGHT 13,500 LBS

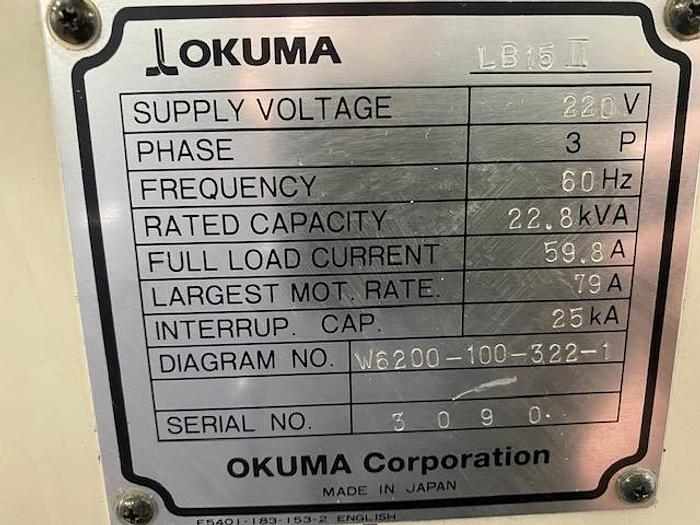

ELECTRICS 220V / 3 / 60


Equipped With:

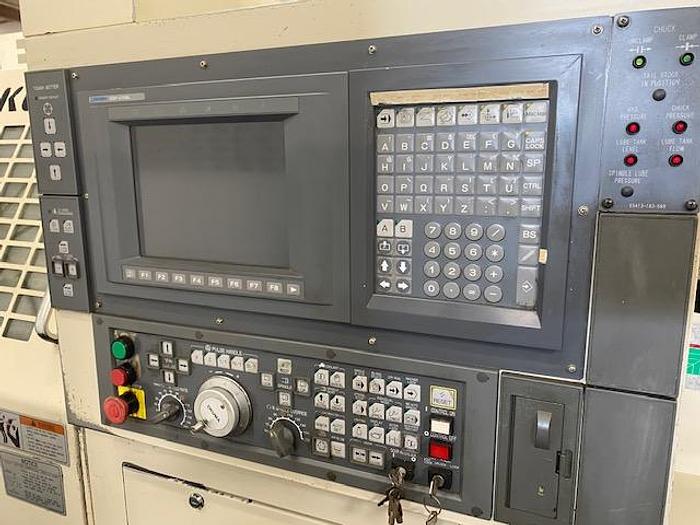

OSP U100L CNC CONTROL WITH COLOR DISPLAY

TAILSTOCK
