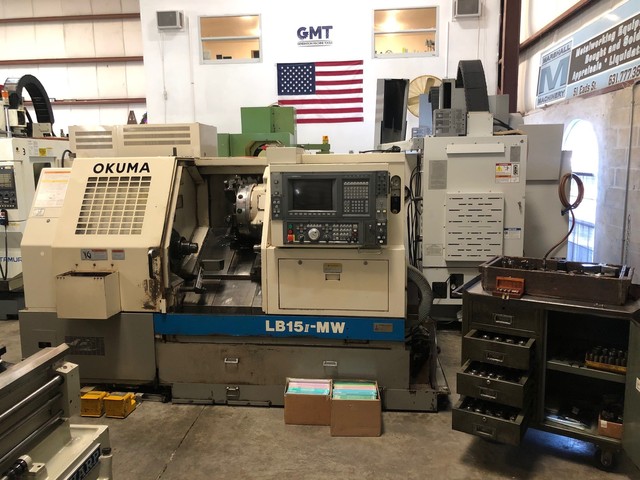

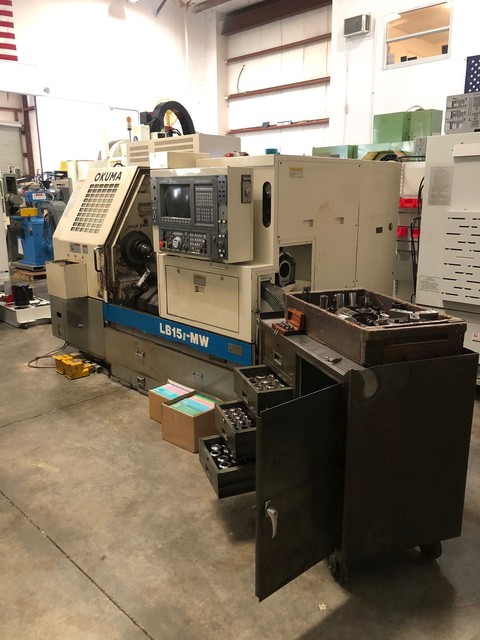

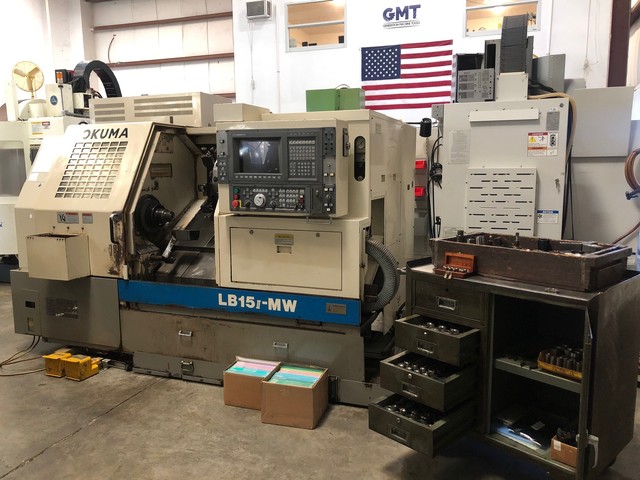

OKUMA LB15 II MW CNC LATHE TURNING CENTER MILLING & SUB-SPINDLE 1997’ #GMT-2133

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


LB15II MW
3465
Lathes and Turning Centers CNC
Turning and milling center
used
12500 (LB)
1997
$32,500.00

Feature Video

Description

SPECIFICATION
Reference #
GMT-2133
Model #
LB15II MW
Serial #
3465
Year of manufacture
1997
Maximum turning diameter
14.56 in
Maximum turning length
19.68 in
Spindle speed
45 to 4500 R.P.M.
Sub spindle speed
45 to 4500 R.P.M.
Spindle nose
A2-6
Sub spindle nose
5.51 in flat
Spindle bore
2.44 in
Sub spindle bore
2.08 in
C axis indexing
0.001deg
Turret type
V12 VDI
Rotary tool positions
All stations
X Rapid traverse
590 I.P.M.
Z Rapid traverse
787 I.P.M.
W Rapid traverse
630 I.P.M.
C Rapid traverse
200 I.P.M.
CHARACTERISTICS
Equipped With:

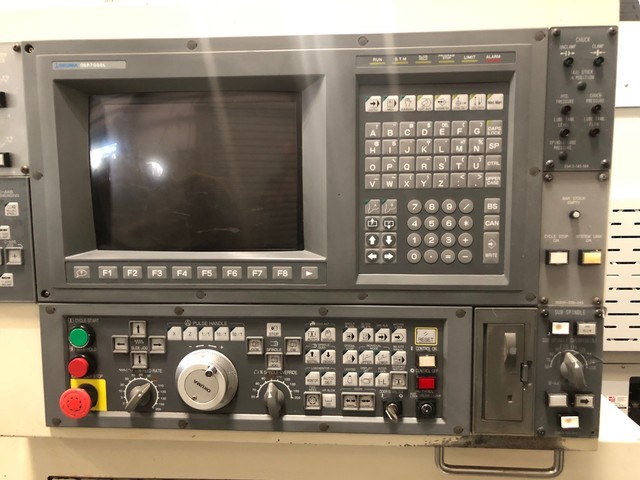

OSP 7000 CNC Control with Upgraded LCD Screen
ATS 3-J Collet chuck on Main spindle
ATS 5-C Collet chuck on Sub spindle
8 in KITAGAWA chuck
5 in KITAGAWA chuck
Parts catcher
(12) Standard tool holders
(5) Live tool holders
Control options- Plane conversion, Profile generation, Synchro tapping, Animation, MAC MAN
Bar feed interface
(44) #J Hardinge collets

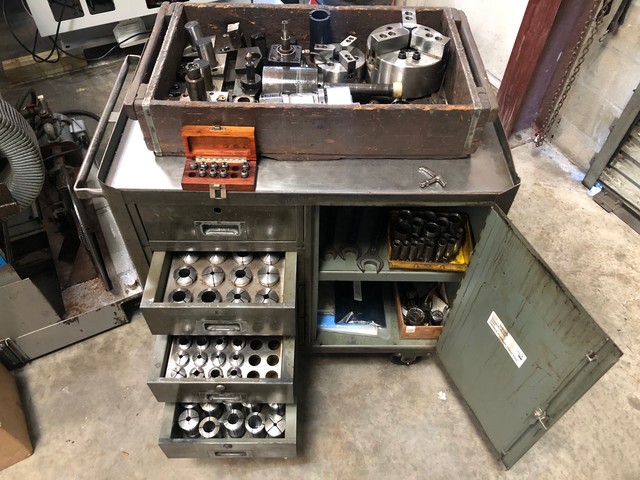

Assorted 5-C collets, ER collets, extra parts and tooling in cabinet
Coolant tank & pump & oil Skimmer

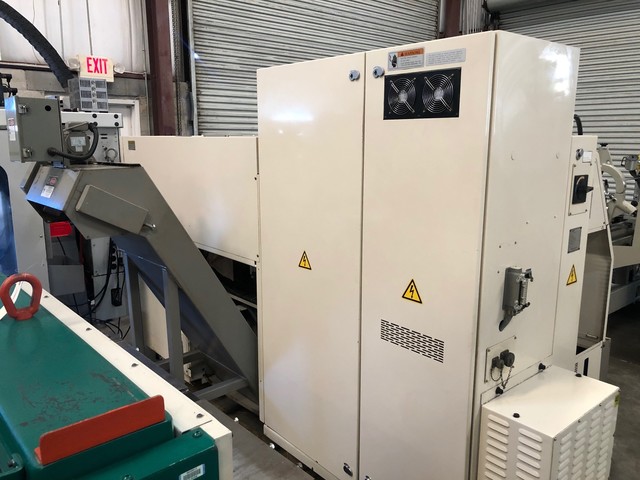

HENNIG Chip conveyor
Machine manuals & Back up disks
Main spindle motor 20 H.P.
Sub spindle motor 7.4 H.P.
Rotary tool drive motor 3 H.P.
Machine is currently wired for 220 volt/ 3 phase / 60 H.Z.
Running hours  14,350 Operating hours- 4,056 Cutting hours- 2,376
Approximate Weight (Machine Only):
12500 Lbs.
APPROXIMATE DIMENSIONS:
124 in L x 70 in W x 80 in H
PRICE:
$32,500
