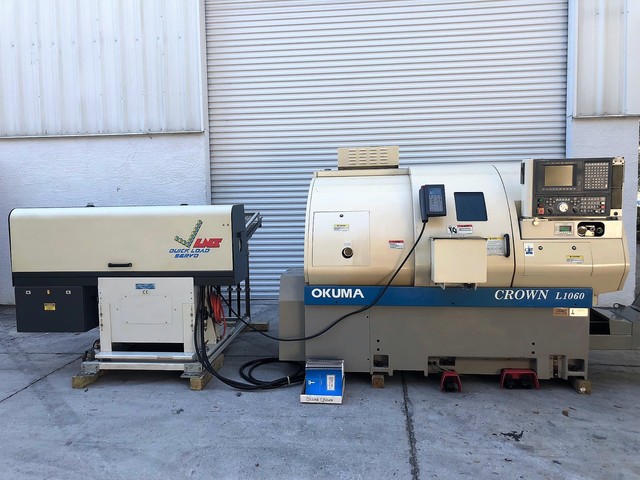

OKUMA L1060-BB CROWN “BIG BORE” CNC LATHE & LNS BAR FEED 1999’ #GMT-1757

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


L1060-BB
1390
Lathes and Turning Centers CNC
Slant Bed Turning center
used
12500 (LB)
1999
$29,500.00

Description

SPECIFICATIONS:
Reference #
GMT-1757
Model #
L1060 /762S-BB
Serial #
1390
Year of Manufacture
1999
Maximum cutting size
10.63 x 19.68 L
Swing over bed
21.65
Swing over cross slide
15.750
Maximum turning diameter
10.63
Spindle nose taper
A2-8
Spindle diameter
4.72
Spindle bore
3.15"
Spindle speeds
65- 3500 R.P.M.
Z axis travel
20.47
X axis travel
7.28
Z axis feed rate
.0001 39.37 I.P.R.
X axis feed rate
.0001 39.37 I.P.R.
Z axis rapid feed rate
787.4 I.P.M.
X axis rapid feed rate
590.55 I.P.M.

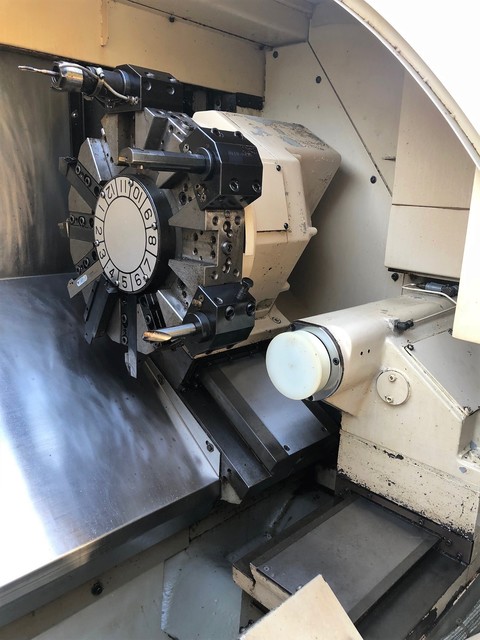

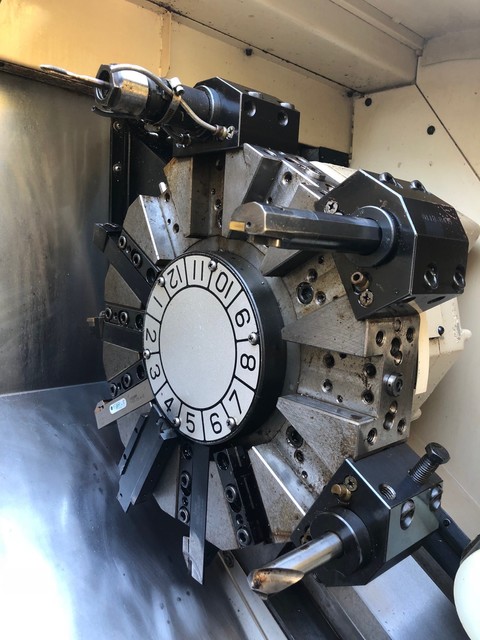

Turret
(12) Position
Tailstock quill diameter
3.54
Tailstock taper
#5 Morse
Tailstock quill stroke
4.72"
EQUIPPED WITH:
  • OSP-U10L CNC Control

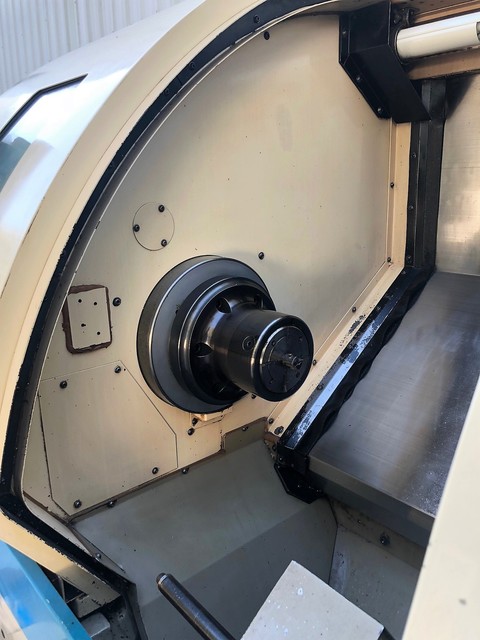

  • ATS Collet Chuck

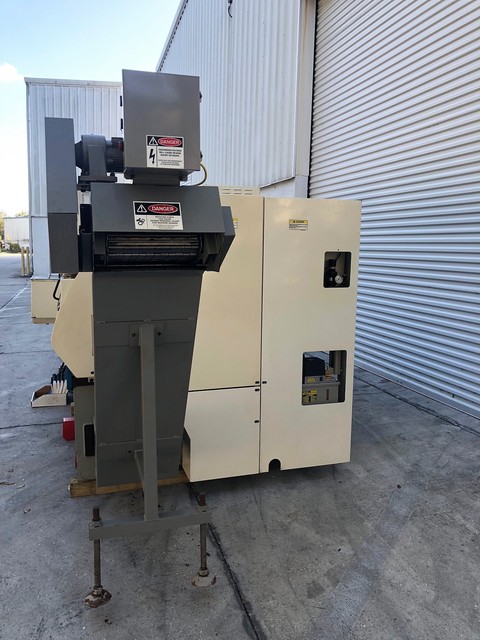

  • HENNIG Chip conveyor Model # KMO-0320-00

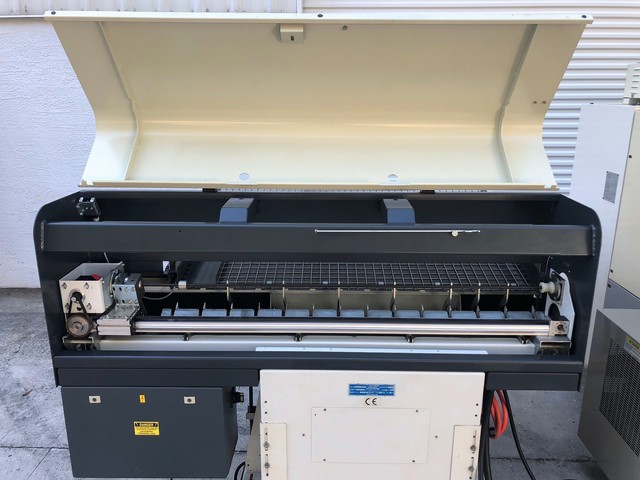

  • LNS Bar Feed Model # QL SERVO & (10) Sleeves / Liners
  • Parts catcher
  • Work light
  • (8) Leveling Pads
  • 20 H.P. Main spindle motor
  • Machine manuals & Schematics
  • Machine is currently wired for 220 volt / 3 phase / 60 H.Z.
APPROXIMATE WEIGHT (MACHINE ONLY):
12500 Lbs.
APPROXIMATE DIMENSIONS:
(Machine Only)- 104 L x 83 W x 75 H
LOCATION:
F.O.B. Bradenton, Florida
REFERENCE #:
CNC Lathe-GMT-756
PRICE #:
$29,500.00
