Video Of Machine Under Power Available Upon Request
SPECIFICATIONS
Swing Inside the Guards................................ 20"
Chuck Size..................... 15"
Max. Cutting Diameter with Standard Tool Holders....... 15.7"
Max. Cutting Diameter with Special Toolholders......... 20"
Max. Cutting Length.................................... 17.7"
Spindle Center Height From Floor....................... 37.8"
Spindle Speed.......................................... 20-2500 RPM
Spindle Nose........................................... A2-8
Turret Type............................................ Drum Type
Number of Turrets...................................... 2
Tool Positions on each Turret.......................... 12 ea
X-Axis Travel.......................................... 10.4"
Z-Axis Travel.......................................... 17.7"
Rapid Rates X & Z...................................... 944 IPM
Approximate Machine Dimensions (w/o Chip Conv)......... 92" x 117"
Approximate Machine Height............................. 120"
Approximate Machine Weight............................. 32,000 Lbs
Equipped With:

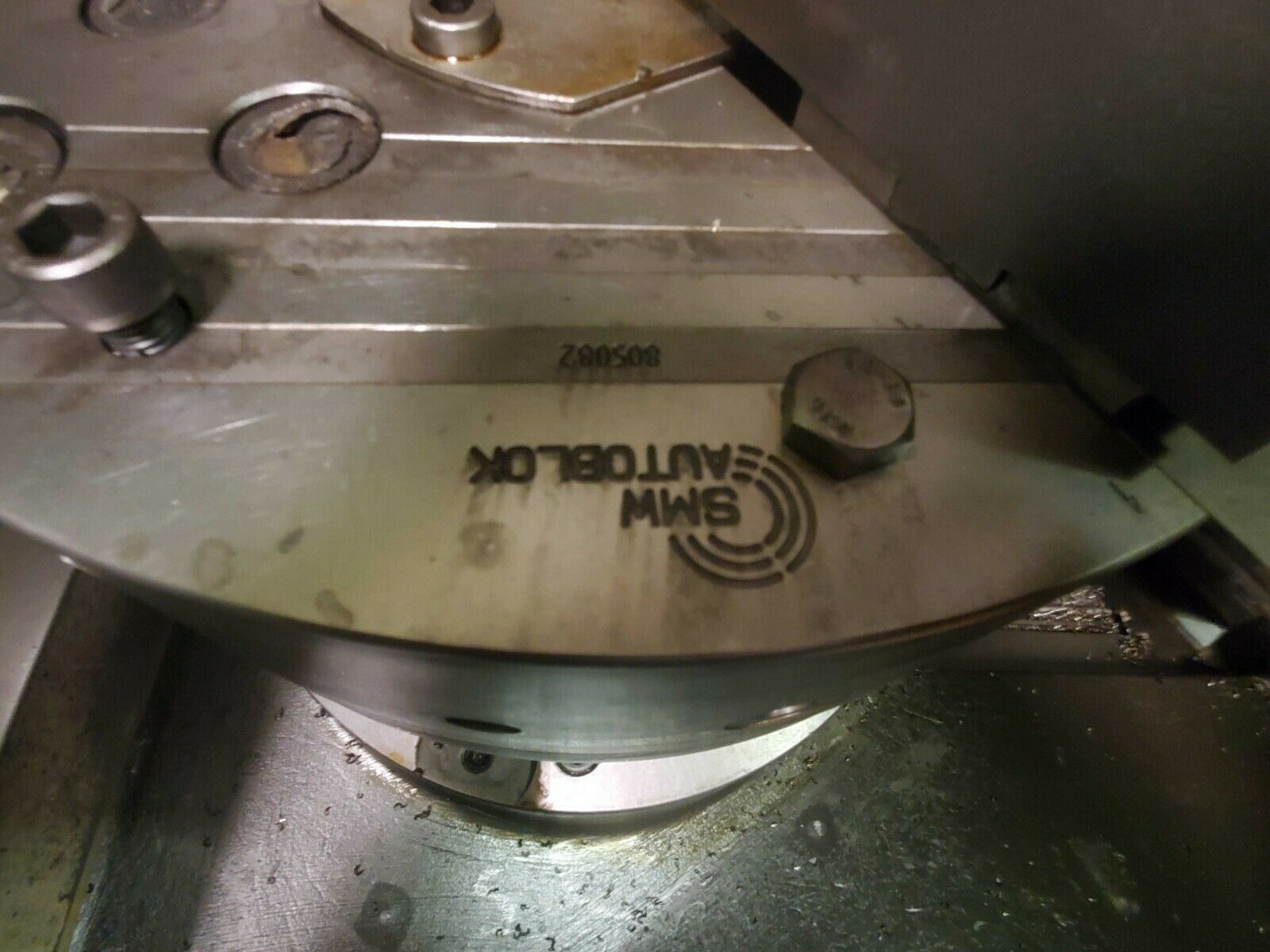

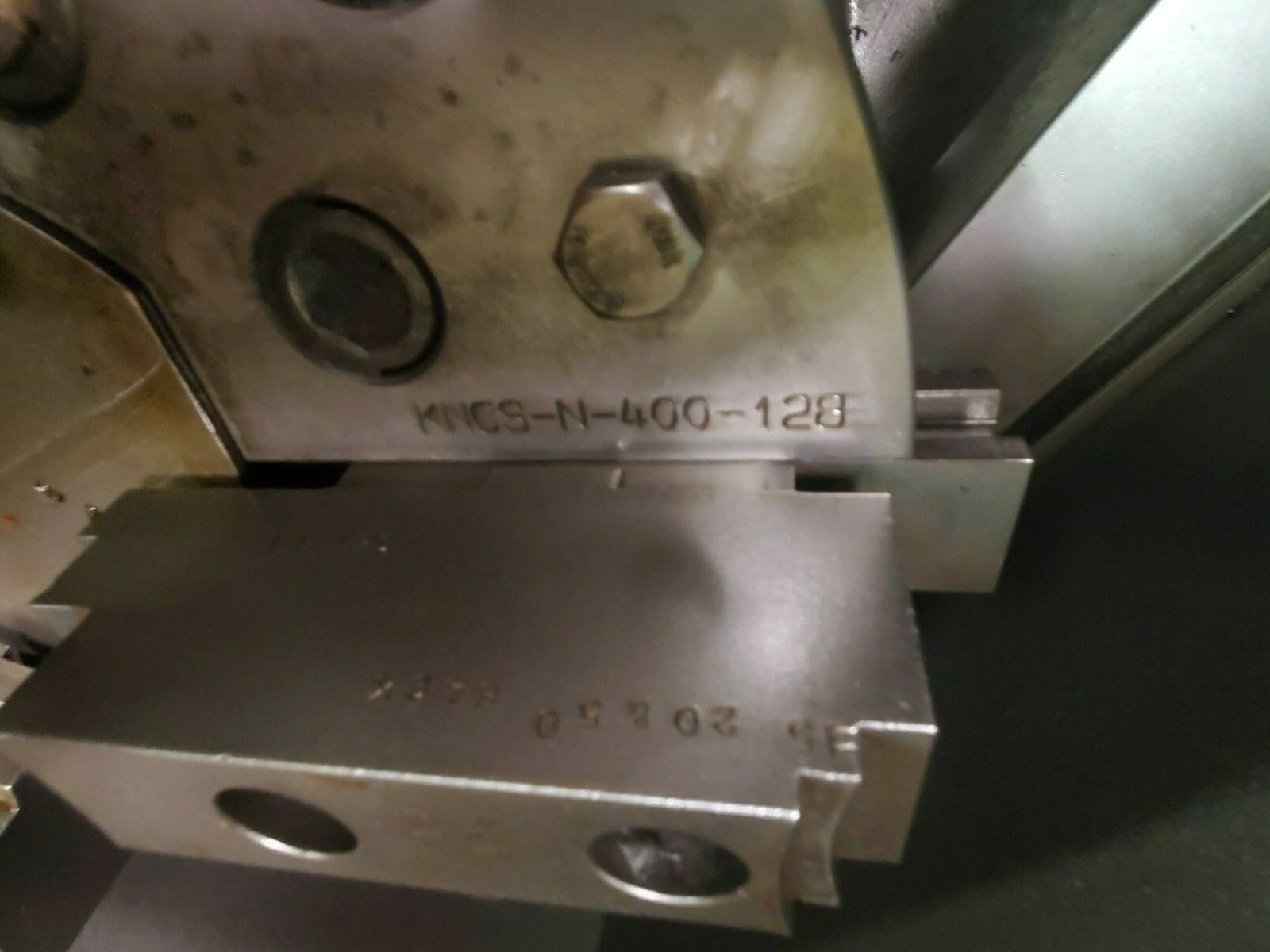

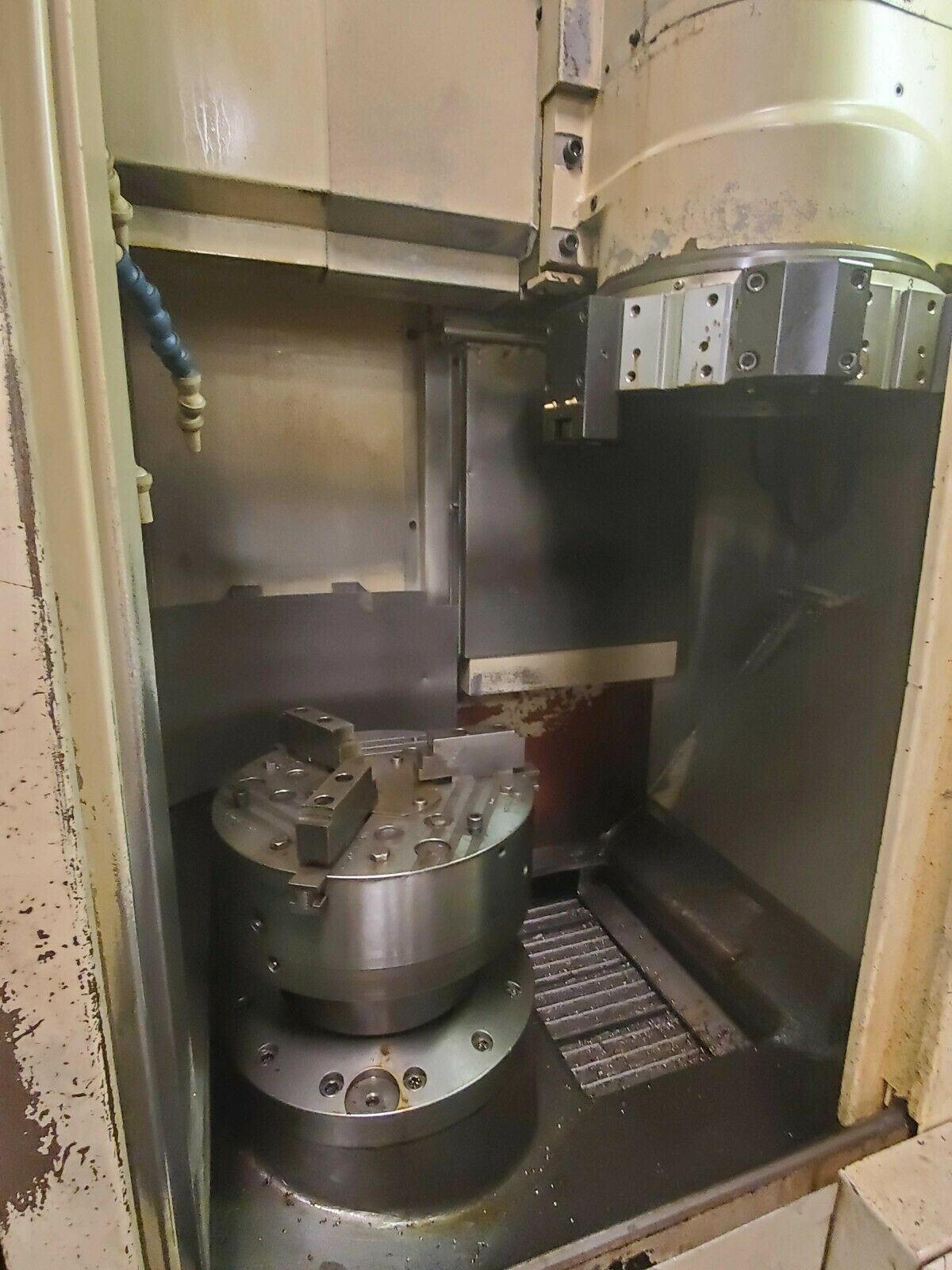

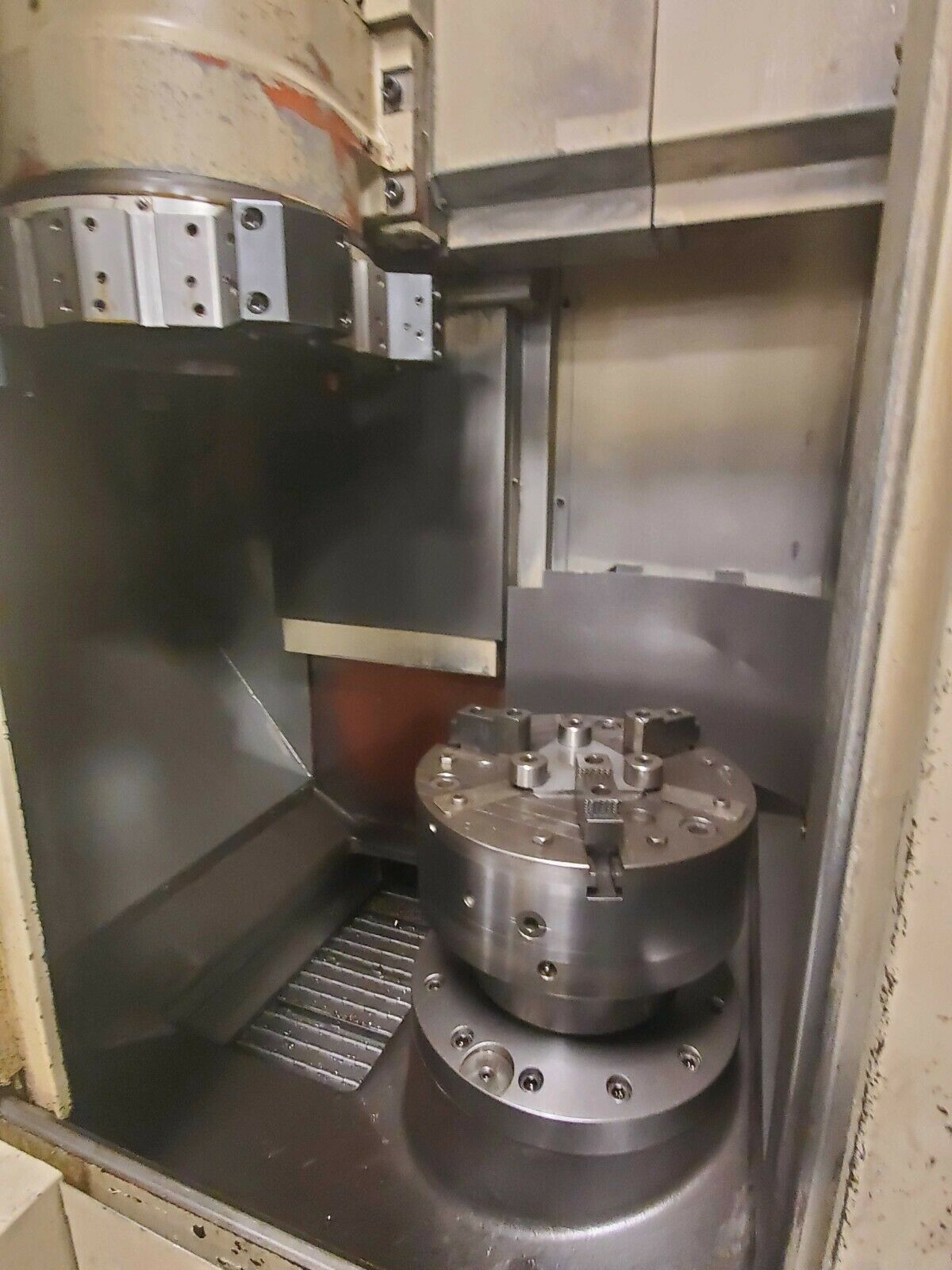

(2) 15" SMW Autoblock Chucks Model KNCS-N-400-128 (Quick Change Jaws)

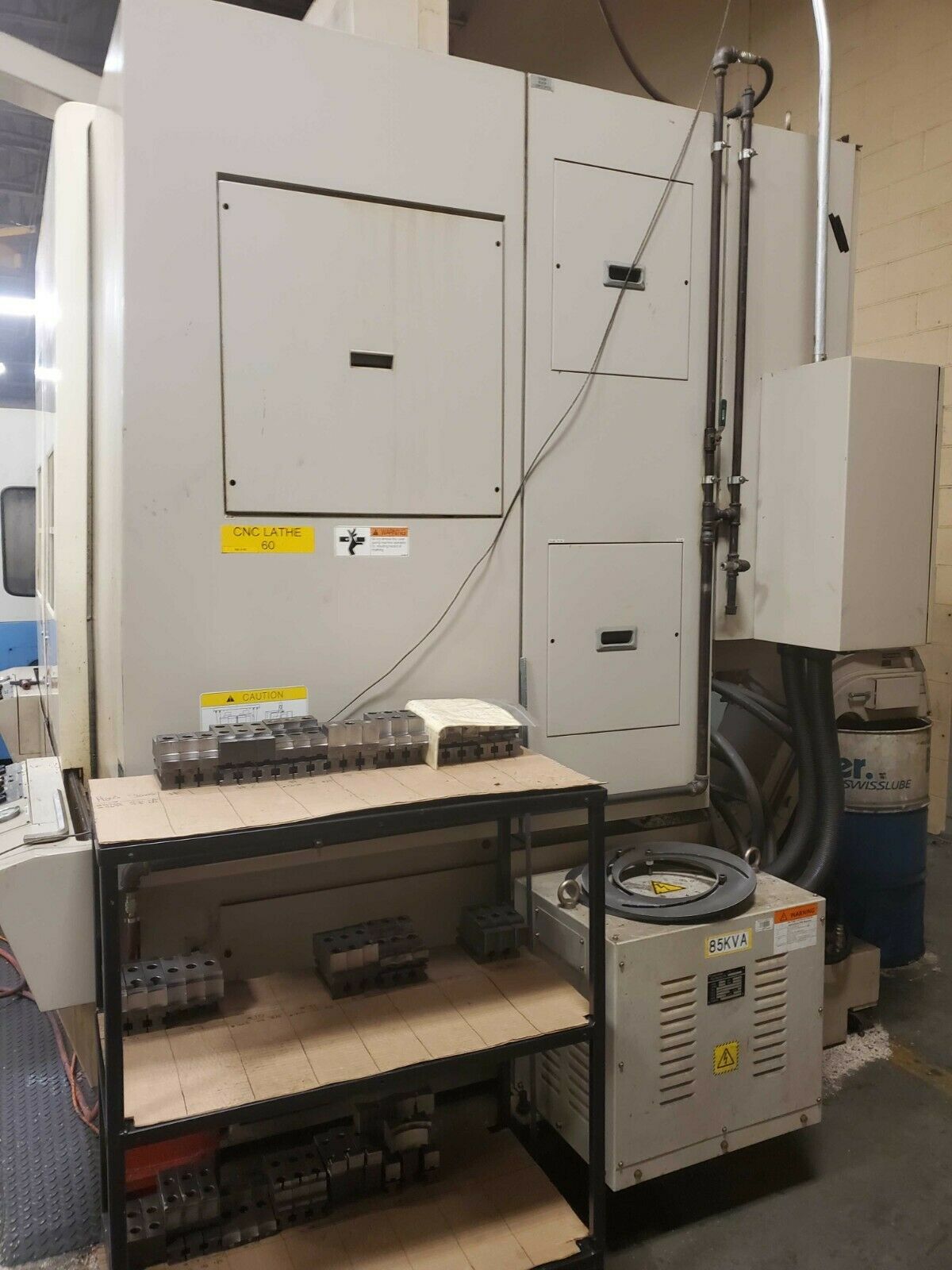

** Various Chuck Jaw Sets Seen In Last Picture on Cart (18) Sets of jaws
