OKUMA GENOS M560-V CNC VMC, YEAR 2018 - 3186 MACHINING CENTERS, VERTICAL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


GENOS M-560-V
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
18260 (LB)
2018
$0.00

Description

Overview:

Type: Machining Centers, Vertical
Category: Machining Centers
Manufacturer: OKUMA
Model: GENOS M-560-V
Condition: Used - Excellent
Year: 2018
Stock #: 3186
Status: For Sale

Description:
NOTE: KURT VICES ARE NOT INCLUDED WITH THE MACHINE
Specifications:
X-Axis Travel, in (mm): 41.34" (1,050 mm)
Y-Axis Travel, in (mm): 22.05" (560 mm)
Z-Axis Travel, in (mm): 18.11" (460 mm)
Spindle Nose to Table Top, Std Column (Z-Axis), in (mm): . 5.91" to 24.02" (150 - 610 mm)
Table Size, in (mm): 51.18 in x 22.05 in (1300 x 560 mm)
Table Top Surface to Floor Height - T-Slot, in (mm):. 31.50 in (800 mm)
Max. Table Load Capacity, lbs. (kg): 1,980 lbs. (900 kg)
Rapid Travel X-Axis, in/min (m/min): 1,574 in/min (40 m/min)
Rapid Travel Y-Axis, in/min (m/min): 1,574 in/min (40 m/min)
Rapid Travel Z-Axis, in/min (m/min): 1,259 in/min (32 m/min)
Max Cutting Feed Rate, in/min (m/min): 1,259 in/min (32 m/min)
Electrical Power for Base Machine (kVA): 37 kVA
Coolant Tank Capacity, Gals (Liter): 106.2 Gals (402 Liter)
Floor Space (W x D x H), in (mm): 101" x 126" x 108" (2,564 x 3,194 x 2,746 mm)
Weight, lbs. (kg): 18,260 lbs. (8,300 kg)

Equipped with:

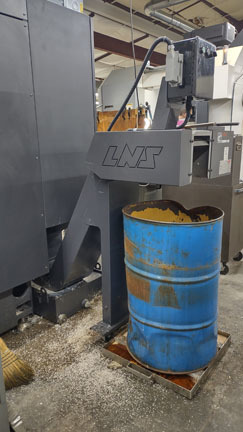

LNS Chip Conveyor
