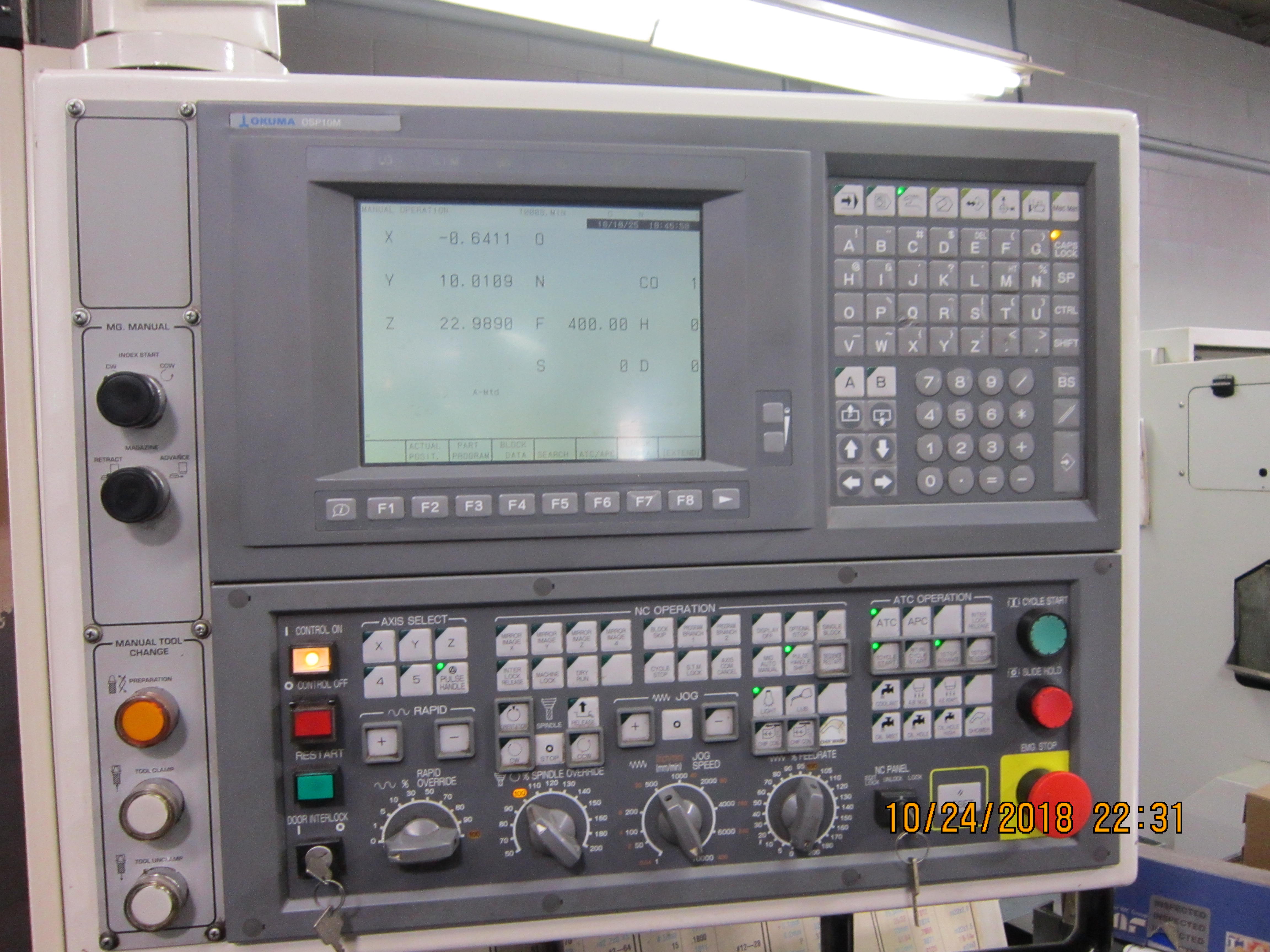

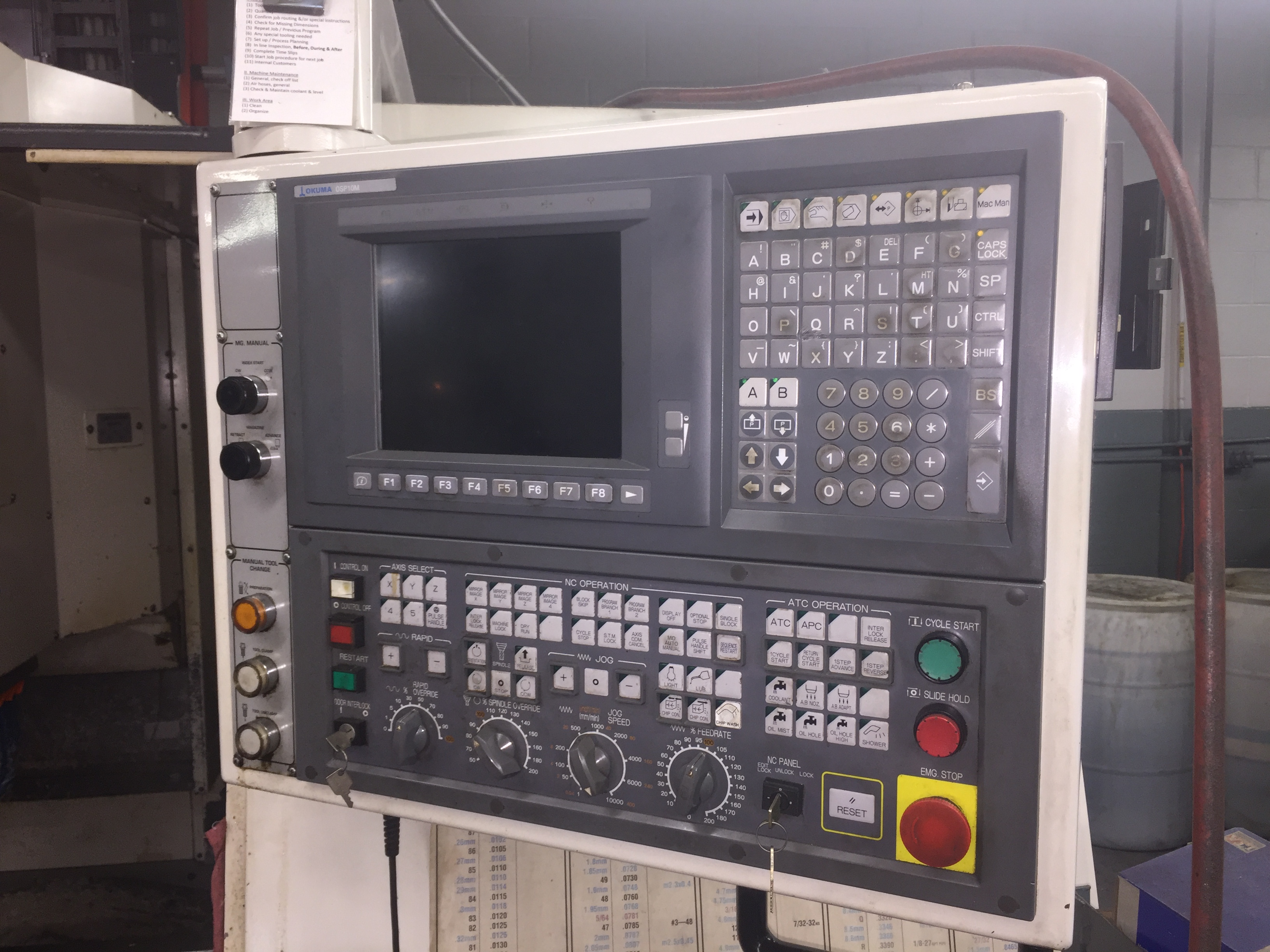

OSP-U10M CNC Control
20 Automatic tool changer
RS 232 Port
Floppy Drive
Rigid Tapping
Brush-type servo drive motors on all axis Telescopic way covers
Flood Coolant system with Tanks
OKUMA ESV-4020 Specifications:
Travels:
X-Axis: 40.1 in
Y-Axis: 20.3 in
Z-Axis: 20.8 in
Rapid Traverse Rates: 941 Inch Per Minute Cutting
Feed Rates: 475 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.1 in to 26.1 in
Table:
Length: 47 in
Width: 20 in
Number of Std T-Slots: 3
T-Slot Width: 5/8 in
Max Weight on Table: 1100 lbs
Spindle:
Taper Size: 40
Speed Range: 40 to 8,000 RPM
Spindle Power: 15 HP
Max Torque: 90ft-lb @ 2000RPM
Automatic Tool Changer:
Capacity: 20
Max Tool Weight: 13.2 lbs
Max Tool Dia: 5.90 in
Max Tool Length: 12 in
Tool Changing Time: 3.6 Seconds
General:
Air Required: 80 psi, 4 scfm

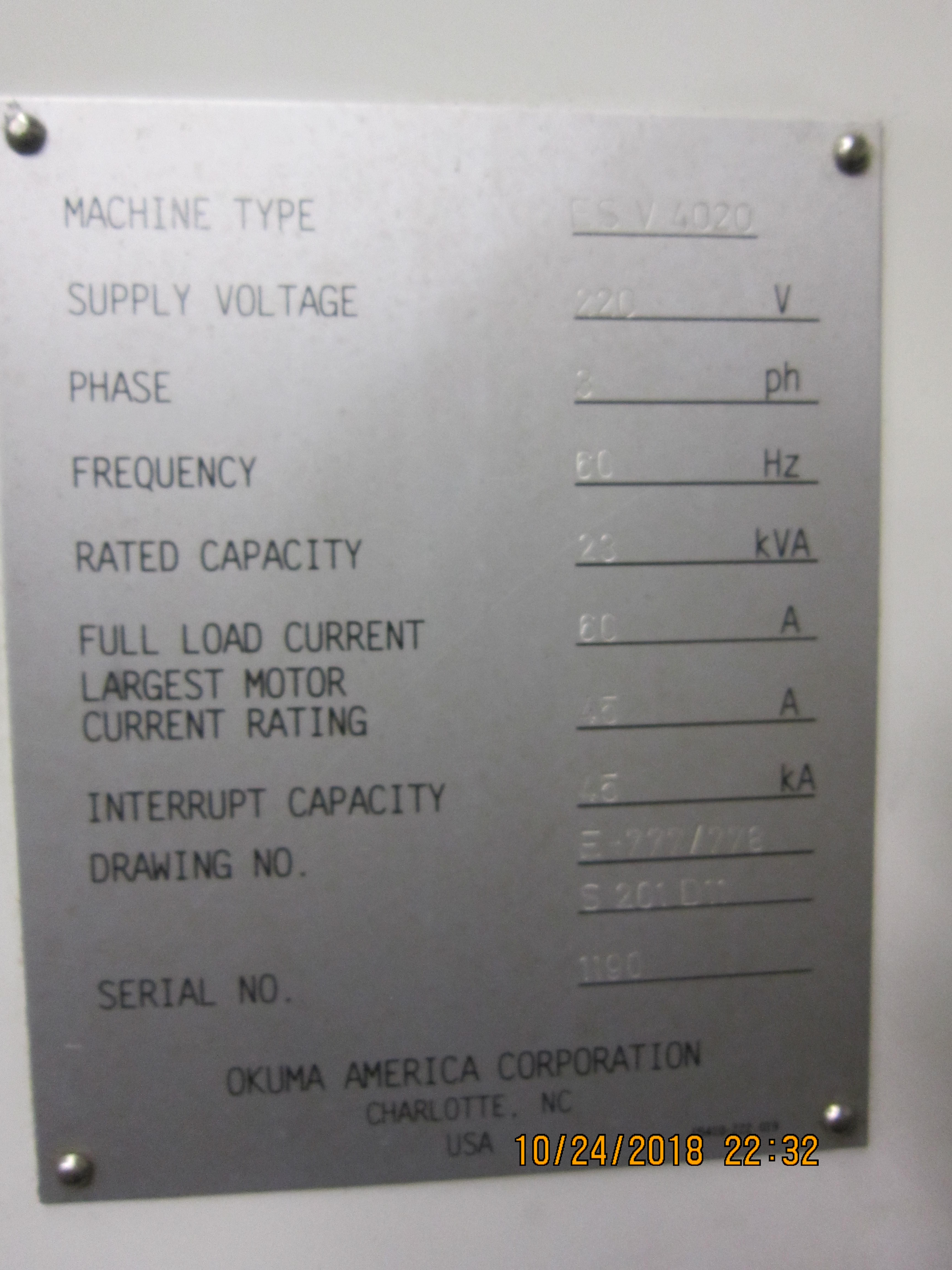

Power: 240v / 35 KVA / 3-Phase
Overall Dimensions: 150 in x 92 in x 99 in High
Weight: 11000 lbs
Complete set of manuals

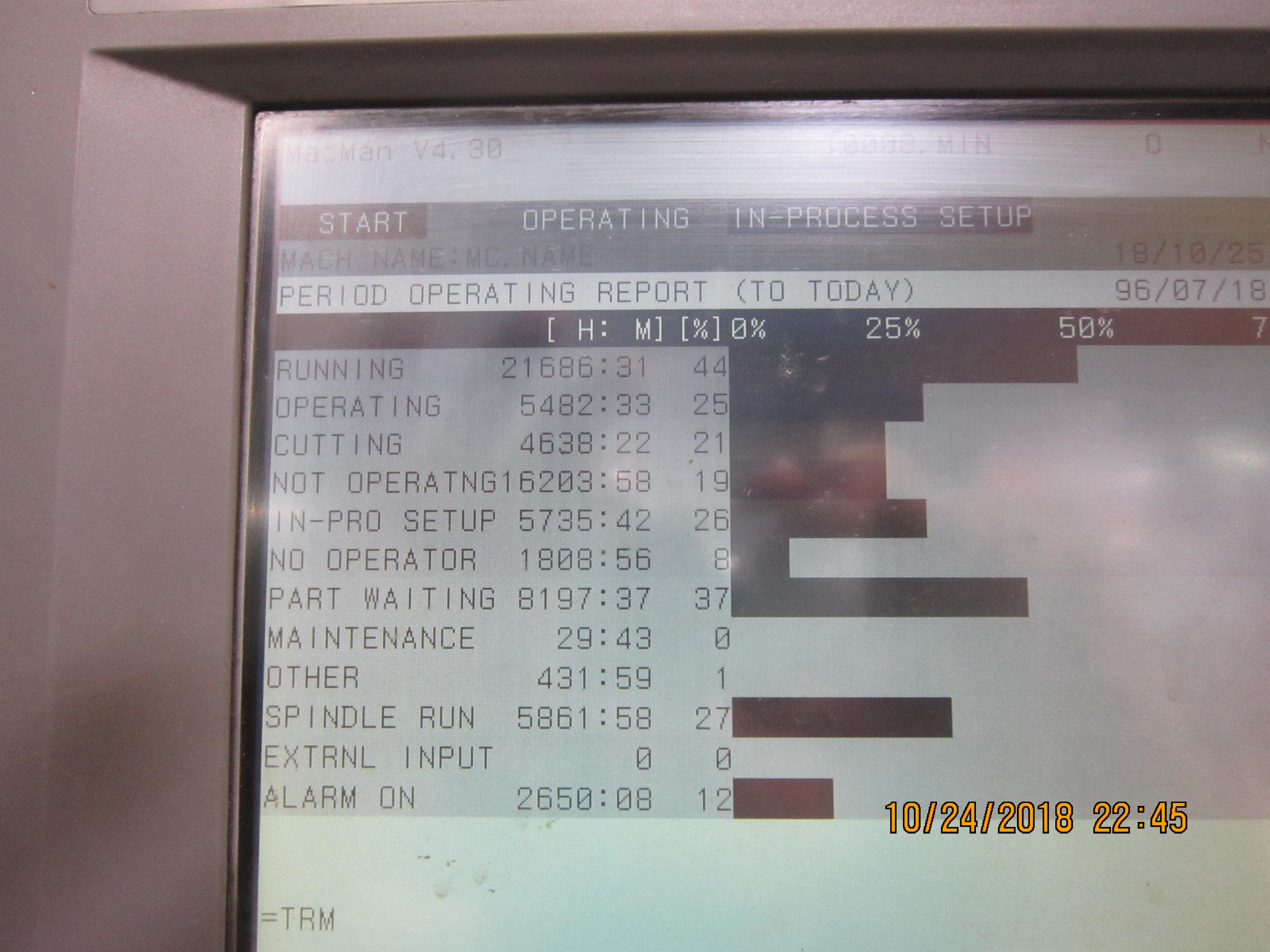

One owner machine & only 4,200 cutting hrs
VIDEO CLIP: http://tbf.me/a/CCvxEJ
Price $21,500.00 USD
