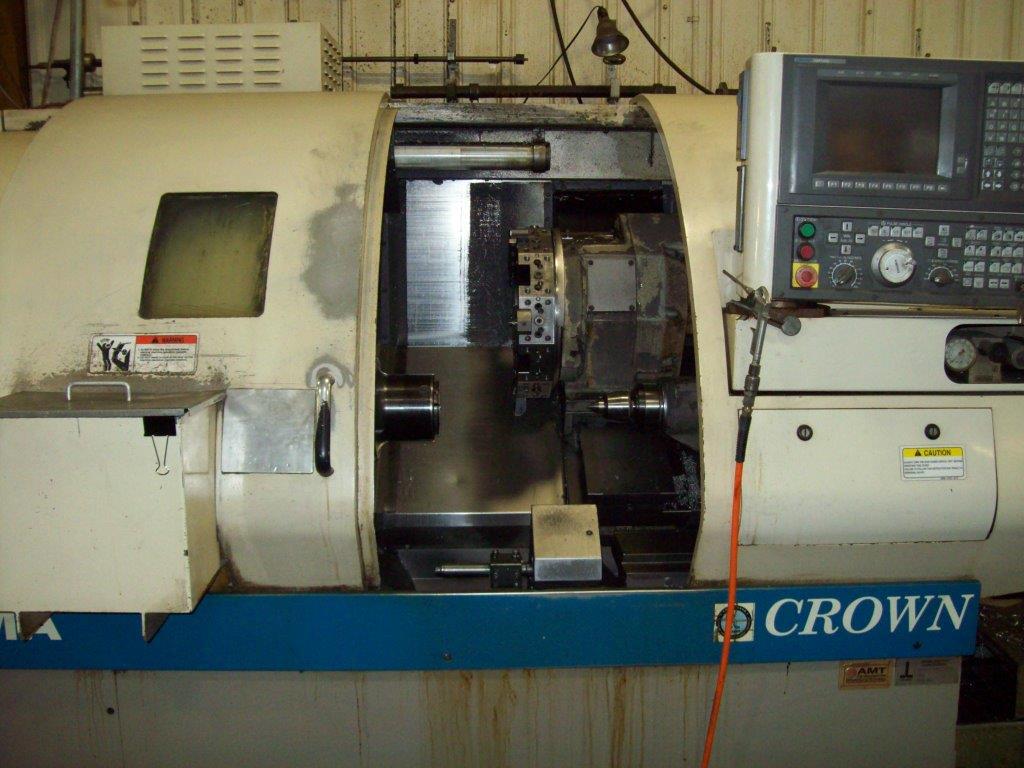

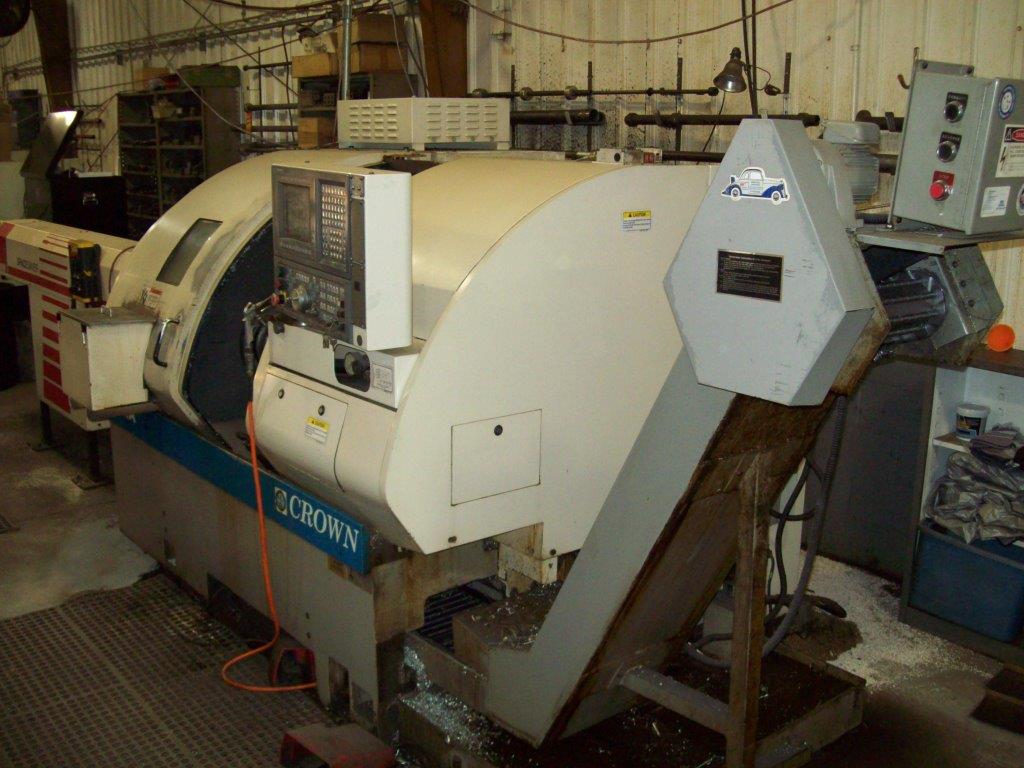

The Okuma Crown lathe is built with a Solid Box-Way design including Hand-Scraping, Direct-Drive Ball Screw System, Servo Driven Turret, and Okumas own OSP CNC control. These features and more provide you with a lathe that offers more Accuracy, Reliability and Productivity than most in its class.
Specification Description
Chuck Size 10"
Swing Over Bed 21.75"
Maximum Turning Diameter 10.63"
Maximum Turning Length 20.47"
Spindle Bore 3.15"
Bar Capacity 2.75"
Spindle Motor 24 HP
Spindle Speeds 50 - 3,500 RPM
Maximum Torque 361 Ft/Lbs
Rapids X/Z 591/787 ipm
Tool Stations 12 Station Servo Turret
Turret Index Time 0.2 (Servo)
Boring Bar Capacity 1.5"
Square Tool Capacity 1.0"
SMW Barfeed Capacity .25"-3.125" Dia
SMW Barfeed Length(limit by length of spindle) 56"
SMW Barfeed Bar Capacity 6@3.125" to 68@.5"
SMW Barfeed Dimensions 98" x 47"
Electrical Requirements 220V/3Phz
Machine Dimensions 95" x 69" x 71"
Machine Weight 9,800 Lbs
Total Package Footprint 246" x 69" x 71"H
Equipped With:

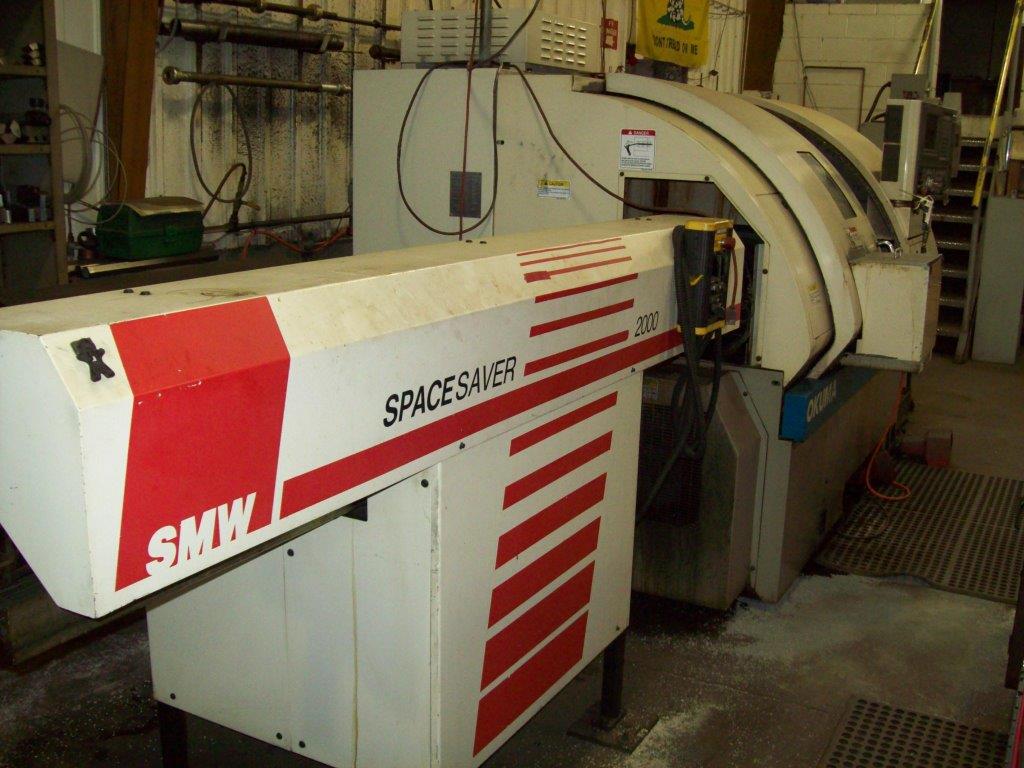

* Okuma OSP 700L CNC Control * 10" Kitagawa Power Chuck * ATS S30 Collet Chuck * Big Bore Spindle * 12 Station Fast Servo Turret * User Task II * LAP 4 * IGF (Conversational Control) * Programmable Tailstock * Flood Coolant * Air Blow * Worklight * SMW Space Saver 2000 Barfeed * Chip Conveyor * Assorted Collets, Tool Blocks, and Spindle Liners * All Available Manuals and Accessories
Stock Number: 4295
Condition: As Is, Where Is
