SPECIFICATIONS:
SWING
OVER SADDLE ............... 15.75in
MAX
CUTTING DIAMETER ............ 9.84in
MAX
CUTTING LENGTH .............. 19.69in
X-AXIS
TRAVEL ................... 6.89in
Z-AXIS
TRAVEL ................... 20.47in
RAPID
TRAVERSE X AXIS ........... 472 IPM
RAPID
TRAVERSE Z AXIS ........... 472 IPM
SPINDLE
NOSE .................... A2-8
SPINDLE
BORE w/ 10in HYD CHUCK ... 3.15in
SPINDLE
BAR CAP (ROUND) ......... 2.5in
SPINDLE
SPEEDS .................. 65 - 3,500 RPM
SPINDLE
MOTOR ................... 15 HP AC

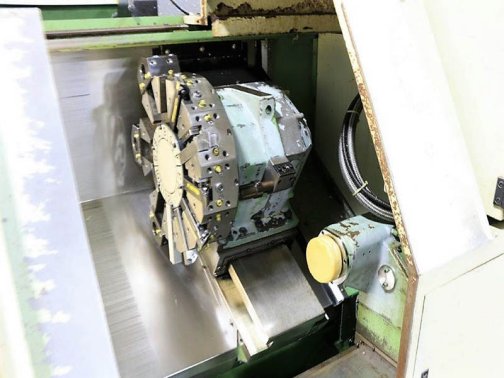

TURRET
TYPE ..................... V12
APPROX.
WEIGHT .................. 10,000 LBS.
EQUIPPED
WITH:

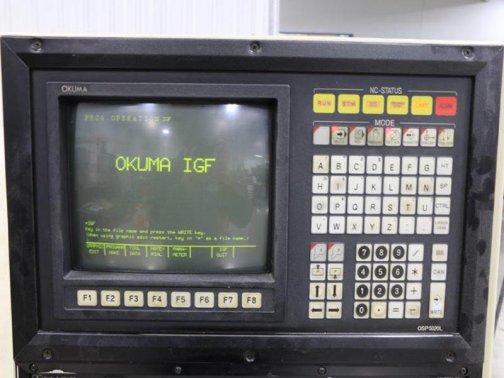

OSP-5020L
CNC CONTROL w/IGF
HYDRAULIC
COLLET CHUCK
TAILSTOCK
ALL
AVAILABLE TOOLHOLDERS
ALL
AVAILABLE MANUALS
PLEASE
CLICK ON LINK FOR VIDEO UNDER POWER:
https://youtu.be/6Rfwe2ka9Tw
To view more information on the OKUMA CADET LNC-8 BIG BORE UNIVERSAL TURING CENTER,MFG:1992 OUR STOCK NUMBER: 11435, including reviews, brand information, photos, videos, and more,
