OKK G4 GRAPHITE VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


G4
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
3500 (LB)
1998
$0.00

Description

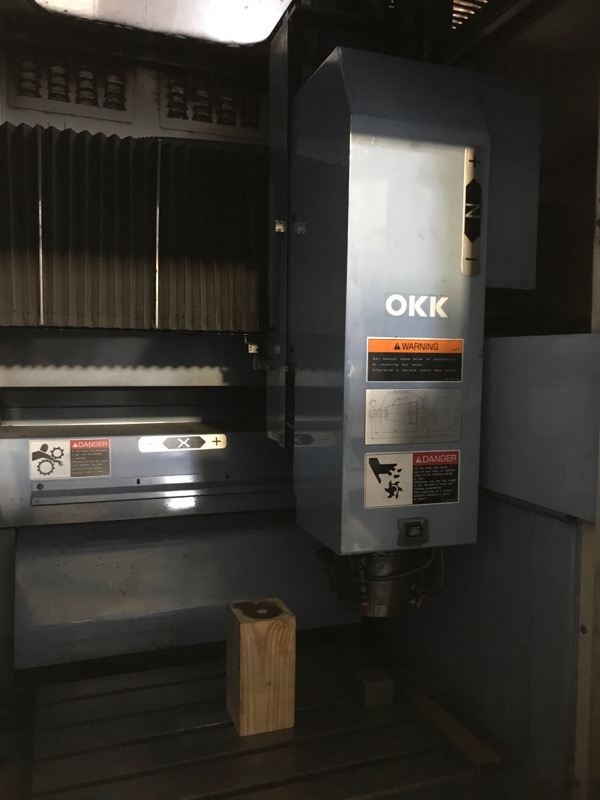

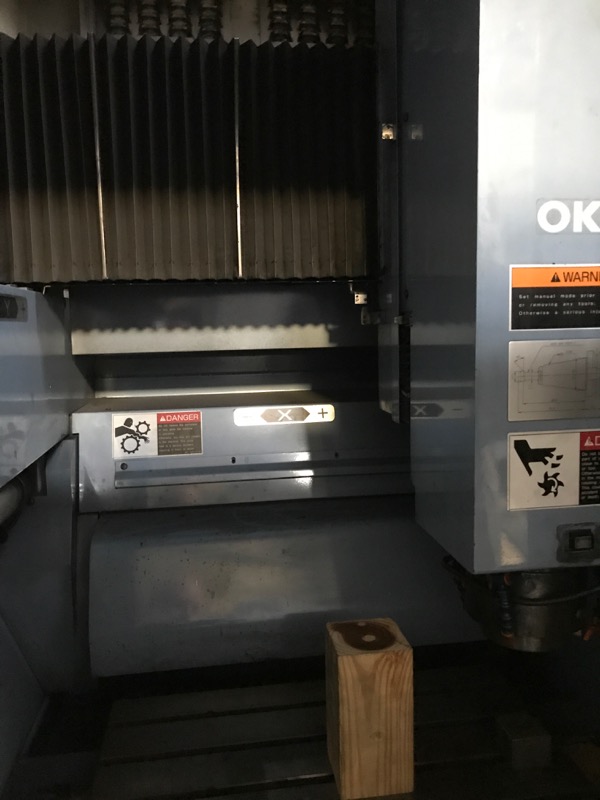

 Pre-owned OKK Graphite Vertical Machining Center

Model: G4

Year of Manufacture: 1998

Location: Maine

Condition: Good Well Maintained

SPECIFICATIONS

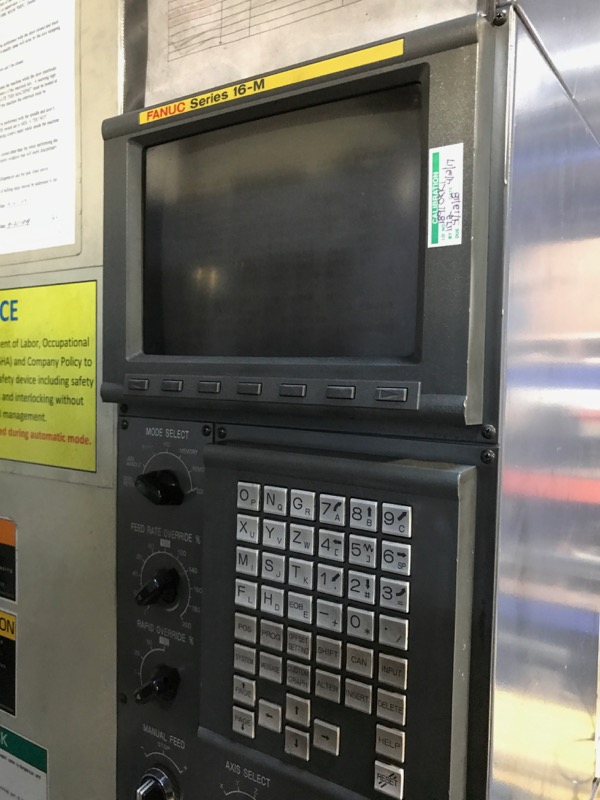

Fanuc 16MC, 32 Bit CNC Control w/RS-232

Table size: 23.62 in x 17.72 in

Travels: 19.689 in x 15.75 in x 17.72 in

Spindle Nose to Table Top: 3.937 in to 15.748 in

Cutting speeds: 630 IPM
Rapid traverse rate: 944.8 IPM
Z Axis 708.6 IPM

Spindle taper: BT30

Spindle speeds: 100 to 15,000 RPM

Spindle drive motor: 3 HP

Automatic tool changer: 6
Max.

Table load: 176 lbs
Max.

tool length: 7in Max.

tool weight: 9 lbs

Full enclosure
AKS 100T Spindle chiller

Two internal work lights
64 Bit Risk Data Server

Approx. dimensions 58 in x 61 in x 88.6 in

Machine weight: 3,500

Price: POR

To the best of our knowledge, the specifications contained herein are accurate but should be verified at
time of inspection. If you have any further questions please call me at (207) 784-1999.
