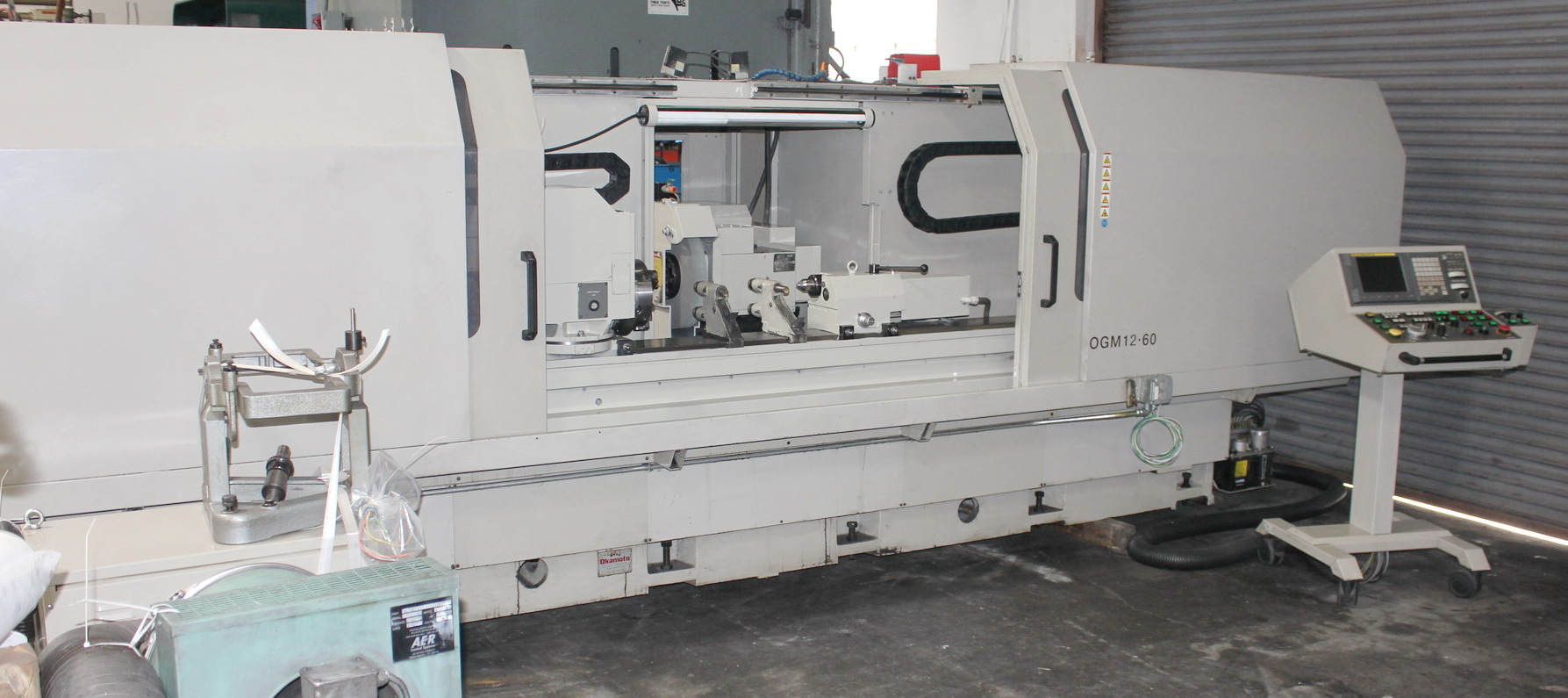

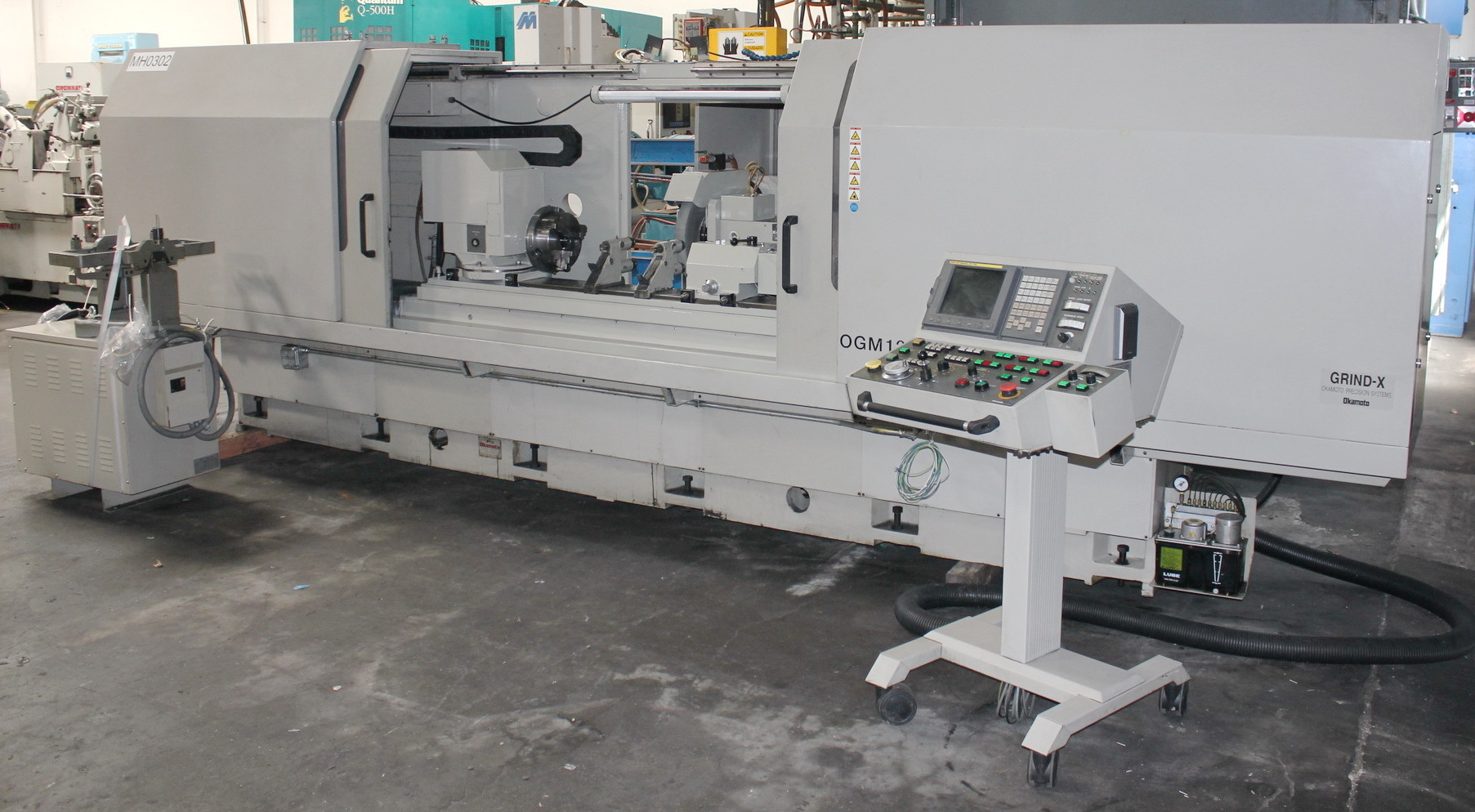

OKAMOTO CNC UNIVERSAL CYLINDRICAL GRINDER 12" X 60"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


OGM 12-60
9036
Grinders
Cylindrical, Universal
used
(LB)
0
$0.00

Feature Video

Description

Basic Information

Model: OGM 12-60

Manufacturer: Okamoto

Serial #: 9036
Location: Huntington Park, CA
Year Built: 2010


Specifications

Swing Over Table: 12.6""
Distance Between Centers: 60"
Max. Weight Between Centers: 330 Lbs.

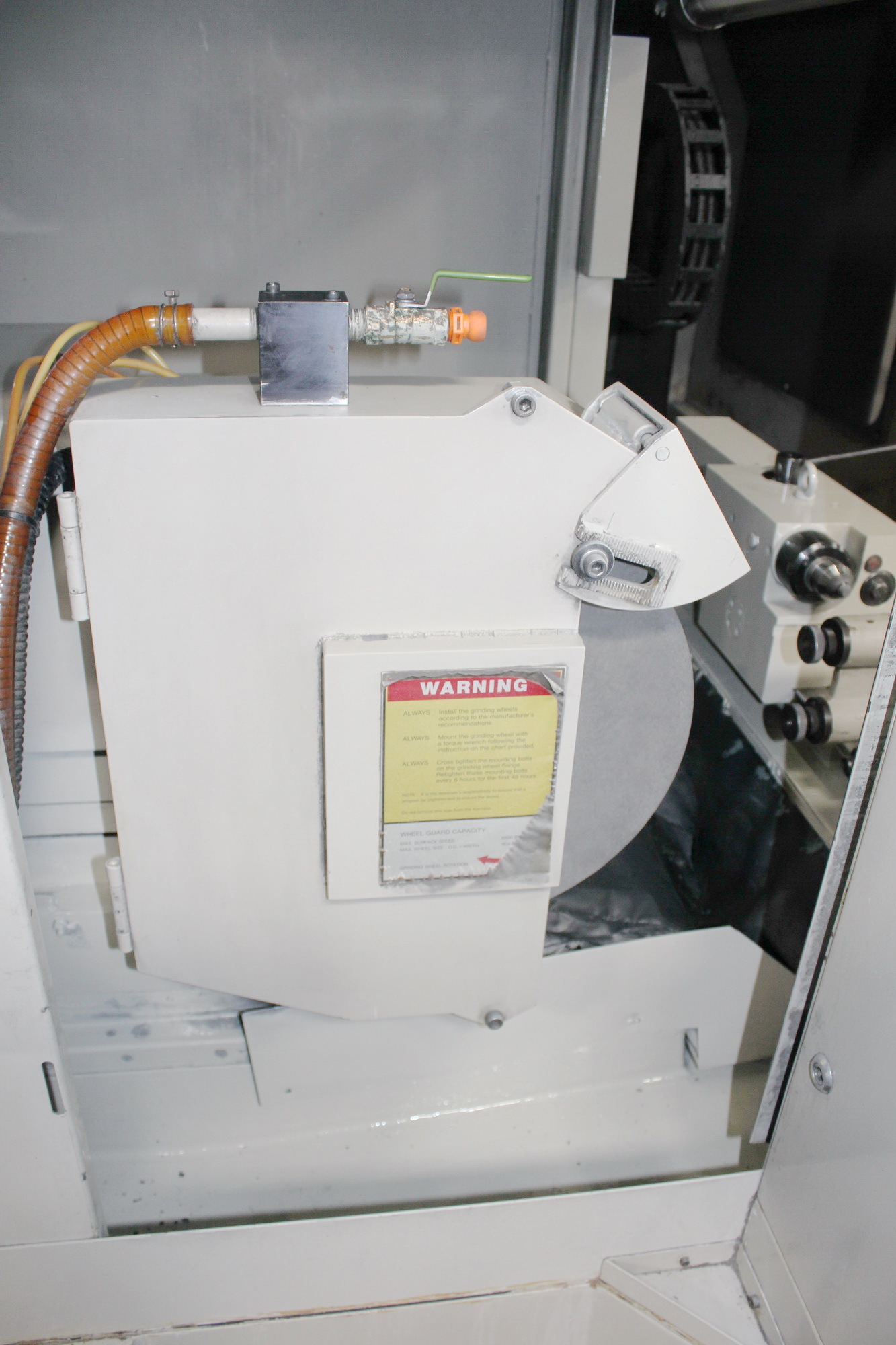

Grinding Wheel Size: 20" x 2" x 5"
Grinding Wheel Speed: 1,610 RPM
Wheelhead:
X Axis Travel: 11.8"
Swivel Angle: +- 30 Degrees
Automatic Infeed: 0.00001"- 0.004"
Manual Pulse Feed: 0.00001"- 0.001"
Rapid Feed Rate: 157 IPM
Grind Feed Override: 0- 200%
Table:
Traverse Feed: 0- 394 IPM
Swivel Angle: 0- 5 Degrees
Workhead:
Speed: 10- 500 RPM
Swivel Angle: +30/ -90 Degrees
Center: #4 MT

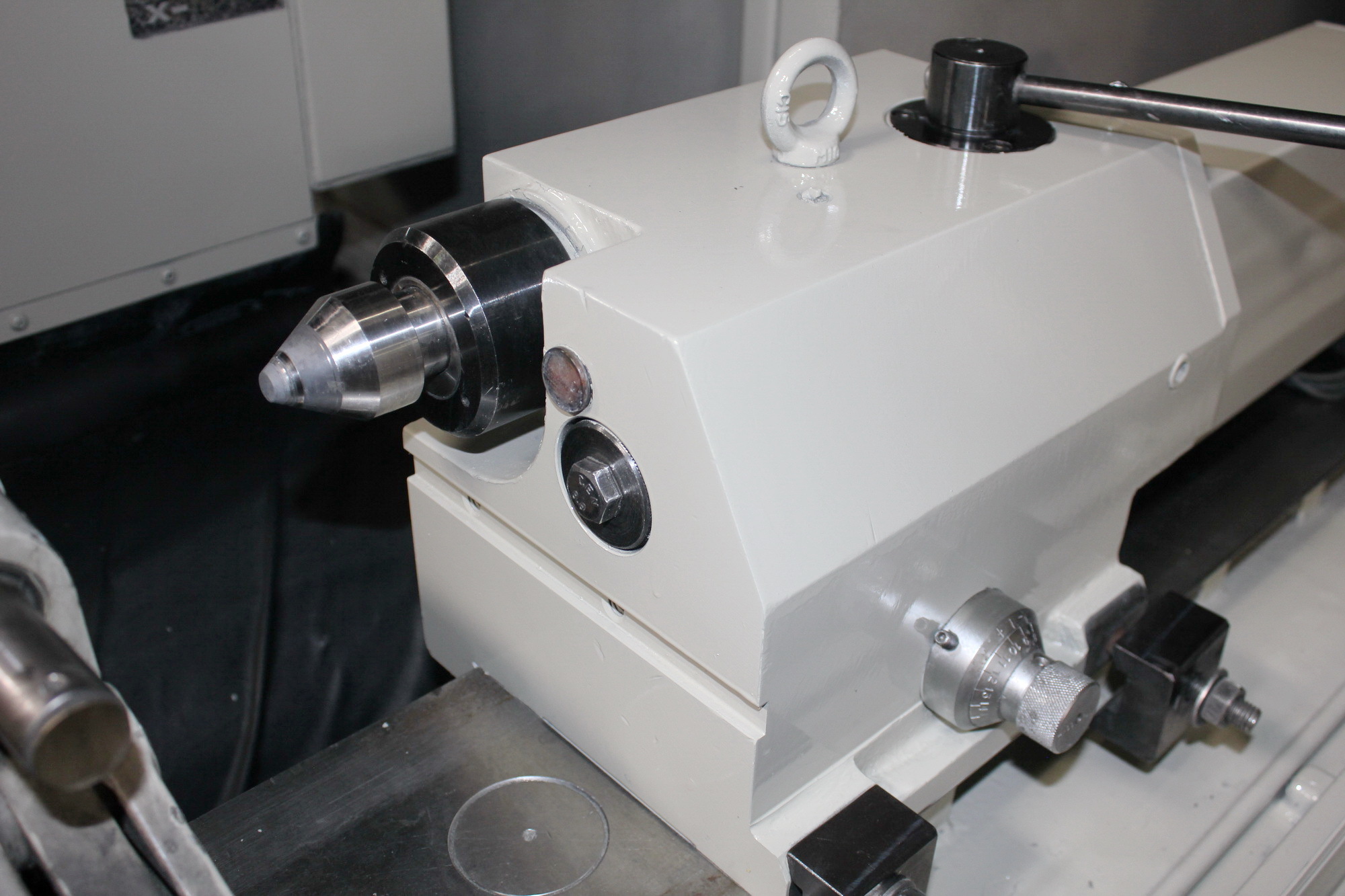

Tailstock Stroke: 1.2"
Tailstock Center: #4 MT
Dimensions (L x W x H): 220" x 92" x 80"
Weight: 13,500 Lbs.

Equipped with

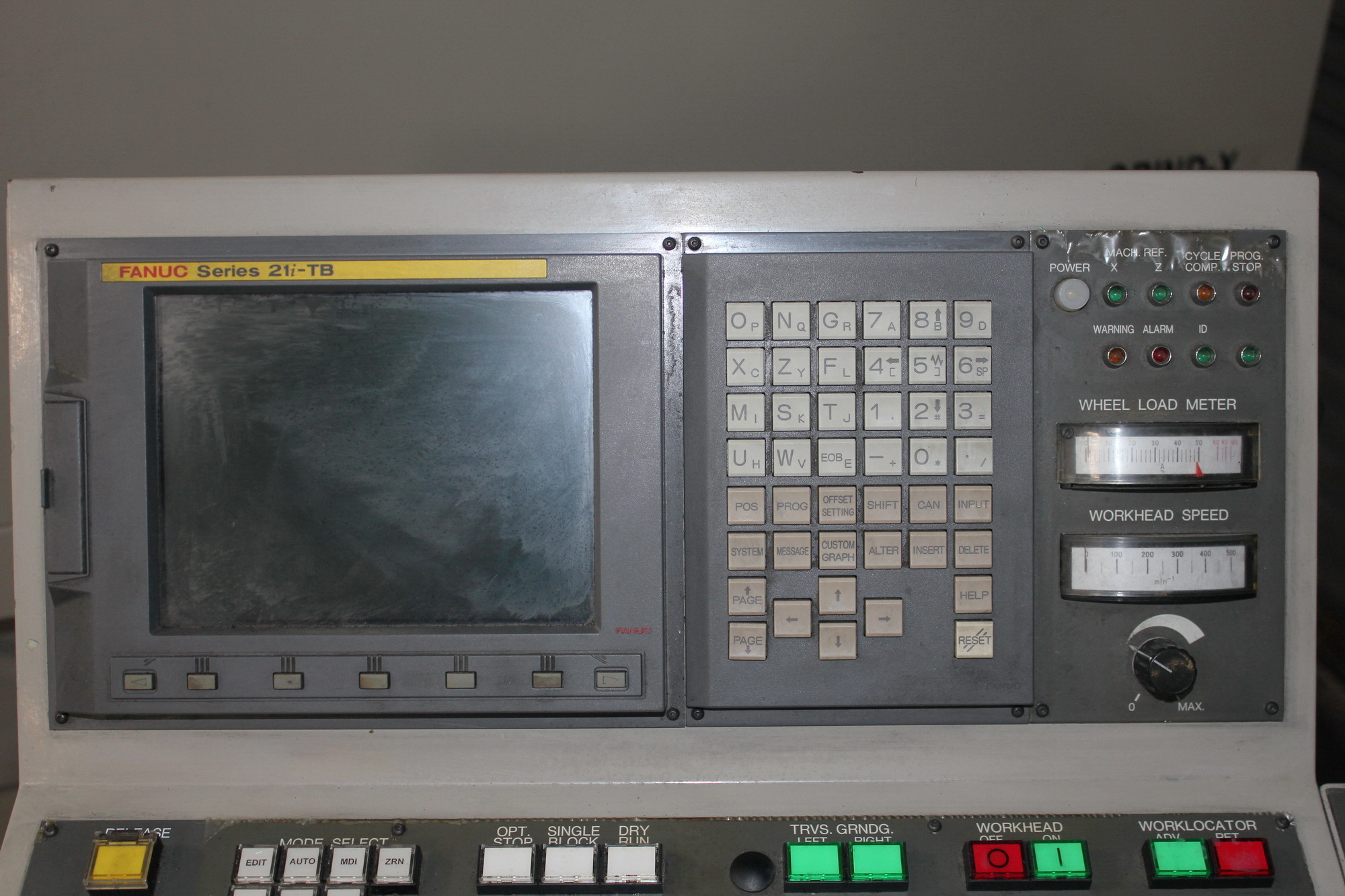

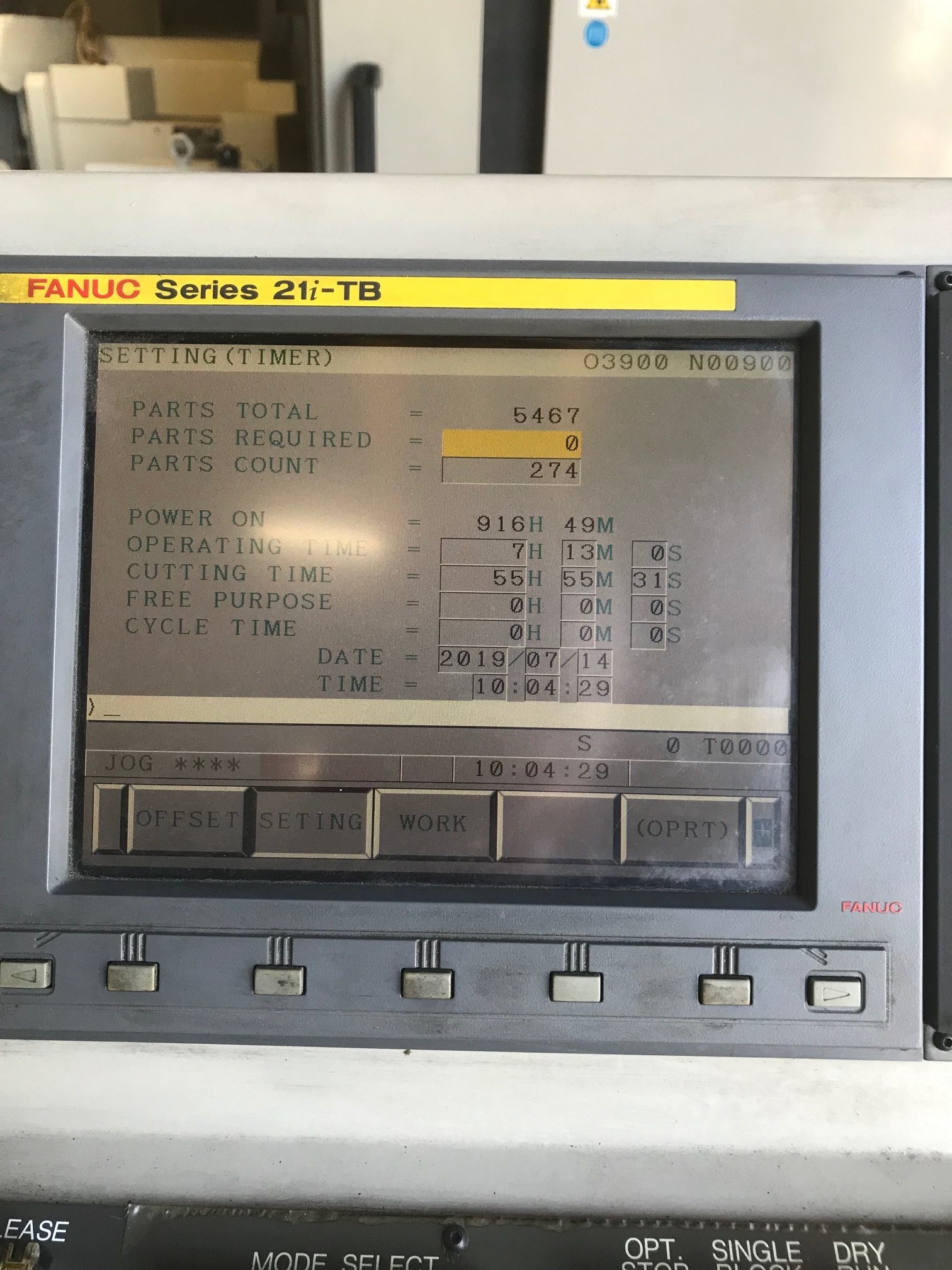

  • Fanuc 21i-TB CNC Control

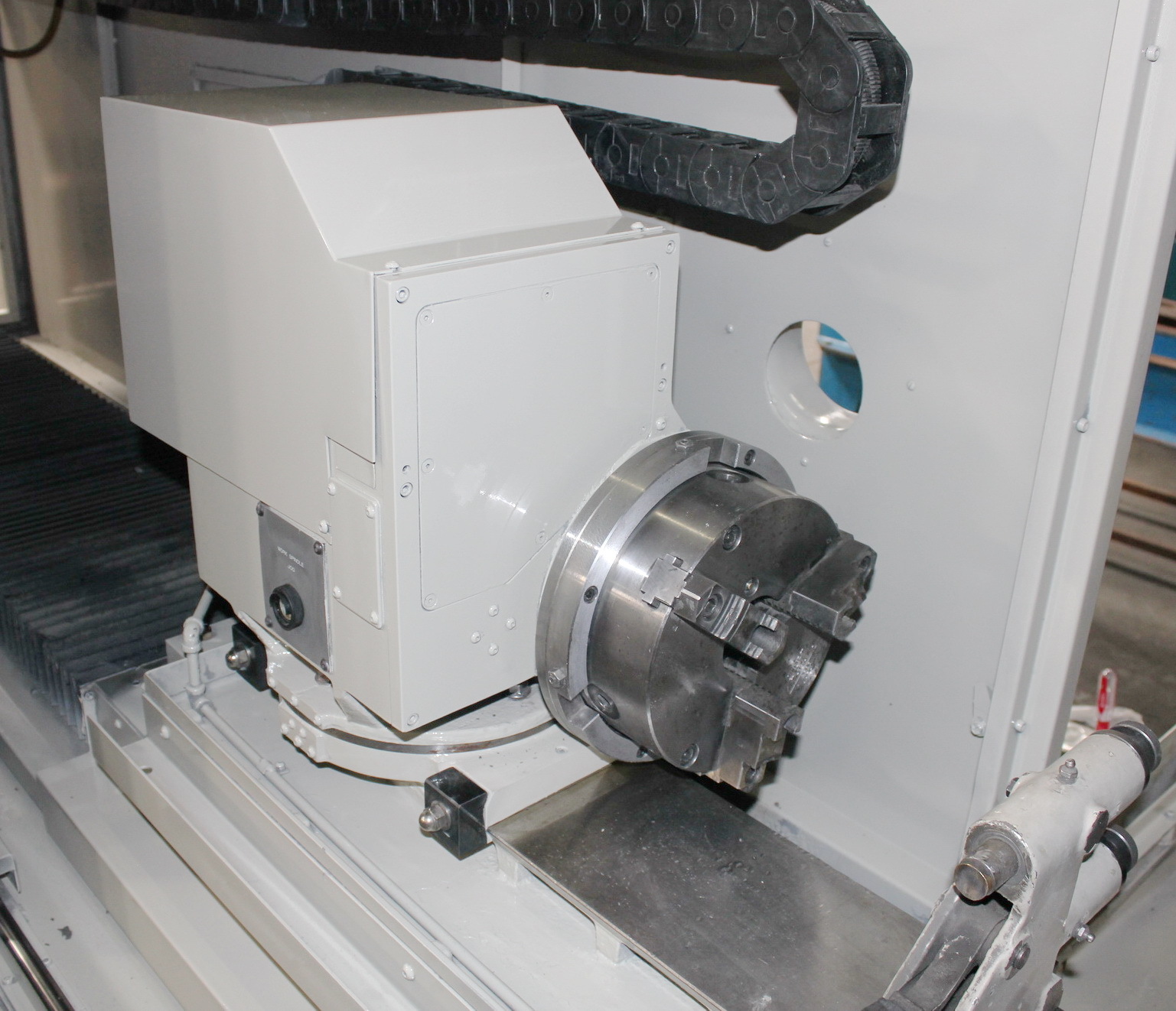

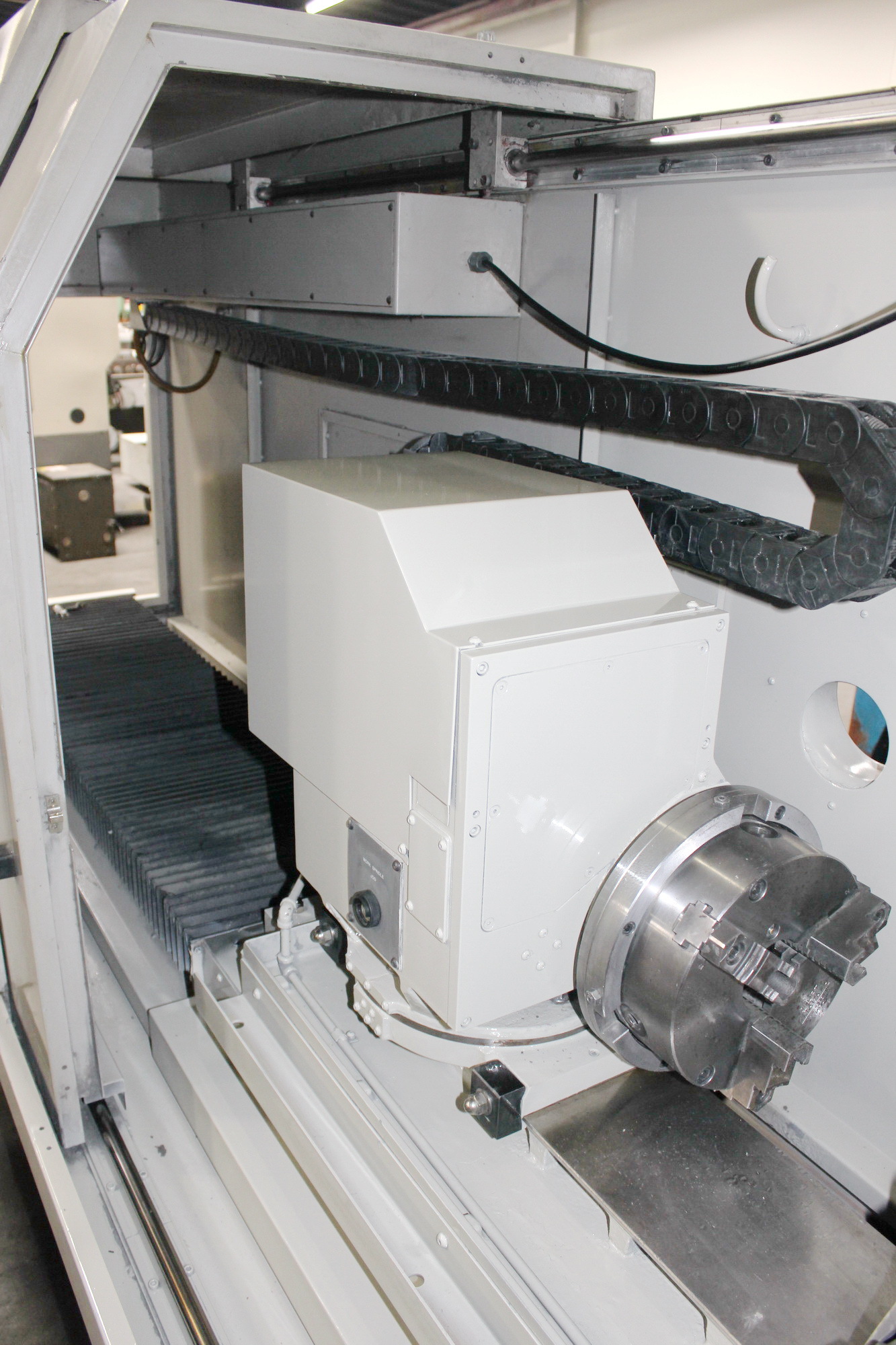

  • Servo Driven Workhead

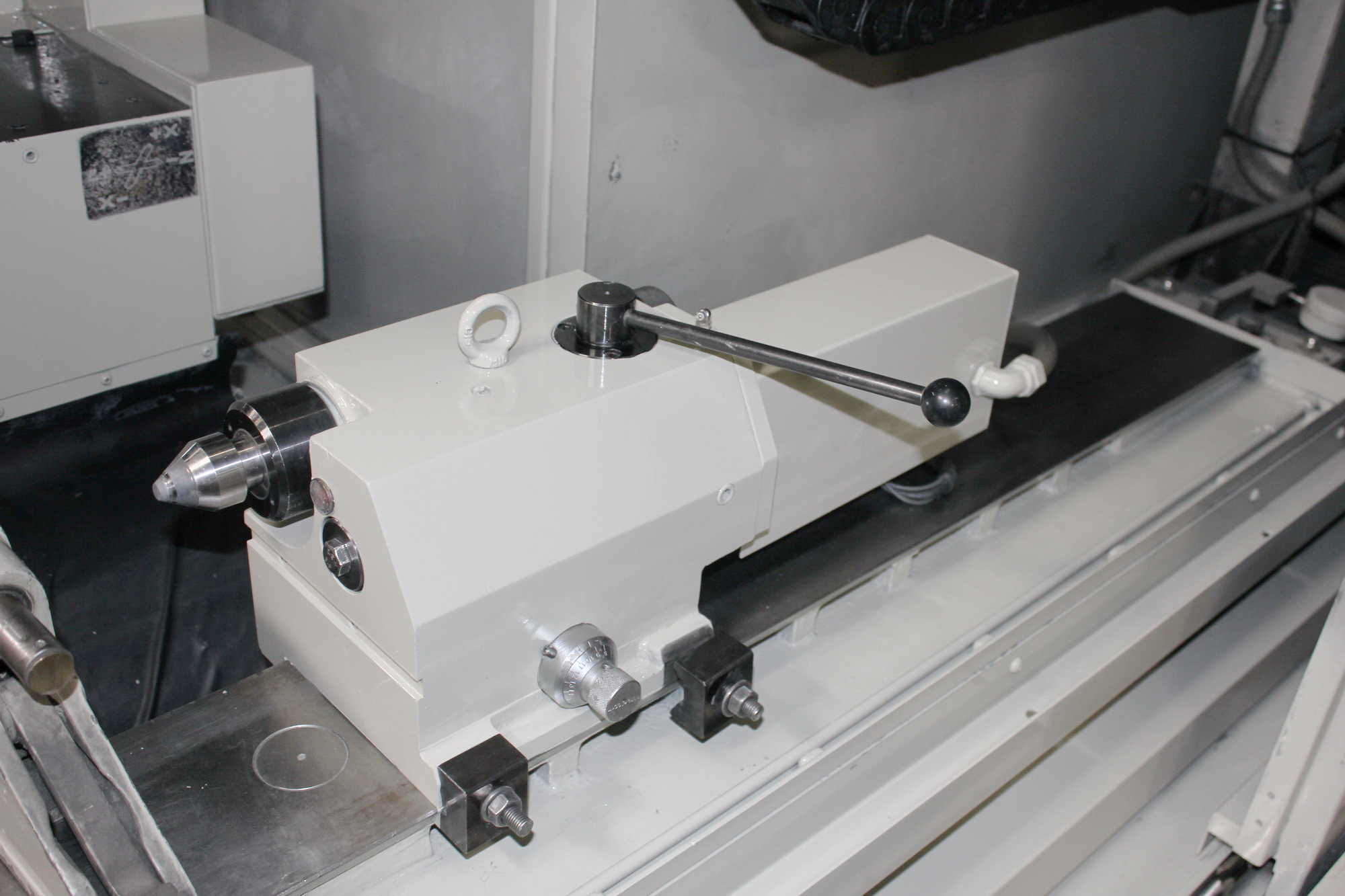

  • Hydraulic Tailstock

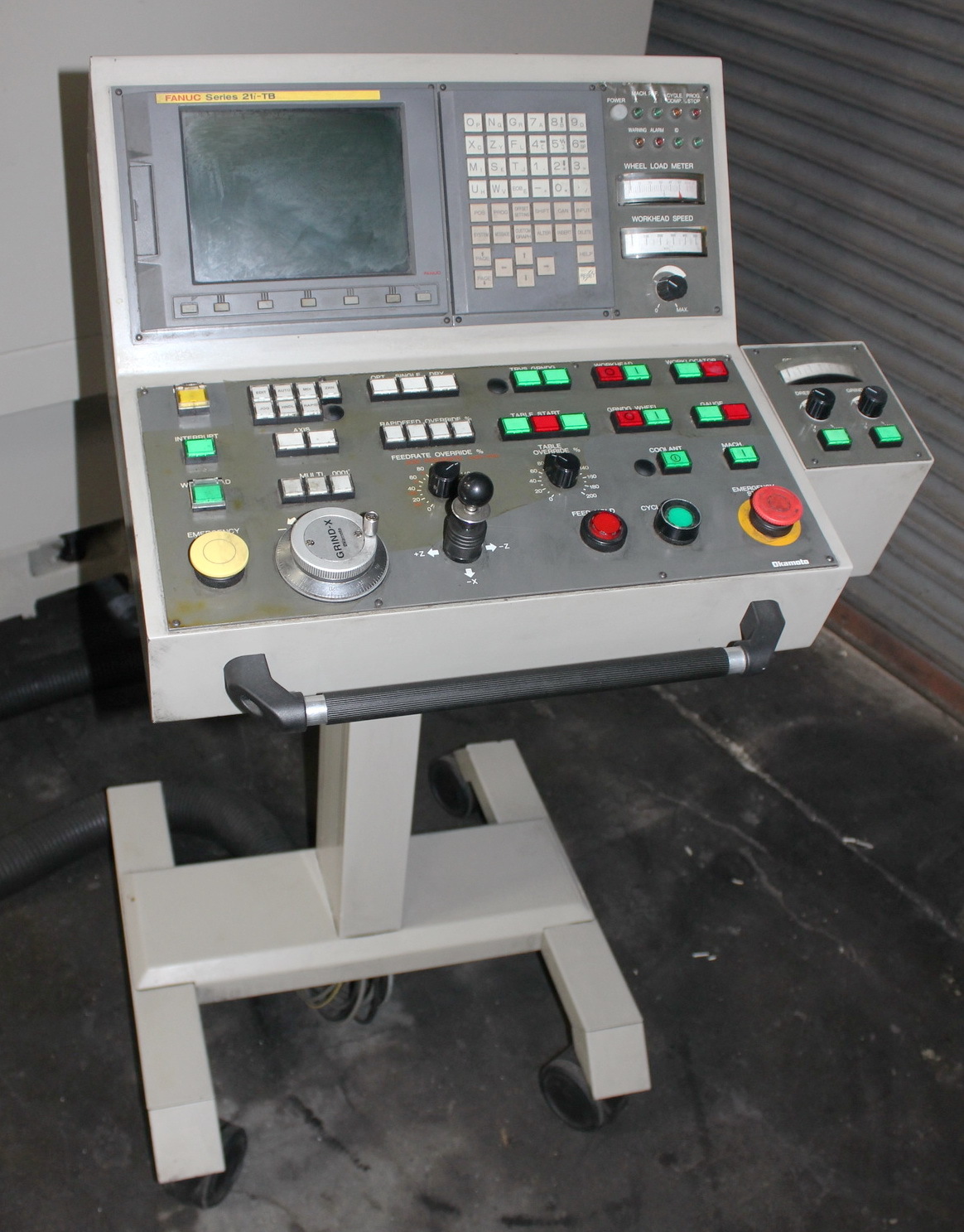

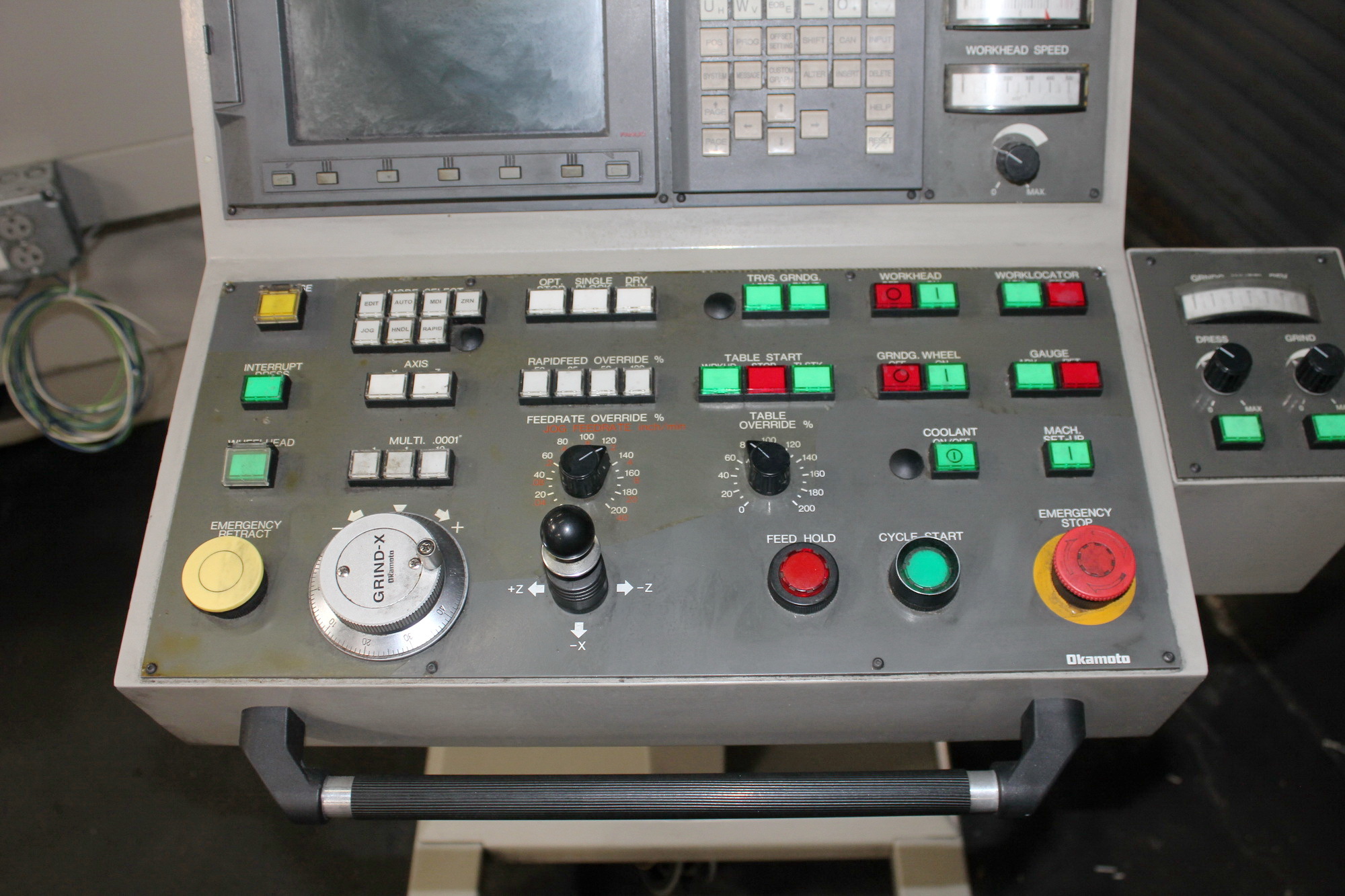

  • Remote Pedestal Control With Casters

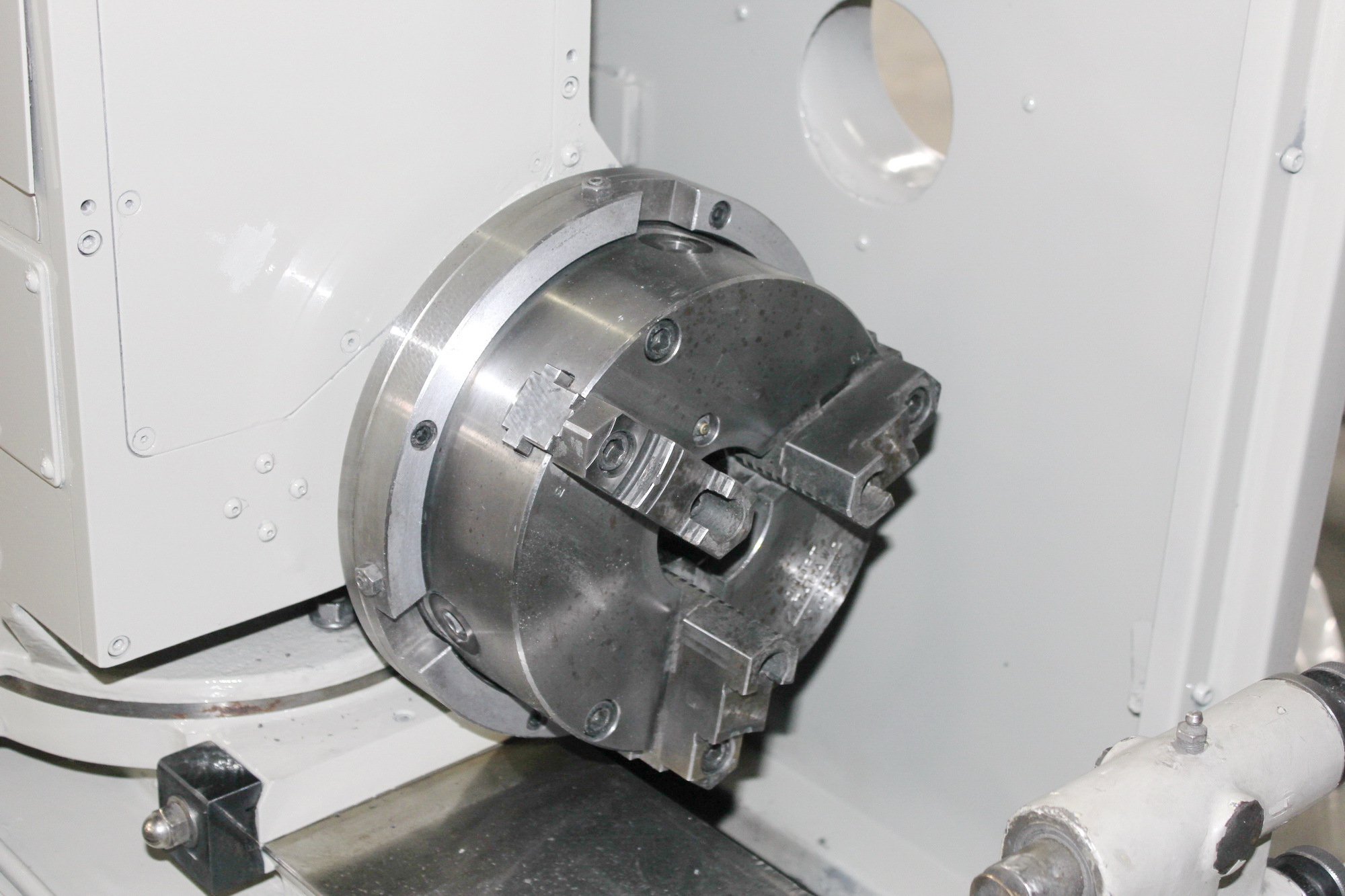

  • Manual 3 Jaw Chuck

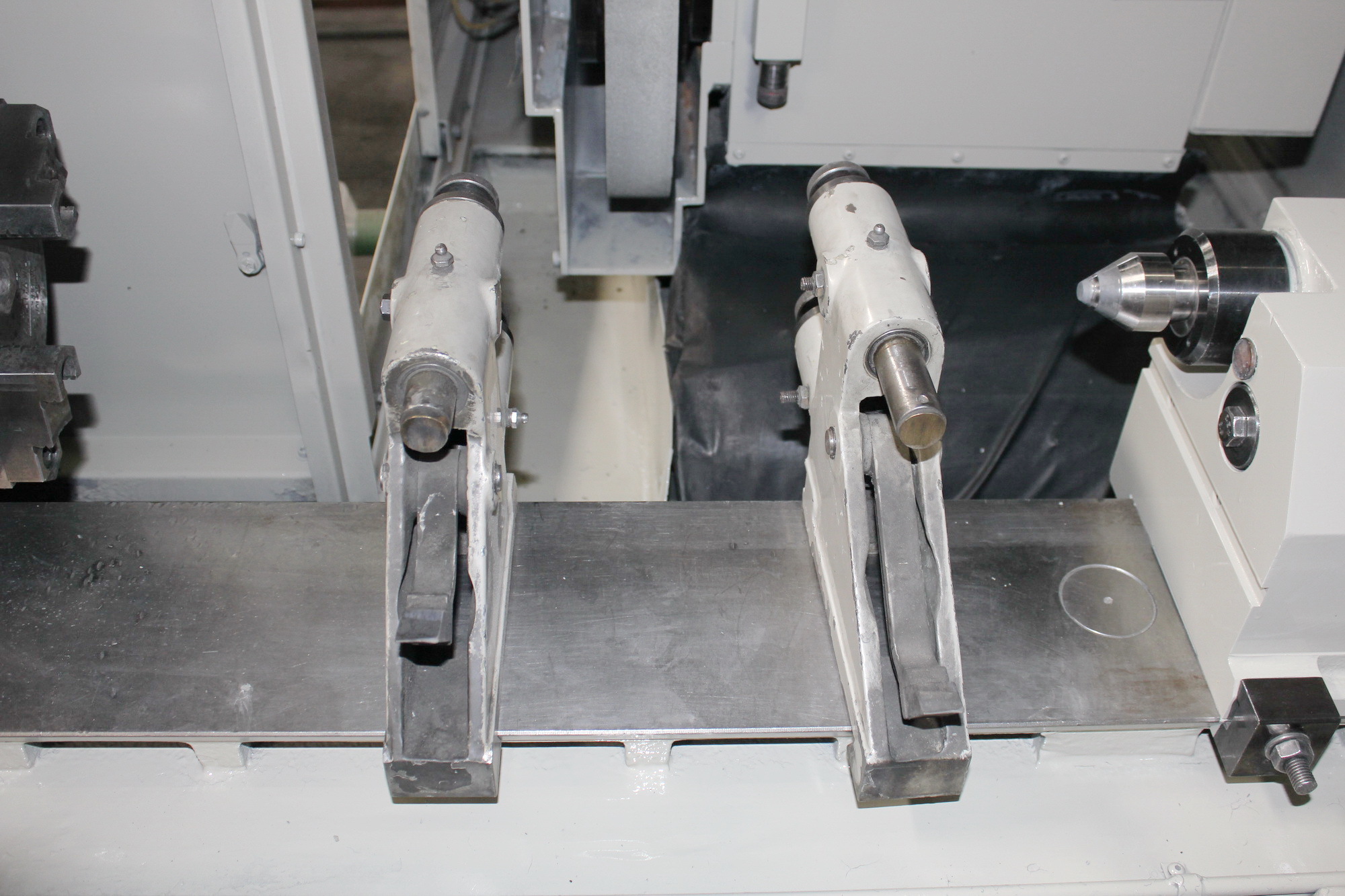

  • 2 Table Work Rests
  • 2 Table Type Work Centers
  • Auto Lube System
  • Auto Wheel Dressing Capability

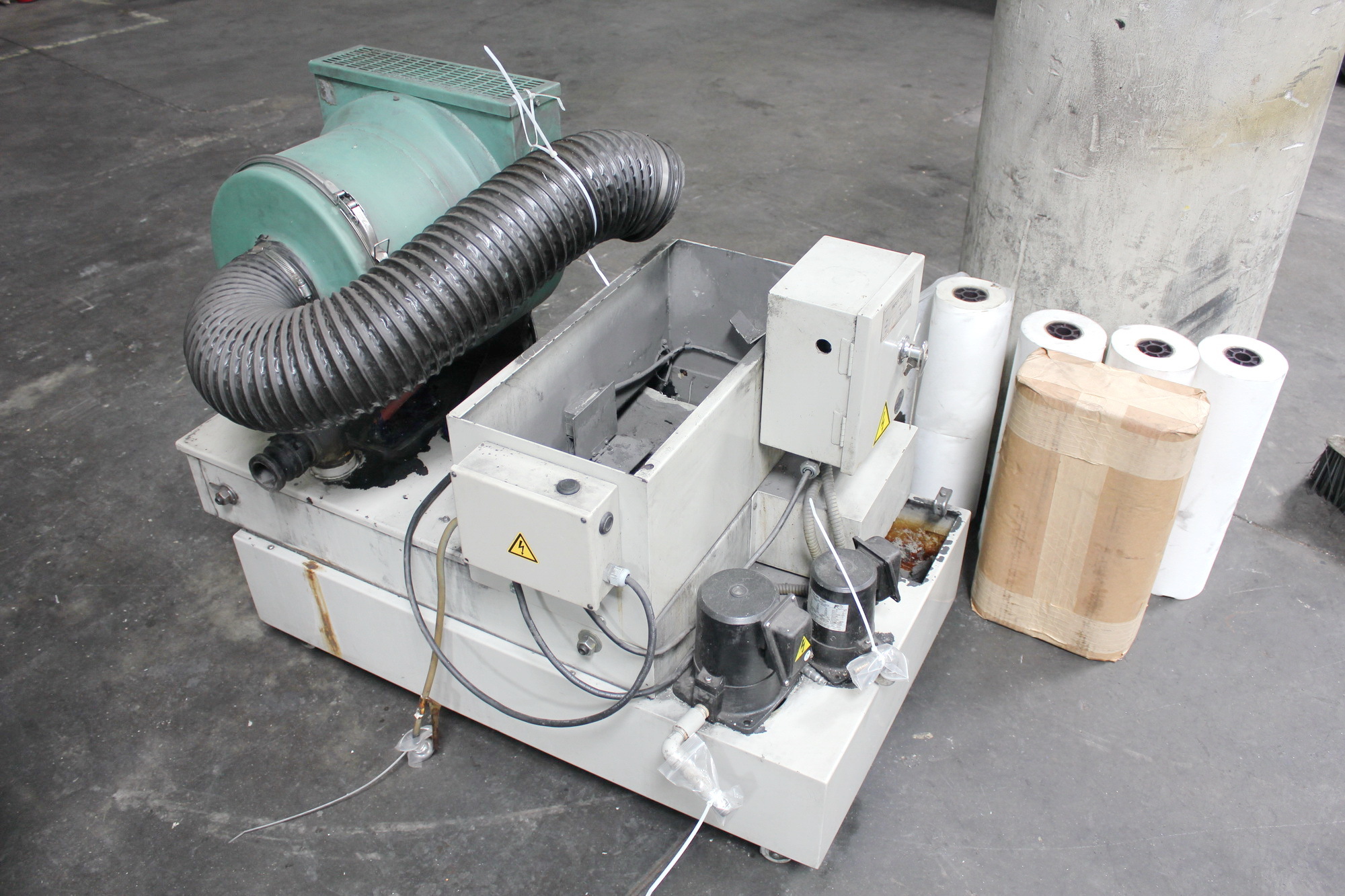

  • Paper Filter Type Coolant System
  • AER Mist Collector
  • Table Swivel Indicator
  • Extra New Grinding Wheel Head Ball Screw
  • Extra New Grinding Spindle
  • 5 New Grinding Wheels

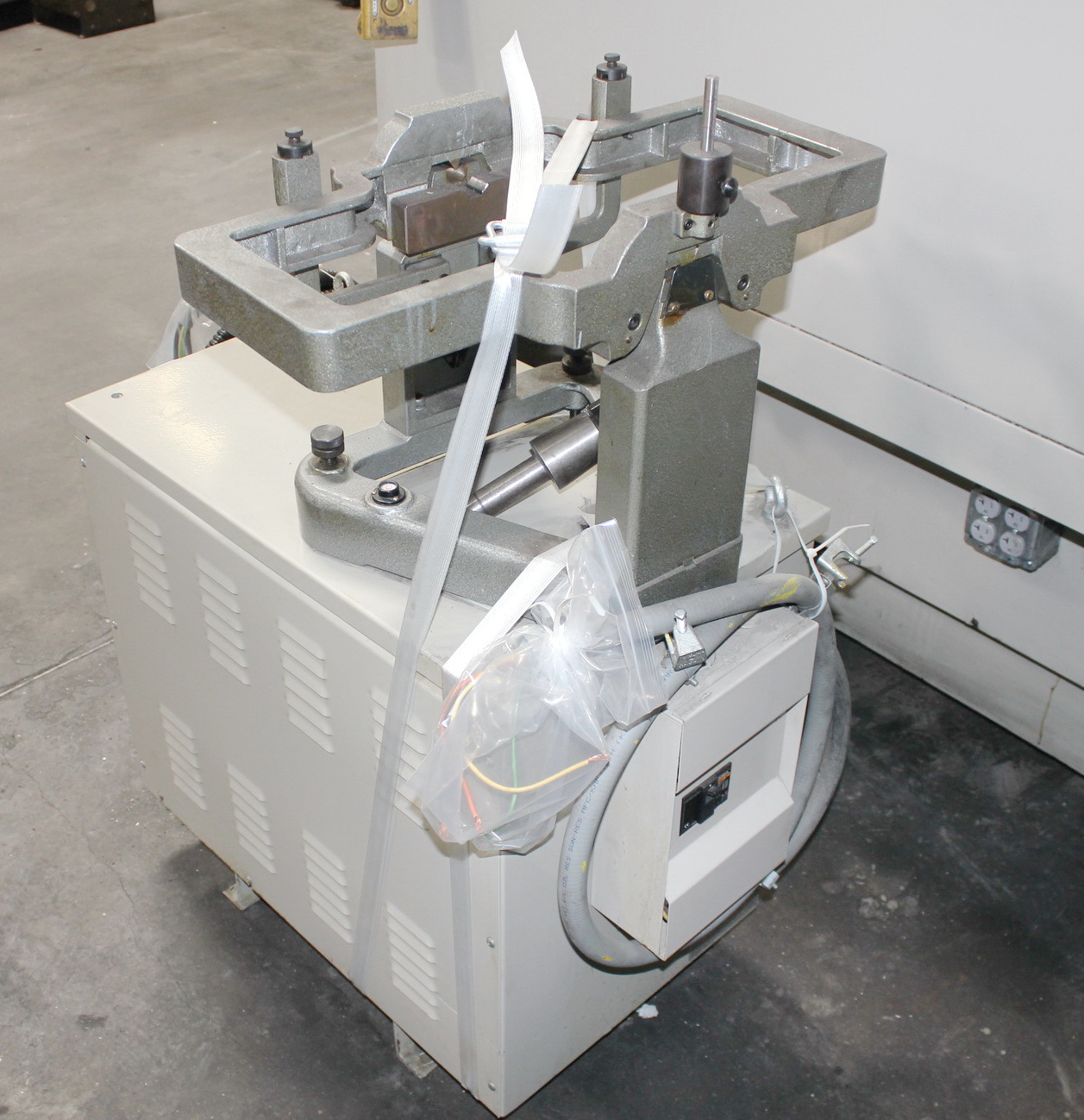

  • Grinding Wheel Balancing Stand With Arbor
  • Horsepower: 7 1/2
