Basic Information

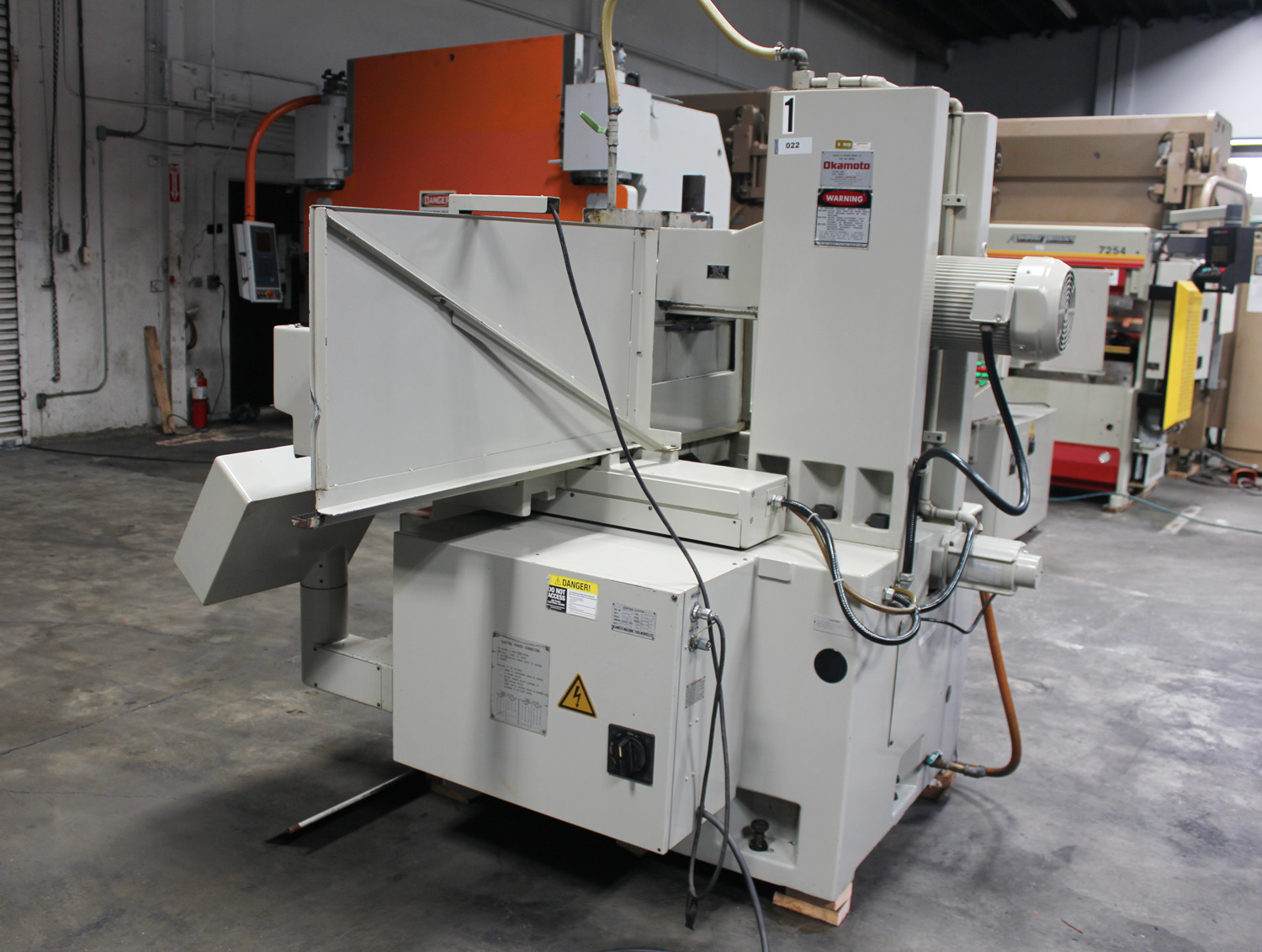

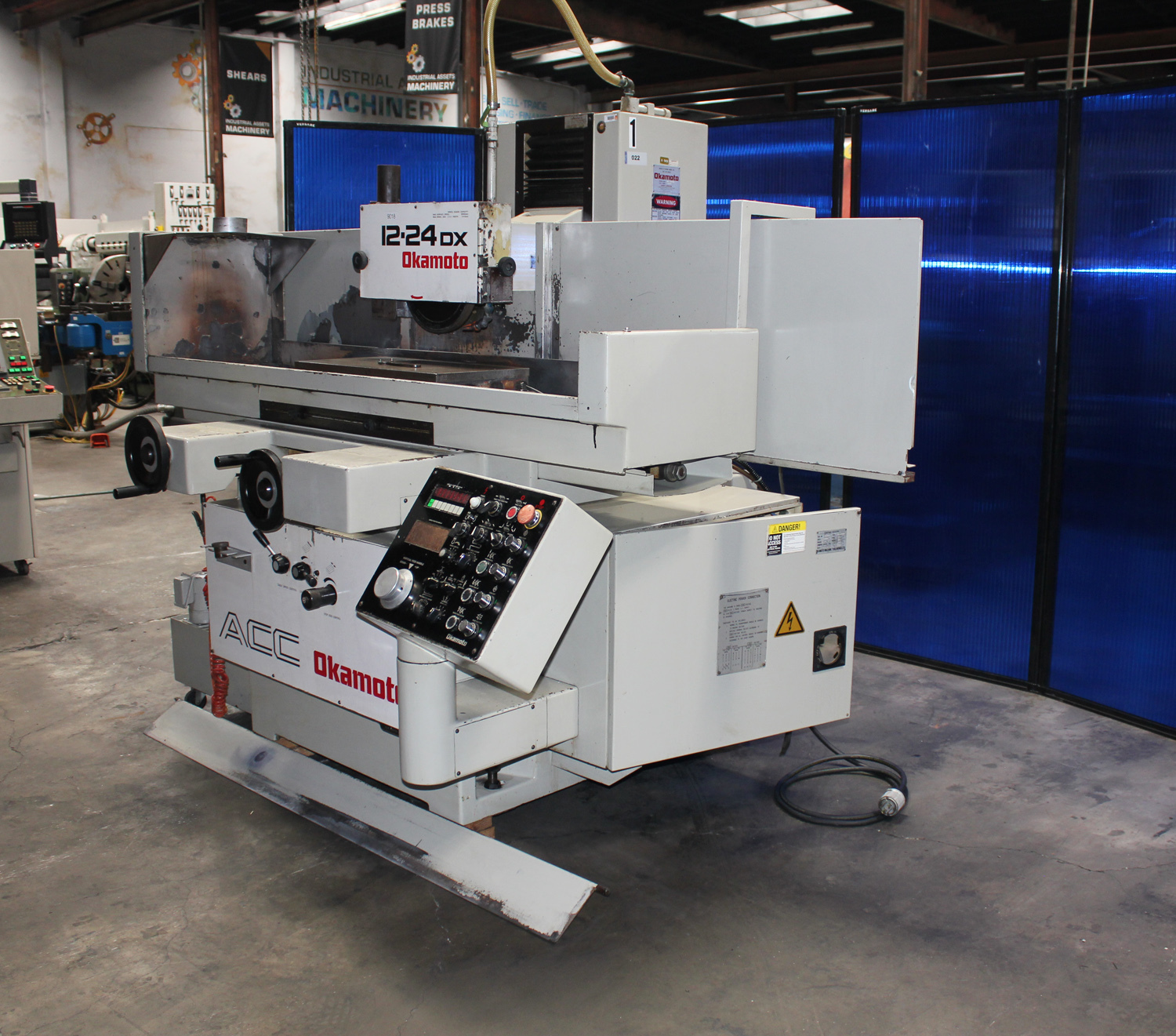

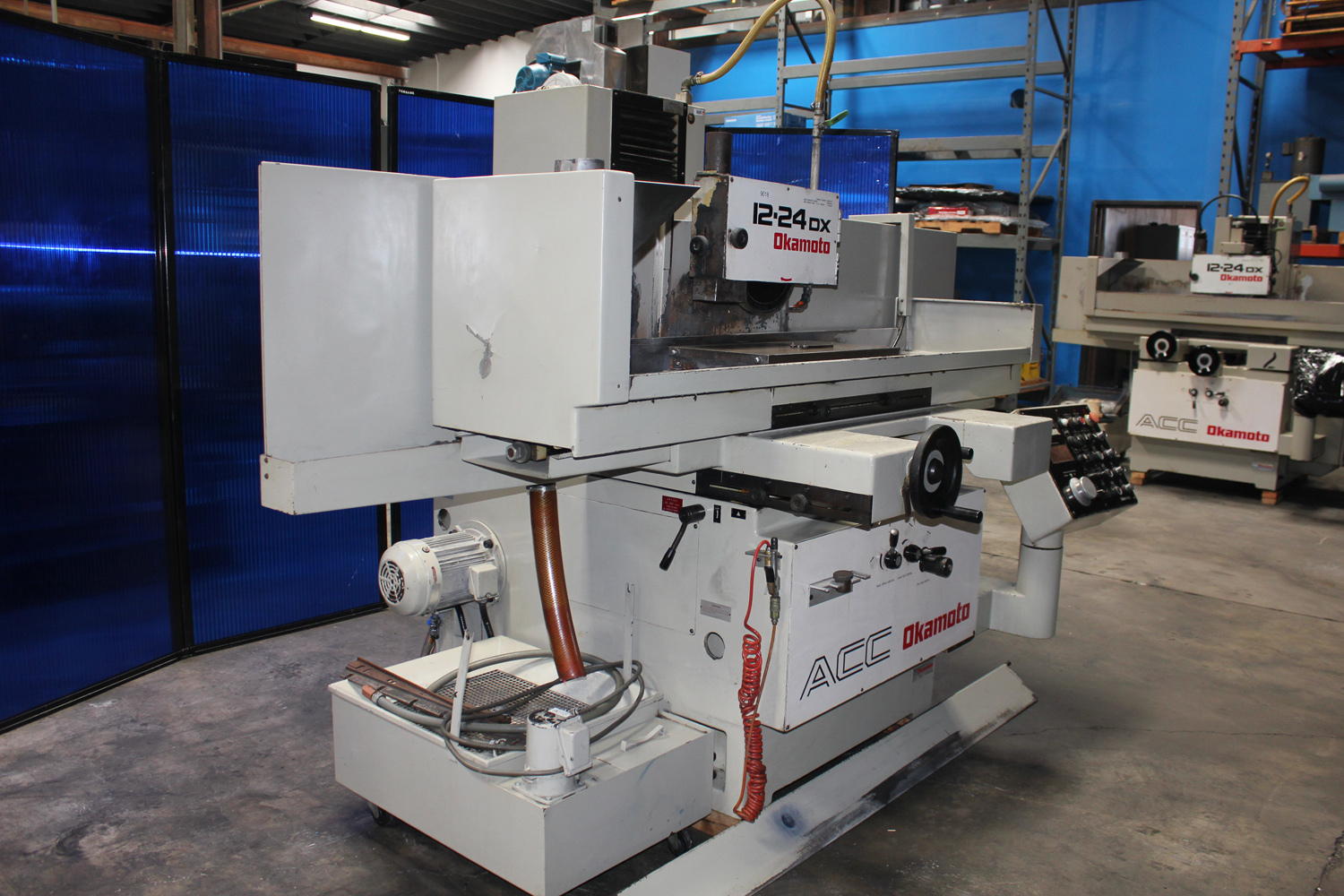

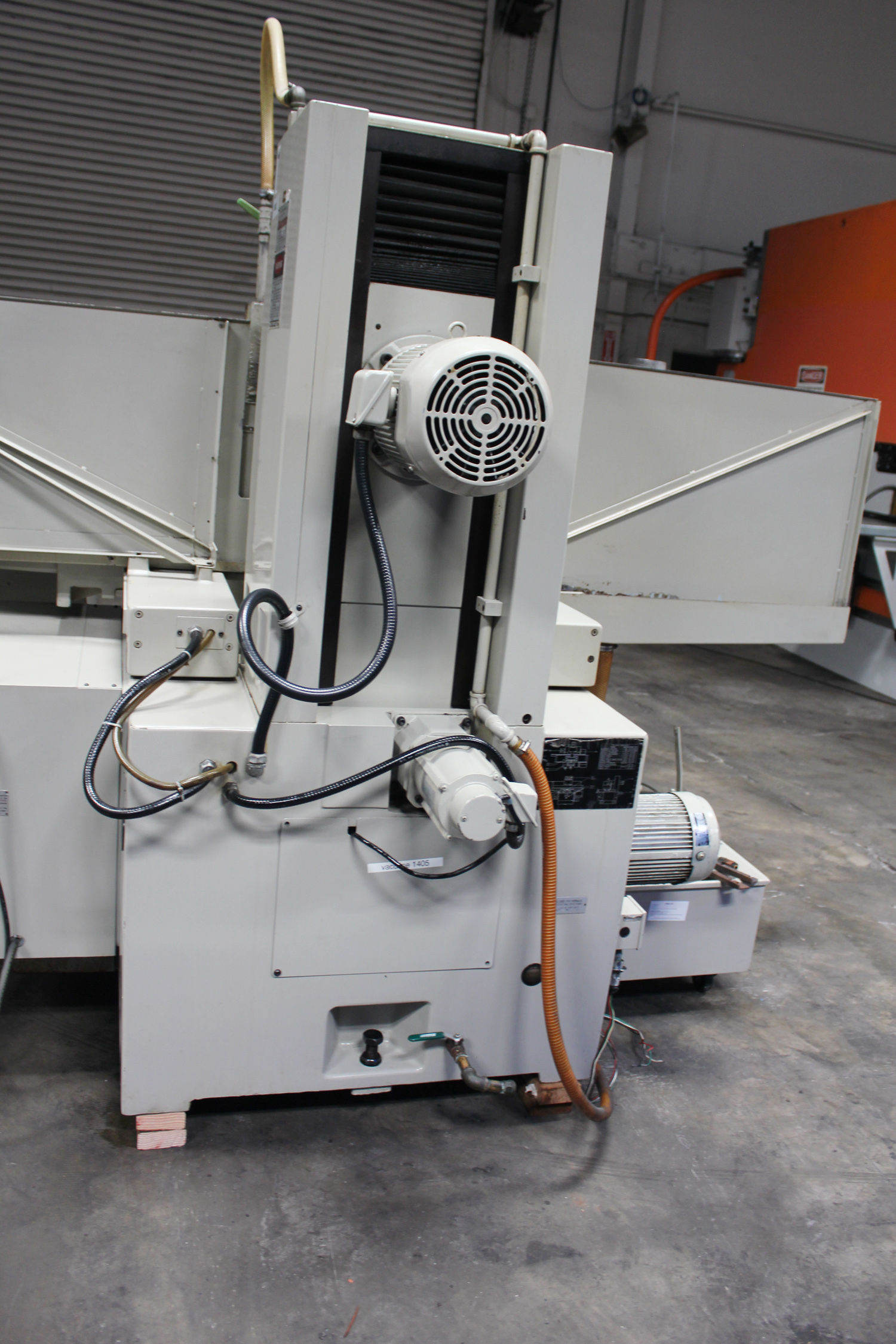

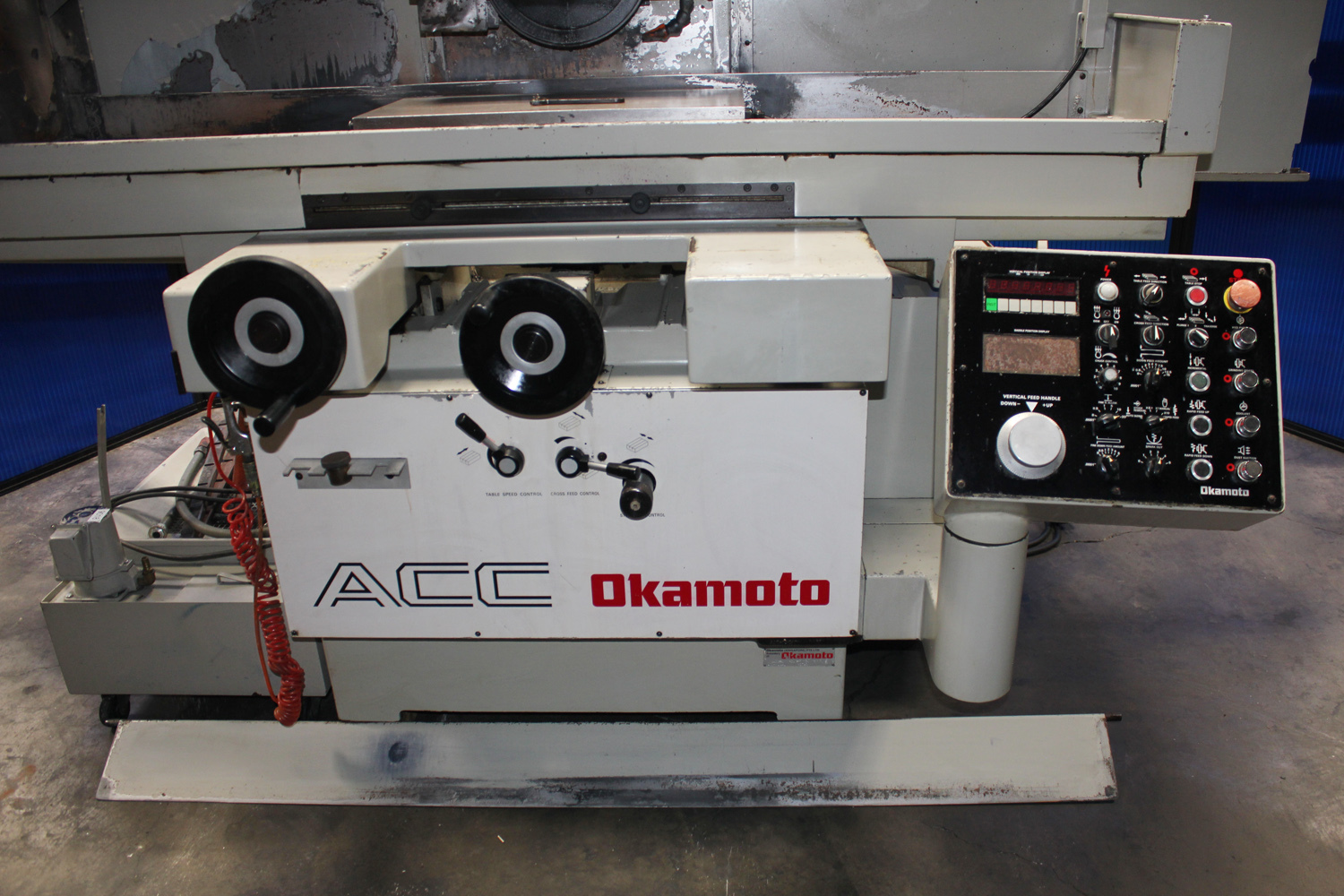

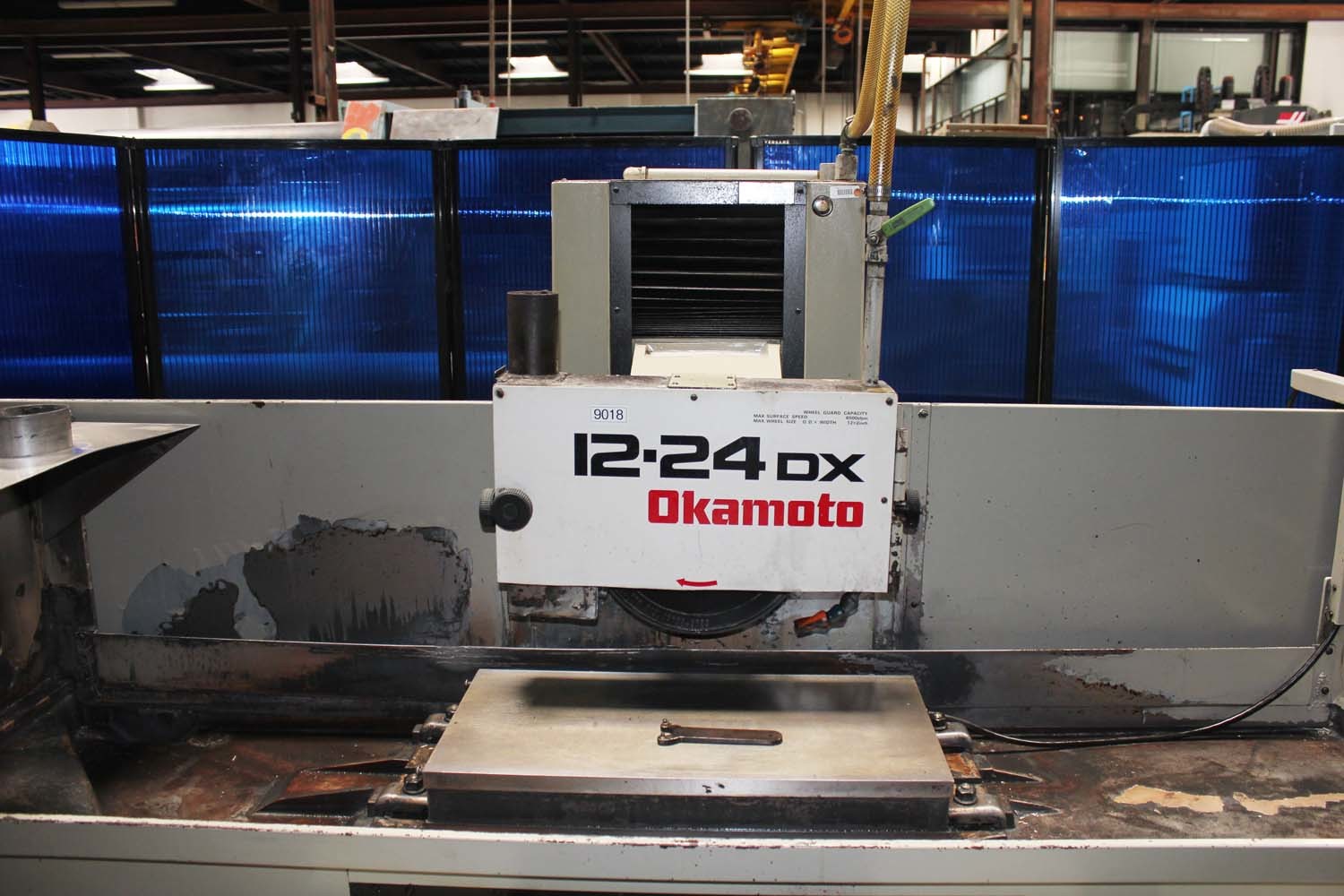

Model: ACC-1224-DX
Manufacturer: Okamoto

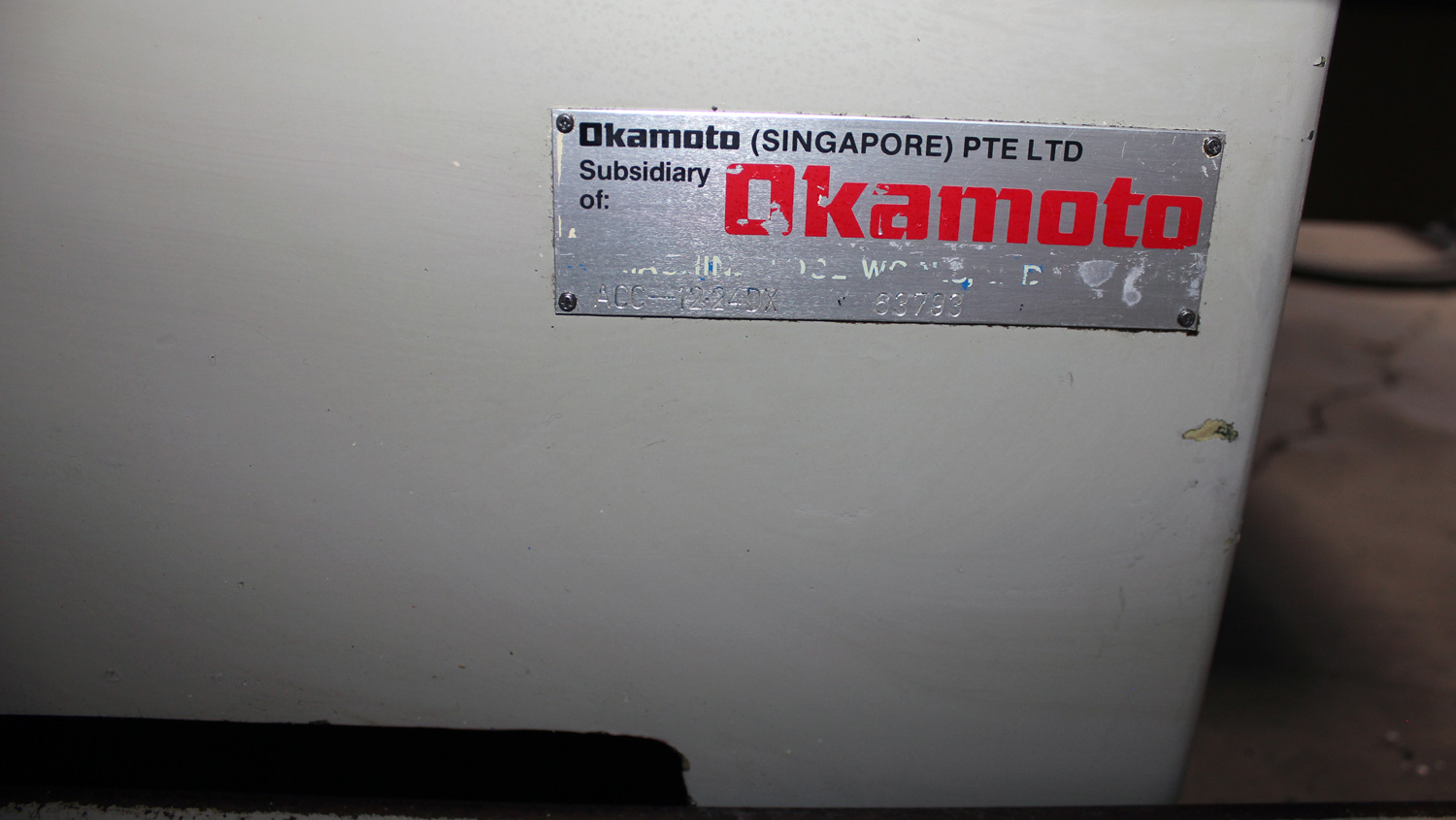

Serial #: 63793
Location: Huntington Park, CA
Year Built: 1996

---

Specifications

Table Size: 12" x 24"
Longitudinal Table Travel: 30"
Cross Saddle Travel: 14"
Max Work Height Under 12" Wheel: 13.7"
Table Speed (Variable): 1 - 82 FPM
Cross Saddle Feed (Intermittant): 0.02 - 0.8 IPM
Automatic Spindle Downfeed Rate (Incremental): 0.00005"- 0.0015"
Rapid Traverse: 16 FPM
Spark Out: 0 - 5
Grinding Wheel Size: 14"/ 12" x 1 1/2" x 5"
Dimensions (L x W x H): 115" x 80" x 80"
Weight: 5,300 Lbs.

---

Equipped with

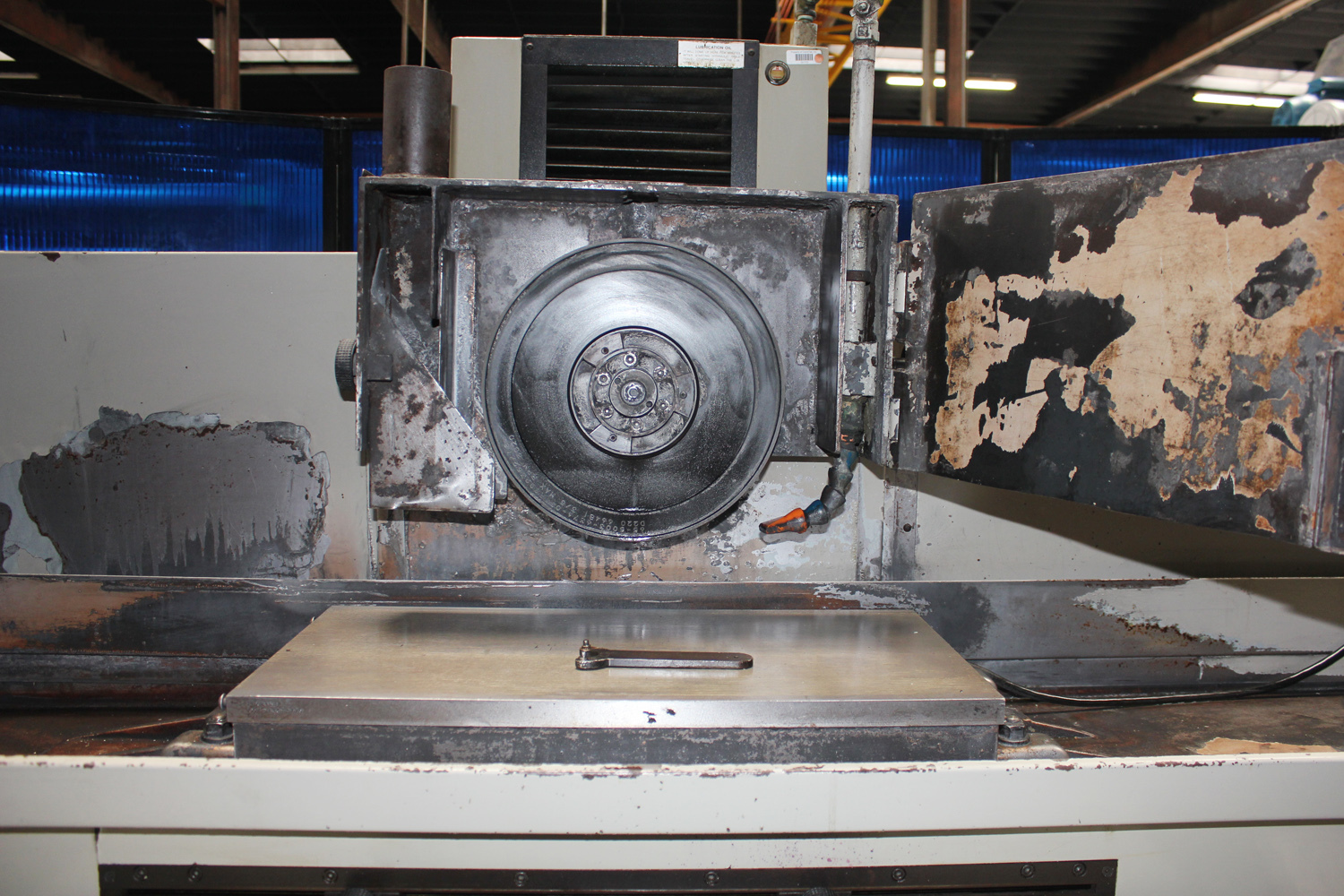

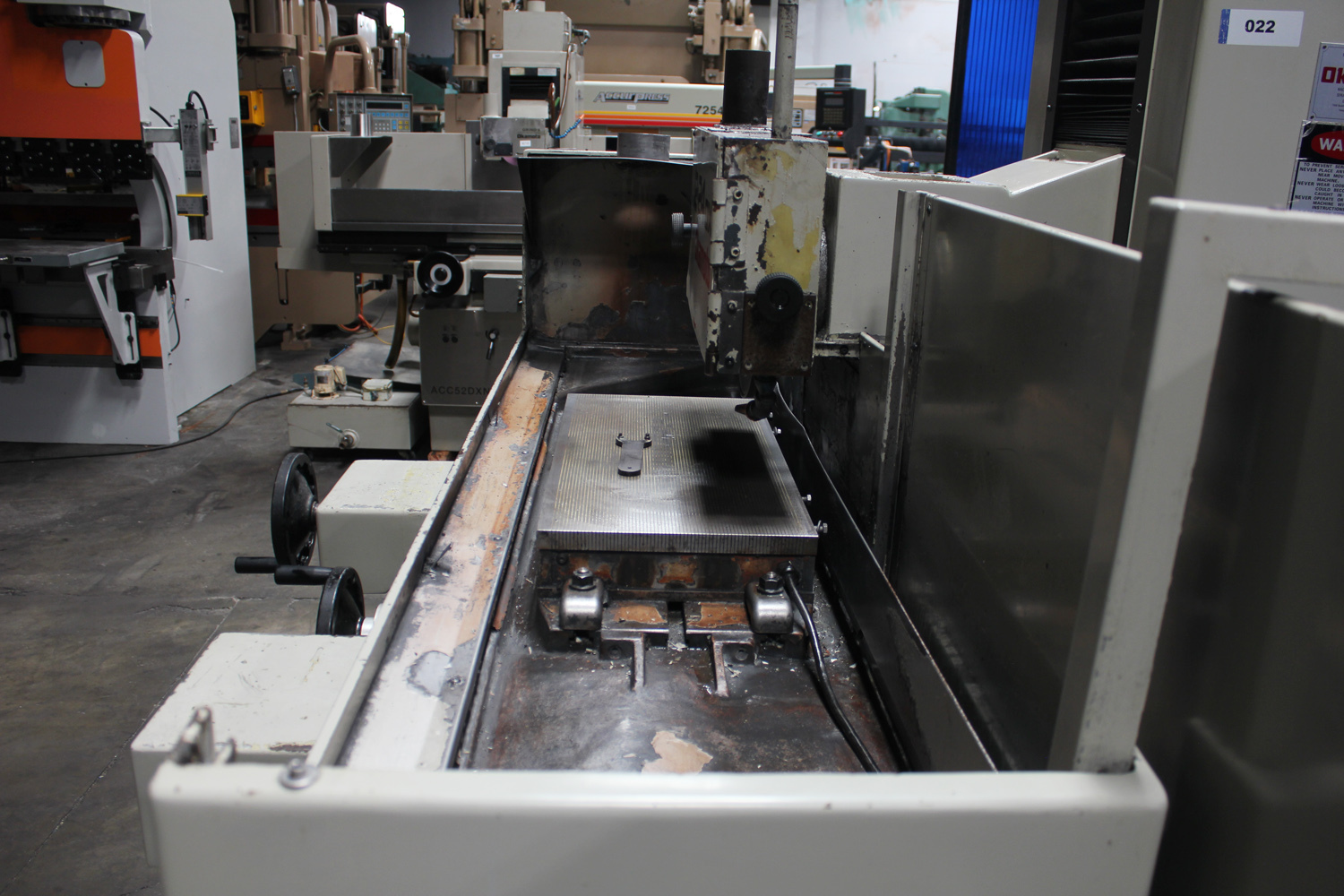

• Walker 12\" x 24\" Fine Pole Electro Magnetic Chuck
• Variable Chuck Control

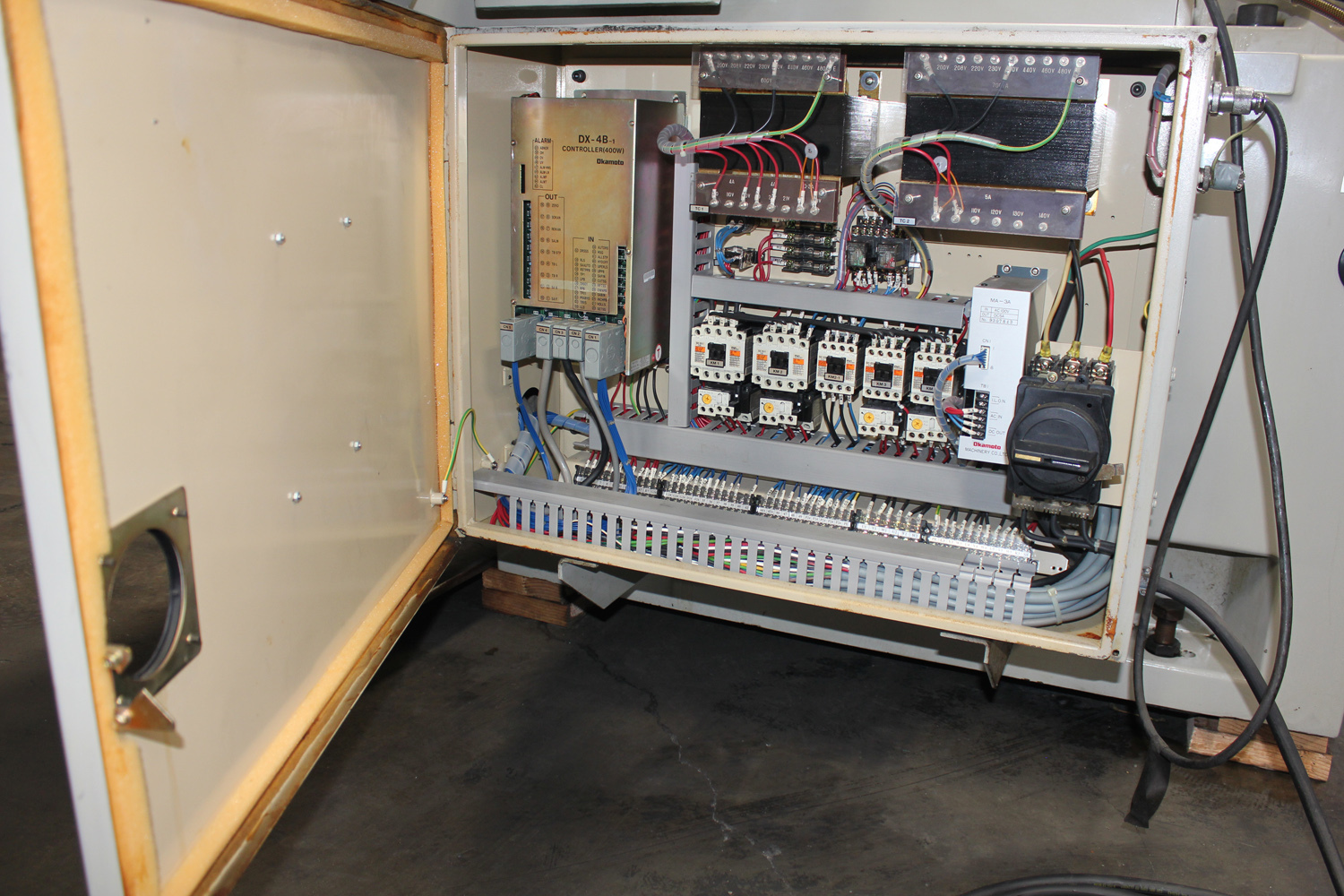

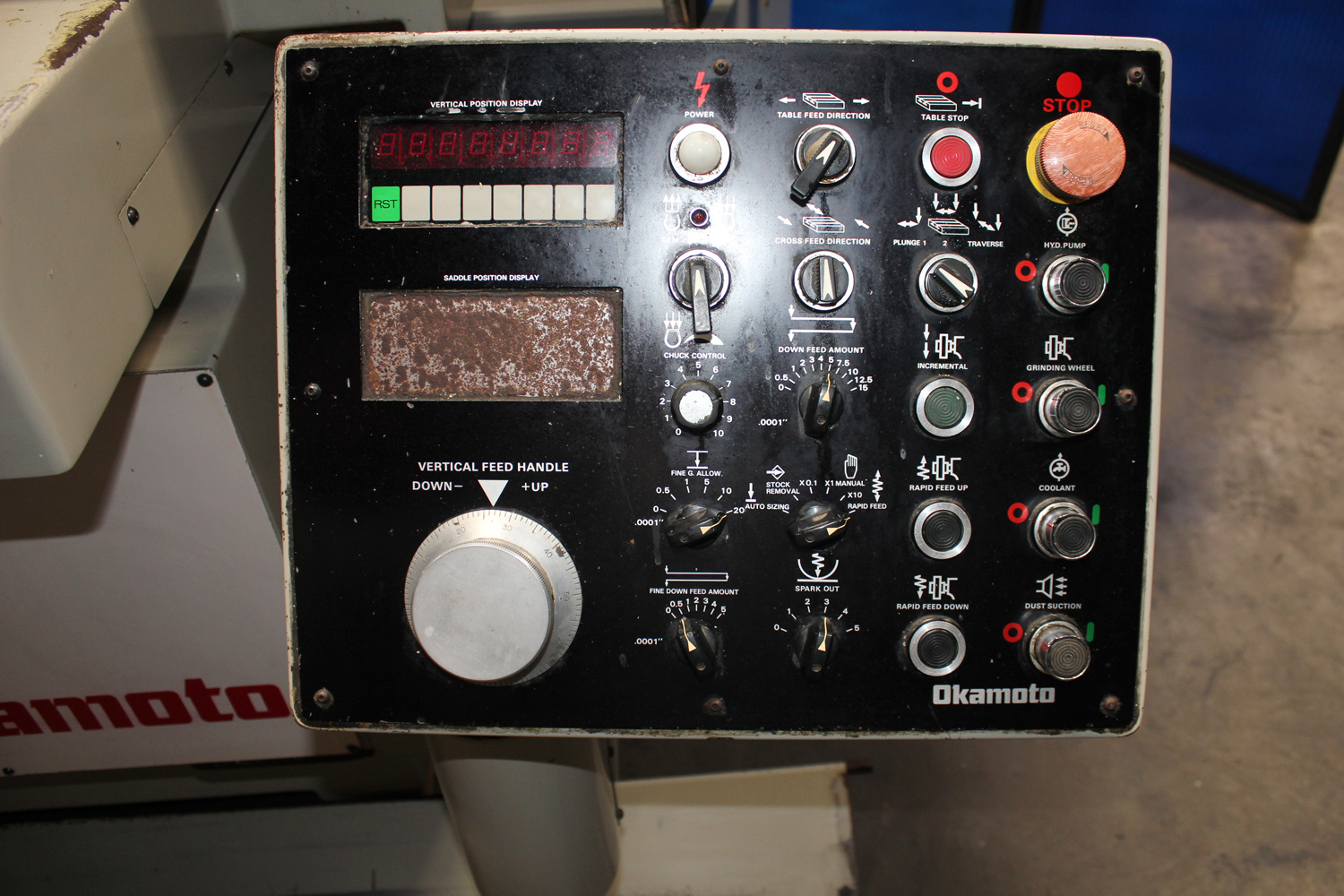

• DX Programmable Control
• Auto Incremental Down Feed For Plunge & Continuous Grinding
• Vertical Digital Display
• Auto Lube System
• Splash Guard
• Note: Coolant System Has Been Removed
• Horsepower 5

Basic Information

Model: ACC-12-24ST
Manufacturer: Okamoto
Serial #: 83641
Location: Painesville, OH
Year Built: -

---

Specifications

Table Size: 12" x 24"
Longitudinal Table Travel: 29.5"
Cross Saddle Travel: 13.6"
Max Work Height Under 12" Wheel: 13.7"
Table Speed: 1-82 FPM
Cross Saddle Feed: 0.02" - 0.0015"
Automatic Spindle Downfeed Rate: 0.0001" - 0.0015"
Rapid Traverse: 19 FPM
Grinding Wheel Size: 12" x 1 1/2" x 5"
Dimensions (L x W x H): 103" x 74" x 74"
Weight: 3,900 lbs

---

Equipped with

• 12\" x 24\" Electro Magnetic Chuck
• Variable Chuck Control
• 3 Axis Power Feeds With Incremental Down Feed
• Auto Lube System

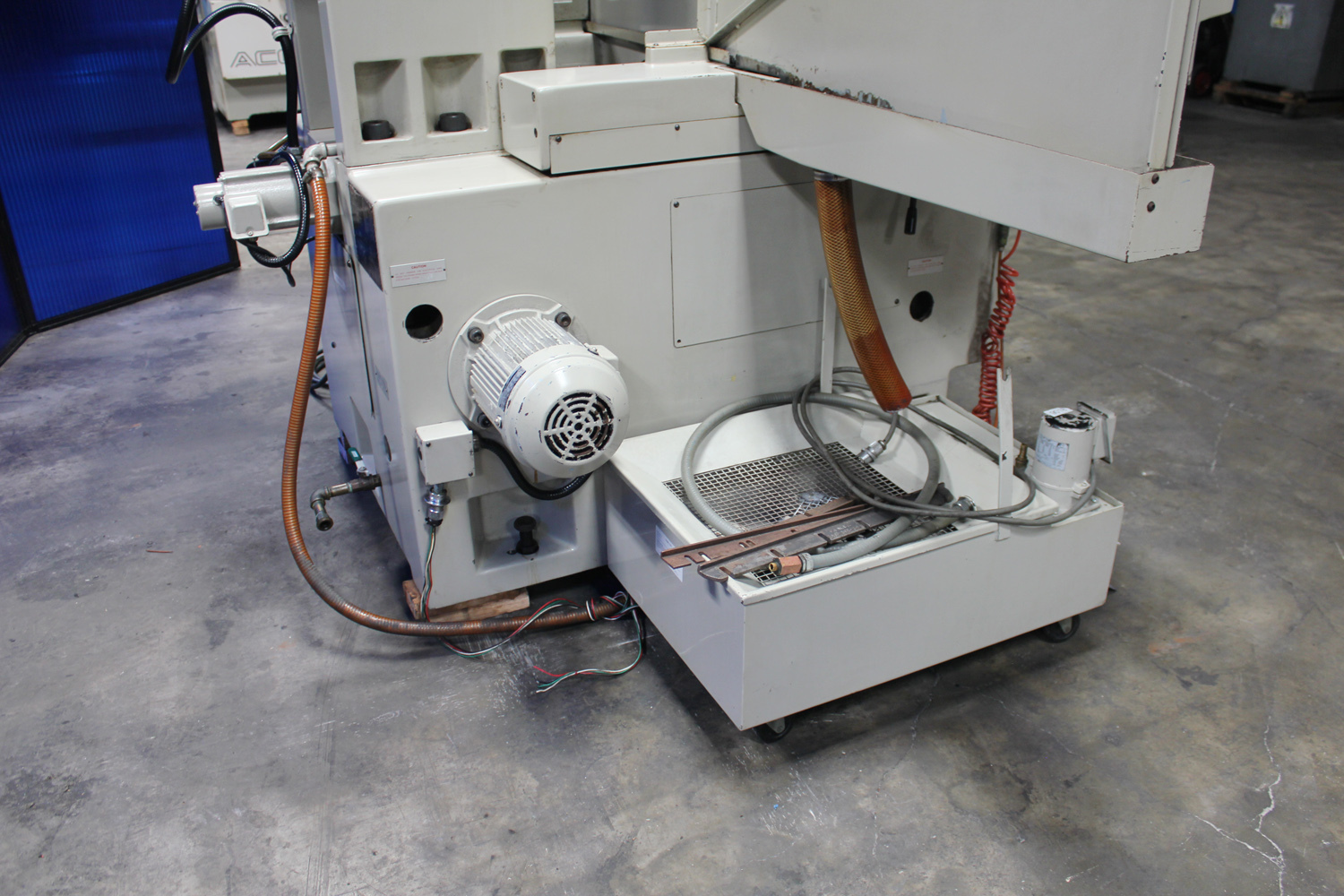

• Coolant System With Magnetic Separator
• Splash Guard
• Horsepower: 5
