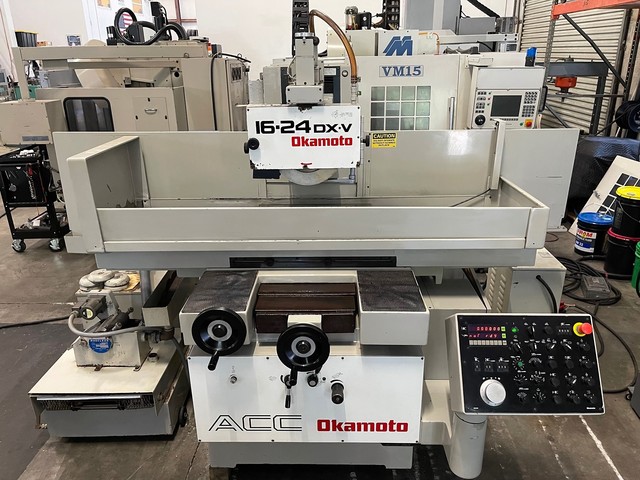

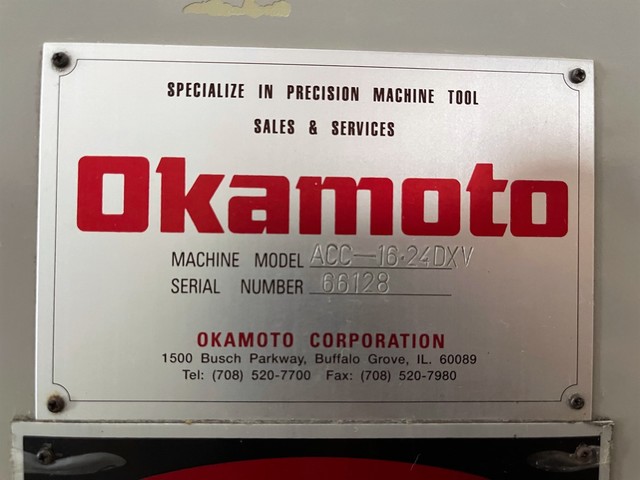

Reference # GMT-3158

Model # ACC-1624DXV

Serial # 66128

Year of Manufacture 2000

Table working capacity  16" x 24"

Maximum grinding width  16"

Maximum grinding length  24"

Maximum distance from underside of 12" diameter grinding wheel to top of table   21.5 in

Maximum weight of workpiece on table   1,540 Lbs.

Hydraulic longitudinal feed      1 to 82 F.P.M.

Hydraulic intermittent cross feed    .02 to 0.8 I.P.M..

Automatic downfeed traverse and plunge cut    .00005" - .0015"

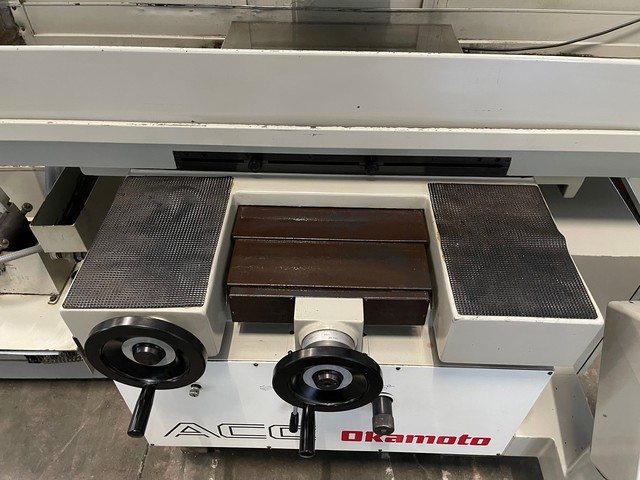

Graduation of crossfeed handwheel   .001"

Graduation of vertical handwheel    .001"

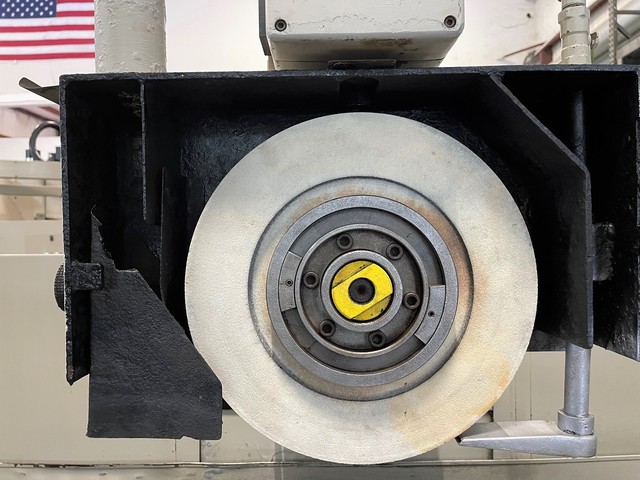

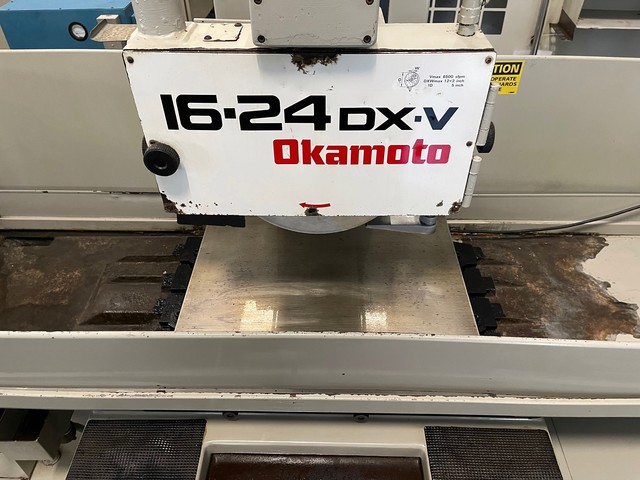

Grinding wheel size        12" diameter x 5" bore x 1.5" width

Grinding wheel speed   1,800 R.P.M.

CHARACTERISTICS

Equipped With:

Hydraulically actuated longitudinal and cross feeds

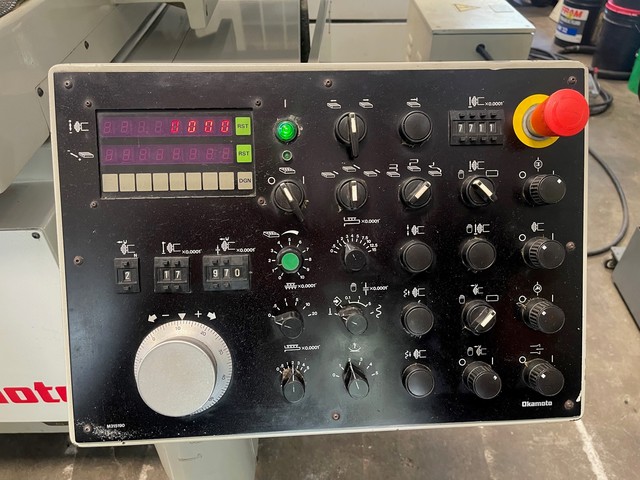

Servo driven automatic incremental down feed of grinding wheelhead in programmable coarse and fine increments from 0.00005" to 0.0015" in both the plunge and surface grinding modes of operation

Automatic cycle with sparkout timer from 0 to 5 passes

Electronic handwheel for manual vertical movement with each graduation equivalent to .00001", .0001" or .001"

DXV option: automatic grinding wheel dresser, automatic dress compensation and retract function

Digital display of vertical axis position

Motorized power rapid traverse to grinding wheelhead

16" x 23-5/8" KANETSU electromagnetic chuck with variable hold control

(5) Leveling pads

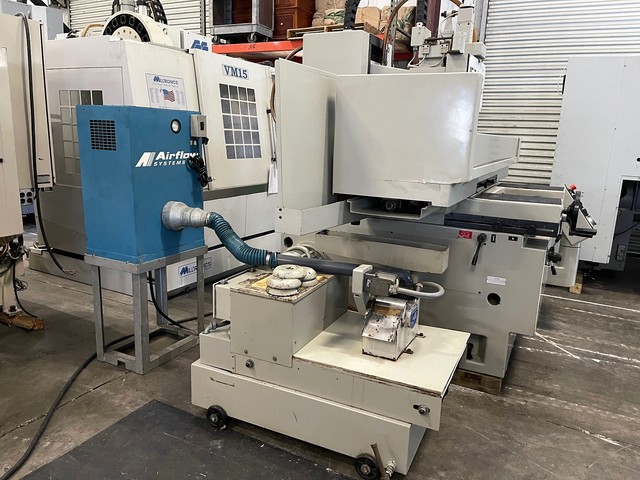

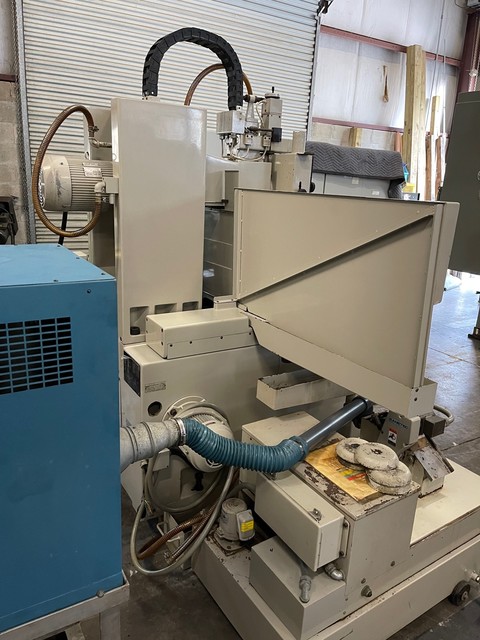

Dust collector

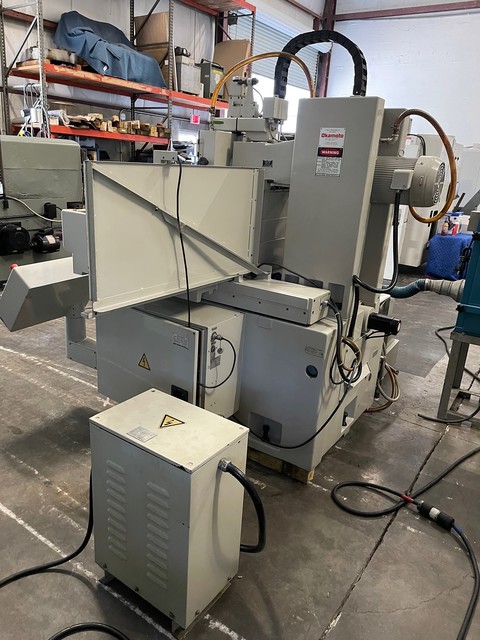

Transformer 230 / 460 inputs / output 200 volt

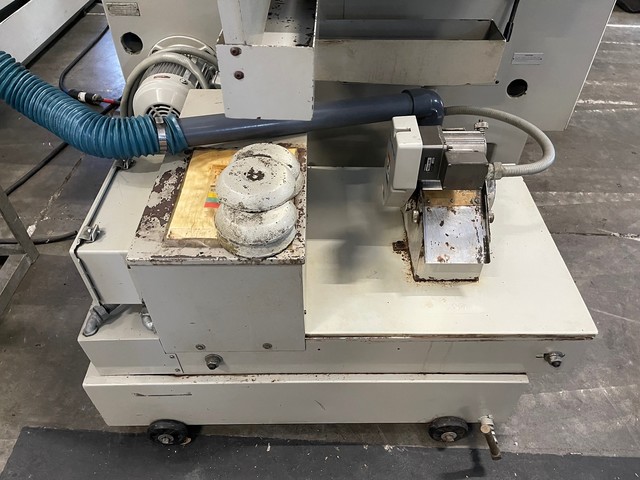

0.5 H.P. External coolant pump and tank with paper filtration & metal separator

1/2 H.P. AC Servo feed motor

3 H.P. 3/60/230/460 volt hydraulic pump motor

5 H.P. 3/60/230/460 volt spindle drive motor and electrical controls

Machine is wired for 200 Volt operation

Approximate Weight (Machine Only):  8500 Lbs.

APPROXIMATE DIMENSIONS:   108" L-R x 87" F-B x 93" H

PRICE:   $28,500
