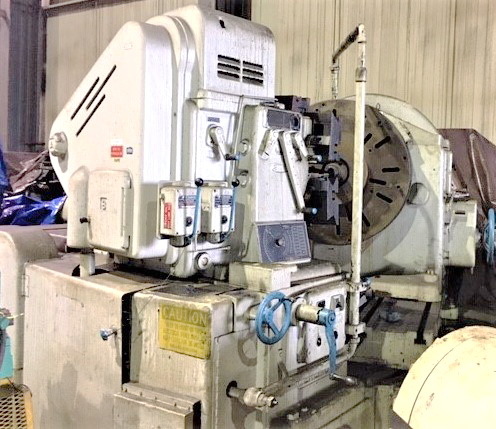

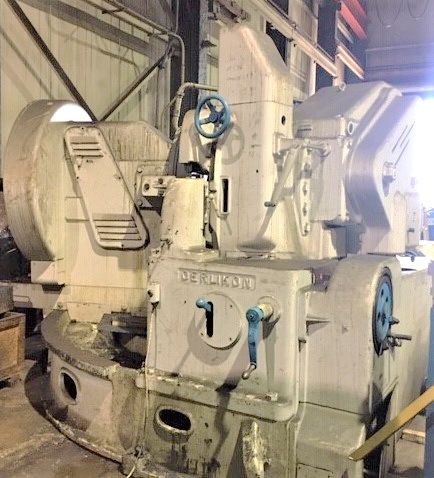

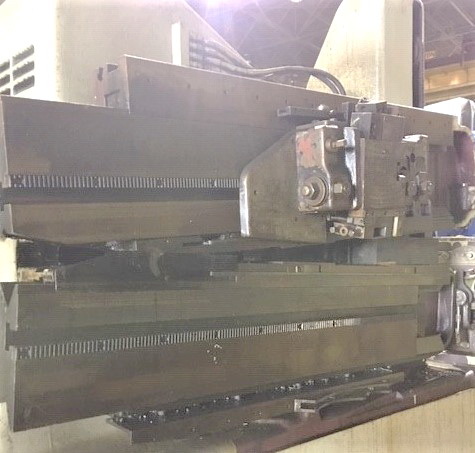

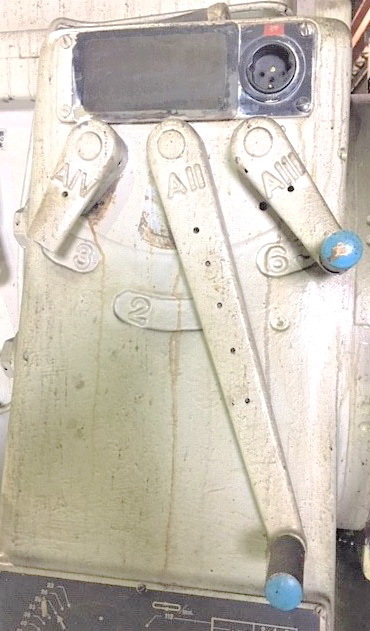

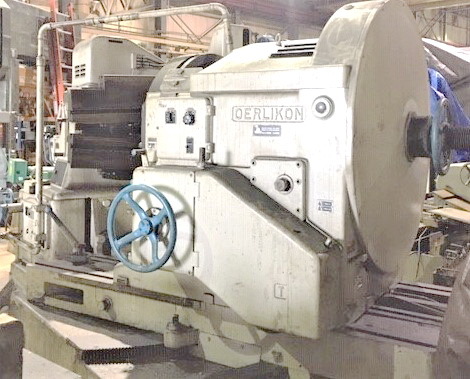

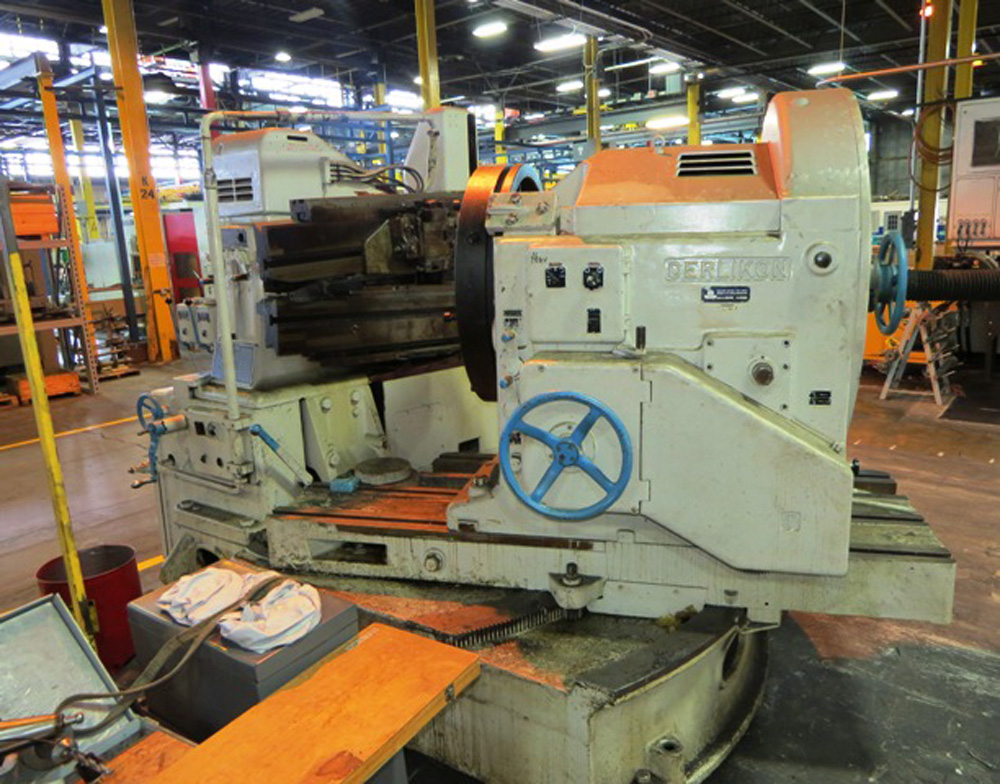

Oerlikon - Straight Bevel Gear Generator | 63"

OERLIKON - STRAIGHT BEVEL GEAR GENERATOR | 63"

Add to Your File

Brand: OERLIKON - STRAIGHT BEVEL GEAR GENERATOR | 63"

Model: K4A

Serial No. : 297462

Category:

Sub Category:

Condition: used

Weight: (KG)

Year Built:

Status:

Price: $0.00

Description

Basic Information

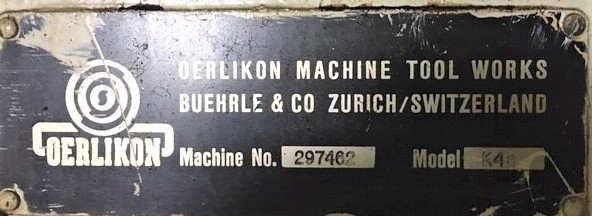

Model: K4A
Manufacturer: Oerlikon
Serial #: 297462
Location: Painesville, OH
Year Built: 1967

Specifications

Max. Pitch Circle Diameter, Ratio 1 : 1: 49.2", (1,250 MM)
Maxi. Pitch Circle Diameter, Ratio 1 : 1.2: 53.55", (1,360 MM)
Max. Pitch Circle Diameter, Ratio 1 : 1.5: 57.85", (1,470 MM)
Max. Pitch Circle Diameter, Ratio 1 : 2 Up To 1 : 8: 63", (1,600 MM)
Maximum Module = 36, DP = 0.7: CP = 4 1/2"
Minimum Module = 2, DP = 12: CP = 1/4"
Minimum Tooth Number For Ratio 1 : 1: 20
Minimum Tooth Number For Ratio 1 : 8: 10
Maximum Face Width: 11.80", (300 MM)
Maximum Pitch Cone Distance: 34.85", (885 MM)

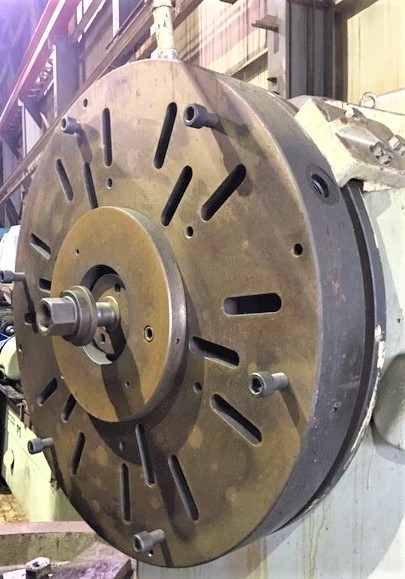

Spindle Nose: Oerlikon Short Taper 1 : 4: 10.63", (270 MM)
Taper Socket 1 : 20: 6.70", (170 MM)
Through Hole: 5.90", (150 MM)
Max. Distance From Faceplate To Pitch Cone Apex: 37.40", (950 MM)
Min. Distance From Faceplate To Pitch Cone Apex: 6.70", (170 MM)
Maximum Swivel Table Angle: 83 Degrees
Minimum Swivel Table Angle: 7 Degrees
Workhead Center Height: 32.50", (825 MM)
Maximum Planning Slide Stroke: 12.60", (320 MM)
Minimum Planning Slide Stroke: 1.97", (50 MM)
Maximum Addendum Angle: 6 Degrees, 30'
Maximum Dedendum Angle: 7 Degrees, 30'

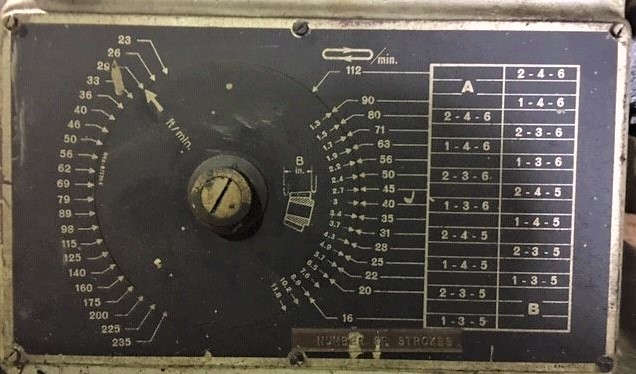

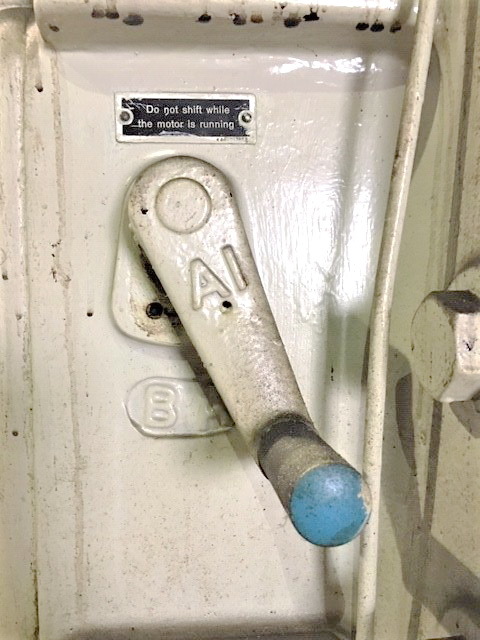

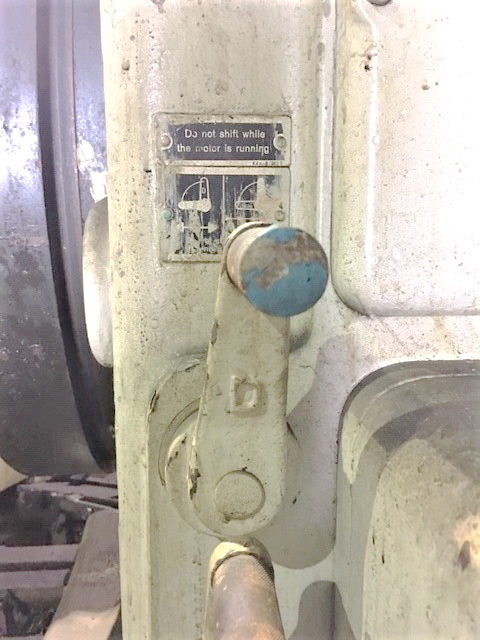

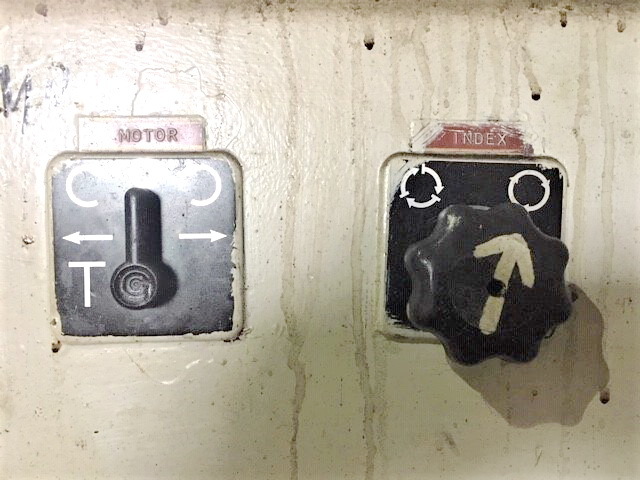

Cutting Speeds (16): 16 To 112 Strokes/Min.
Feeds (29) (Per Stroke): 0.4 To 10.6 Angle Minutes
Tool Cross Section: 0.94" x 1.89", (24 MM x 48 MM)
Approximate Dimensions: 173" L x 157" W x 96" H
Approximate Weight: 37,500 Lbs., (17,000 KG)

Equipped with

Crowning Attachment
Templates
Cutter Boxes
Rim Steady
Change Gears
Gauge
Coolant Pump, Motor & Tank
