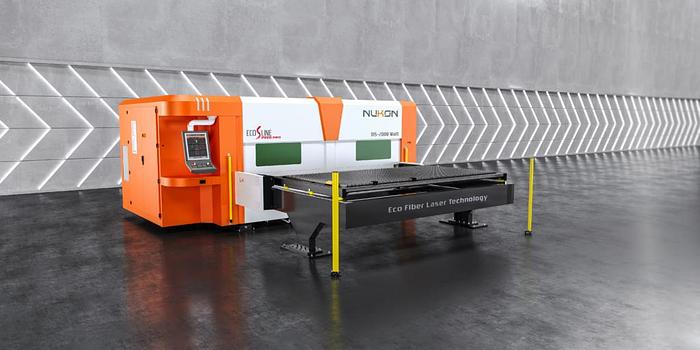

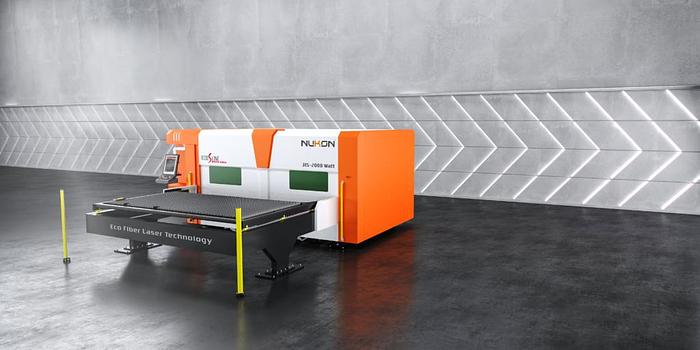

MACHINE MODEL ECO SERIES
ECO 315
Sheet Dimensions 1530mm x 3050mm/5 x 10 ft
Resonator Power(kW) 1 2 3 4
Axis X 3050mm/10 ft
Y 1530mm/5 ft
Z Upper Table 75mm/2.9 in
Bottom Table 250mm/9.8 in
Working Table Height 820mm/32.2 in
Maximum Loading Capacity 1500 kg/3306 lbs
Positioning System Servo Motor / Rack and Pinion
Acceleration 12 m/s2 to H15 m/s2
Axis Speed (X,Y Simultaneous Speed) 140 m/min H160m/min
Positioning Accuracy(Pa)
plus/minu 0,1mm/0,0039 in to H0,05mm/0,002 in
Shuttle Table Change Time 16 sec
Controller 19 in Multi Touch Screen
Assist Gas Oxygen (O2) : 15 Bar
Nitrogen (N2) : 25 Bar

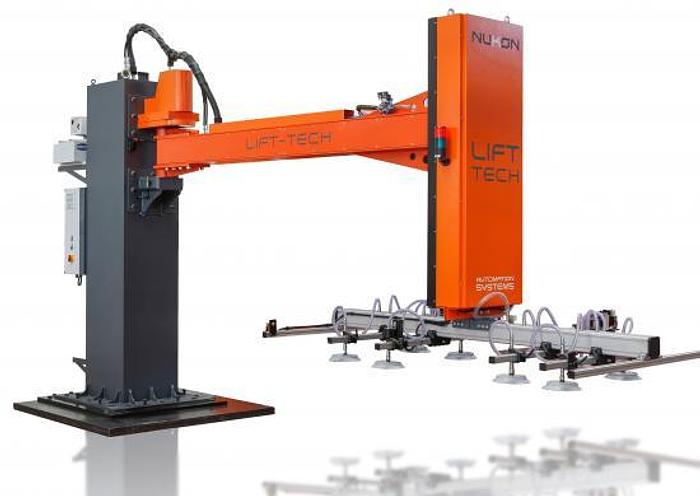

Optional Equipment -Loading System
Air Cutting
Cut Line Technology
Linear Motor on X axis
Machine Weight 12500 kg 27558 Ibs
The right to make changes to dimensions, construction and equipment is reserved by NUKON.
The accuracy that can be achieved depends on variable factors such as workpiece design, heat treatment, dimensions and position in the work area. Values given are based on VDI / DGQ 3441.
Cut Line technology is available for 4kW.
H Linear motor option(Hybrid) values on X axis.
Specifications:
Condition Used
