Description:
Very Low Hours 3900
Model 255-FAMT
Axes Travel
Y Axis (Left to right) bridge 192 in

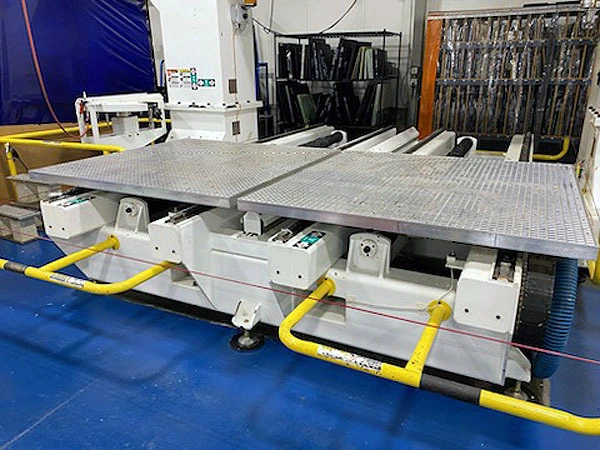

X Axis (Front to back) Worktable 108 in
Z Axis (up and down) 50 in
C Axis +517 deg/-115 deg
A Axis +/- 115 deg
Axis Traverse/Feed Rates
X Axis Rapid Traverse Rate 2,150 IPM
Y Axis Rapid Traverse Rate 2,150 IPM
Z Axis Rapid Traverse Rate 500 IPM
X Axis Maximum Machining Feed Rates 2,150 IPM
Y Axis Maximum Machining Feed Rates 2,150 IPM
Z Axis Rapid Maximum Machining Feed Rates 500 IPM
C Axis continuous positioning speed 30 dps
A Axis continuous positioning speed 30 dps
X, Y and Z Heidenhian Optical Scales
Equipped with:

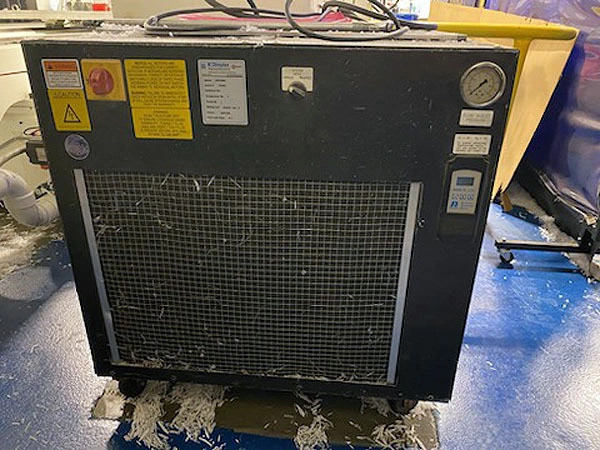

Coolant Kooler Chiller
20,000 RPM

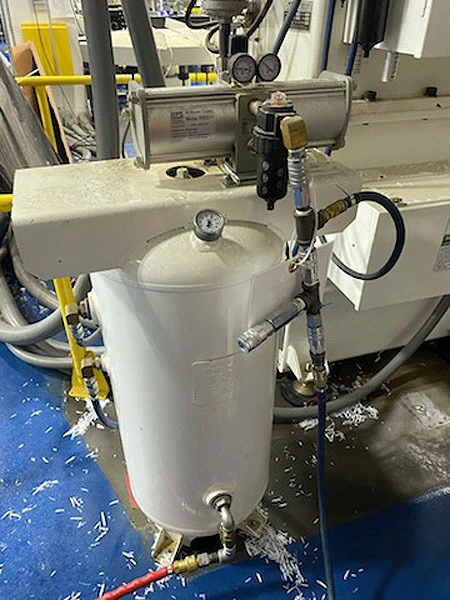

Booster System to 300 psi,

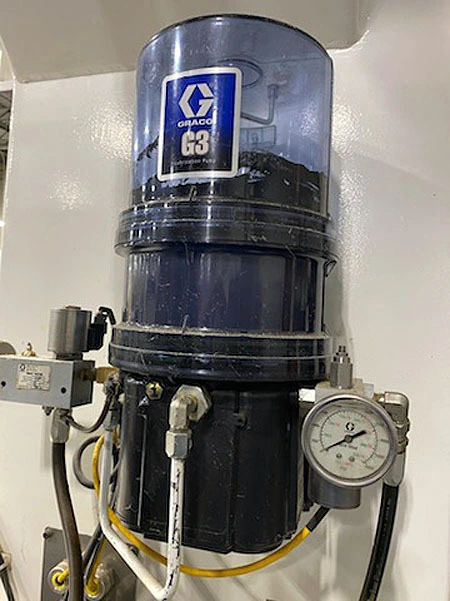

Graco Auto Grease System

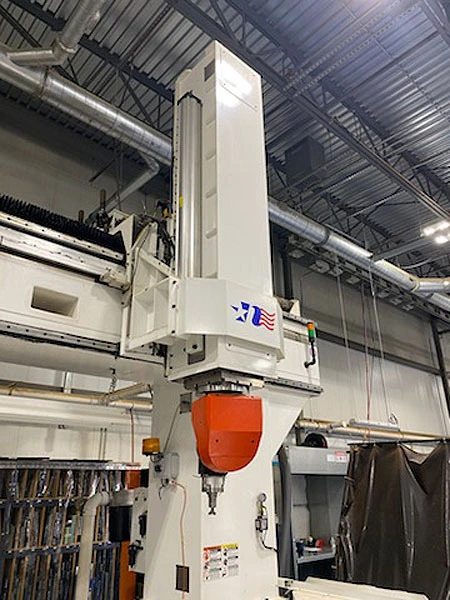

HSK-63F Spindle

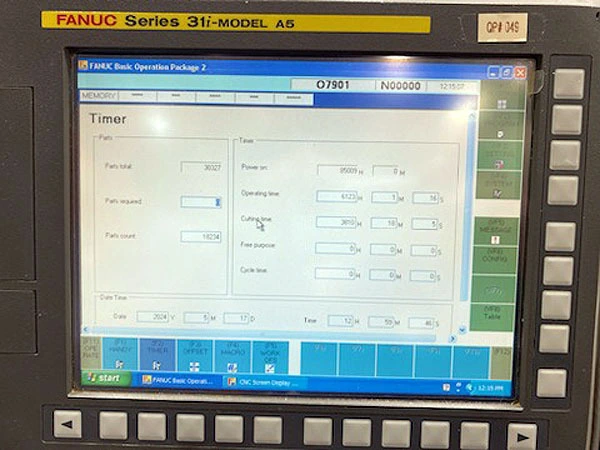

Fanuc F31i model A5 Control
22 HP Liquid cooled Spindle
TCP for tool Center Point
Heidenhien Scales on X, Y, C, Z Axis
With fully enclosed purged housing
20 HSK F Tool Holders Collet Type
Overview:

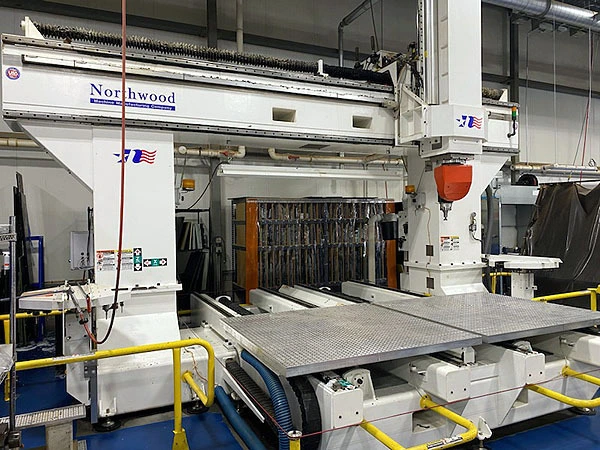

Type: CNC Router
Manufacturer: NORTHWOOD
Model: 255-FAMT
Condition: Excellent
Year: 2011
Stock #: 3195
Status: For Sale
Specifications:
Very Low Hours 3900
Model 255-FAMT
Axes Travel
Y Axis (Left to right) bridge 192 in
X Axis (Front to back) Worktable 108 in
Z Axis (up and down) 50 in
C Axis +517 deg/-115 deg
A Axis +/- 115 deg
Axis Traverse/Feed Rates:
X Axis Rapid Traverse Rate 2,150 IPM
Y Axis Rapid Traverse Rate 2,150 IPM
Z Axis Rapid Traverse Rate 500 IPM
X Axis Maximum Machining Feed Rates 2,150 IPM
Y Axis Maximum Machining Feed Rates 2,150 IPM
Z Axis Rapid Maximum Machining Feed Rates 500 IPM
C Axis continuous positioning speed 30 dps
A Axis continuous positioning speed 30 dps
X, Y and Z Heidenhian Optical Scales
