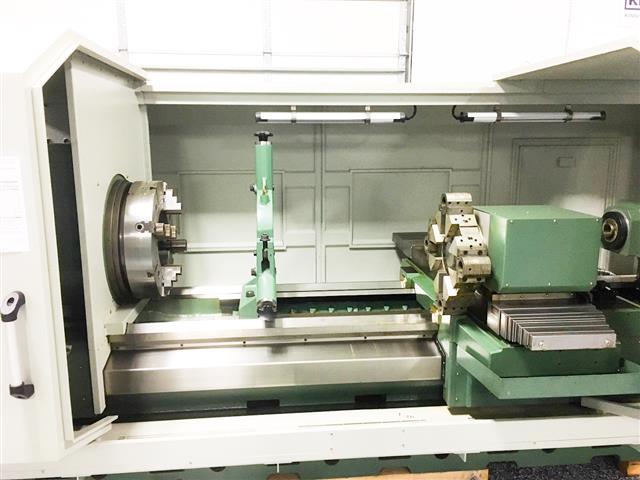

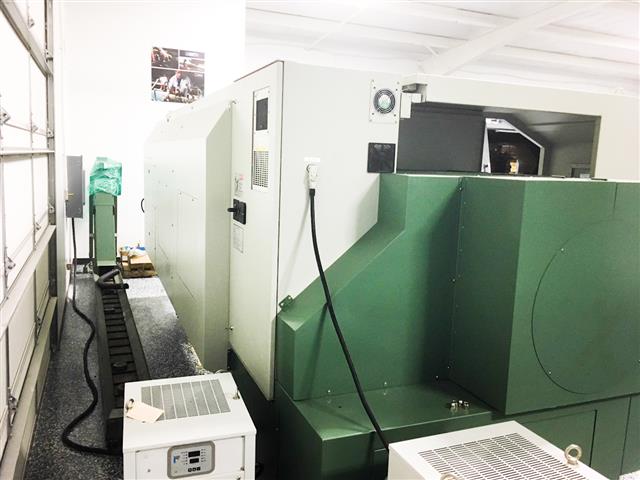

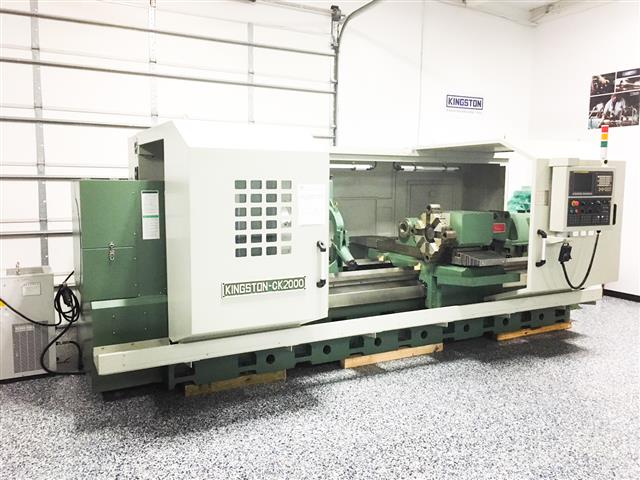

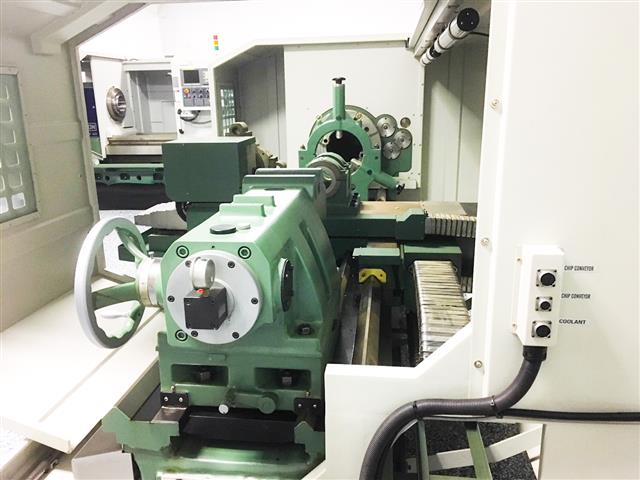

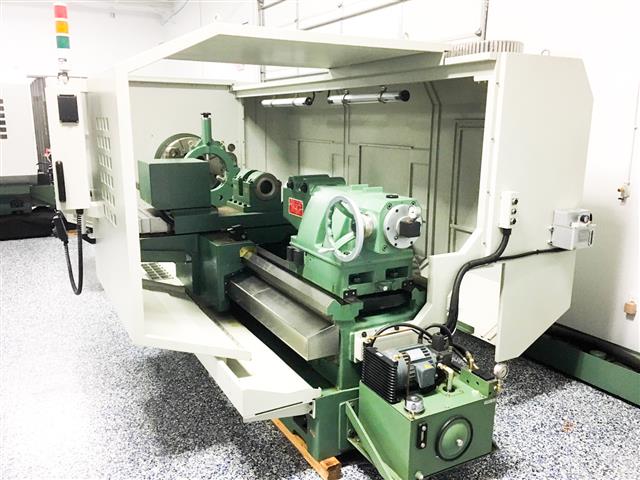

NEW KINGSTON CK12 - FORMERLY CK2000 CENTER DRIVE CNC LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


CK12 - Formerly CK2000
L2057
Lathes and Turning Centers CNC
Center Drive, NC, CNC.
used
(KG)
0
$0.00

Description

Reference #:7025
Machine Type:
Year:New
Manufacturer:Kingston
Model:CK12 - Formerly CK2000
Control:Fanuc 0iTD
Condition:Demo
Under Power:Yes
Code:L2057

Capacity:

  • Swing Over Bed: 30"
  • Maximum Cutting Diameter: 13.97"
  • Distance Between Centers: 80"
  • Z-Axis Max. Cutting Length: 82"
  • Width of Bed: 28"

Headstock:

  • Spindle Boire: 12.5"
  • Spindle motor: 40 HP / 50 HP
  • Type of Spindle Nose: A2-20

Gear Box:

  • Number of Speed Ranges: 4
  • Spindle Speed Range: 10 to 400 RPM

Turret:

  • Type: V8

Traverse:

  • Max Stroke X-Axis: 20.86"
  • Max Stroke Z-Axis: 87"
  • Rapid Traverse (X/Y): 314 IPM

Motor:

  • Servo (X / Y): 5 / 9 HP

Ball Screw:

  • X-Axis: 1.26" Dia / P=5
  • Z-Axis: 2.5" Dai / P=10

Tailstock:

  • Quill Center: MT #6
  • Quill Diameter: 7.08"
  • Quill Travel: 9.84"
  • Machine Height from Floor to Spindle Center: 44.48"

Dimensions:

  • Floor Space: 103" W x 259" L
  • Weight: 26,180 Lbs

General:

  • Total Power Required: 60 kVA

Equipped With:

  • 2x 24" 4-Jaw SCA manual chucks
  • 6" Boring Bar Holder
  • Fanuc 0iTD

Comments:

  • Demonstation Machine
