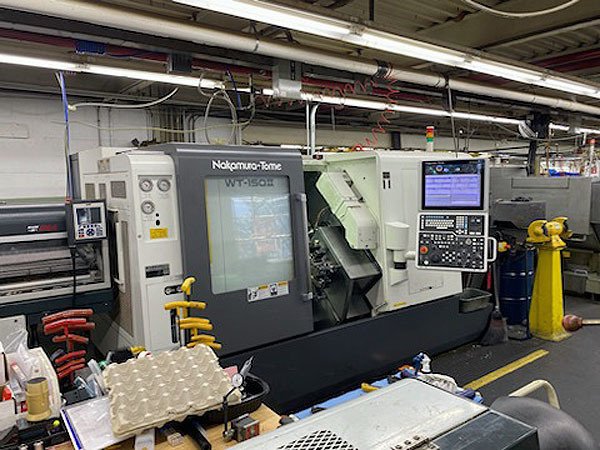

NAKAMURA-TOME SUPER WT-150IIMMY, CNC TURNING CENTER LATHE, LOW HOURS, 2016 - 3171

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Super WT-150IIMMY
Lathes and Turning Centers CNC
Multi Axis Turning Center
used
19621 (LB)
2016
$0.00

Description

Overview:
Type: Lathes, CNC
Category: Lathes
Manufacturer: NAKAMURA TOME
Model: Super WT-150IIMMY
Condition: Used - Excellent
Year: 2016
Stock #: 3171
Status:For Sale

Description:
Capacity
Max. Turning Diameter 7.5 in
Standard Turning Diameter 6.7 in
Distance Between Centers max. 29.6 in, min. 7.9 in
Max. Turning Length 20.3 in
Bar Capacity 2 in

Axis Travel:
Slide Travel X1 / X2 6.6 in
Slide Travel Z1 / Z2 20.3 in
Slide Travel Y +/-1.4 in
Slide Travel (B-axis) 23.7 in
Rapid Feed X1 / X2 630 IPM
Rapid Feed Z1 / Z2 1575 IPM
Rapid Feed (B-axis) 1575 IPM
Rapid Feed Y 236 IPM

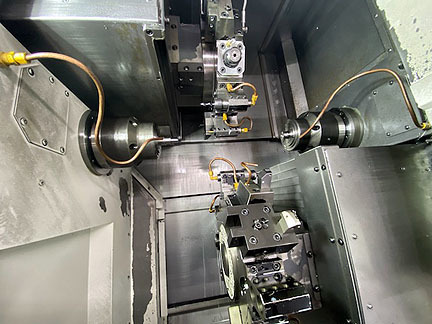

Left and Right Spindles:
Spindle Speed 5000 RPM
Spindle Speed Range Stepless
Spindle Nose A2-5
Hole Through Spindle 2.5 in
Hole Through Draw Tube 2 in

C-axis:
Least Input Increment degrees 0.001
Least Command Increment degrees 0.001

Rapid Index Speed 600 RPM
Cutting Feed Rate 1~4800 deg/min
C-axis Clamp Disk Clamp

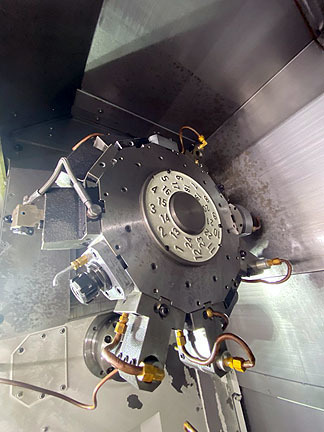

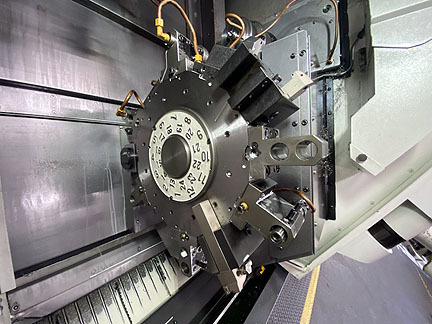

Upper and Lower Turrets

Type of Turret Head Dodecagonal Drum Turret
Number of Tool Stations 24
Number of Indexed Positions 48
Tool Size Square / Round 1 in / 1.3 in

Rotating Tool
Rotary System Individual Rotation
Spindle Speed rpm 6000 RPM

Drive Motor
Left Spindle 20 / 15 HP
Right Spindle 15 / 10 HP
Driven Tools 7.5 HP

Machine Dimensions (L x W x H) 142 x 78 x 73
Machine Weight 19,621 lbs

Equipped With:
NOTE: Cutting Tools inside the holders ARE NOT INCLUDED - Thank you

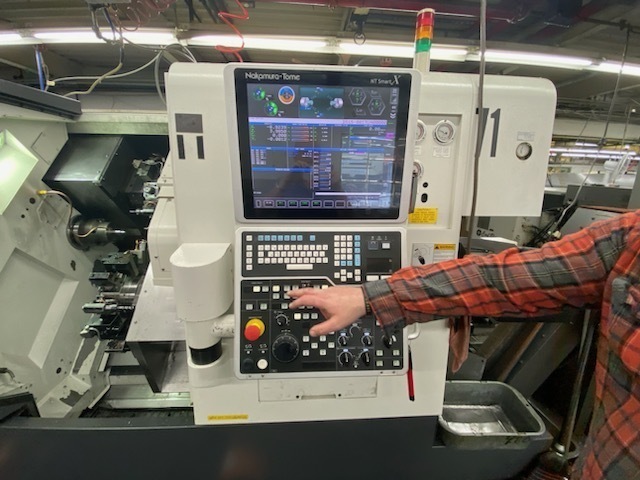

NT SmartX Control
2 Turrets
Y-Axis ( upper turret)
Milling ( lower turret)
2 S-20 Collet Chucks
1 Kitagawa B-206 3 Jaw Chuck
C-Axis
High Pressure Coolant
Removable Tool Setter

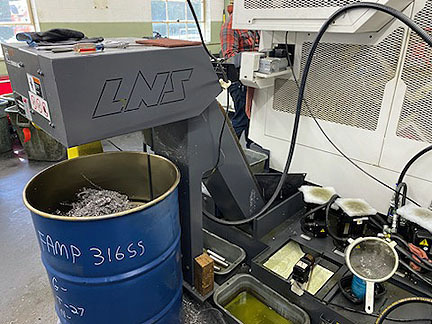

LNS Chip Conveyor
Parts Catcher G
Parts Conveyor

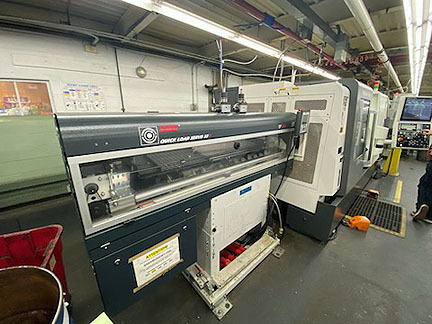

LNS Quick Load Servo S3-T Bar feed
Spindle Liners

(1) KZ1510 CROSS MILL/DRILL ER25, 16912076
(1) KZ1510C CROSS MILL/DRILL ER25, COOLANT THRU
(1) KZ1510S CROSS MILL/DRILL, 2:1 SPEEDER, ER20, MA2.5S RT 2:1 16912031
(3) KZ1513 FACE MILL/DRILL ER25

This is a low hour, one shift machine that machined mostly 3/16 in Stainless

220 Volt 3 Phase 60 Cycle
Machine Dimensions (L x W x H) 142 x 78 x 73
Machine Weight 19,621 lbs

Specifications:
Capacity
Max. Turning Diameter 7.5 in
Standard Turning Diameter 6.7 in
Distance Between Centers max. 29.6 in, min. 7.9 in
Max. Turning Length 20.3 in
Bar Capacity 2 in

Axis Travel:
Slide Travel X1 / X2 6.6 in
Slide Travel Z1 / Z2 20.3 in
Slide Travel Y +/-1.4 in
Slide Travel (B-axis) 23.7 in
Rapid Feed X1 / X2 630 IPM
Rapid Feed Z1 / Z2 1575 IPM
Rapid Feed (B-axis) 1575 IPM
Rapid Feed Y 236 IPM

Left and Right Spindles

Spindle Speed 5000 RPM
Spindle Speed Range Stepless
Spindle Nose A2-5
Hole Through Spindle 2.5 in
Hole Through Draw Tube 2 in

C-axis
Least Input Increment degrees 0.001
Least Command Increment degrees 0.001

Rapid Index Speed 600 RPM
Cutting Feed Rate 1~4800 deg/min
C-axis Clamp Disk Clamp

Upper and Lower Turrets

Type of Turret Head Dodecagonal Drum Turret
Number of Tool Stations 24
Number of Indexed Positions 48
Tool Size Square / Round 1 in / 1.3 in

Rotating Tool
Rotary System Individual Rotation
Spindle Speed rpm 6000 RPM

Drive Motor
Left Spindle 20 / 15 HP
Right Spindle 15 / 10 HP
Driven Tools 7.5 HP

Equipped With:
NOTE: Cutting Tools inside the holders ARE NOT INCLUDED - Thank you

NT SmartX Control
2 Turrets
Y-Axis ( upper turret)
Milling ( lower turret)
2 S-20 Collet Chucks
1 Kitagawa B-206 3 Jaw Chuck
C-Axis
High Pressure Coolant
Removable Tool Setter
LNS Chip Conveyor
Parts Catcher G
Parts Conveyor
LNS Quick Load Servo S3-T Bar feed
Spindle Liners

(1) KZ1510 CROSS MILL/DRILL ER25, 16912076
(1) KZ1510C CROSS MILL/DRILL ER25, COOLANT THRU
(1) KZ1510S CROSS MILL/DRILL, 2:1 SPEEDER, ER20, MA2.5S RT 2:1 16912031
(3) KZ1513 FACE MILL/DRILL ER25

This is a low hour, one shift machine that machined mostly 3/16 in Stainless

220 Volt 3 Phase 60 Cycle
