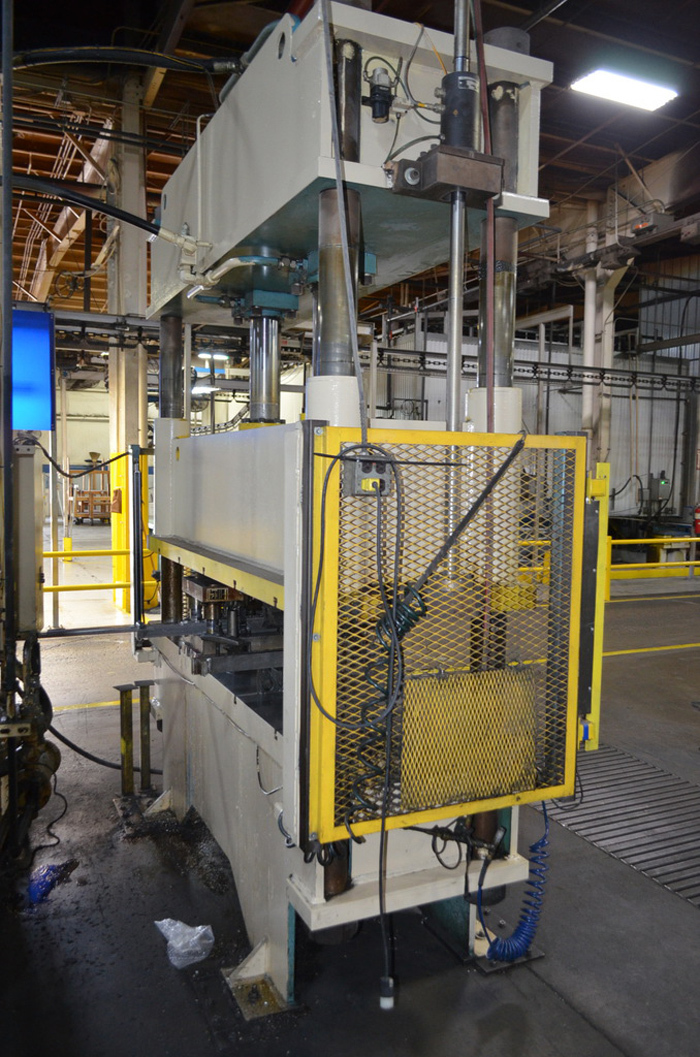

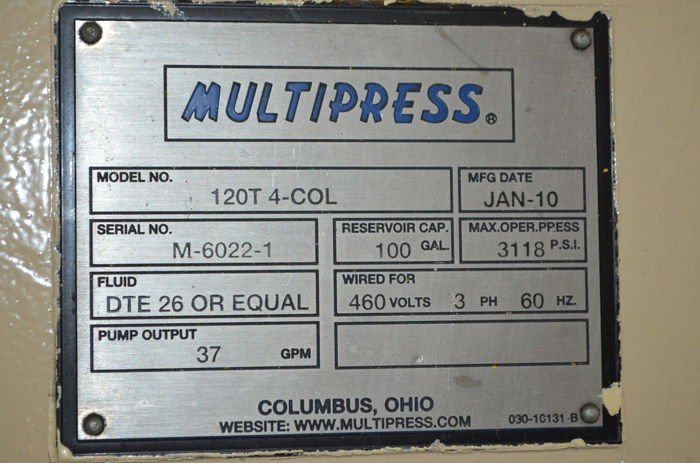

Model: 120T 4-Col Manufacturer: Multipress Serial #: M-6022-1 Location: Painesville, OH Year Built: 2010
Specifications
Tonnage: 120 Ram Stroke: 0"- 27" Ram Open Height: 33" Bed Size (L-R, F-B): 93" x 30" Ram Size (L-R, F-B): 93" x 30" Distance Between Tie Rod Posts (L-R, F-B): 80" x 17" Diameter Of Column Post: 5" Ram Speeds: Advance: 200 IPM Press: 95 IPM Return: 180 IPM Oil Reservoir Capacity: 100 Gallons Max. Operating Pressure: 3,118 PSI Hydraulic Pump Output: 37 GPM Dimensions (L x W x H): 104" x 44" x 129" Weight: 20,000 Lbs.
Equipped with
Push Button Control

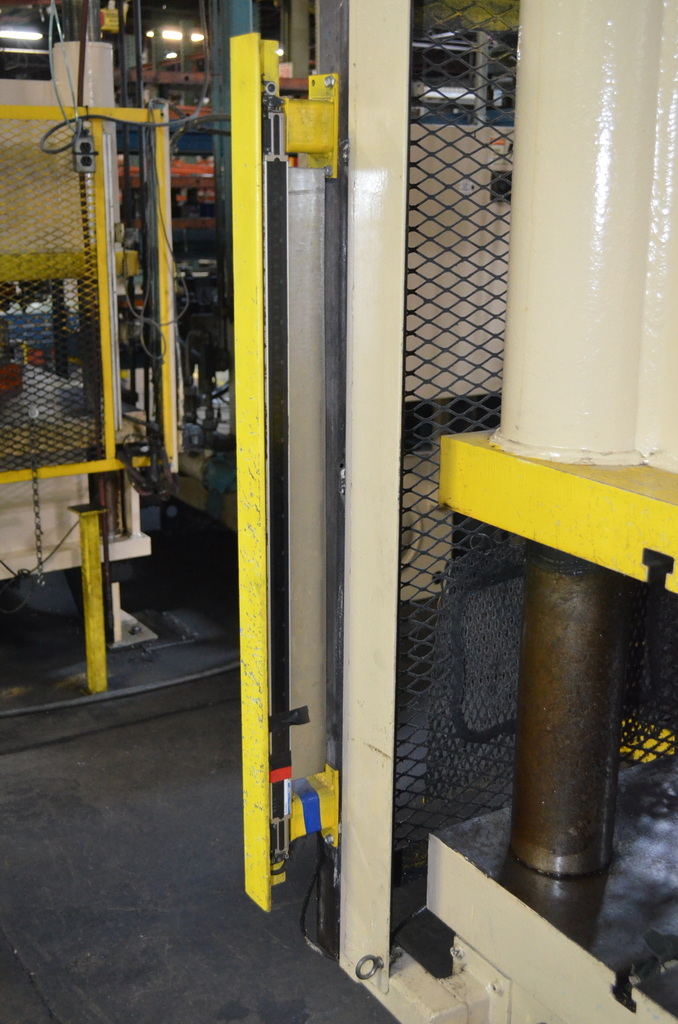

STI Safety Light Curtains Front & Back

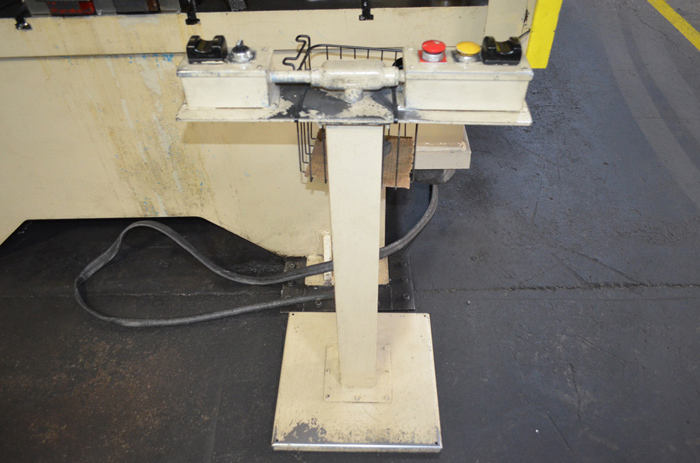

Remote Dual Infrared Finger Control Stand

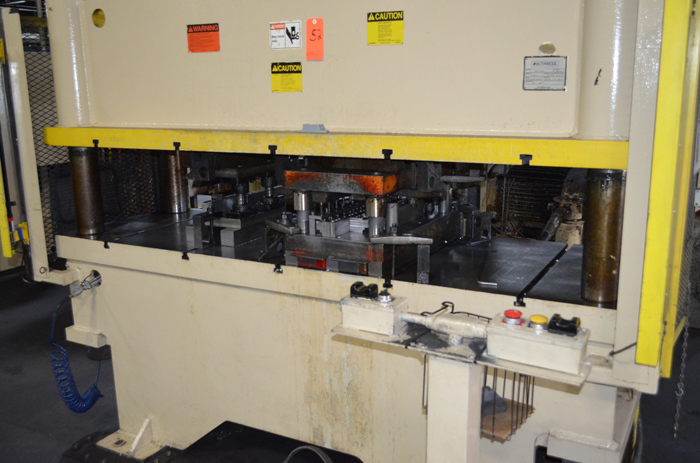

T Slotted Bed & Ram
Horsepower: 50
'
