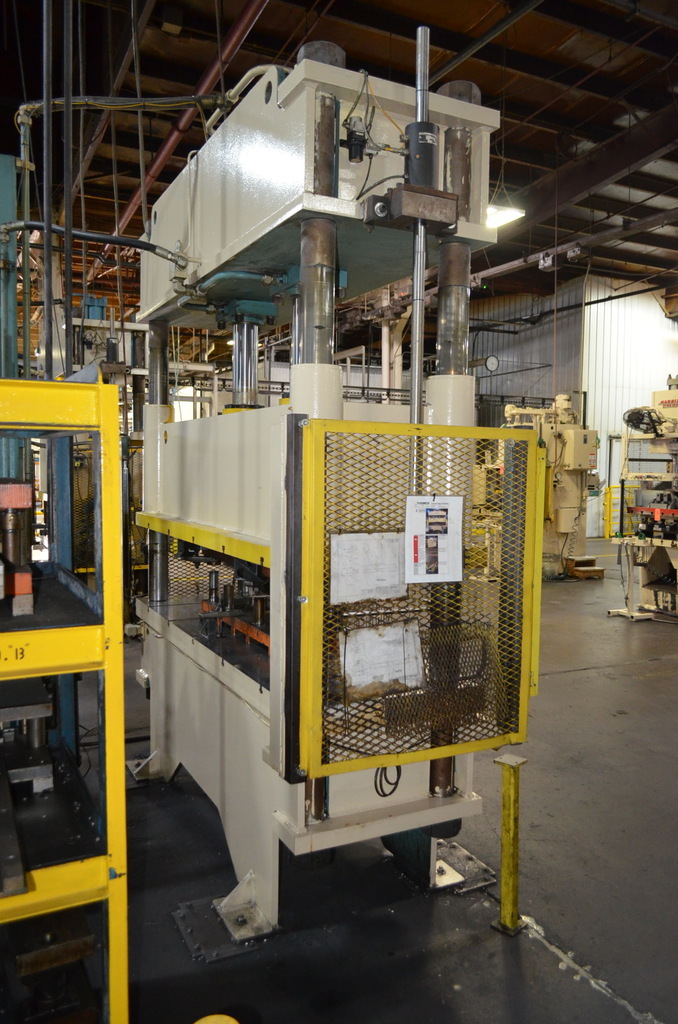

Basic Information

Model: 120T 4-Col
Manufacturer: Multipress
Serial #: M-6022-2
Location: Painesville, OH
Year Built: 2010

---

Specifications

Tonnage: 120
Ram Stroke: 0"- 27"
Ram Open Height: 33"
Bed Size (L-R, F-B): 93" x 30"
Ram Size (L-R, F-B): 93" x 30"
Distance Between Tie Rod Posts (L-R, F-B): 72" x 16"
Diameter Of Column Post: 5"
Ram Speeds:
Advance: 200 IPM
Press: 95 IPM
Return: 180 IPM
Oil Reservoir Capacity: 100 Gallons
Max. Operating Pressure: 3,118 PSI

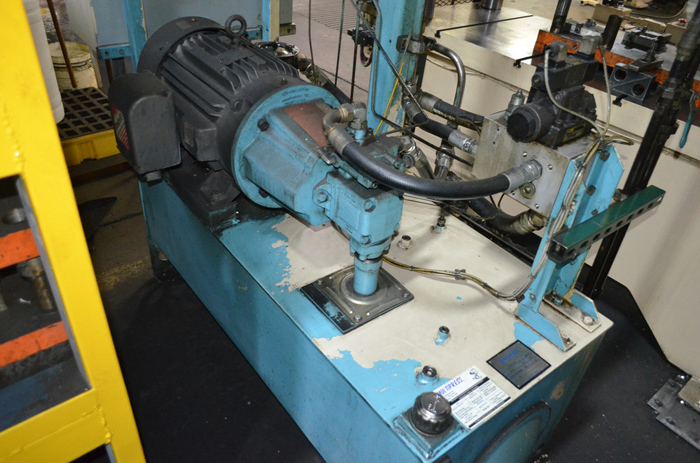

Hydraulic Pump Output: 37 GPM
Dimensions (L x W x H): 104" x 44" x 129"
Weight: 20,000 Lbs.

---

Equipped with

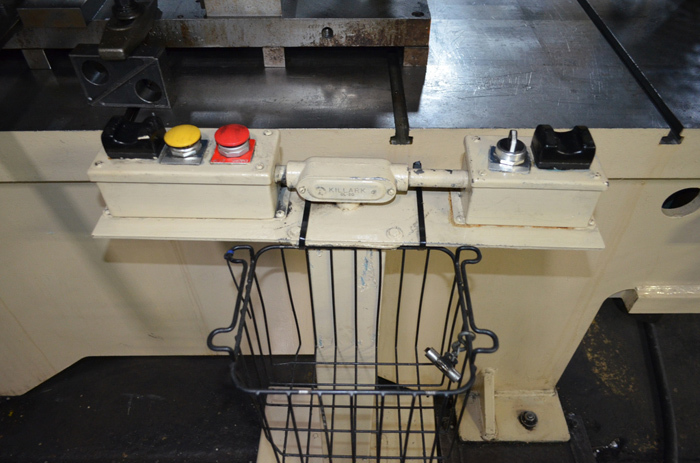

• Push Button Control

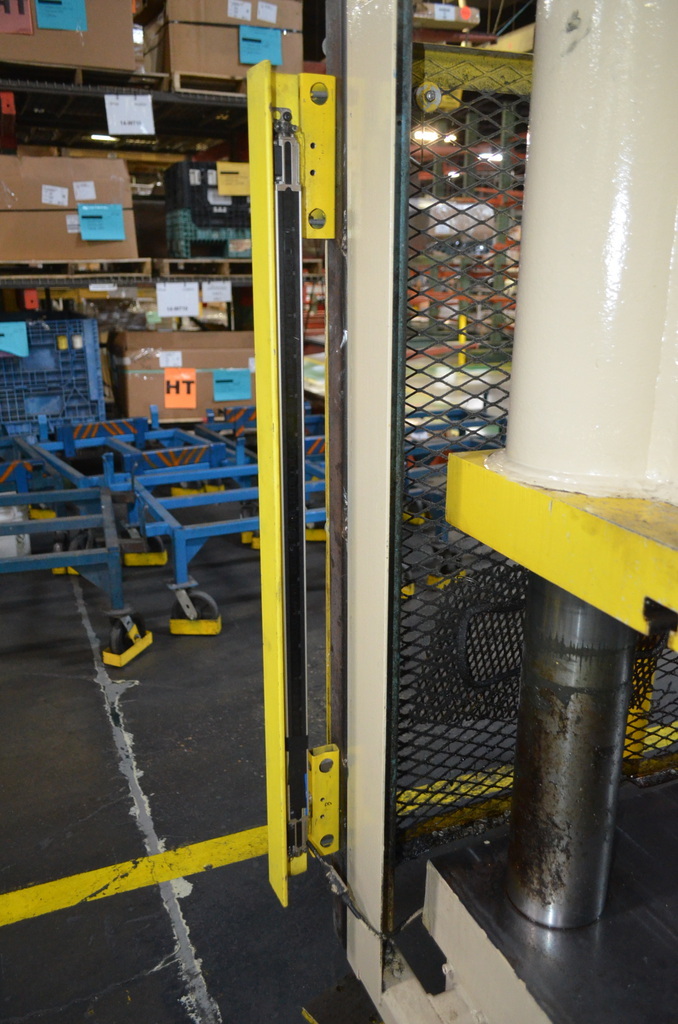

• STI Safety Light Curtains Front & Back
• Remote Dual Infrared Finger Control Stand

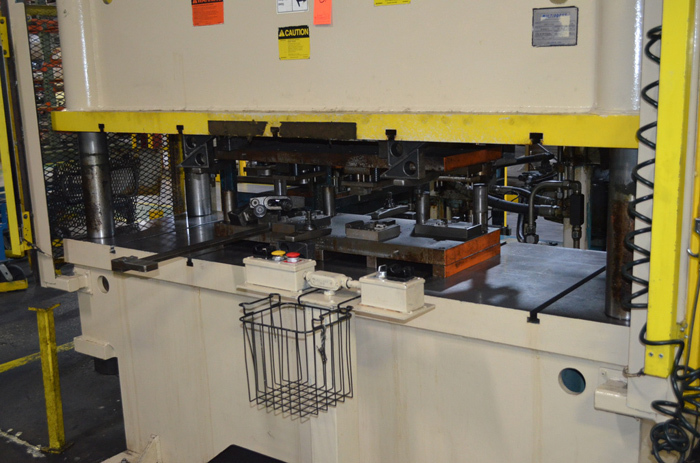

• T Slotted Bed & Ram
• Horsepower: 50

Basic Information

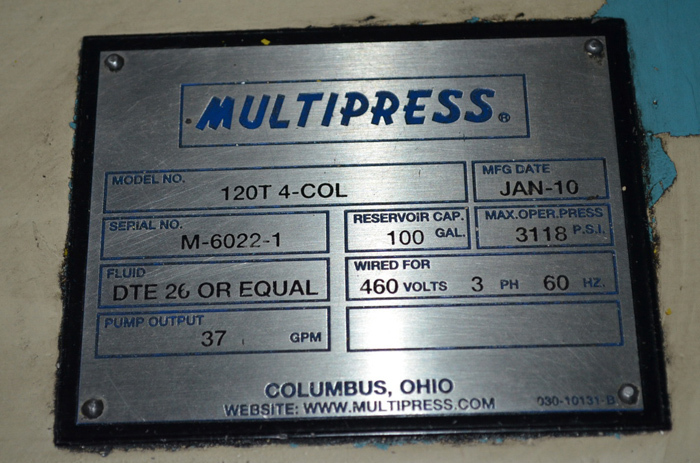

Model: 120T 4-Col
Manufacturer: Multipress
Serial #: M-6022-1
Location: Painesville, OH
Year Built: 2010

---

Specifications

Tonnage: 120
Ram Stroke: 0"- 27"
Ram Open Height: 33"
Bed Size (L-R, F-B): 93" x 30"
Ram Size (L-R, F-B): 93" x 30"
Distance Between Tie Rod Posts (L-R, F-B): 80" x 17"
Diameter Of Column Post: 5"
Ram Speeds:
Advance: 200 IPM
Press: 95 IPM
Return: 180 IPM
Oil Reservoir Capacity: 100 Gallons
Max. Operating Pressure: 3,118 PSI
Hydraulic Pump Output: 37 GPM
Dimensions (L x W x H): 104" x 44" x 129"
Weight: 20,000 Lbs.

---

Equipped with

• Push Button Control
• STI Safety Light Curtains Front & Back
• Remote Dual Infrared Finger Control Stand
• T Slotted Bed & Ram
• Horsepower: 50
