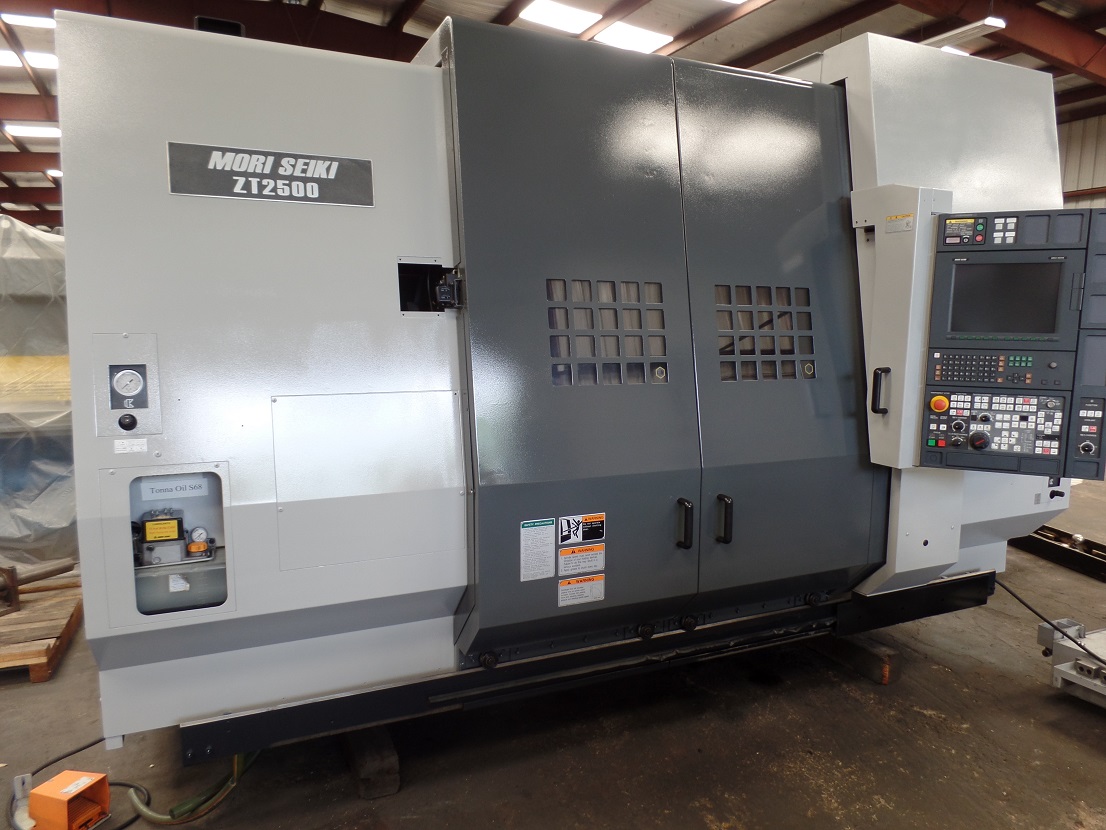

MORI SEIKI ZT2500Y CNC LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ZT2500Y
ZT250GD0220
Lathes and Turning Centers CNC
Multi Axis Turning Center
used
29700 (LB)
2007
$124,500.00

Description

Specifications:

Model                                                            ZT2500Y

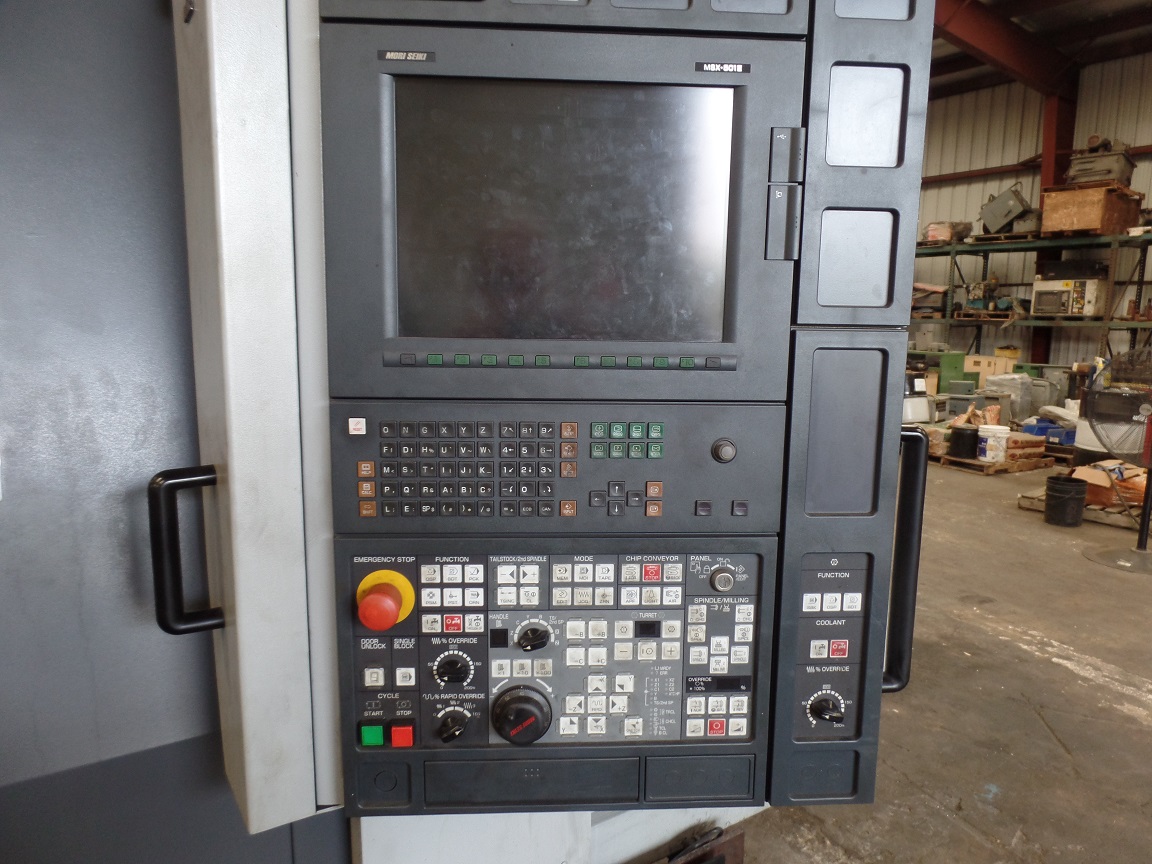

CNC control                                                  Fanuc 18iT
Serial number                                               ZT250GD0220
Front chuck                                                   Schunk HSH-350, 13.78 in
Opposing chuck                                Schunk 215  66, 8.46 in to 2.6 in bore.
Swing                                                            26 in
Swing over cross slide                                 29 in
Center distance                                           39 in
Max turning diameter                                  14 in
Bar capacity                                                 3 in
X-axis travel                                                 10 in
Y-axis travel                                                  - 1.9 in-- + 1.9 in
Z-axis travel                                                 40 in
Spindle 2, B-axis travel                               40 in
Spindle 1 speed range                                4,000 rpm, 2 steps
Spindle 1nose                                             A-2-8
Spindle 2 speed range                               6,000 rpm
Spindle 2 nose                                           A-2-5
Turret stations, both turrets                       12 stations
Rotary tool spindle speed                          6,000 rpm
Rotary tool capacity                                   Drill 1 in, Tap M 20
Tailstock taper                                           MT 5
Spindle 1 motor                                        15/22 hp
Spindle 2 motor                                        11/7 hp
Rotary tool motor                                      3.7/5.5 hp

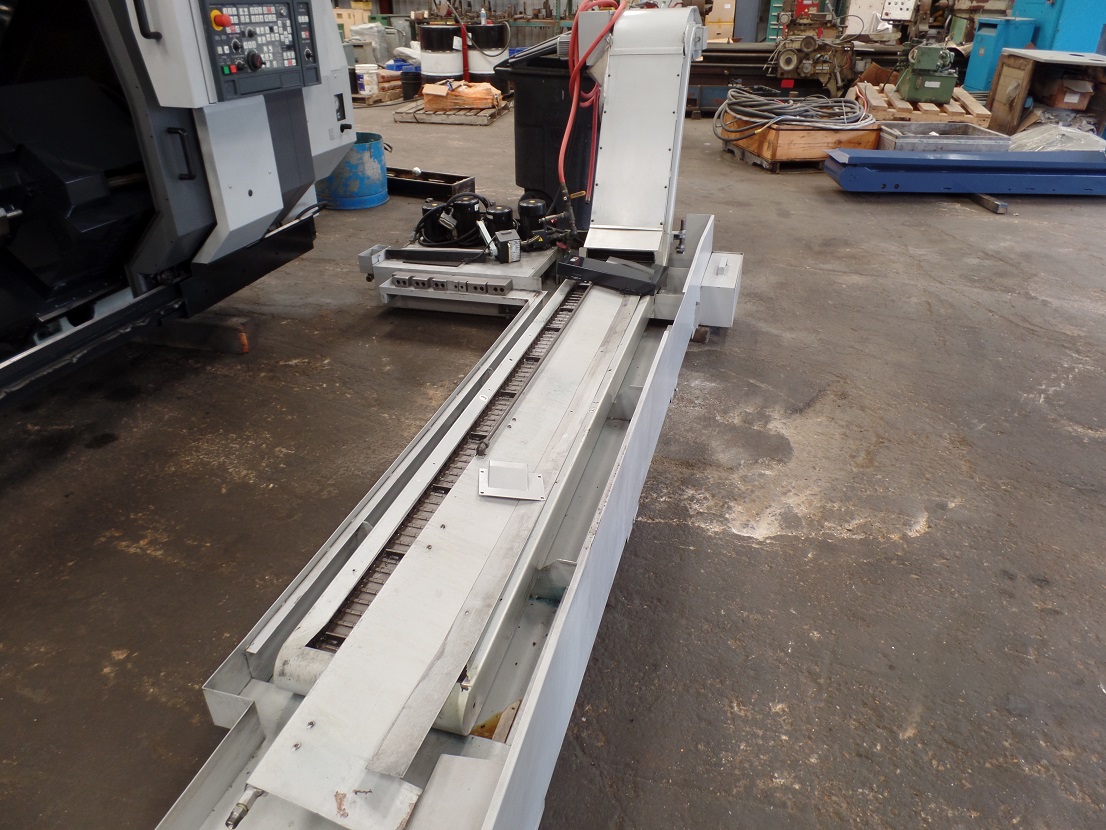

Chip conveyor                                          Yes, 91 gallons
Dimensions                                               87 in high x
Weight                                                       29,700 lbs. apx.

Hours of operation:

--Upper turret, On hours: 19 hours, 15 minutes, 23 seconds
Cutting time: 59 minutes, 12 seconds
--Lower turret, On hours: 3,251 hours, 32 minutes, 21 seconds
Cutting time: 2,928 hours, 33 minutes, 42 seconds

Price: $ 124,500. FOB Houston, TX. (SPECIFICATION TO BE CONFIRMED)
Comments:
Excellent condition, very low hours. New cost today pushes $ 400,000.
Manuals:
Parameter list. Ladder. Electrical. Operation. Accessory (lube pump, hydraulic unit, etc.). Installation.
